• Model NO.：PTP3013
• Tool Magazine：Carousel
• Tool Slots：8PCS
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. PTP3013 Tool Magazine Carousel Tool Slots 8PCS Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Mars Origin China HS Code 8465990000 Production Capacity 300 Sets/Month

Product Description

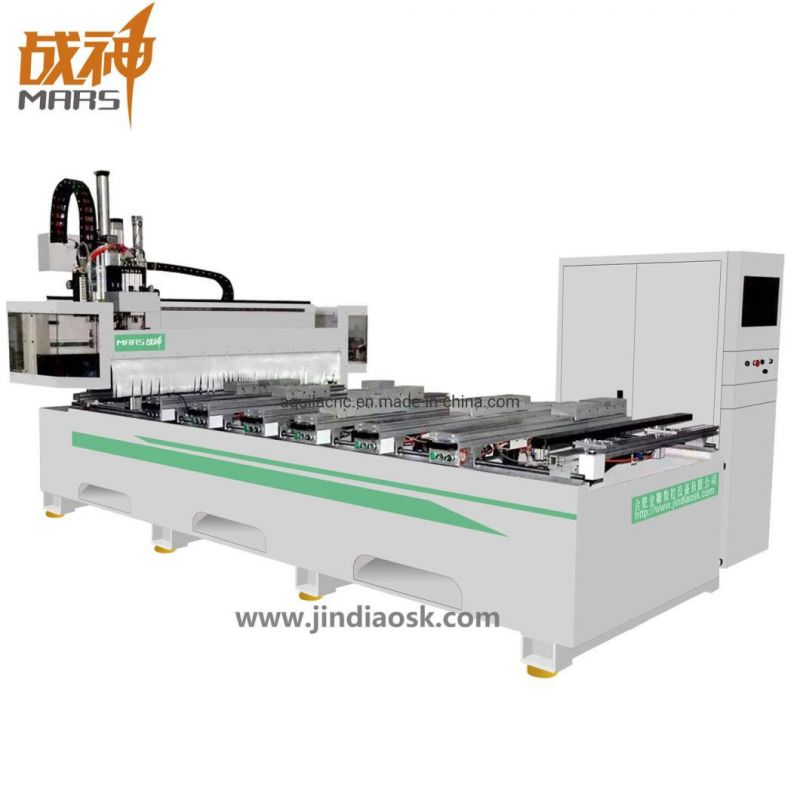

PTP Drilling CNC Machining Center for Panel Furniture Keywords:15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                  Three Brand: Mars, Golden Eagle,Borio



Description:PTP Drilling CNC Machining Center for Panel Furniture is suitable for processing diversified complicated products,with wide rage of functions,including routing,drilling,cutting,side milling,sawing,etc..It breaks the traditional processing mode,really saves time and effort.Make the production get rid of artificial dependence,significantly shorten the production process and processing time.It can be interfaced with panel production line software,is one essential equipment for the customized panel furniture production line.
Functions:
The functions of this machine include routing,drilling,cutting,side milling,sawing,etc..

Applicable Materials:
Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper.

Application Scope:
1. Furniture Industry: panel furniture, office furniture, wooden doors, cabinets.
2. Wood Products: stereo box, game cabinets, computer desks, sewing machines, musical instruments.
3. Panel Processing: insulation materials, plastic parts, chemical parts, PCB, inner body of motor car, bowling track, stairs, anti-Bethe plates, epoxy resin, ABS, PP, PE, etc. carbon mixed compound.
4. Decoration Industry: acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper.

 Parameters:

Model	PTP Drilling CNC Machining Center for Panel Furniture
Working Stroke	1300*3700*150mm
Body Structure	Heavy-duty thicken steel structure with tempering
Transmission	XY axis rack and pinion, Z axis ball screw
Table Structure	Moveable gantry + suction cups
Spindle Power	HSD 9.0KW air cooling spindle
Spindle Speed	24000 rpm/min
Max Travelling Speed	80m/min
Max Processing Speed	20m/min
Tool Magazine	Carousel
Tool Slots	8pcs
Vacuum Pump	7.5KW
Reducer	Taiwan planetary reducer
Guide Rail	Taiwan Hiwin linear rail
Drilling Head	9 vertical+6 horizontal+1 sawing unit
Drive System	Yaskawa servo motor
Working Voltage	AC380/ 3PH/ 50HZ
Control System	SYNTEC
Support Software	Professional cutting optimization software (JiFusen/Yunxi/Tomder/Haisense)
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Net Weight	3000KG
Machine Size	2300*4500*1900mm

Accessories:

Performance Features:
1. Be suitable for processing diversified complicated products, with wide rage of functions, including routing, drilling, cutting, side milling, sawing, etc..
2. Break the traditional processing mode, really save time and effort. Make the production get rid of artificial dependence, significantly shorten the production process and processing time.
3. Can be interfaced with panel production line software, is one essential equipment for the customized panel furniture production line.

Samples:

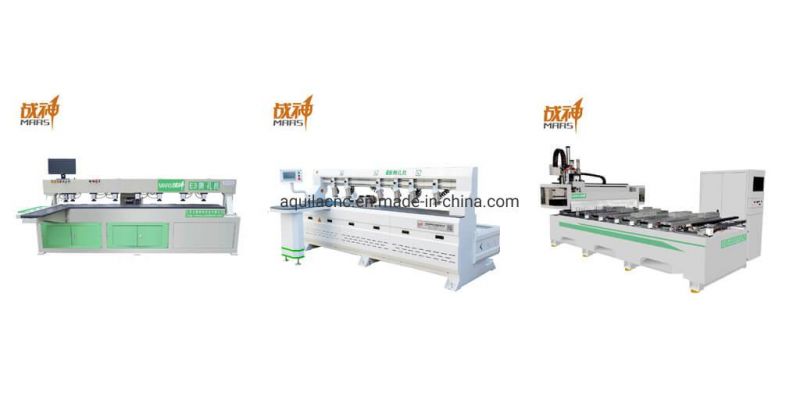

Similar products:
