Intelligent 4 Sides Door Cutting Machine

QINGDAO SOSN MACHINERY CO., LTD.
  • Type：Cutting Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：CNC
  • Automatic Grade：Automatic
  • Precision：High Precision

Base Info

  • Model NO.：SK1328A
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Working Table Size：1300*2800mm
  • Max Cutting Length：2700mm
  • Max Cutting Width：1200mm
  • Max Cutting Thickness：65mm
  • Table Structure：Floating Adsorption Table
  • Drive Trype：Rack Drive
  • Spindle Power：5.5kw*3+1.1kw*3
  • Main Saw Blade Speed：4500-6000rpm
  • Scoring Saw Blade Speed：7000-9000rpm
  • Max Working Speed：25m,Min
  • Scoring Saw Blade Diameter：120mm
  • Main Saw Blade Diameter：300mm
  • Driving System：Servo Drive
  • Cross Weight：4500kg
  • Transport Package：Strong Strech Film Package
  • Specification：6000*2600*2300mm
  • Trademark：SOSN
  • Origin：China
  • HS Code：84659400
  • Production Capacity：10sets,Month

Description

Intelligent 4 Sides Door Cutting MachineProducts description:The body and beam are welded by thick-walled 10mm square tube, thickened pad is processed by large-scale gantry milling after aging and tempering. The accuracy of track and rack surface is within 0.05mm.Intelligent 4 Sides Door Cutting Machine

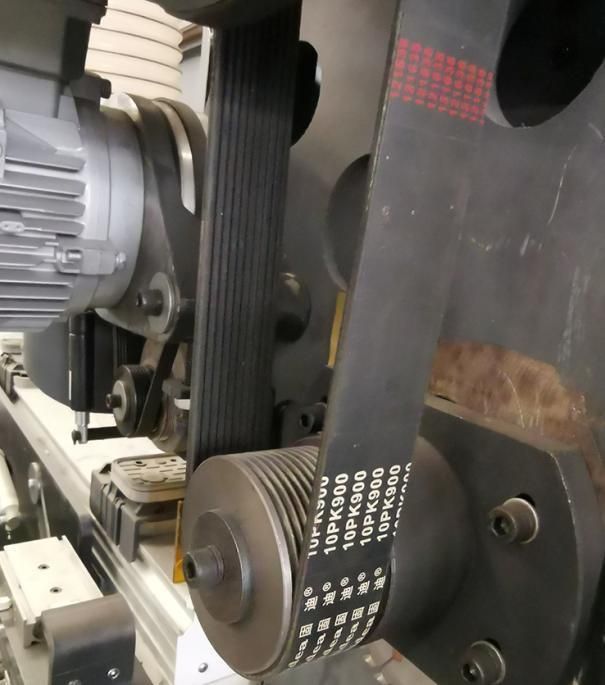

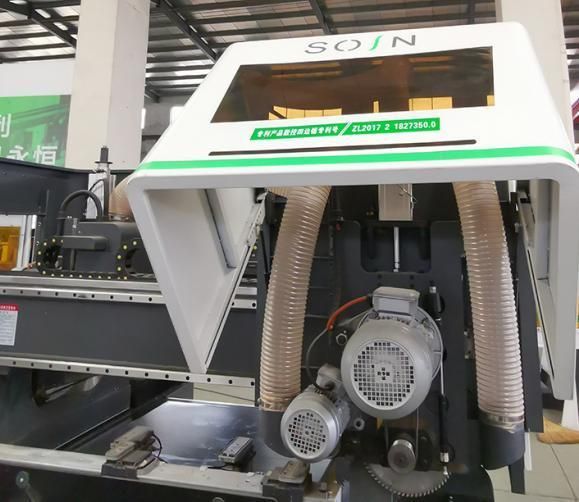

 4 sides cutting machine adopts automatic three sets of saw blades, the automatic cutting is changed from vertical to horizontal cutting, and an average of one door panel cutting is one minute. High work efficiency and low noise!Intelligent 4 Sides Door Cutting MachineBelt transfer to ensure cutting accuracy.Intelligent 4 Sides Door Cutting Machine

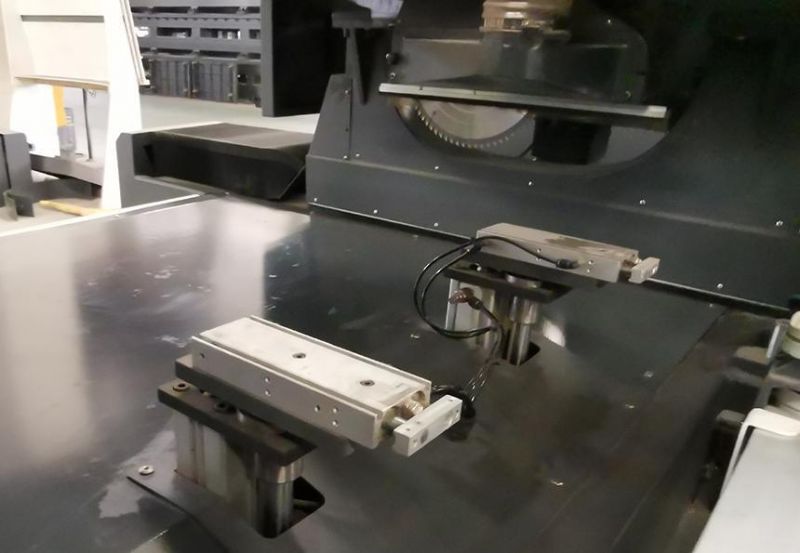

Side positioning device for door panel positioning.Min cutting width 560mm; Max cutting width 1020mm

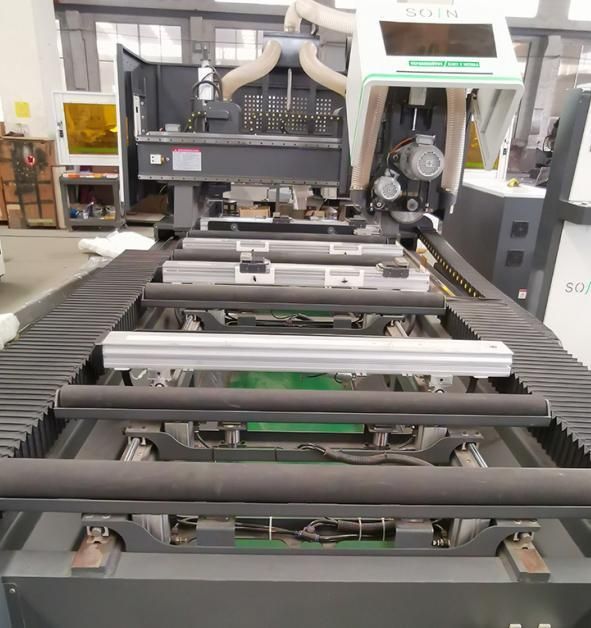

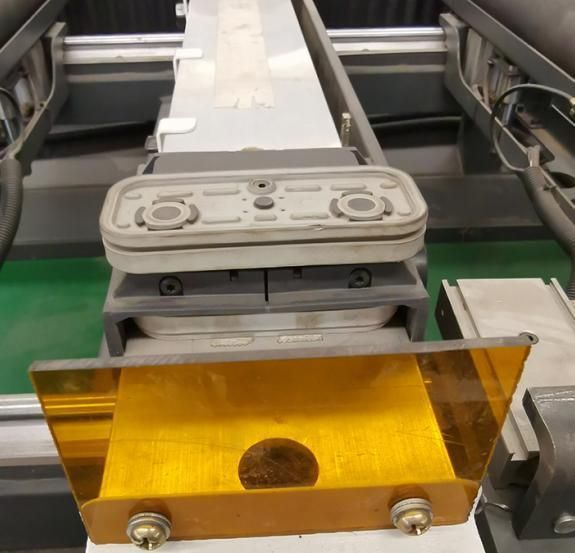

 Intelligent 4 Sides Door Cutting MachineGerman Schmalz PTP adsorption block suction cup&adsorption beamIntelligent 4 Sides Door Cutting MachineDrum type high-quality rubber roller is conveyed with a strong stability and easy operation, ensure the processing surface of the plate is smooth.

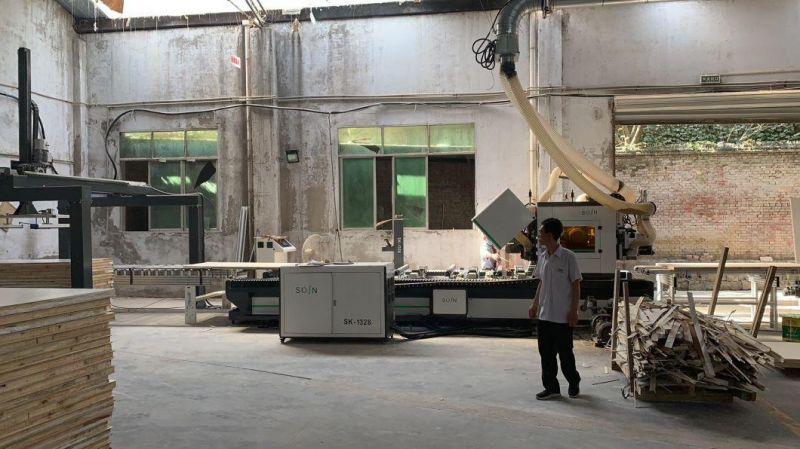

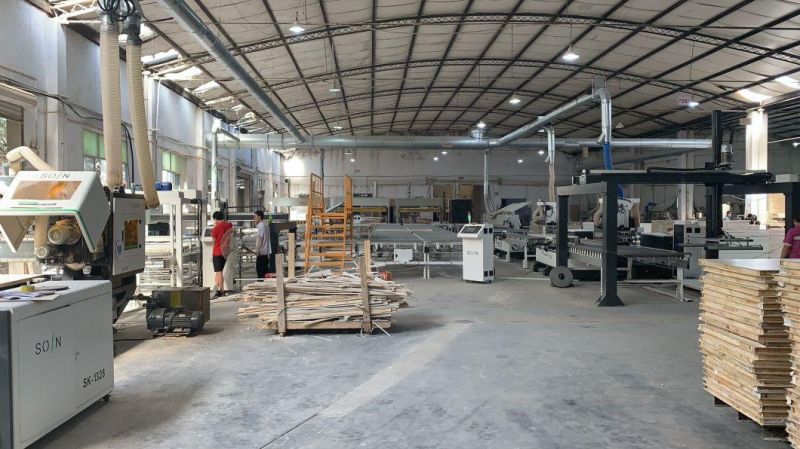

Machine in customers' factory:Intelligent 4 Sides Door Cutting Machine
Intelligent 4 Sides Door Cutting Machine
Delivery and shipment:
Intelligent 4 Sides Door Cutting Machine
