• Model NO.：YQVP2600
• Diameter of Peeling：30-500mm
• Length of Knife：2700mm
• Thickness of Veneer：0.3-4mm
• Diameter of Single Roller：110mm
• Diameter of Double Roller：125mm
• Diameter of Guide Screw：90mm
• Single Roller Motor：2*7.5kw
• Double Roller Motor：2*11kw
• Feeding Motor：15kw
• The Knife Gap Motor：1.5kw
• The Knife Angle Motor：1.5kw
• Speed：40-80m,Min
• Clipper Motor：4kw
• Conveyor Motor：2.2kw
• Transport Package：Nude
• Specification：5600*2000*1800mm
• Trademark：YUEQUN
• Origin：Linyi City

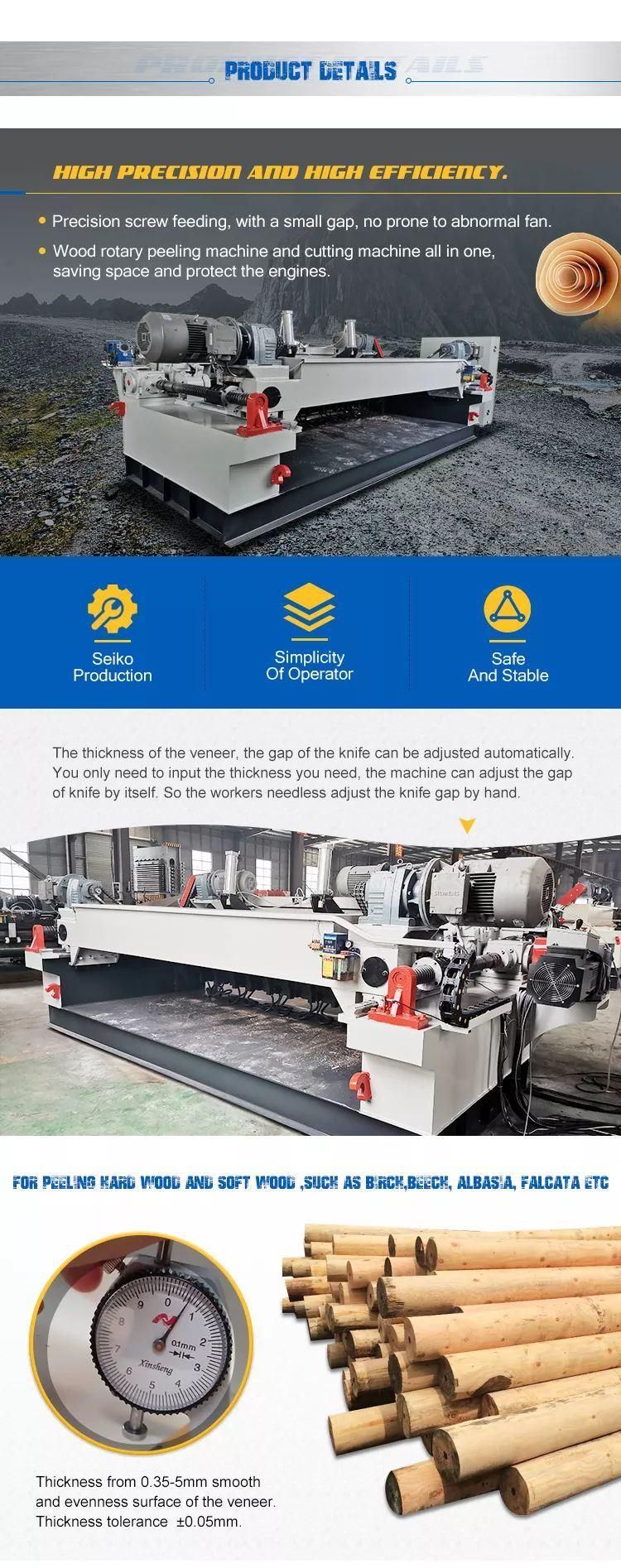

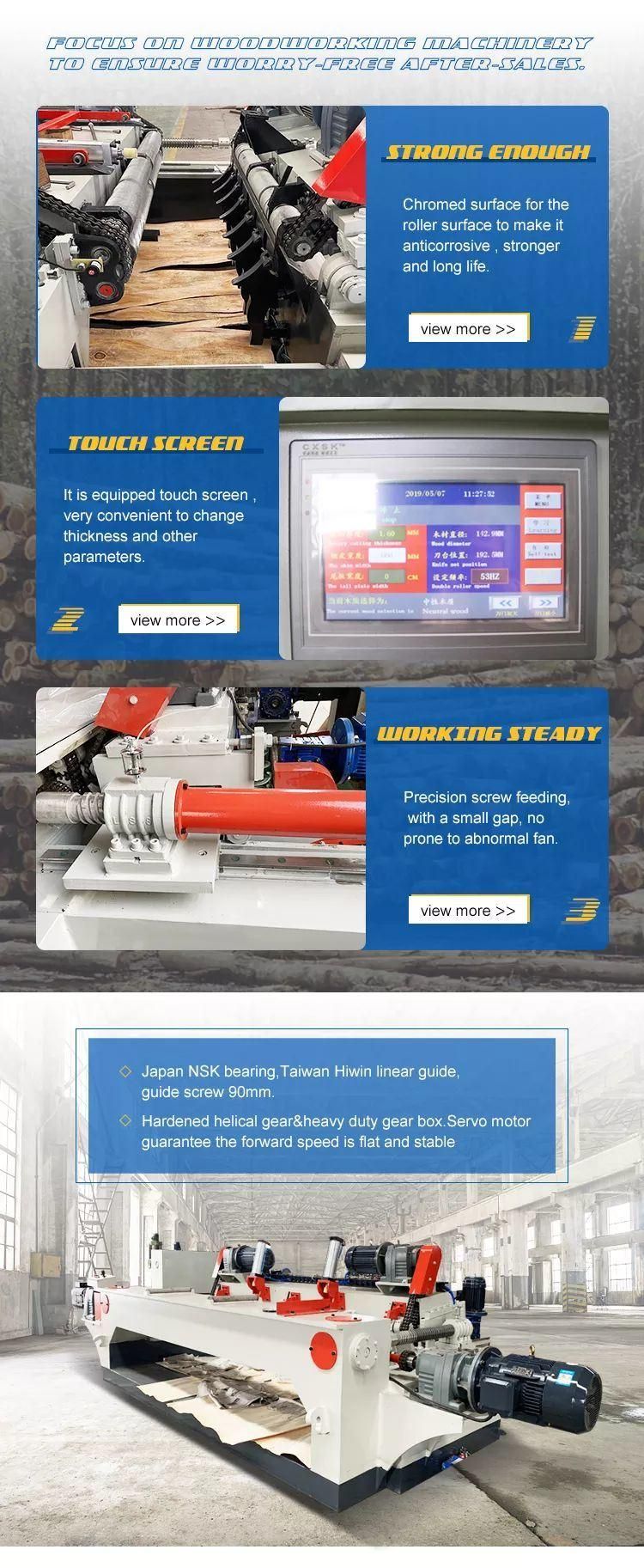

8Feet veneer peeling machine

Model

YQVP2600-HP

Max.peeling length

2600mm

Max.cutting diameter

500mm

Thickness range

0.3mm-4mm

Peeling knife

2700*180*16mm

Cutting knife

2700*140*12.7mm

Core diameter of remaining

25-32mm

Diameter of single roller

125mm

Diameter of double roller

125mm

Diameter of guide screw

90mm

Power of Single roller

2*7.5kW

Power of double roller

2*11kW

The knife gap motor

1.5kw(servo motor)

The knife angle motor

1.5kw(servo motor)

Feeding motor

15kW(servo motor)

Clipper motor

4kw (servo motor)

Hydraulic station

3kw

Conveyor motor

2.2kW

speed

40M-80m/minute(adjustable)

Weight diameter

10500kgs

Overall dimension

5600*2000*1800mm

Factory Price Custom Spindless Rotary 8 Feet Veneer Peeling Machine Lathe

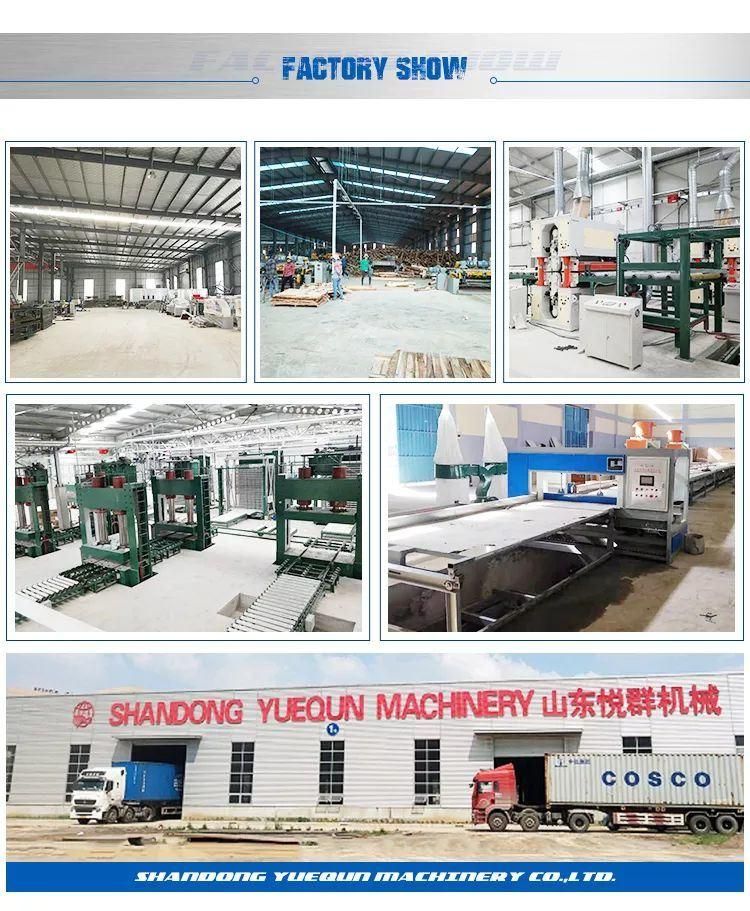

Shandong Yuequn Machinery Co., Ltd.

-----------------------------

Shandong Yuequn Machinery established in 1994 , it's the biggest and professional plywood production machinery Manufacturer in
Linyi city China .all the machine for exporting , over 50 countries .

The complete plywood production line include :

- log debarker
- veneer peeling machine

- veneer dryer machine

- veneer composer machine

- glue spreader

- cold press machine

- hot press machine
- plywood edge cutting saw

- sanding machine and so on

Q1:Can you customize products for clients?

 A1: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?

A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?

A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?

A4:The price depends on the latest prices of the raw materials.

Q5:What about the contract signing?

A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

Q6: How about delivery?

A: when the product is ready, it can be delivered to you after your full payment. We^}ll provide technical guidance.
