Mars Woodworking Double-Spindle Wood CNC Router/Carving Machine for Cabinets
Hefei Aquila CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Table Structure：Vacuum Table
- Spindle Speed：24000r,Min
Base Info
- Model NO.：XE300
- Working Voltage：AC380,3pH,50Hz
- Configuration：6kw+ 4.5kw Air Cooled
- Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
- Specification：1300*2500*300 mm
- Trademark：Mars
- Origin：China
- HS Code：84659900
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. XE300 Working Voltage AC380/3pH/50Hz Configuration 6kw+ 4.5kw Air Cooled Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 1300*2500*300 mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/MonthProduct Description
MARS Woodworking Double-Spindle Wood CNC Router/Carving Machine for CabinetsKeywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:

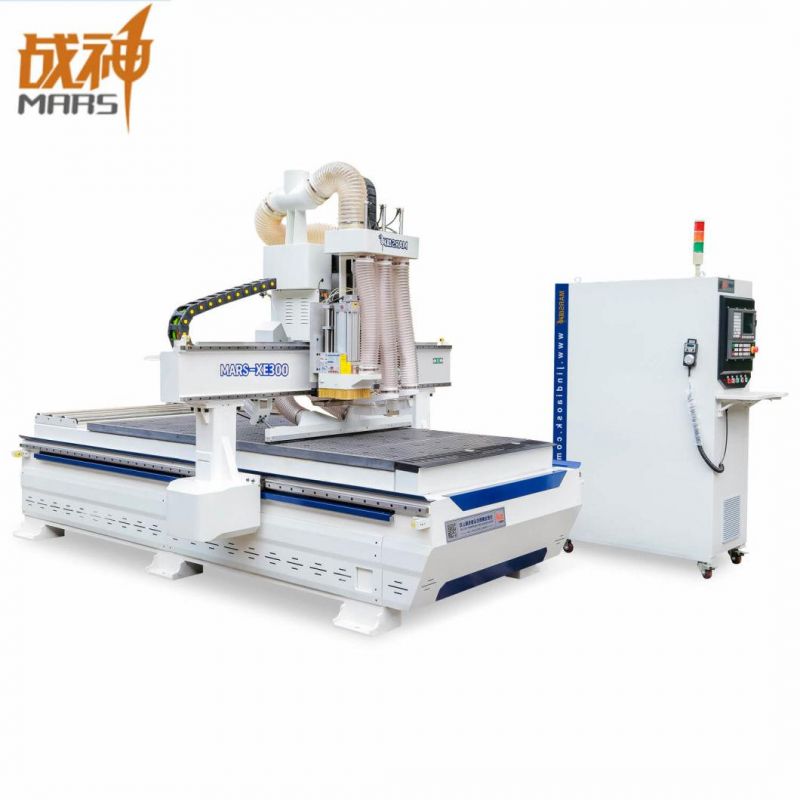

XE300 CNC Router Machine with Drilling Block Wood Cabinet Making Machine for Wood Panels is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include cutting,milling,chamfering,punching,engraving and other auxiliary processing.
Applicable Materials:

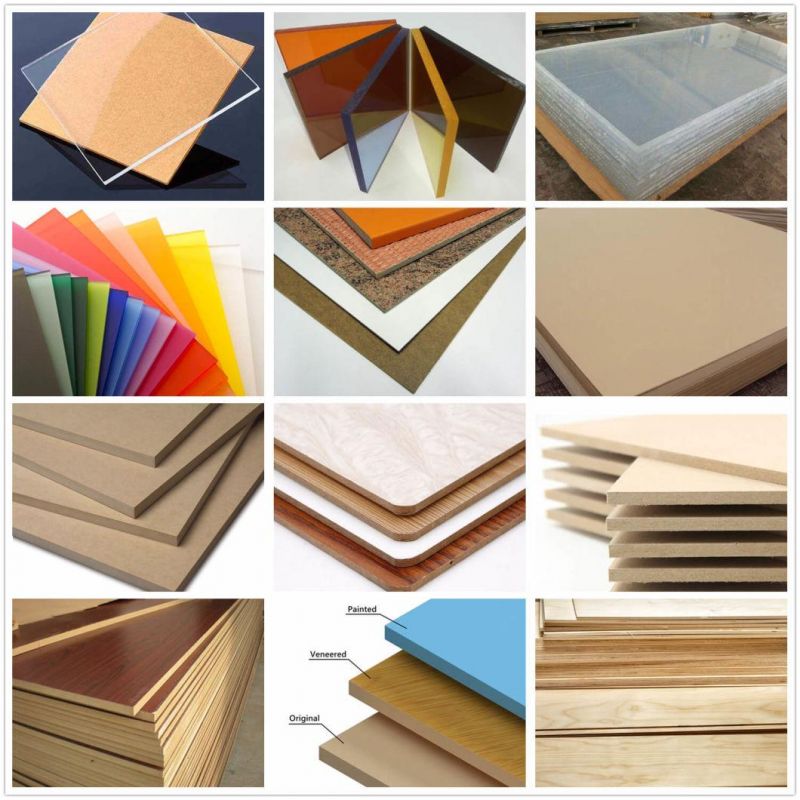

MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Application Scope:Suitable for the production of board furniture such as panel processing, computer desk, panel furniture, office furniture, wooden speaker, wooden kitchenware, custom wardrobe cabinet, modern cabinet and so on.
Parameters:
| Model | XE300 CNC Router Machine with Drilling Block Wood Cabinet Making Machine for Wood Panels |
| X/Y/Z axis working stroke | 1230*2450*200mm |
| Table surface | vacuum Table |
| Body Structure | Thick-walled steel tube welded, w/ tempering |
| Spindle power | 6KW + 4.5KW air-cooling spindle |
| Spindle speed | 0-24000 rpm |
| Drilling Head | Italy HSD 5+4 drill bank |
| Working Voltage | AC380/ 3PH/ 50HZ |
| Control system | Taiwan Syntec |
| Drive sytem | Japan Yaskawa Servo motor |
| Transmission | X/Y axis helical rack & pinion, Z axis ball screw |
| Guide rail | Taiwan Hiwin rectangular linear rail |
| Vacuum pump | 7.5KW |
| Dictate Format | G code/ HPGL |
| Lubrication System | Automatic |
| Max Travelling Speed | 60m/min |
| Max Processing Speed | 30m/min |
| Working Accuracy | ±0.02mm |
| Re-positioning Accuracy | ±0.05mm |
Accessories:

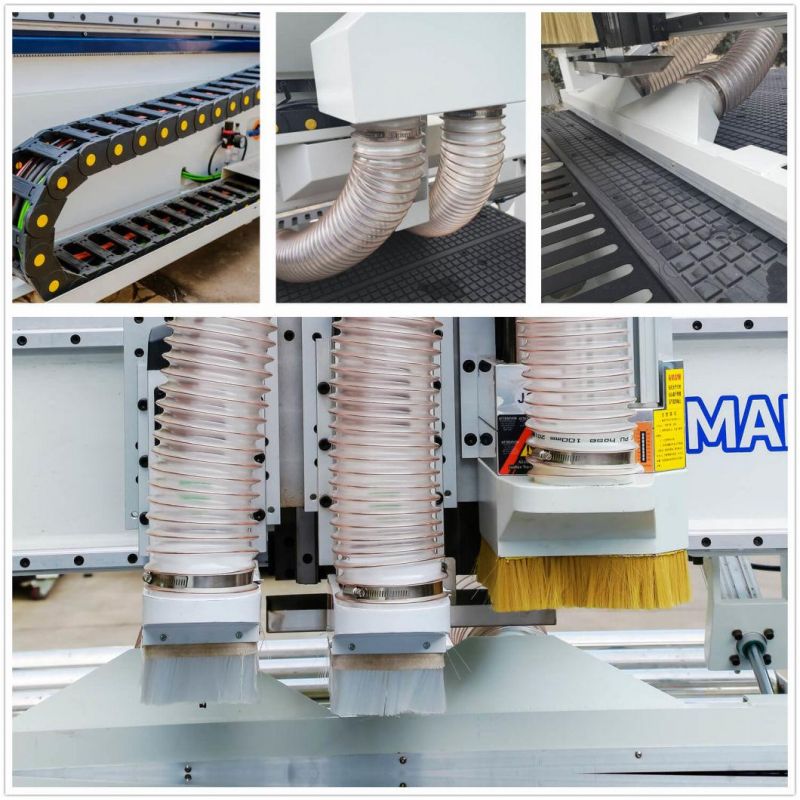

Performance Features:1. Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.
2. Carousel type tool magazines support automatic tool changer, improve processing efficiency.
3. Italy 6KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.
4. Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation.
5. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
6. Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
7. Taiwan Syntec control system, easy to operation,fully support automatic production
8. Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration.
9. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.

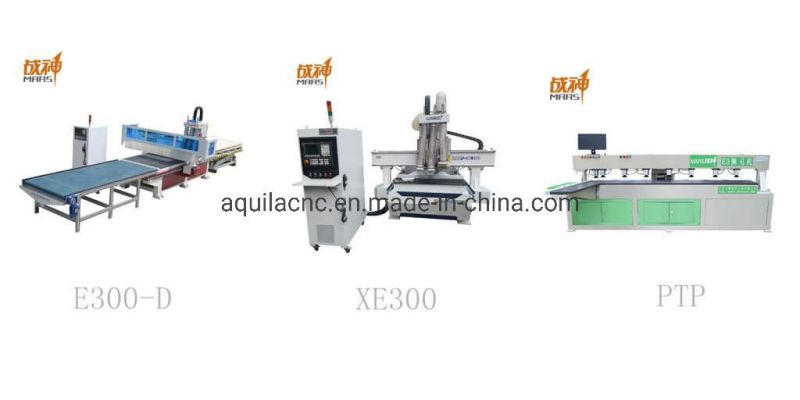

Similar products:
