• Model NO.：LSW1325ATC
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Online Service
• X,Y Worksize：1300X2500mm
• Z-Axis Worksize：200mm
• Spindle Power：3.2kw Air Cooling(0-18000rpm)
• Control System：Mach3,DSP Offline Control
• Transport Package：International Standard Plywood Box
• Specification：305cm*200cm162cm 1380kgs
• Trademark：Lansen
• Origin：Shandong, China
• HS Code：8456990000
• Production Capacity：300sets,Month

Basic Info.

Model NO. LSW1325ATC Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Online Service X,Y Worksize 1300X2500mm Z-Axis Worksize 200mm Spindle Power 3.2kw Air Cooling(0-18000rpm) Control System Mach3/DSP Offline Control Transport Package International Standard Plywood Box Specification 305cm*200cm162cm 1380kgs Trademark Lansen Origin Shandong, China HS Code 8456990000 Production Capacity 300sets/Month

Product Description

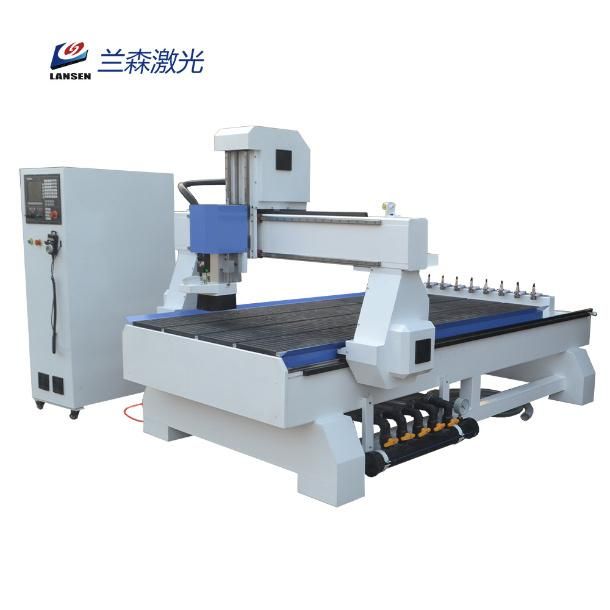

 ATC Woodworking CNC Cutting machine for cabinet Door Furniture 1530 1325

 Parameters:

Model Items	LSW1325ATC
Brand	Lansen
X,Y Worksize	1300x2500mm1500x3000mm(Can Be Customized According to Your Requirement)
Z-axis worksize	200mm
Control system	DSP(Mach3 USB, NC Studio, Syntec, etc Optional)
Spindle Power	3.2KW Air Cooling(0-18000rpm)
Table	T-slot aluminum/t-slot Vacuum(Optional)
Spindle rotating speed	0-24000rpm
voltage	220v/50hz/(110V/60Hz optional)
Machine power	450w
Command	G code
Max Speed	12m/min
Working speed	3.5m/min
Driver Motor	Stepper
Rail guide	Square rails from Taian
Compatible Software	Type 3 / Artcam / Casmate / Proe / UG / Artgrave etc.
Transmit way	XY Gear Rack and Z Ballscrew
Working Speed	0-15000mm/min
Command Code	HPGL,G code
Working Precision	0.05mm
Working Voltage	AC220V/50~60HZ,380V5060HZ,3 PHASE
Compatible Software	Tvpe3/Arcam/UG/Pro-e/Mastercam/Ucancam V10 etc
Dust Collector	With
Machine Size/Package Size	305cm*200cm162cm/316cm*213cm186cm
Net Weight/Gross Weight	1150KGS/1380KGS

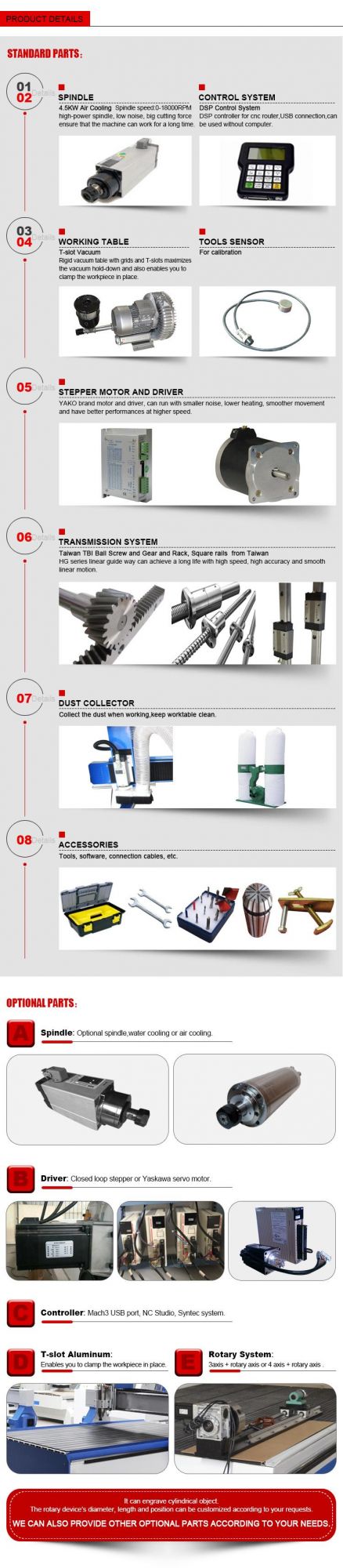

Product Details:

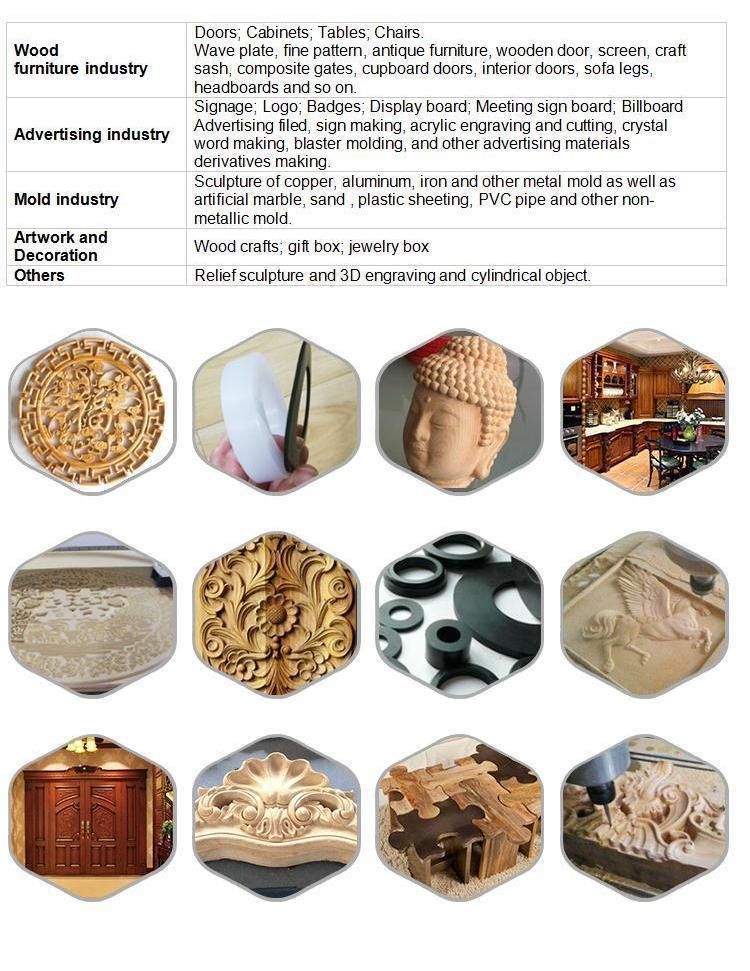

Applications:

Packaging&Shipping:
Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.
Supply Ability: 100 sets / Month
Port: Qingdao,Tianjin, Shanghai
Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.
Packaging Detail: International standard plywood export box
Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS


FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
