• Model NO.：KLX-1000
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：online
• Certificate of Origin：Yes
• Certificate：CE
• English Manual：Yes
• Warrenty Time：1 year
• Cpacity：1tph
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：VIC
• Origin：China
• HS Code：84793000
• Production Capacity：6 Sets ,Year

Basic Info.

Model NO. KLX-1000 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service online Certificate of Origin Yes Certificate CE English Manual Yes Warrenty Time 1 year Cpacity 1tph Transport Package Wooden Box Specification CE, SGS Trademark VIC Origin China HS Code 84793000 Production Capacity 6 Sets /Year

Product Description

1000kg/h wood  pelelt machine wood pellet production line 1.introduction
We can make wood pellet production line from 500kg/h to 12t/h which is included crusher, dryer, pellet maker, cooling, packing and other auxiliary equipments.
The whole wood pellet production line is compact structure, small occupation, low consumption and high effenciency.
The wood pellets can be made from any type of wood, straw waste, forestry wastes, lumber leftover, sawdust, wood chips, wood bark and all type of agriculture stuff, such as bamboo dust, sugarcane, coffee husk, paddy straws, sunflower/cotton/corn stalks and so on.
The finished pellets diameter can be 6mm, 8mm, 10mm, 12mm according to clent's need.
The above is standard wood pellet production line, some processes are alternative and adjustable according to different raw material and requirement of clients.

2.Main data about the wood pellet production line :

NO	Item	Qty	Power/KW	Capacity/kg	Weight/T	Size/mm	Remark
1	HM-50 hammer mill	1	18.5	1000-1800	1150	1800*1200*1300	Crush the material into sawdust
2	HGJ-III Pipe dryer	1	7.5	800-1000	1.2		Dry the material
3	Raw material bin	1		--------	0.25	1000x1000x1200
4	200 screw conveyor	1	1.5speed regulation	500-2000	0.15	3800x160x160
5	200 screw feeder	1	1.5	500-1500	0.06	1500x160x160
6	VIC-500K pellet mill	1	55	800-1100	2300	1800*1000*1550	Making pellets
7	SKLN11X11 pellet cooler	1	1.5	800-1500	1150	1925*1340*2220	Cooling the pellets ,with the screener and conveyor
8	TDTG 30 bucket conveyor	1	1.5	800-1500	650	5000x650x380
9	BZC-25 packing machine	1	0.74	200-300bag/h	650	2200*1000*2500	With sealing machine and conveyor
10	Control box	1	------	---------	0.26	800x350x1400	Control the whole line

 The whole wood pellet production line need one 20'container, installation size is about 8000*2000*3200mm.

3. Main machine introduction about the wood pellet production line:

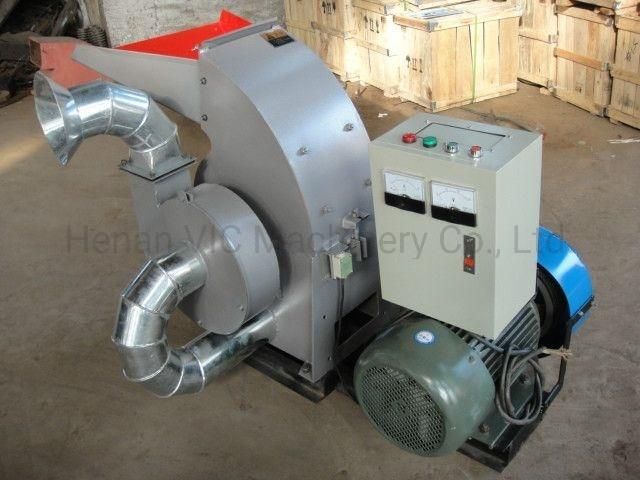

 HM Hammer mill:

This hammer mill can grind all kinds of small wood, wood scraps, branches, wood chipper, plate edge material, wood bark, bamboo and other wood materials and straws into sawdust directly. It is small investment, low energy consumption, high productivity, high economic benefit; the crushed sawdust can be put into pellet mill directly.

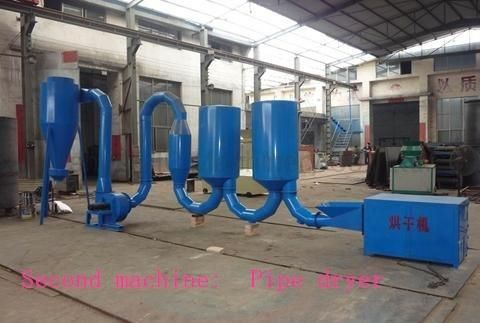

Pipe dryer

Introduction:
Working principle: In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream speed is very high, and materials suspending in air stream, the heat transfer surface between air and raw material is large, so the heat transfer rate is high.
It is special suitable for drying heat sensitive material like sawdust, rice hull, milled wheat straw, milled cotton/ corn stalks and so on. It also can be used for drying the grain better.
The HGJ SERIES dryer has the feature of low cost and high efficient. It can reduce moisture from 60-70% to 8-12%.
Fuel for the furnace: wood waste, coal. Waste oil and so on.

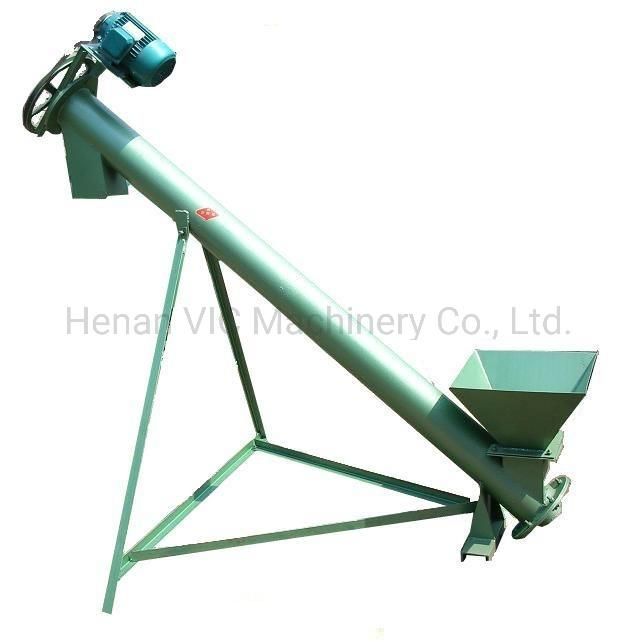

 Screw conveyor


Screw conveyor to feed the sawdust to to pellet machine

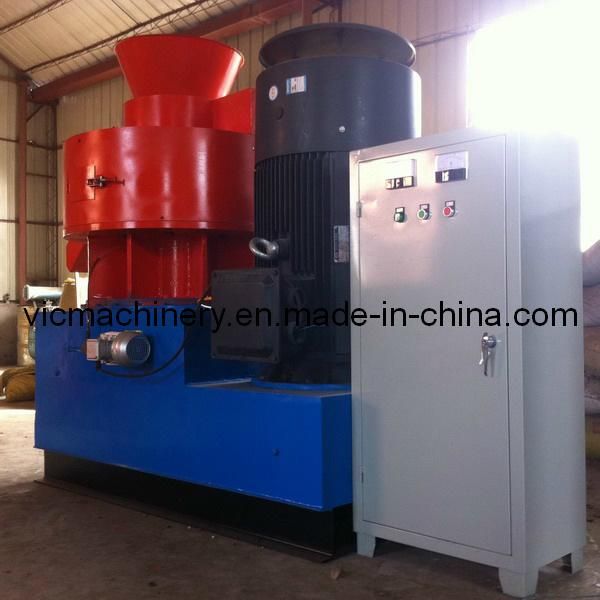

Pellet machine

Instruction
(1).It can make the biomass, sawdust pellet from corn straw,green waste,bamboo powder,grazing,straw,rice hull,all kinds of wood and so on. It also can make feedstuff pellets from corn ,oil cake the fish, chicken, animal and so on..
(2).Use the cold press forming technique, polishing craft, good appearance, compact structure;
(3).High capacity, low consumption, low noise, little trouble, high efficiency, continuous work, economic and durable;
(4).Whole machine is made by special high quality material, and KAF three-level gear box transmit equipments, main parts are used the high quality alloy steel with durable material, use the Germany vacuum stove hot principle, lifetime is bigger 5-7 times than common pellet mill.

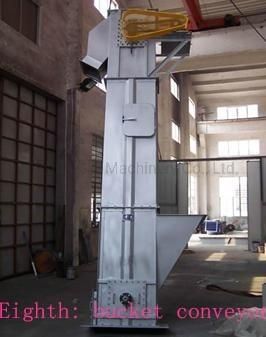

Bucket conveyor

It is used to conveyor the pellets to pellet cooler.

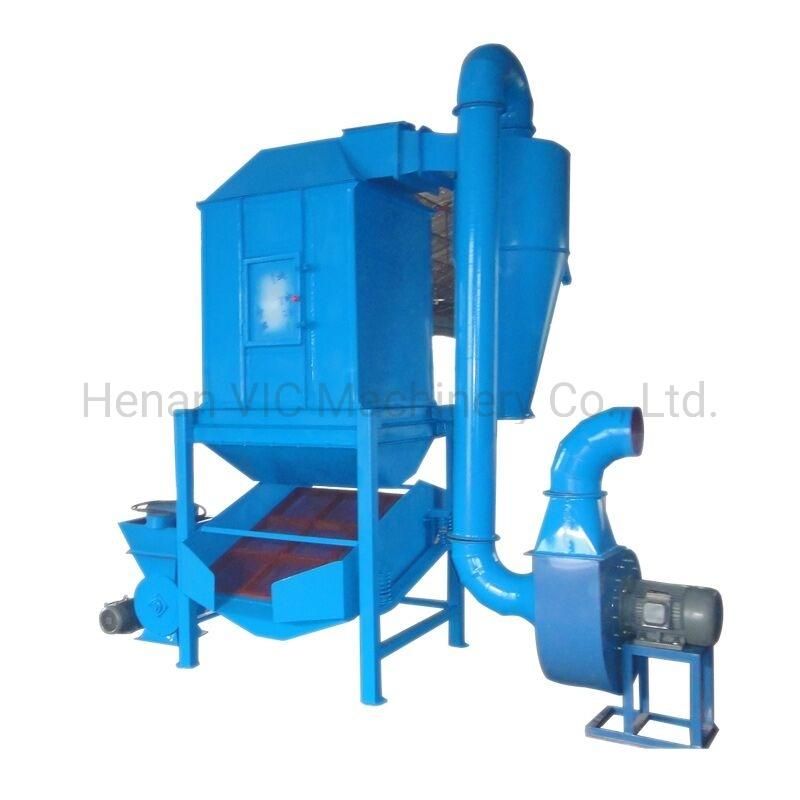

Pellet cooler


 After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, so the wood pellet is easy to store.

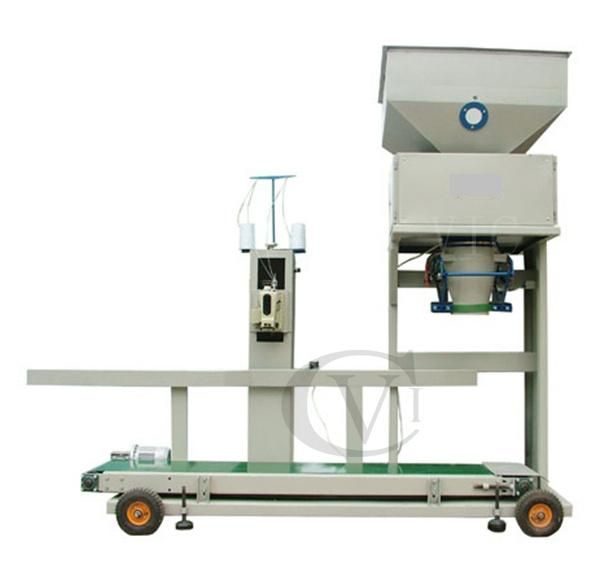

Pellet packing machine


The system is applied to quantitative automatic weighing, filling, kneading, accumulating weigh and times, stitching and conveying with manual assistant for powder material in the flour factory or other industry.

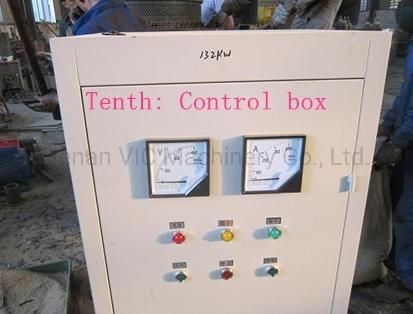

Control box

1 set   automatically control the whole line. It is matched with more sensors for controlling the whole process automatically.

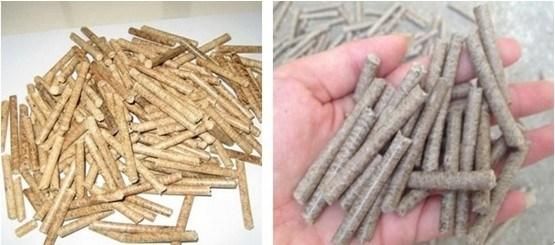

 Final product

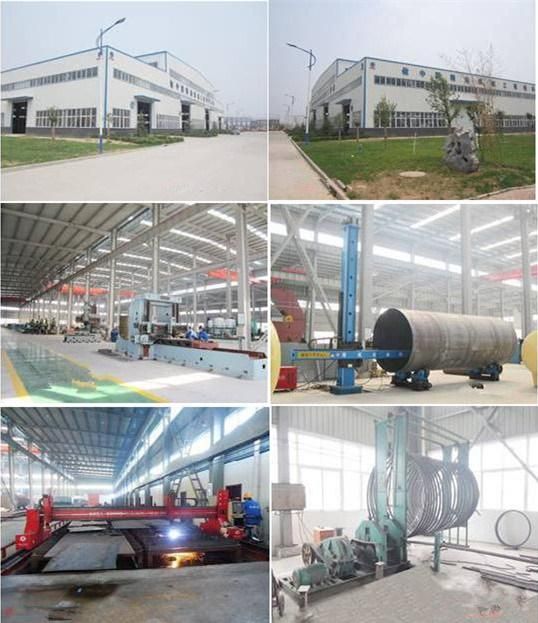

4.Our factory
