Woodworking Machinery

Home > Product > Wood Debarker

Plywood Machinery for Plywood Core Veneer Production

Shandong Gaotong Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Automatic Grade：Full-Automatic
  • Warranty：1 Year
  • Name：Log Debarker
  • Condition：New
  • Machinery Test Report：Provided

Base Info

  • Core Components：PLC, Engineer , Bearings , Gearbox,Motor, etc
  • Voltage：260V ,380V,415,Customized
  • Application：Remove Wood Surface
  • Total Power：29.5kw,44.5kw
  • Project Solution Capacity：Cross Categories Consolidation
  • After Sale Service：Field Installation , Commissioning and Training
  • Video Outgoing Inspection：Provided
  • Warranty of Core Components：2 Years
  • Brand Name：Gtco
  • Application Industries：Manufacturing Plant, Plywood Machinery
  • Transportation：by Container
  • Certification：CE
  • Transport Package：by Container
  • Specification：1300mm 2600mm 2900mm
  • Trademark：GTCO
  • Origin：China
  • HS Code：8465
  • Production Capacity：50,Month

Description

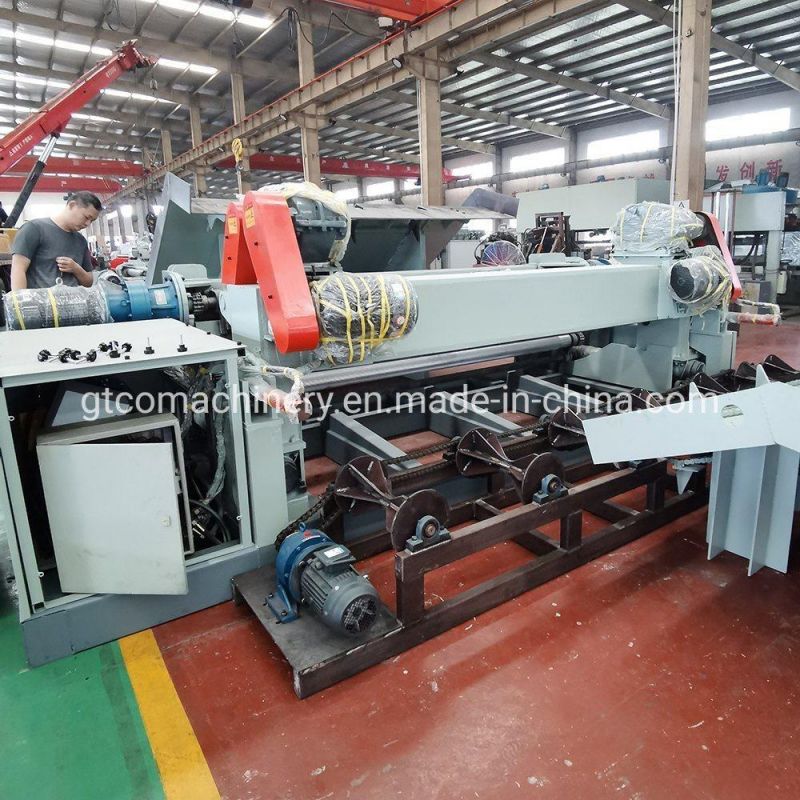

Product name:  DEBARKER Design: GTLD260Max Length of log2600mmMax Diameter of log 550mmMinimum left-over log80mmBlade Size2700*140*12.7mmSpeed 45m/minTotal Power

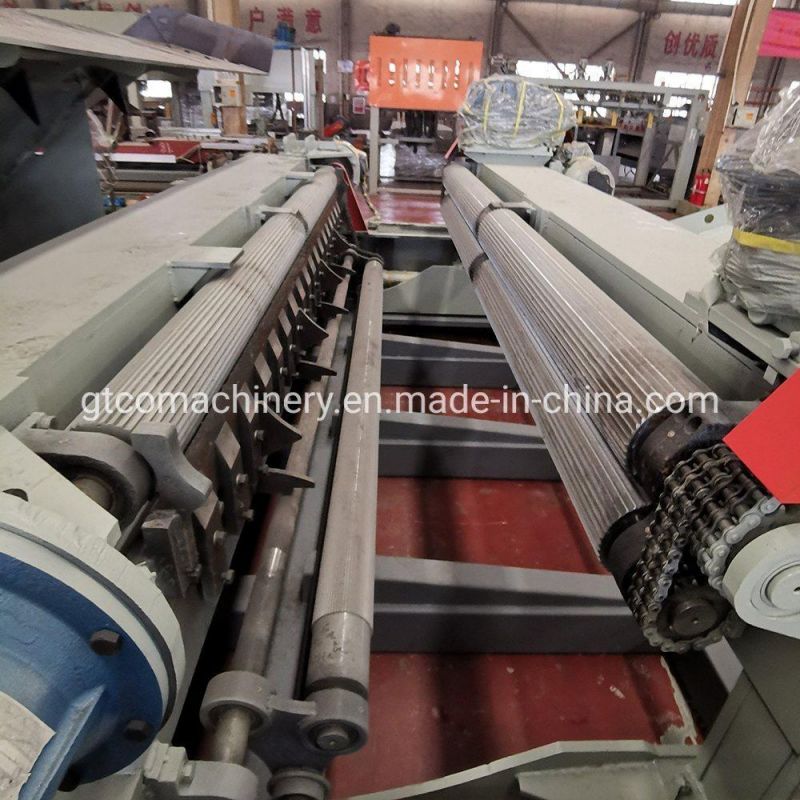

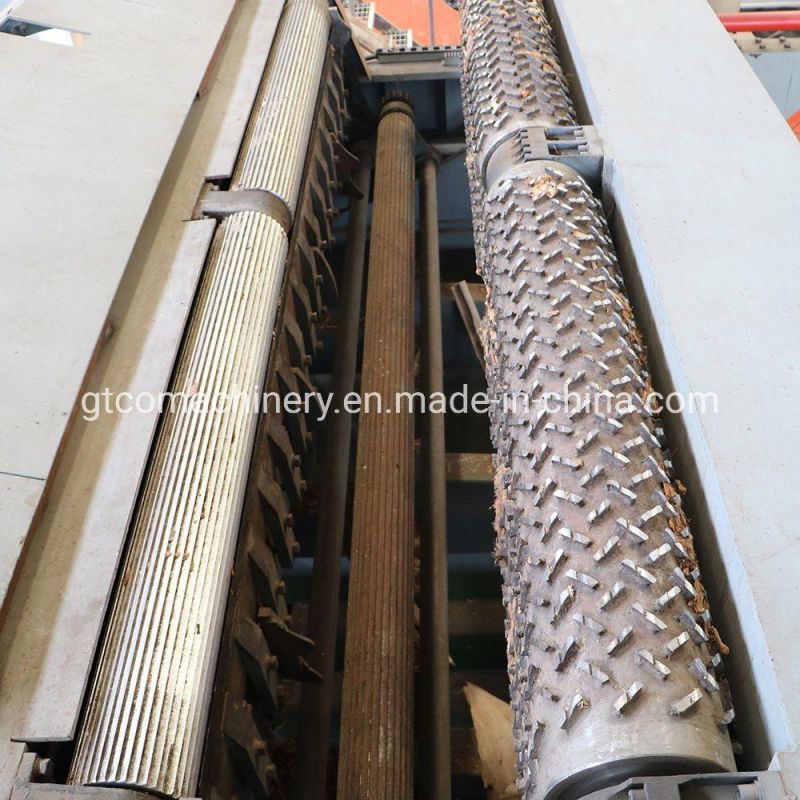

( 27.5KW )Double Roller: Φ150mm 11KW
Single Roller: Φ150mm 11KW
Hydraulic Motor   5.5KWOverall size 5200*2250*1600mmWeight About 5000KGSPlywood Machinery for Plywood Core Veneer Production
Main Features of wood debarking machine
1.After the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade
2.Adopts rotary cutting principle of non-chuck rotary lathe
3.Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work
4.One debarker machine can supply with two rotary lathe, save about five or six people
5.Hydraulic feeding, can debarking and roundup small size raw log
6.Competitive price and quality
 Plywood Machinery for Plywood Core Veneer ProductionPlywood Machinery for Plywood Core Veneer ProductionPlywood Machinery for Plywood Core Veneer ProductionPlywood Machinery for Plywood Core Veneer Production

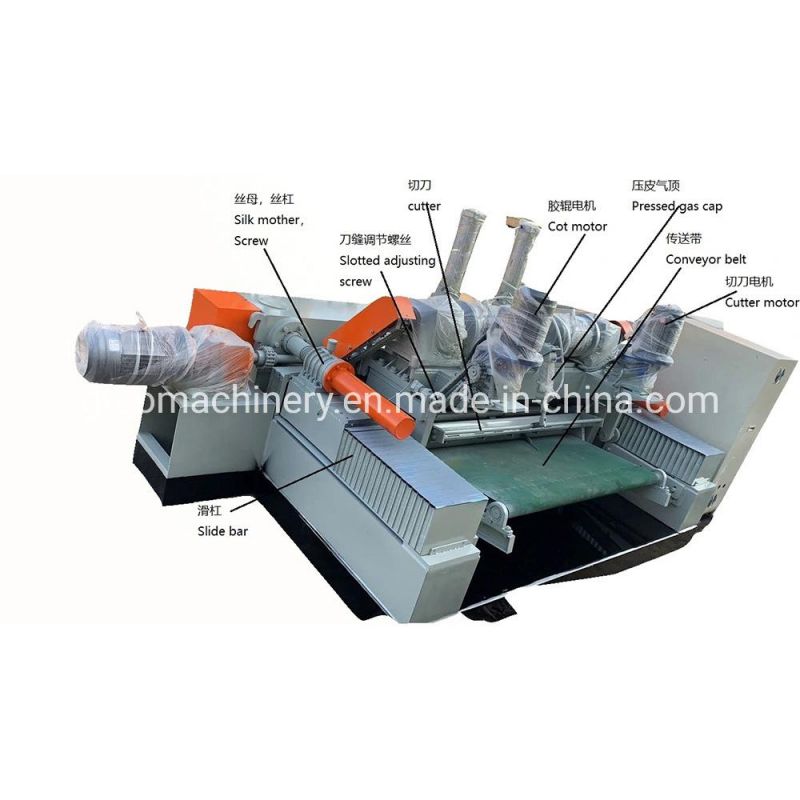

 SPECIFICATIONS FOR 4FT and 8FT VENEER PEELING MACHINESize4FT8FT Max log diameter500mm/700mm500mm/700mmMax log length1300 mm2600 mmPeeling knife size1500x180x16mm2750x180x16mmVeneer thickness0.3~3mm0.3~3mmMotor quantity7 sets7 setsFeeding motor7.5kw~11kw (servo motor)11kw-15kw (servo motor)Total power40kw54kw~61kwSpeed48-80m/min48-80m/minSize4500x2200x1650mm6200x2300x1700mmWeight7200 kg 12000 kg Plywood Machinery for Plywood Core Veneer ProductionPlywood Machinery for Plywood Core Veneer Production


Related products

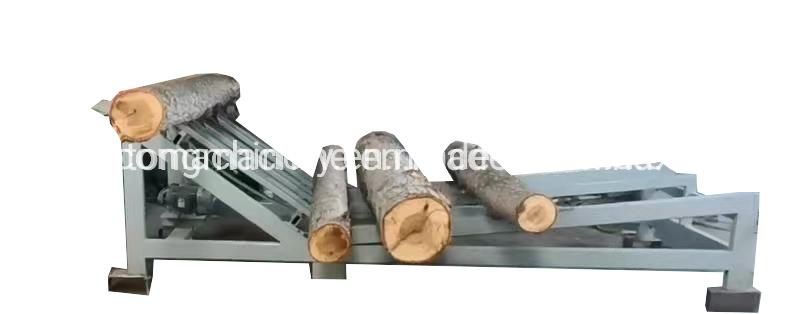

 2600mm Auto  Feeder Max Diameter of conveying  600mmSpeed 10meter /minTotal Motor power 5.5 kwOverall  Size3500*1500*900mm Weight 800 KGSPlywood Machinery for Plywood Core Veneer Production Plywood Machinery for Plywood Core Veneer Production2600mm Auto Vacuum veneer Stacker with Chain Veneer Width≤ 1850mmVeneer Length< 2600mmVeneer thickness(mm) 1mm to 3mmVeneeer Stacker height(mm)<1200mmPeeling speed (m / min)30-80m/minMinimum Hole opening detection50mmSorting levelOne stack per gradeMotor and power 30KWFan Specification5.5KW *4 setsOverall Size(L*W*H) mm3200*2500*2450mm

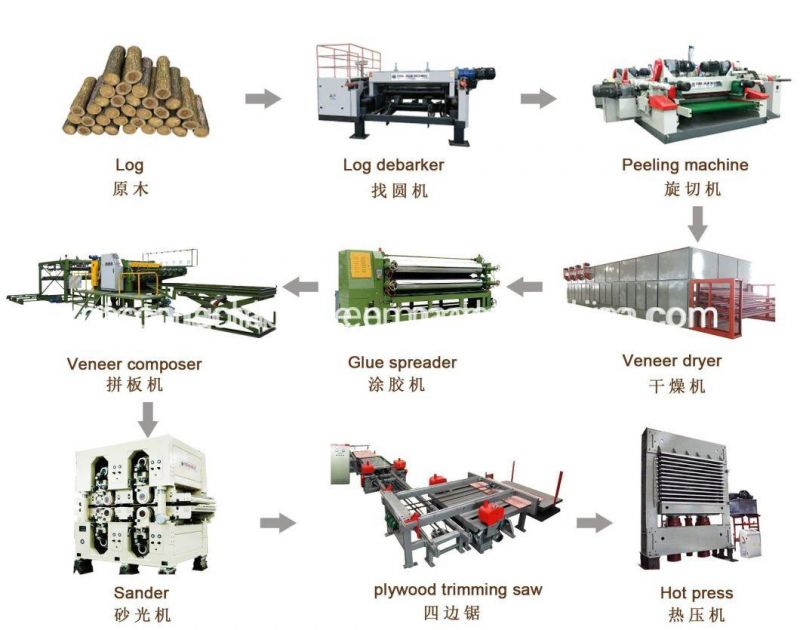

The full production line of plywood production are available
Plywood Machinery for Plywood Core Veneer Production

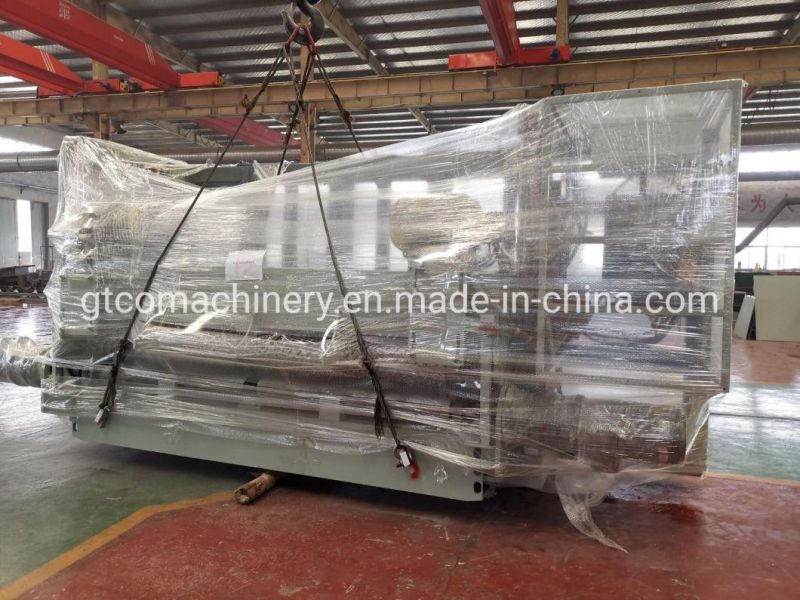

Packing & LoadingPlywood Machinery for Plywood Core Veneer ProductionPlywood Machinery for Plywood Core Veneer Production

pre-sale service:
1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4)Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;

In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China)
4) Assist buyers to install and debug equipment (overseas)

After-sales service
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.
