• Model NO.：M616A
• Cutter Shaft：24
• Spindle Speed：10~40m,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• Marketing Type：New Product 2020
• Core Selling Point：Easy to Operate
• Core Components：Motor
• Applications：Woodworking
• Main Shaft Diameter：1800mm
• Spindie diameter：40mm
• Transport Package：Film Package or Plywood Case
• Specification：4100*1630*1750mm
• Trademark：ZICAR
• Origin：China
• HS Code：8465100000
• Production Capacity：100pieces,Month

Basic Info.

Model NO. M616A Cutter Shaft 24 Spindle Speed 10~40m/min Process Type Heavy Processing Certification CE, ISO Marketing Type New Product 2020 Core Selling Point Easy to Operate Core Components Motor Applications Woodworking Main Shaft Diameter 1800mm Spindie diameter 40mm Transport Package Film Package or Plywood Case Specification 4100*1630*1750mm Trademark ZICAR Origin China HS Code 8465100000 Production Capacity 100pieces/Month

Product Description

Products DescriptionFeatures
1. The machine bed is cast from high grade cast iron to ensure the stability of the machine;
2. This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min;
3. Each main shaft is driven by independent electric motor, cutting force is poweful;
4. Main shaft is adjusted to focus on the front, operation is convenient;
5. Hard chrome plating work table is durable;
6. Equips with auxiliary unit alarming lack of material, it effectively improvises smooth feed-in while lack of      material;
7. Multi-group drive rollers improve feeding efficiency;
    International brands electrical parts are applied for good stability;
8. Spare parts are thick and solid to maintain high precision, high stability and high reliability;
9. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages;
10. Which is favorable for smooth feeding of timbers with different thickness;
11. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Products Details

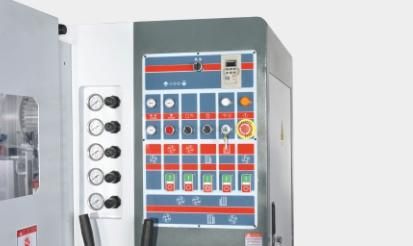

 The new panel design is more intuit-ive and more beautiful, with variable frequency feeding.
Speed adjustment is convenient.

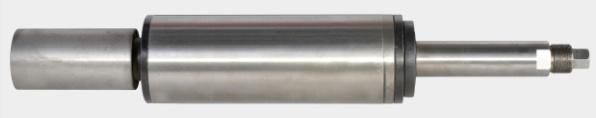

The main shaft is made of high quality steel for heat treatment and dynamic balancing.
Art equipped with SkF brand bearings, the spindle is more stable and durable.

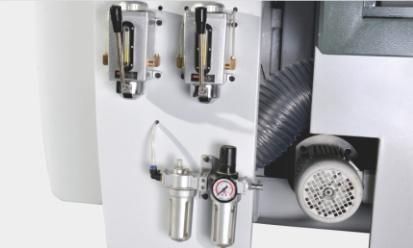

Independent double oil circuit design, rotation and processing work independently, The operation is more flexible.

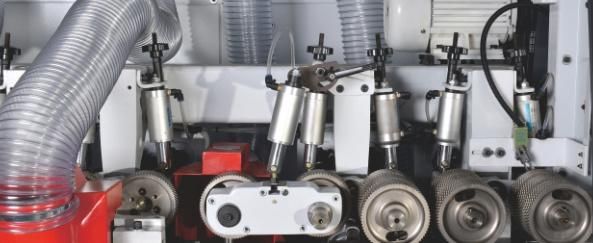

This structure effectively improves the feeding of short materials more smoothly, and the auxiliary feeding wheel has a transmission function and is more efficient.
The feed wheel can be picked up for easy tool change or calibration.Product Paramenters

SPECIFICATION AND MODEL	M616A
Working Width	25~160mm
Working Thickness	8~100mm
Feeding Speed	10~40m/min
Main Shaft Diameter	1800mm
Spindie diameter	φ40mm
Axial movement	0~20mm
Main Shaft Revoluton	6800r/min
Pneumatic Source Pressure	0.6Mpa
First Bottom Spindle	4kw
Right side Spindle	4kw
Left side Spindle	4kw
First Top Spindle	5.5kw
Second Top Spindle	5.5kw
Second Bottom spindle	4kw
Feed	4kw
Feed Beam beam rise &fall	1.1kw
General Power	32.1kw
Trimming	φ145~160mm
First Bottom Spindle	φ125~140mm
Right side spindle	φ125~165mm
Left side spindle	φ125~165mm
First top spindle	φ125~165mm
Second top spindle	φ125~165mm
Second Bottom spindle	φ125~140mm
Dust Outlet Diameter	φ140mm
Feeding wheel Diameter	φ140mm
(L×W×H)	4100×1630×1750mm
Net Weighe	3100kg
