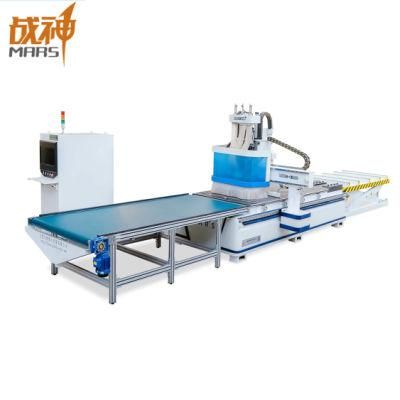

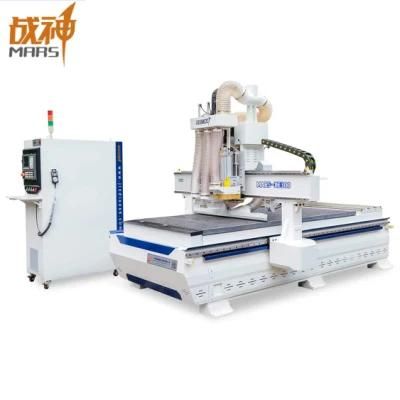

Italy Spindle Atc CNC Router Wood Router 1325 Acrylic MDF Plywood Cutting Engraving Machine
QINGDAO SOSN MACHINERY CO., LTD.- Warranty：12months
- Type：Engraving Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
Base Info
- Model NO.：SX1325A-12
- Certification：CE, ISO
- Customized：Customized
- Condition：New
- Color：Customized
- After-sales Service：24 Hours on The Line
- Name：Atc CNC Router
- Control System：Syntec Control System
- Motor/Driver：Japan Servo System
- Vacuum Pump：7.5 Kw Vacuum Pump
- Electric Components：France
- Worktable：Vacuum Adsorption Worktable
- Precision：High Precision
- Transport Package：Wooden Package
- Specification：3.5T
- Trademark：SOSN
- Origin：China
- HS Code：84649090
- Production Capacity：200 Sets ,Month
Description
Details Over all size 3600*2600*2000mm Working size 1220*2440mm Working area 1220*2440*150mm Max speed 60m/min(MAX) Working speed 15-20m/min(MAX)( depends on materials and thickness ) Voltage AC380V/3PH/50HZ Main spindle CC 9KW (24000r/min) depends on delivery time Body frame Annealing and finishing milling a molding process, stable structure, high precision, small deformation Drive system INVT SERVO Gear rack Taiwan alloy hard tooth face helical rack + alloy hard tooth face helical gear Guide 30 Control system Taiwan LNC system Locate mode High precision automatic positioning cylinder Table structure Strong Vacuum worktable Electrics French Inverter Fuling Vacuum pump 7.5 kw water vacuum pump Reducer Dongguan ZhuoLan Cable shanghai BOSHI flexible towline cable (with shield) Air components BLCH Vacuum pump 7.5 kw water vacuum pump Weight 2.4 Ton
CNC Wood Router Optimize cutting, drilling vertical holes, and automatic feeding in one go, without interruption in the process, to maximize the efficiency and output. The machine control interface is designed with humanity and fool-like operation, and the operator can be simply trained. No senior skilled workers are required for the job. The machine moves quickly and with high efficiency, helping you to achieve a leap in productivity.
This machine is a high-efficiency and cost-effective CNC cutting center, which can install more tools than a multi-process cutting machine.
Safety and intelligence, with intelligent processing cross-border protection, to prevent mechanical collisions caused by design layout exceeding the processing width. With functions such as continuous engraving after power failure, power failure recovery, processing time prediction, etc., the truly humanized design and the perfect oil injection lubrication system greatly extend the service life of the machine.
The vacuum suction is strong and powerful, which can perfectly realize special-shaped cutting, small piece cutting, and the smallest cutting board can be 25mm

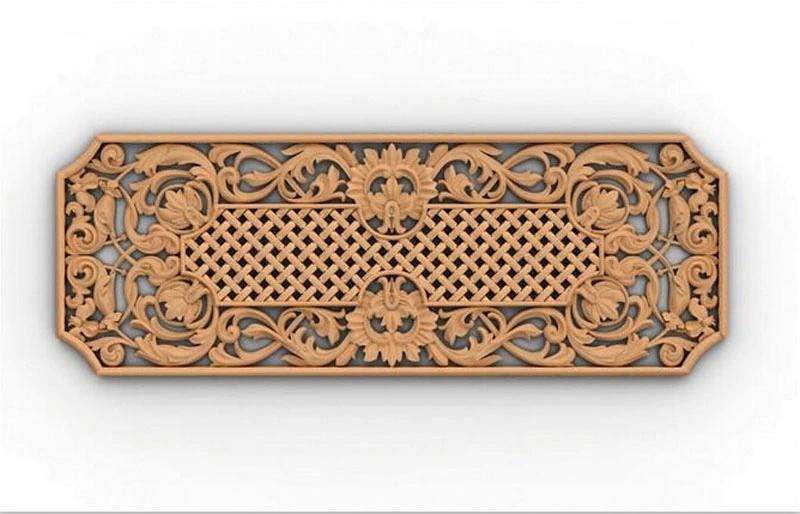

Wood Processing: processing of various furniture such as door, window, cabinet, screen and so onAdvertisement: engraving and cutting various labels and number plate.
Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materialswood, aluminum bord, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials
1.Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine.
3. 18 months warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
CNC Wood Router Optimize cutting, drilling vertical holes, and automatic feeding in one go, without interruption in the process, to maximize the efficiency and output. The machine control interface is designed with humanity and fool-like operation, and the operator can be simply trained. No senior skilled workers are required for the job. The machine moves quickly and with high efficiency, helping you to achieve a leap in productivity.
This machine is a high-efficiency and cost-effective CNC cutting center, which can install more tools than a multi-process cutting machine.
Safety and intelligence, with intelligent processing cross-border protection, to prevent mechanical collisions caused by design layout exceeding the processing width. With functions such as continuous engraving after power failure, power failure recovery, processing time prediction, etc., the truly humanized design and the perfect oil injection lubrication system greatly extend the service life of the machine.
The vacuum suction is strong and powerful, which can perfectly realize special-shaped cutting, small piece cutting, and the smallest cutting board can be 25mm

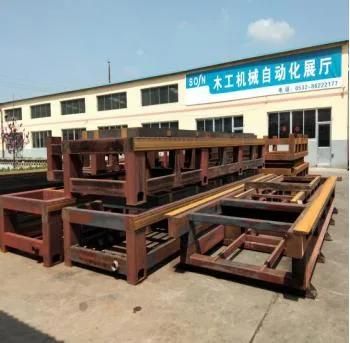

 | Woodworking CNC Router body and beam are welded with thick-walled 10mm square tube, thickened backing plate is processed by large-scale gantry milling after aging and tempering. The accuracy of rail and rack surface is within 0.05mm, beam The overall bearing capacity is strong, and the tempering treatment ensures that the whole machine is not deformed after many years using , and further ensures the processing accuracy of the equipment. |
 | Taiwan LNC control system: fast data processing speed, stable operation, convenient operation, simple and fast, powerful function, ensuring equipment processing accuracy, running speed and safety visibility, integrated machine control system, with breakpoints and continuous power failure Engraving function, with automatic error correction function back to the origin, effectively ensure the processing accuracy when working all-weather, support U disk operation, avoid computer virus interference, intelligent processing speed control, truly improve processing efficiency, extend tool life, and increase yield. Strong compatibility, suitable for various CNC software: cutting software, door software type3, Artcam various CAD/CAM software. |

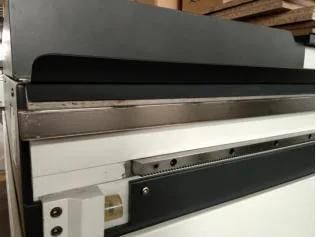

 | Taiwan's high-precision square linear guide has high precision, long service life, large contact surface and strong load-bearing capacity. The vertical rail technology can better ensure the stability of operation. The raw material of the square rail is made of bearing steel. The quality, wear resistance and hardness of the square rail are far greater than most square rails made of No. 45 steel on the market. |

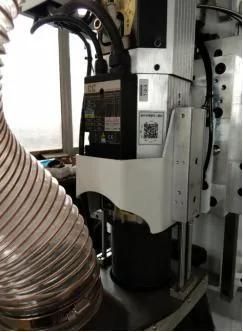

 | 9.0KW Air-cooled spindle, automatic tool switching, spindle bearing is high-precision ceramic bearing, cutting force, high precision, fast switching speed, greatly improving the service life of the cutting spindle. |
 | Straight row 12 hand clamp |

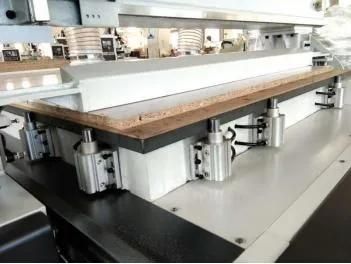

 | Horizontal and vertical positioning cylinders, self-milling and positioning cylinder holes after the overall accuracy of the equipment is tested and debugged to ensure the secondary positioning accuracy during front and back processing. The cylinder and the table are tightly assembled, with better stability, and repeated manual feeding. The accuracy remains unchanged after being pushed back. |
 | This machine is equipped with a material pushing device, which automatically pushes the material after the work of the whole machine is completed. At the same time, the material is pushed and vacuum is turned on and automatically sucks the dust on the table surface, eliminating the trouble of manual cleaning of the table surface! Time-saving and labor-saving, and convenient to take materials after processing. |
Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materialswood, aluminum bord, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials
1.Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine.
3. 18 months warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
