1500mm Wood Rotary Peeling Machine Veneer Peeling Machine

Shandong Minghung Wood Machinery Co., Ltd.
  • After-sales Service：One Year
  • Warranty：One Year
  • Type：Veneer Peeling Machine
  • Automatic：Semi-Automatic
  • Certification：CE, ISO
  • Product Name：Veneer Peeling Machine

Base Info

  • Model NO.：MH-VPM
  • Max Diameter：600mm
  • Thickness：0.5-4.0mm
  • Speed：80m,Min
  • Max Length：1500mm
  • Keyword：Wood Peeling Lathe
  • Total Power：41.2kw
  • Weight：7t
  • Transport Package：Plastic Film
  • Specification：4feet veneer peeling machine
  • Trademark：MINGHUNG
  • Origin：Linyi City, China
  • HS Code：846596
  • Production Capacity：1000sets,Year

Description

The Function:
Removing wood bark, and make log round.
The Structure:
Wood debarker machine structure is simple, mainly consist by: machine frame, motors, cylinder, hydraulic station, knife
The Working Principle:
When start machine, put log into it, worker shake handle, machine will work.
The Advantages:
<1> the roller is "wolf roller", it has many small knife, can easily remove wood bark.
<2> machine structure not complex, convenient operate for your worker.
<3> its speed is fast, can offer enough wood witout bark to veneer peeling machine.Specification:
Max length: 4feet/8feet
Max diameter: 500mm/550mm/600mm/700mm
Max speed: 70m/min
Total power: 27.5kw
Weight: 4t
Size: 3800*2200*1500mm

Customize machine according to your needs.The Function:
Processing log into pieces of wood veneer.
The Structure:
Veneer peeling machine mainly consist by: machine frame, motors, rollers, knife, control box
The Working Principle:
When start machine, adjust wood veneer thickness and width you want by CNC screen, adjust machine diameter and open, put log, then veneer machine will automatically roatry.
The Advantages:
<1> the bottom use one whole solid and thick steel, make sure machine is stable.
<2> total weight is heavy, use good material and spare parts.
<3> total power is big, make sure offer powerful energy to rotary log.
<4> Our factory patent, the outside of screw has shell to protect, long lift span.Specification:
Max length: 4feet/8feet
Max diameter: 500mm/550mm/600mm/700mm
Max speed: 50-80m/min
Total power: 41.2kw
Weight: 6.8t
Size: 4500*2300*1500mm

Customize machine according to your needs.

 The Function:
Transport log, one connect with wood debarker, another connect veneer peeling machine.
The Advantages:
This is the upgrade one, powerful to convey log, the chain will be fine.Specification:
Power: 4.4kw
Weight: 2t/pcs
Size: 3000*1800*1500mm

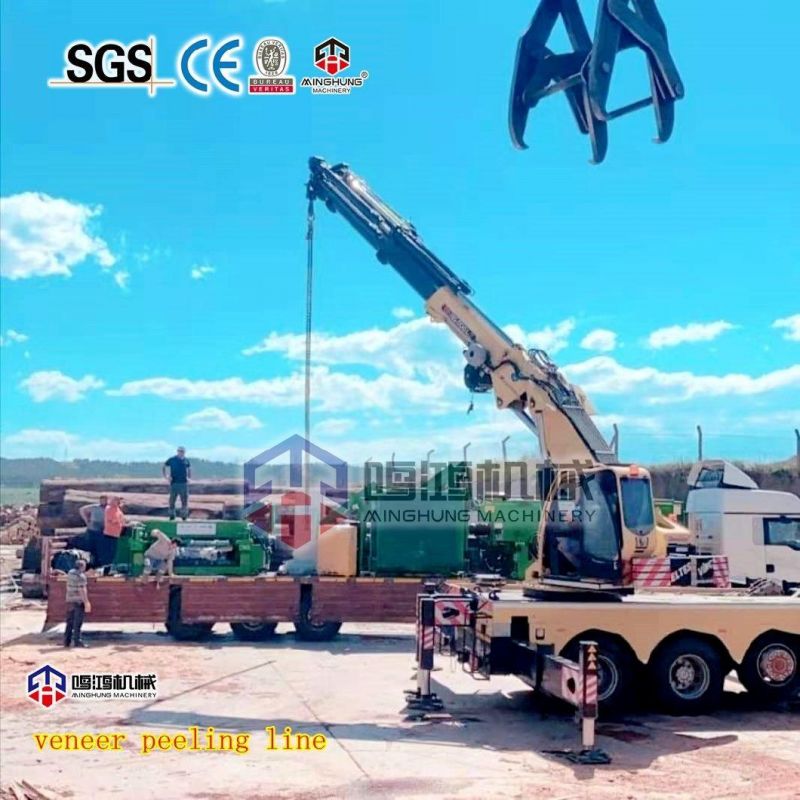

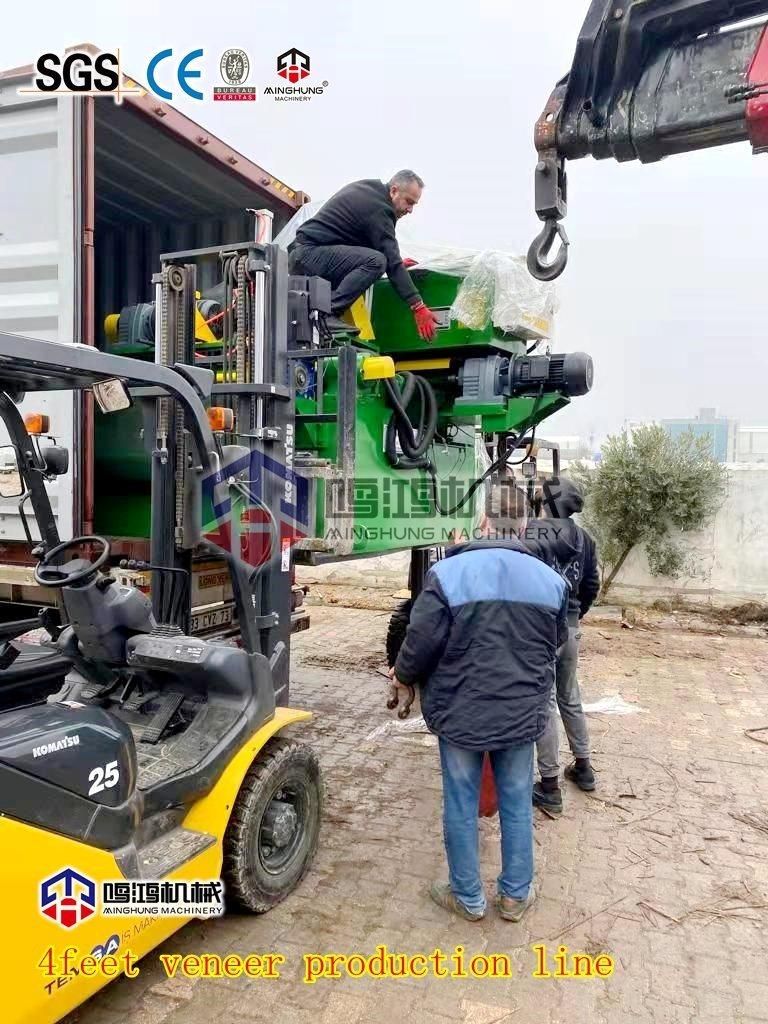

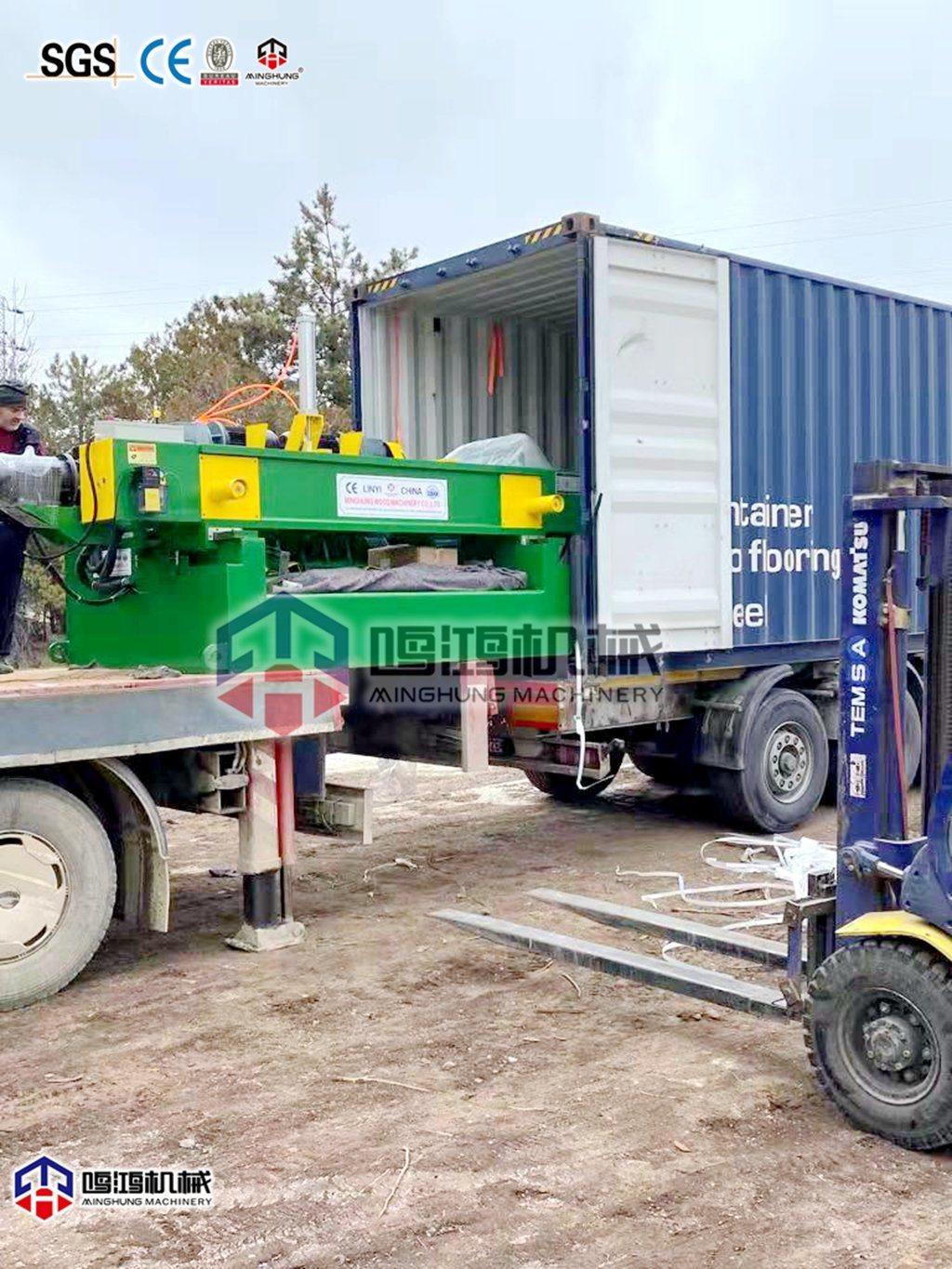

Machine in Clients Factory:

1500mm Wood Rotary Peeling Machine Veneer Peeling Machine
1500mm Wood Rotary Peeling Machine Veneer Peeling Machine
1500mm Wood Rotary Peeling Machine Veneer Peeling Machine
1500mm Wood Rotary Peeling Machine Veneer Peeling Machine

Plywood Machine:
1500mm Wood Rotary Peeling Machine Veneer Peeling Machine




RFQ:
Production Time:
1 month after receive your deposit.
Payment Terms:
30% deposit, 70% before delivery.
100% Letter of Credit.
Warranty:
2 years for main parts.
MOQ:
1 set
Installation:
When machine reach your factory, our engineer can go to install
After-sales service:
Any problem that your worker can not solve, tell us, we will reply you at the first time,
