Wood Working Machinery Edge Bander Kdt Edge Bander Machine

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:1
  • Function:Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type:Linear Edge Banding Machine
  • Edging thickness:0.4-3mm
  • Automatic Grade:Automatic
  • Panel Feeding Speed:20m,min

Base Info

  • Model NO.:FZ-450DJ
  • Certification:CE, ISO
  • Panel Thinkness:10-60mm
  • Min.length panel:120mm
  • Min.width panel:80mm
  • Manufacturing Principles:Glue Tank Underneath
  • Customized:Customized
  • The Name:Edge Banding Machine
  • Use:Sear PVC or Veneer on The Edge of MDF Boards
  • Weight:2800 Kg
  • Air Pressure:0.8 MPa
  • Glue:High Temperature Glue
  • Transport Package:Plywood Wooden Case Package
  • Specification:7100*1100*1600 mm
  • Trademark:SOSN
  • Origin:China
  • Production Capacity:100 Sets ,Month

Description

Basic Info.

Model NO. FZ-450DJ Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Underneath Customized Customized The Name Edge Banding Machine Use Sear PVC or Veneer on The Edge of MDF Boards Weight 2800 Kg Air Pressure 0.8 MPa Glue High Temperature Glue Transport Package Plywood Wooden Case Package Specification 7100*1100*1600 mm Trademark SOSN Origin China Production Capacity 100 Sets /Month

Product Description

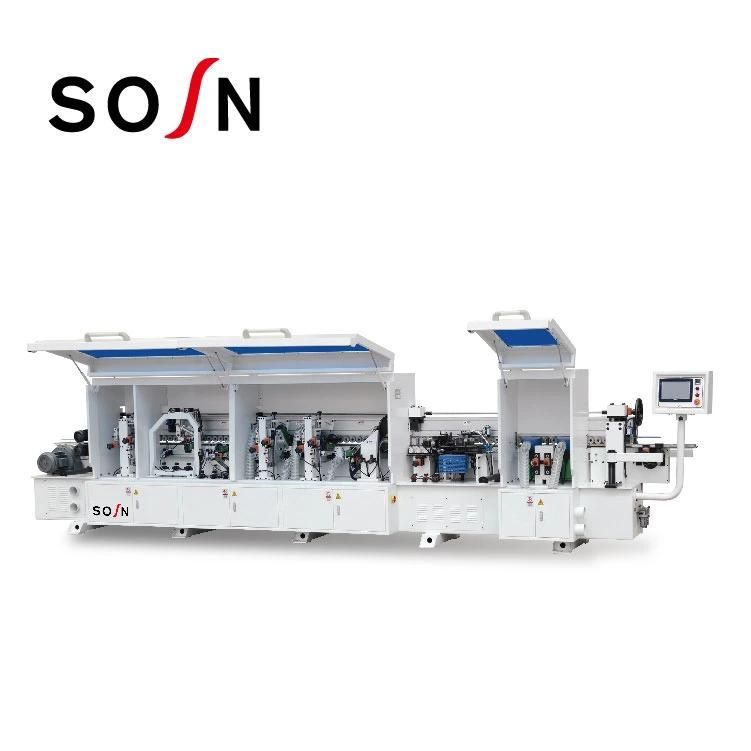

Wood PVC edge banding machine corner rounding edge bander with CE FZ-450DJ
Wood Working Machinery Edge Bander Kdt Edge Bander Machine

PVC Automatic Edge Banding Machine for woodworking
used for the linear sealing of PVC, wood plank and veneer, acrylic,etc.
Functions:
Pre-milling + gluing + end cutting + rough trimming + fine trimming +corner rounding+ scrapping +buffing
Main technical parameter:
Motor power 15.6kw
Overall size 7100x1100x1600mm
Feed speed12-20m/min
Panel thickness10-60mm
Edge banding tape thickness0.4-3mm
Panel width ≥ 80mm
Working air pressure 0.8Mpa
Weight 2800kg


Wood Working Machinery Edge Bander Kdt Edge Bander Machine

Introductions

1. This machine is mainly used for the Linear sealing side of the plywood, fibreboard, Particle board, and so on.
2. Its structure is compact and have a reasonable disposition. It works steadily and operates safely.3. It is adjustable; The machine adopts the devices of sound insulation, controlling of dust, preventing the overloading, Auxiliary frame electrical adjusted; It has the function of glue spreading, Trimming before and after, Rough up and down the sides.

4.Blow up and down the side, Surface polishing up and down and so on.

 We have auto, semi-auto and manual Edge banding machines for your choice

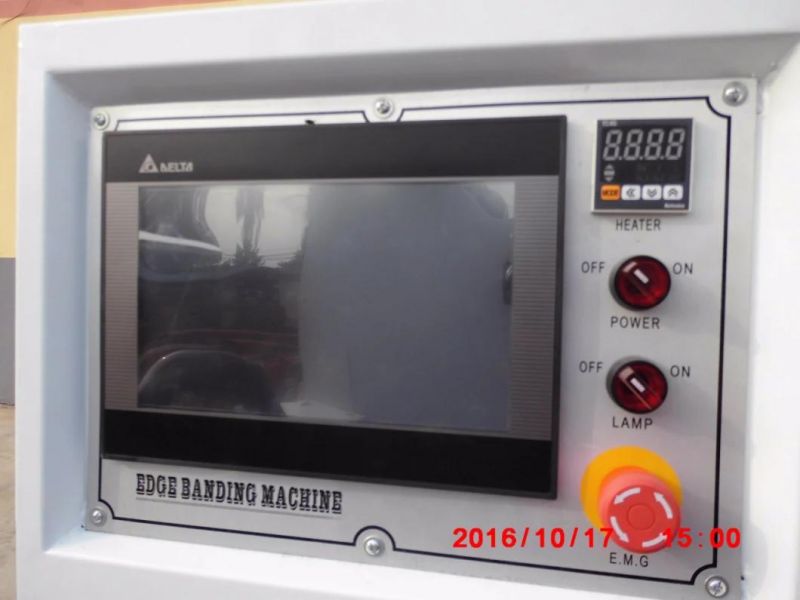

PLC control board:
Wood Working Machinery Edge Bander Kdt Edge Bander Machine

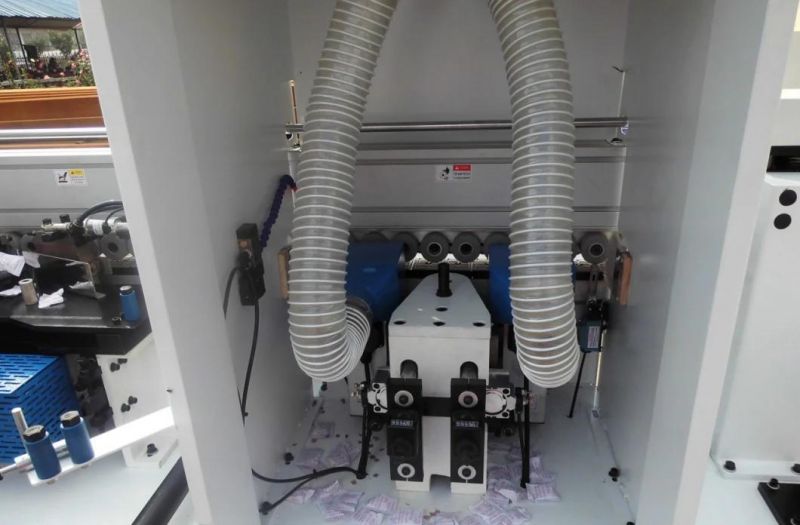

Pre-milling:
Wood Working Machinery Edge Bander Kdt Edge Bander Machine

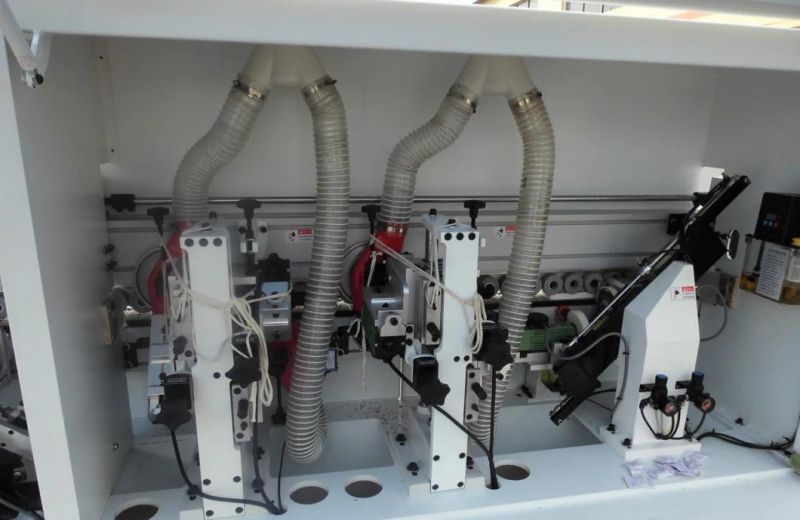

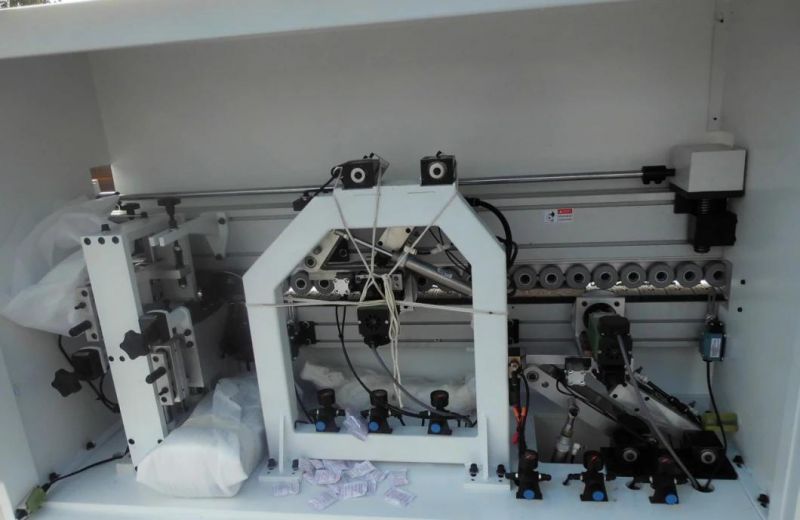

End cutting trimming + rough trimming + fine trimming
Wood Working Machinery Edge Bander Kdt Edge Bander Machine

Corner rounding
Wood Working Machinery Edge Bander Kdt Edge Bander Machine

Working sample:
Wood Working Machinery Edge Bander Kdt Edge Bander Machine
Wood Working Machinery Edge Bander Kdt Edge Bander Machine
Reasons to choose SOSN:

1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friend partner relationship--a win-win cooperation

If any question,feel free to contact us.
