• Model NO.：CH204F
• Motor Power：5-10Kw
• Spindle Speed：＞5000rpm
• Process Type：Medium-Sized Processing
• Certification：CE, ISO
• After-sales Service：Free Service on Internet
• Working Thickness：200mm
• Mini Working Length：260mm
• Cutting Shaft Diameter：101mm
• Spindel Speed：5000r,Min
• Feeding Speed：4-16m,Min
• Top &Bottom Spindle Motor Power：7.5,7.5kw
• Feeding Motor Power：2.2kw
• Total Weight：2100kg
• Transport Package：PE Film
• Specification：CH204F
• Trademark：CHANCSMAC
• Origin：China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. CH204F Motor Power 5-10Kw Spindle Speed ＞5000rpm Process Type Medium-Sized Processing Certification CE, ISO After-sales Service Free Service on Internet Working Thickness 200mm Mini Working Length 260mm Cutting Shaft Diameter 101mm Spindel Speed 5000r/Min Feeding Speed 4-16m/Min Top &Bottom Spindle Motor Power 7.5/7.5kw Feeding Motor Power 2.2kw Total Weight 2100kg Transport Package PE Film Specification CH204F Trademark CHANCSMAC Origin China Production Capacity 20 Sets/Month

Product Description

Features of double side planer1.Features:
1.The machine body is casing lathe and processed by CNC center, which is strong and durable. Can make sure machine running in good condition and precision working.
2. High precision main spindle and imported bearing can make sure the wood surface in high quality and accuracy.
3. Working table is chromate treatment, smooth, flat, harder and durable

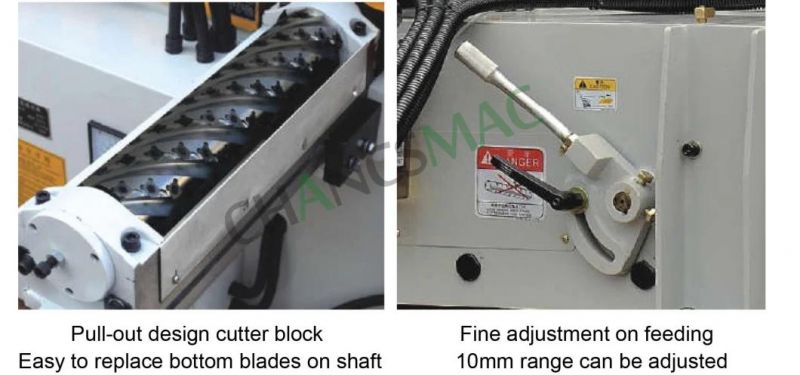

4.The bottom spindle can be pulled out easily to replace the blades. Safer, easier and more convenient.
5. Electrical components international famous brand like OMRON, SCHNEIDER as well as other brands, which can make sure machine safety running and easy maintenance.
Specification:

2.Parameters:

Model	CH204F	CH204H	CH206F	CH206H
Working width	430mm	430mm	630mm	630mm
Working thickness	200mm	200mm	200mm	200mm
Mini. Working length	260mm	260mm	260mm	260mm
Max. Cutting depth (Top spindle)	8mm	8mm	8mm	8mm
Max. Cutting depth (Bottom spindle)	5mm	5mm	5mm	5mm
Cutting shaft diameter	Ø101mm	Ø101mm	Ø101mm	Ø101mm
Spindle speed	5000r/min	5000r/min	5000r/min	5000r/min
Feeding speed	4-16m/min	0-16m/min	4-16m/min	0-16m/min
Top & Bottom spindle motor power	7.5/7.5kw	7.5/7.5kw	11/7.5kw	11/7.5kw
Feeding motor power	2.2kw	2.2kw	2.2kw	3kw
Total weight	2100kg	2450kg	2500kg	2800kg

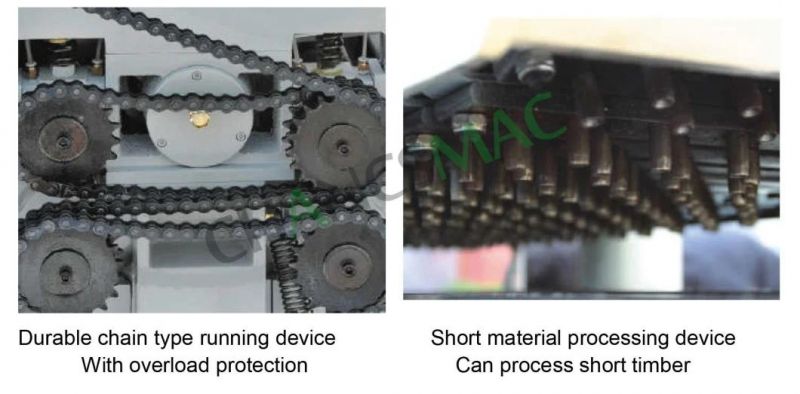

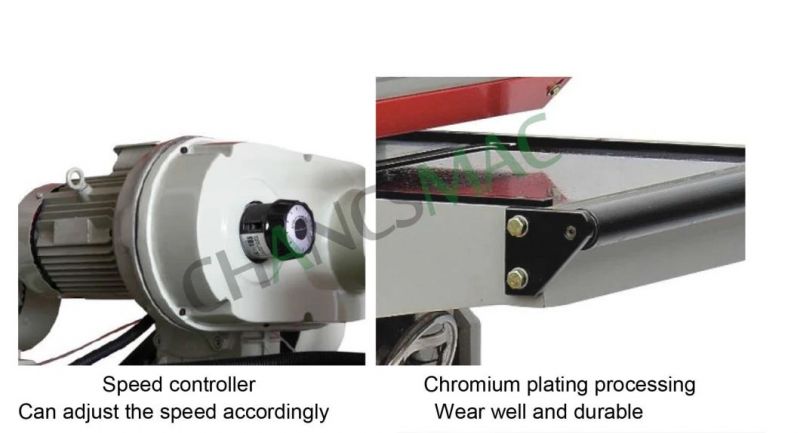

3.Detailed Images:

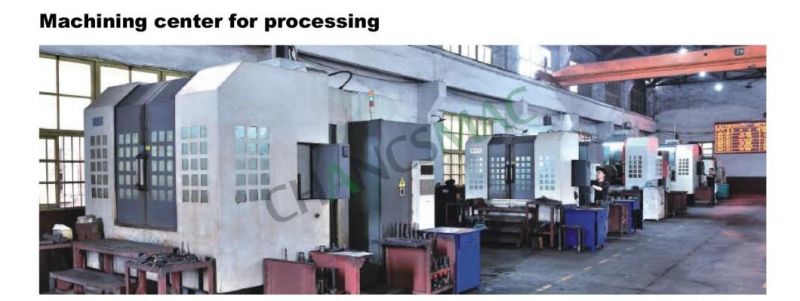

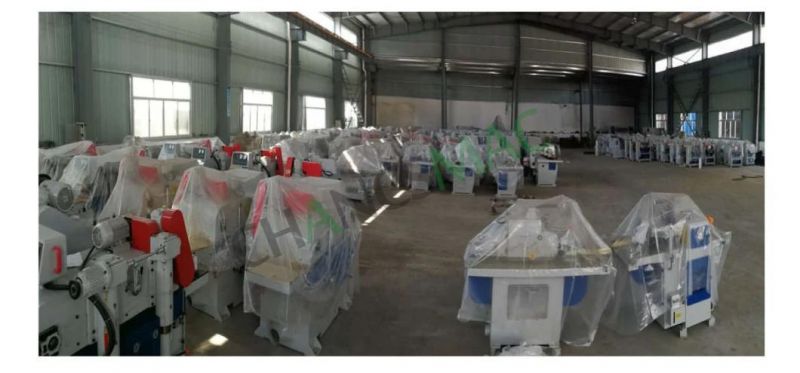

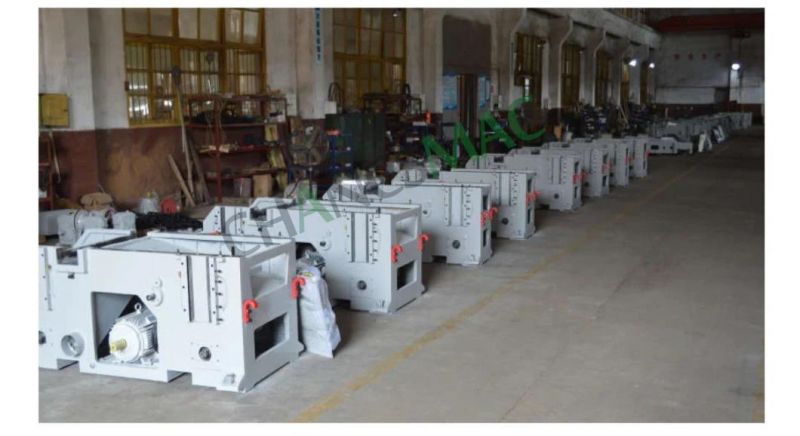

4.Factory:

5.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact us
1.  Q: What's the MOQ?
      R:  One set will be ok.
2.  Q: Provide customized machine Yes or NO?
     R: Yes. We have professional designers and engineers to supply customized machines.
3.  Q: What is payment terms?
     R: 30%T/T in advance, the balance paid before shipment after inspection.
4.  Q: What is the warranty time?
     R: One year.
5.  Q:What's your website:
     R:http://chancsmac.en.made-in-china.com
