3280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF Board

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:2years
  • Type:Beam Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Controlling Mode:CNC
  • Automatic Grade:Automatic

Base Info

  • Model NO.:DZ-3300
  • Precision:High Precision
  • Certification:CE, ISO
  • Customized:Non-Customized
  • Condition:New
  • Color:Customized
  • After-sales Service:Video, Email, Phone
  • Max.Cutting Length:3300mm
  • Max.Cutting Thickness:120mm
  • Min.Cutting Size:35*35mm
  • Pneumatic Holding Gripers:10 Groups
  • Net Weight:5700kg
  • Transport Package:Strong Film Package
  • Specification:6600*6400*1800mm
  • Trademark:SOSN
  • Origin:China
  • HS Code:8465910000
  • Production Capacity:100 Sets ,Month

Description

6600*6400*1800mm
Configuration of computer beam saw DZ-330013280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF Board

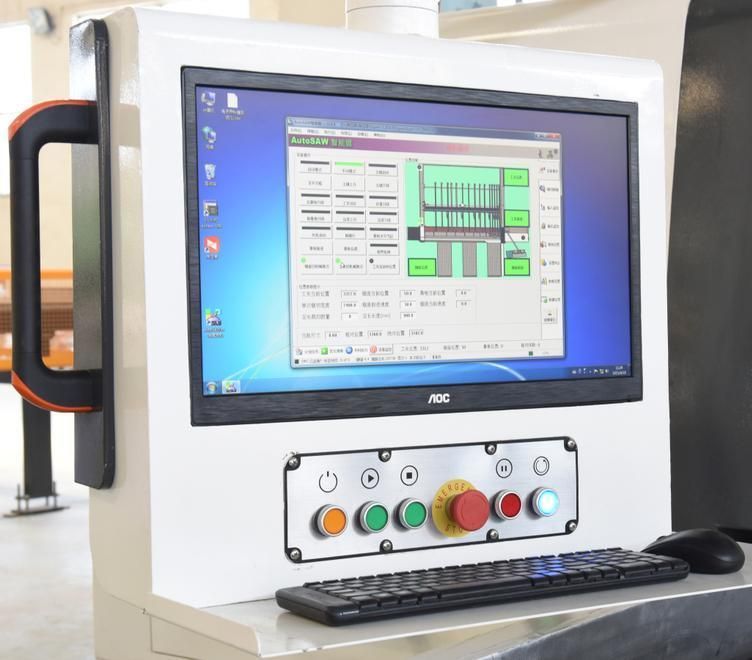

PC control system
Advantage IPC original, Siemens PLC LCD system;
Safe and reliable operation, editable management of sawing and sawing tasks;

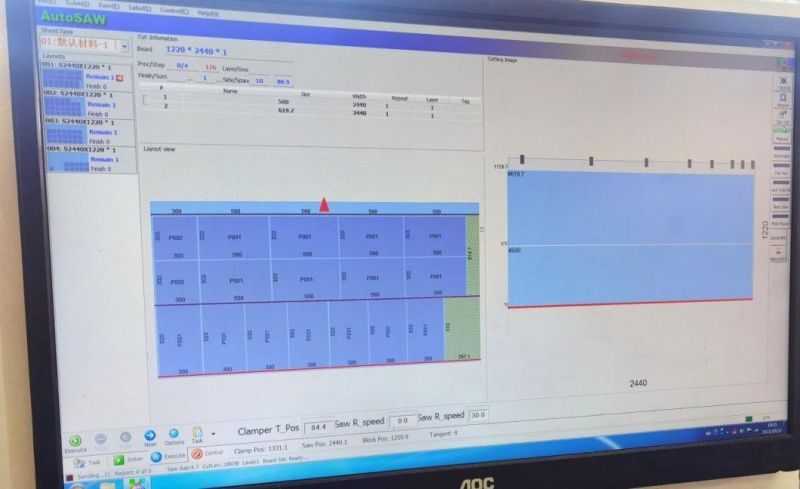

compatible with optimized sawing software.23280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF BoardOptimization software:
Automaticallygeneratetheoptimazationsawingsolution, can
savepersonalcalculationtimeandenhancingmaterialutilization
efficiency, which can save labor cost, material and inhance the
efficiency.

Label printer:
One cutting board stick one label with all information on the label,
Such like customer name, board name, board thickness, width,
length, easy for factory to control production.

 33280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF Board
Side aligning device
Linear guide way structure fixing cutting panel width side, control panels not move or shake when sawing, ensure width sawing precision.
Pressure can be adjusted according to difference thickness,
weight and material, ensure the precision of sawing dimension.

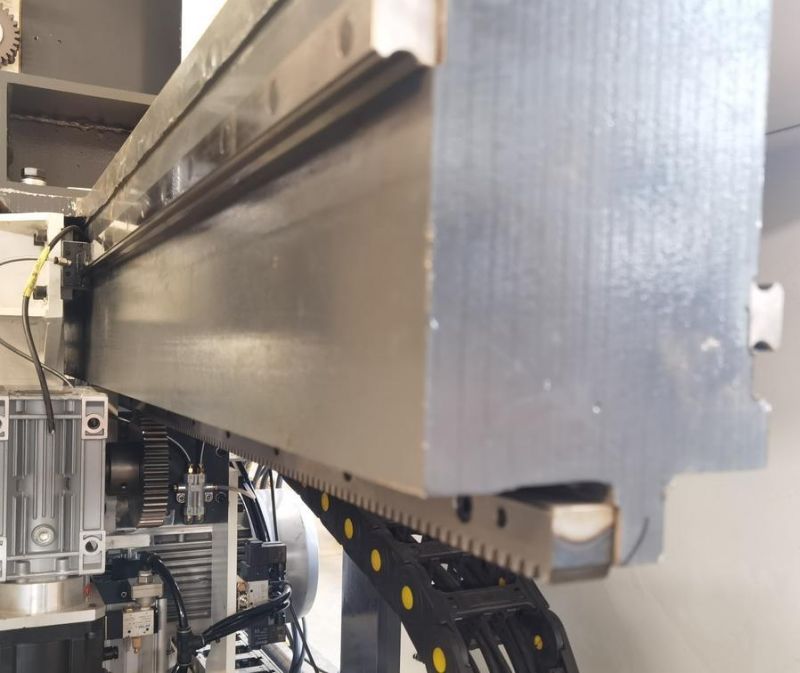

 43280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF BoardSaw carriage driving system with liner guideway
Adopts with servo control and transmission with gears & racks, maximum moving speed is up to 120m/min.
The whole frame is integrated to ensure that the work surface is kept on a flat surface to ensure cutting accuracy.
The beam is made of 30mm thick steel plate, weighing 1.1T
Taiwan30 linear guide, 5.6 meters, loner service life.
Main frame adopting annealing technology, ensure frame non- deformation,
High efficiency and stable quality.
53280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF Board

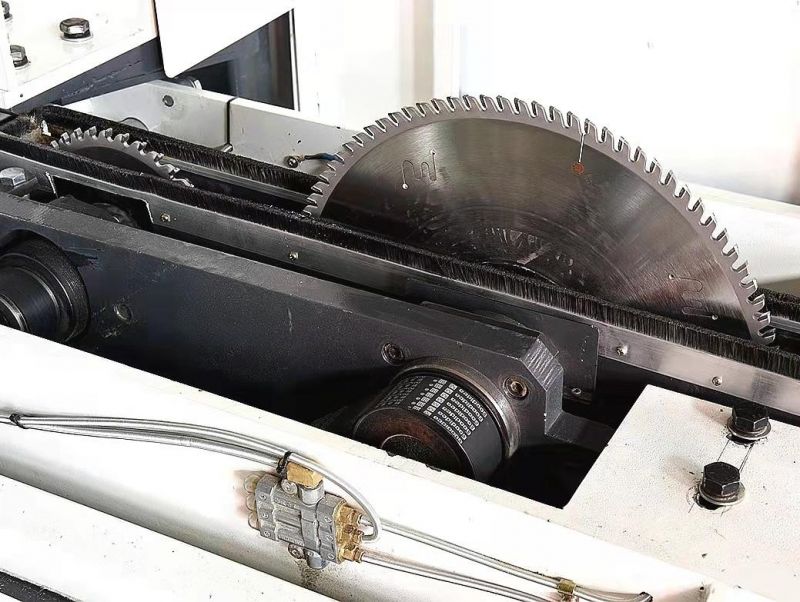

Saw blades
Two saw blades are installed vertically, ensure cutting precision.
18.5kw+2.2kw sawing motors, max cutting thickness 120mm.

saw blade is installed vertically, nut locking device, easy to assemble without adjustment;
Saw cutting to ensure accuracy and no chipping.
63280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF Board

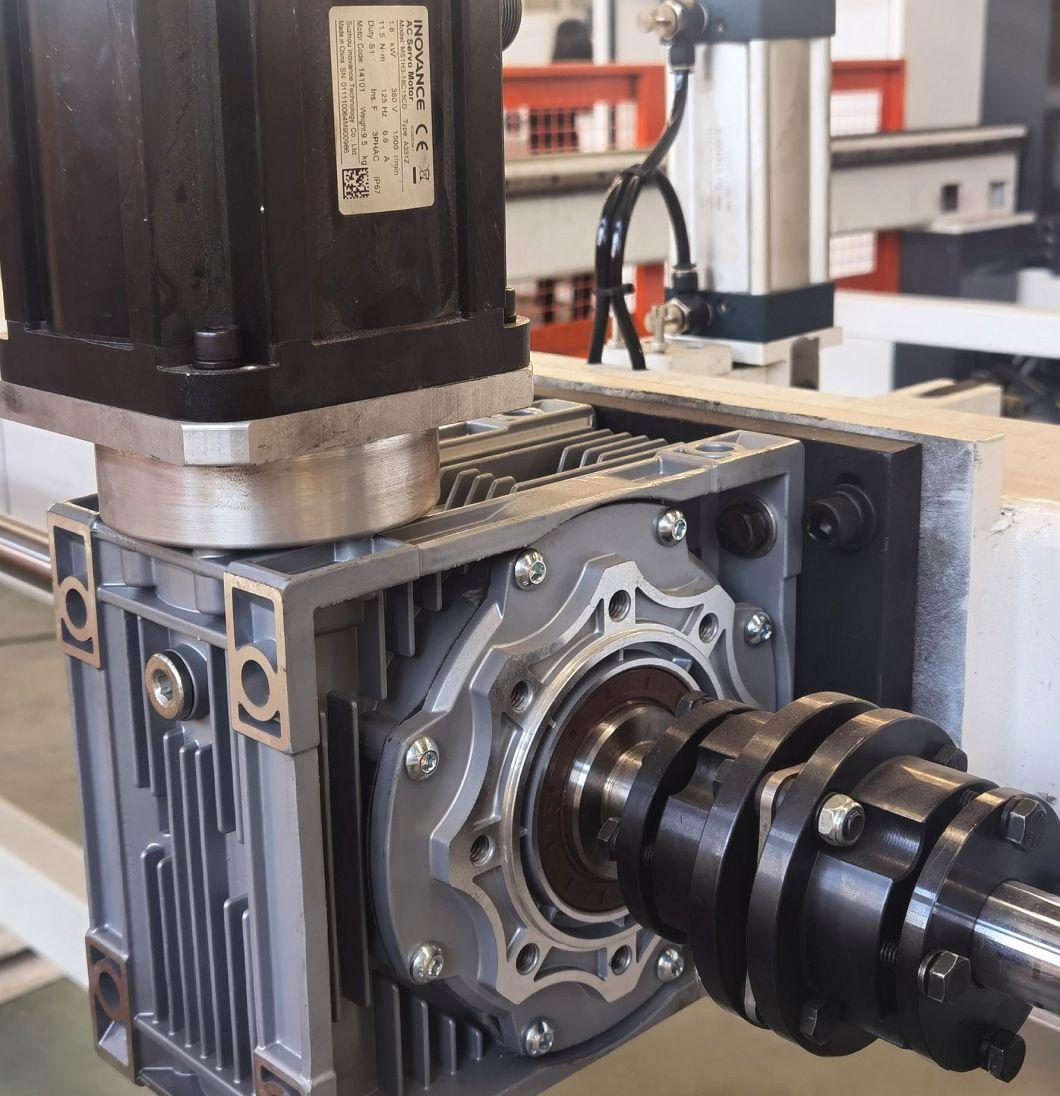

Pusher driving system
Pusher adopts high precision worm reduce ans feeding gears and racks to make an accurate sawing.73280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF Board

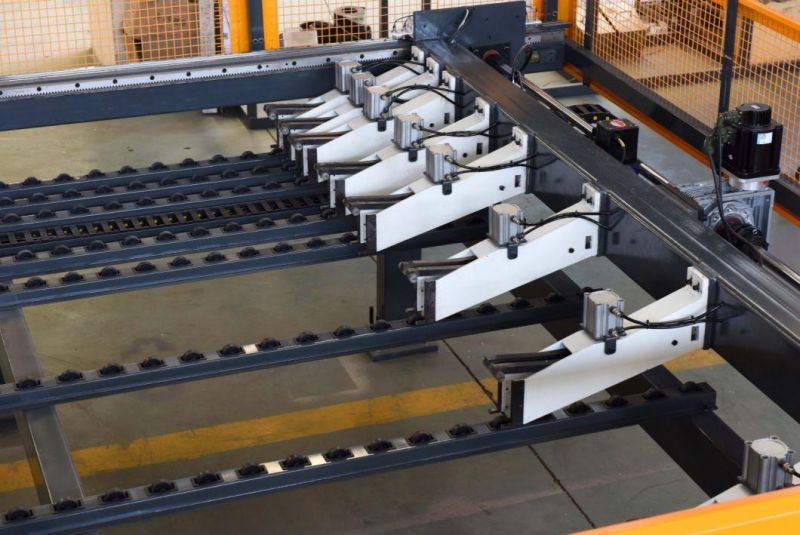

10 sets of clamps.
Pneumatic holding gripers, can give the panel steadily, highly reduce labor intensity, and greatly improve production efficiency, minimum holding panel size is 35*35mm.
83280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF Board

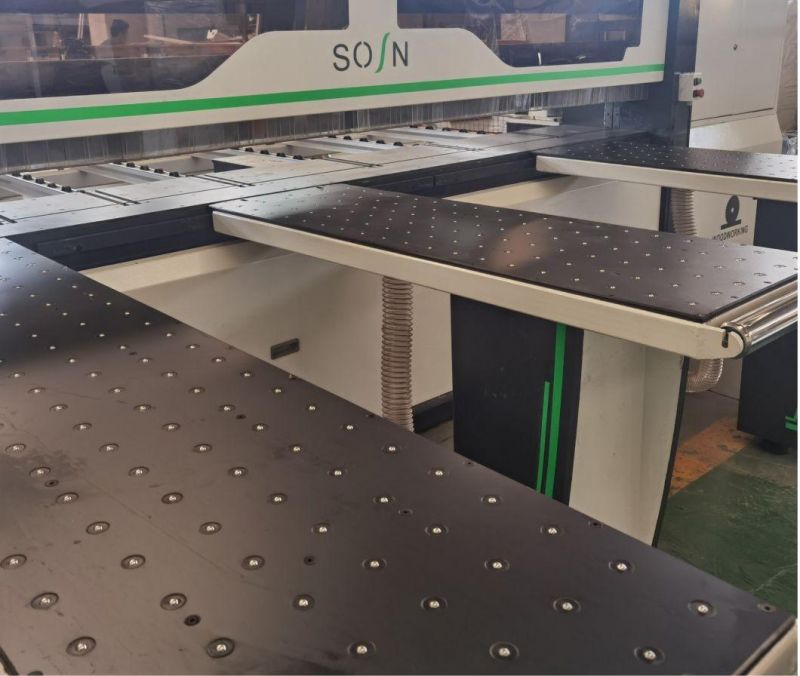

Working table equipped with Air-floating balls
Effectively protects panel from scratching and much easier to feed in panel.

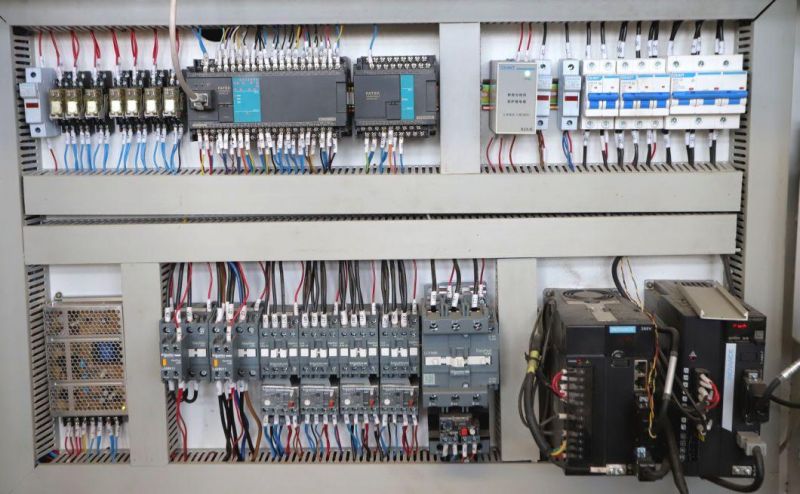

 93280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF BoardElectrical components
Siemens/Fatek PLC, Schneder electric components.
With high reliability, strong anti-interference ability and low failure rate.

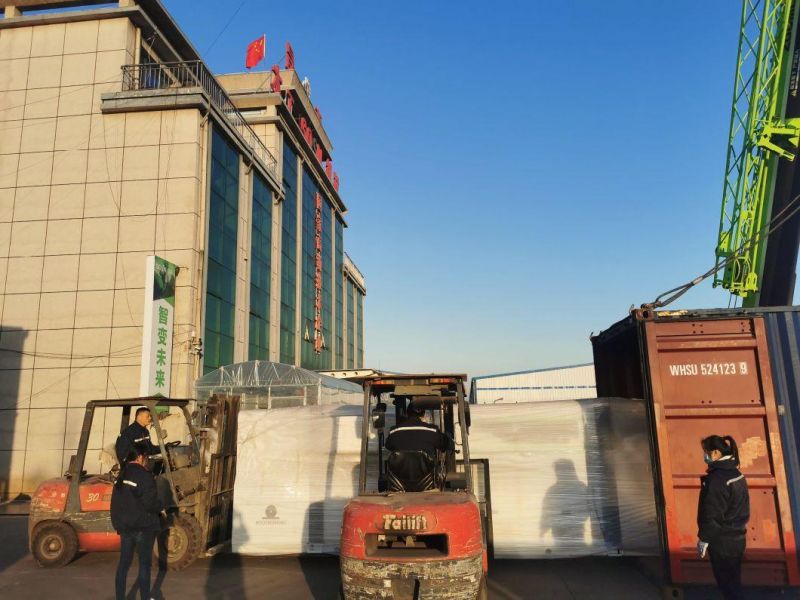

loading :
3280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF Board

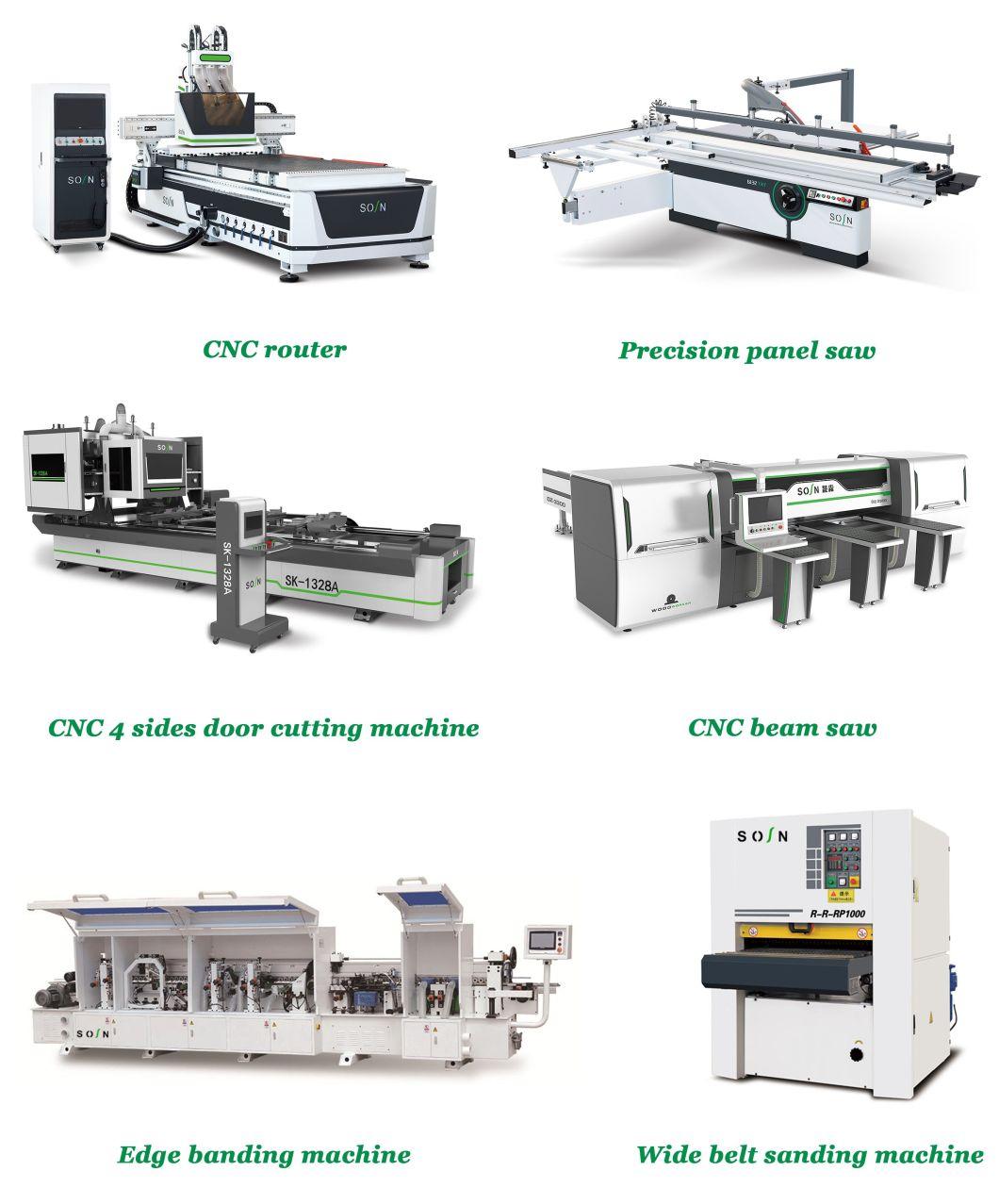

other related machines:
3280mm Cutting Length Computer Beam Saw Cutter Machine Woodworking Machinery for MDF Board
--Delivery:

We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount.
--Package:
After testing the cnc computer beam saw machine well, our workers will do cleaning work before package.
 stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.
--Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
--Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
--After sales services:
Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.
