Optimizing Cross Cutting Saw with Kicker
Shijiazhuang Chancsmac Machine Technology Co., Ltd.- Warranty:One Year
- Type:Rip Saw
- Power Type:Electric
- Layout:Horizontal
- Controlling Mode:Hydraulic Semi-automatic
- Automatic Grade:Semiautomatic
Base Info
- Model NO.:Value cut 100 ,200,300
- Precision:High Precision
- Customized:Customized
- Condition:New
- Color:Customized
- After-sales Service:Free Service on Internet
- Feeding Length:300-6300mm
- Transport Package:PE Film
- Specification:Value cut 100
- Trademark:CHANCSMAC
- Origin:China
- Production Capacity:10 Sets, Month
Description
Basic Info.
Model NO. Value cut 100 /200/300 Precision High Precision Customized Customized Condition New Color Customized After-sales Service Free Service on Internet Feeding Length 300-6300mm Transport Package PE Film Specification Value cut 100 Trademark CHANCSMAC Origin China Production Capacity 10 Sets/ MonthProduct Description

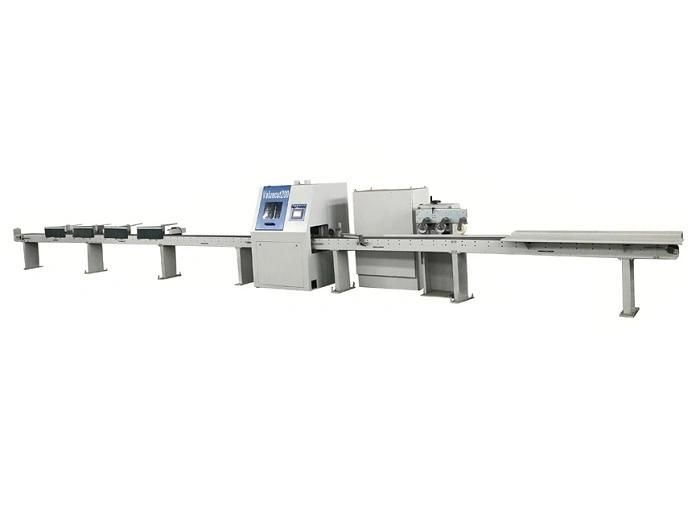

Optimizing cross cutting saw with kicker
Powerful software optimizing, accurate positioning. Real-time statistical analysis. Wood material yield statistics to help user make full use of wood and cut the wood in max value.

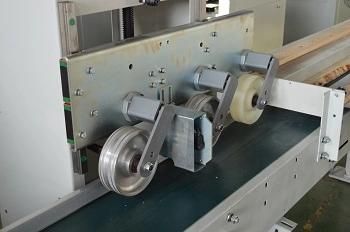

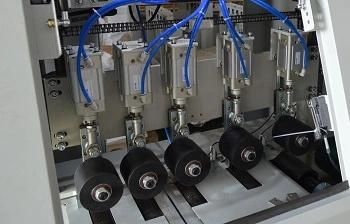

1. There are 5 feeding rollers and feeding belt inside machine.
2. Independent measuring station. Full set optimized system, with feed-in tracking system. Servo motor control the feeding, tracking and cutting. There are 200 groups cutting list in the system, which can work multiple cutting tasks at the same time. And each group contents 200-300 kinds of cutting specification.
3. This set value cut type can replace 6-10 sets traditional manual type cross cutting saw. Advanced servo driven.

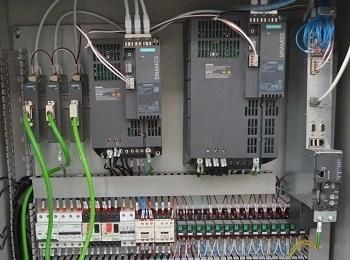

4. Machine applied SIEMENS control system. (Made in Germany)

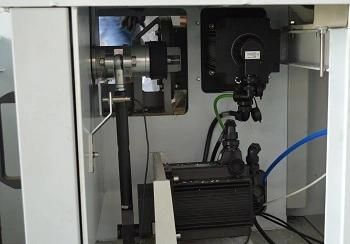

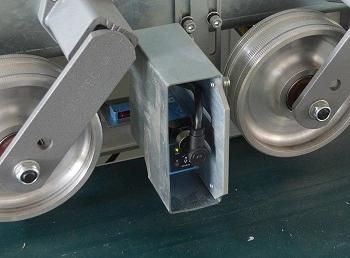

5. Sensor imported from SICK

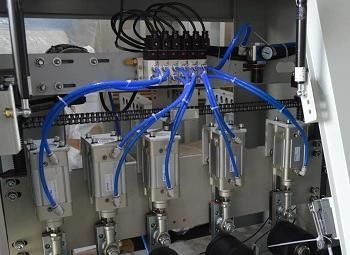

6. Air cylinder, magnetic valve are imported from Italy

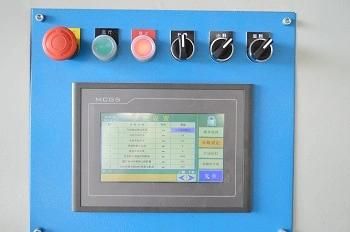

7. Friendly human machine interface
Model | Value cut 100 | Value cut 200 | Value cut 300 |
Working Length | 300~6300 | 300~6300 | 300~6300 |
Working Width | 20~200 | 20~200 | 20~200mm |
Working Thickness | 12~80 | 12~80 | 12~80 |
Cutting sections | Max: 180*50mm Max: 120*80mm | Max: 180*50mm Max: 120*80mm | Max: 180*50mm Max: 120*80mm |
Shortest output wood | 10mm | 10mm | 10mm |
Cutting Way | Servo driven | Servo driven | Servo driven |
Bend of the slat in all directions | Max 10mm/m | Max 10mm/m | Max 10mm/m |
Thickness tolerance | ±3mm | ±3mm | ±3mm |
Cutting tolerance | ±1mm | ±1mm | ±1mm |
Cutting Cycle | 0.15~0.3s | 0.15~0.3s | 0.15~0.3s |
Feeding Way | Servo driven | Servo driven | Servo driven |
Processing Specifications | 20 | 30 | 30-200 |
Numbers Of List | 6 | 20 | 200 |
Prior to long fixed-length pattern | √ | √ | √ |
More timber yield pattern | √ | / | / |
Comprehensive optimizing | √ | √ | √ |
Sequence cut pattern | √ | √ | √ |
Defects cut pattern | √ | √ | √ |
Grades cut pattern | × | √ | / |
Number cut pattern | × | × | √ |
Independent measuring station | √ | √ | √ |
Numbers of kicker | 2 | 4 | 6 |
Dust outlet diameter | 120mm*2 | 120mm*2 | 120mm*2 |
Overall Power | 18KW | 18KW | 18kW |
Service pressure | 0.6~0.8bar 0.87~1.1psi | 0.6~0.8bar 0.87~1.1psi | 0.6~0.8bar 0.87~1.1psi |
Overall Length | 11~17m | 11~17m | 11~17m |
Overall Weight | 2500kg | 2800kg | 3000kg |
Feed Speed | 300m/min | 300m/min | 300M/min |
Software control system | SIEMENS | SIEMENS | SIEMENS |
