• Model NO.：MH-HP15
• Pressure：500t
• Cylinder：360*2PCS
• Layers：15
• Thickness of Plates：42mm
• Distance Between Plates：70mm
• Power：29.5kw
• Weight：33t
• Size：3600*1370*4500mm
• Transport Package：No
• Specification：3600*1370*4500mm
• Trademark：MINGHUNG
• Origin：Linyi City, China
• HS Code：846596
• Production Capacity：1000sets,Year

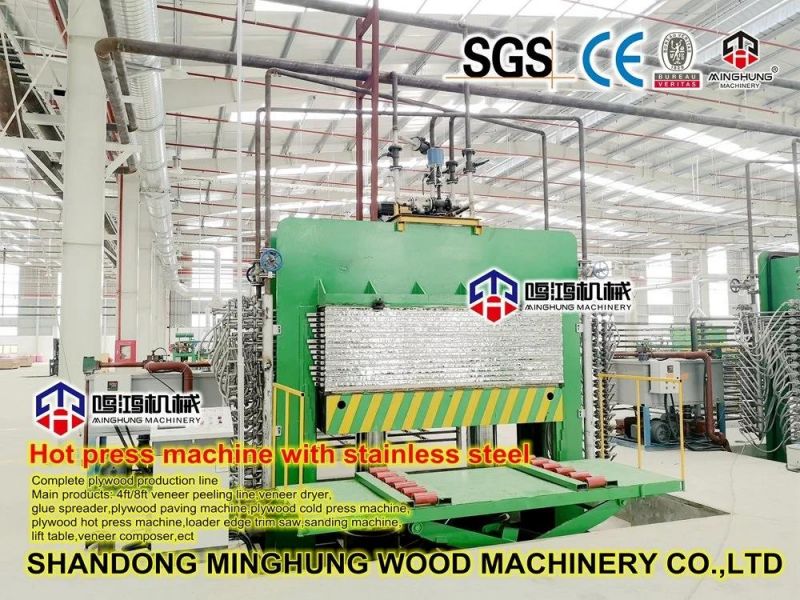

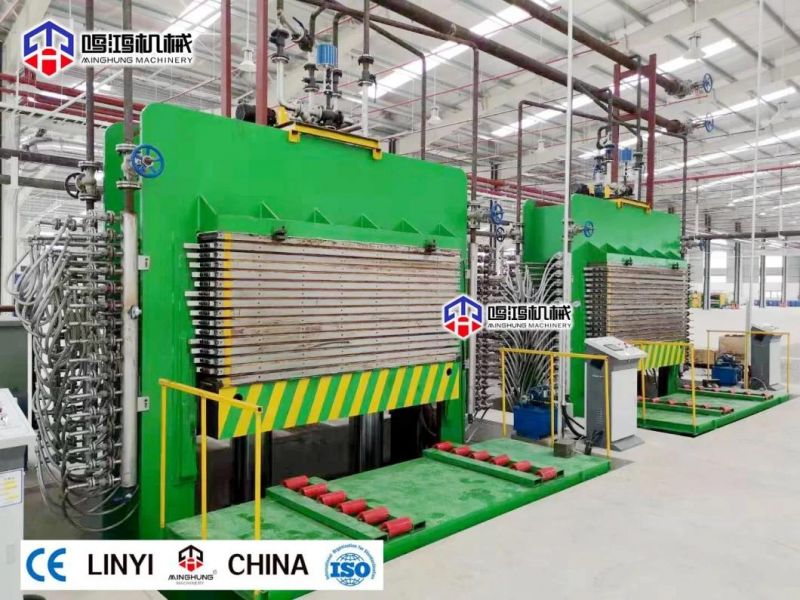

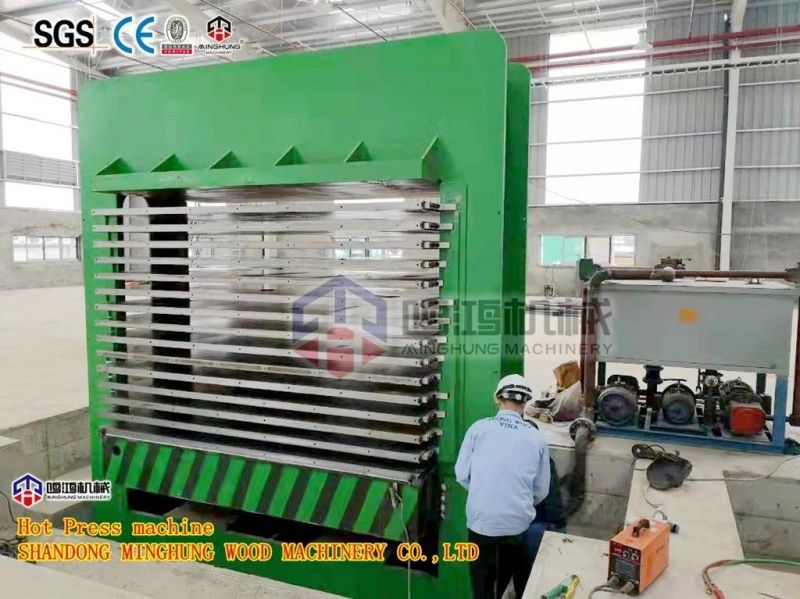

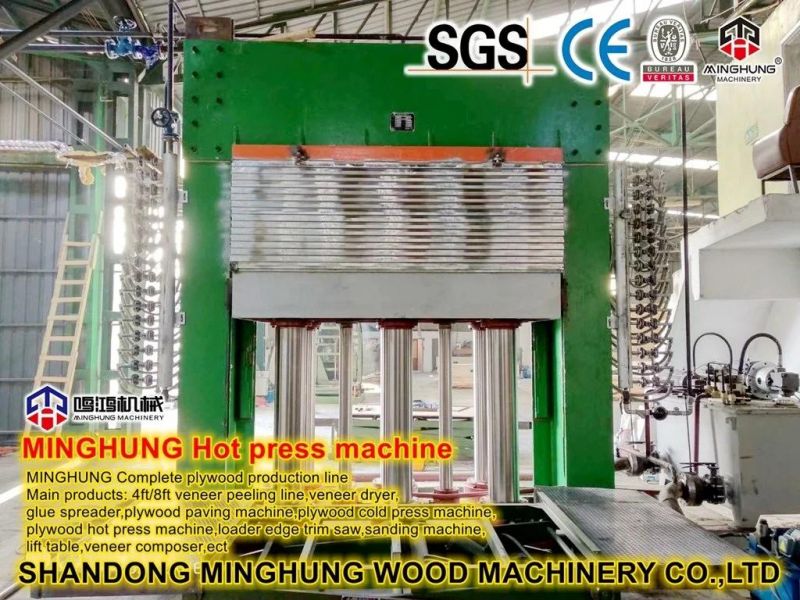

HOT PRESS MAHCINE
one necessary machine for producing plywood, its pressure and layers will be different according to your plywood thickness, size, and requires.
tell us your conditions and requires, we will offer the most suitable plywood hot press machine for you

>>>SPECIFICATIONname hot press machinemodel MH-HP15pressure 500tcylinder 360*2pcslayers 15power 29.5kwweight33tsize 3600*1370*4500mm
>>> DELIVERY INFORMATION

1. Payment terms
    T/T. 30% as adeposit, 70% before delivery.

2. Production time
    one month

3. Warranty
    2 years

>>> ADVANTAGES

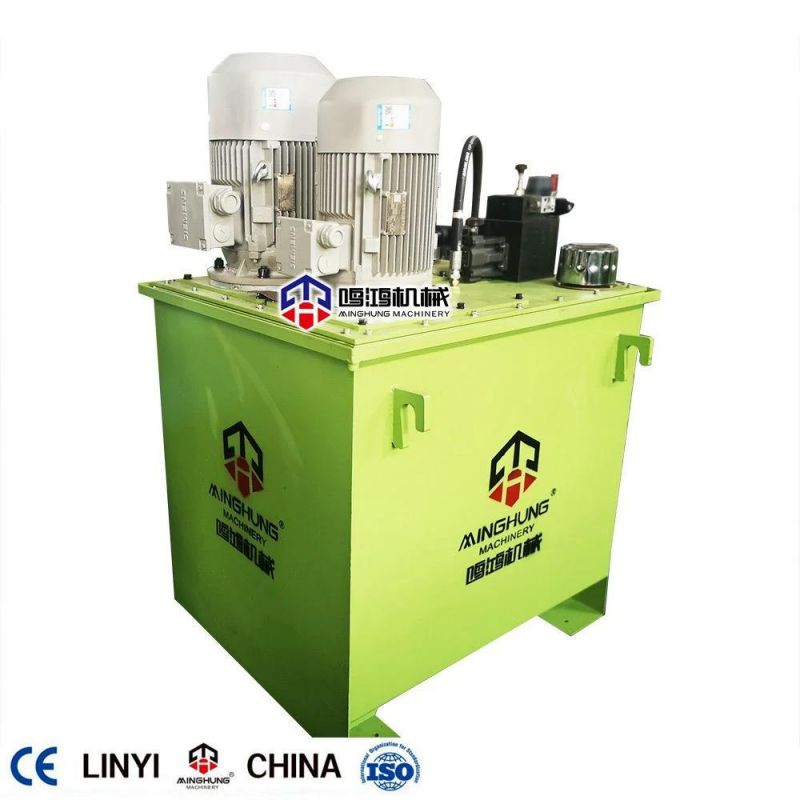

1. Hydraulic station is one important part for plywood hot press machine, it will offer the oil to cylinder, driving it lift hot press machine.
The hydraulic station is also called the hydraulic pump station. The motor drives the oil pump to rotate. The pump sucks oil from the oil tank and pumps the oil. The mechanical energy is converted into the pressure energy of the hydraulic oil. The hydraulic oil is realized by the hydraulic valve through the integrated block (or valve combination). After the flow adjustment, it is transmitted to the oil cylinder or oil motor of the hydraulic machinery through the external pipeline, thereby controlling the direction change of the hydraulic motor, the size and speed of the power, and promoting various hydraulic machinery to do work.

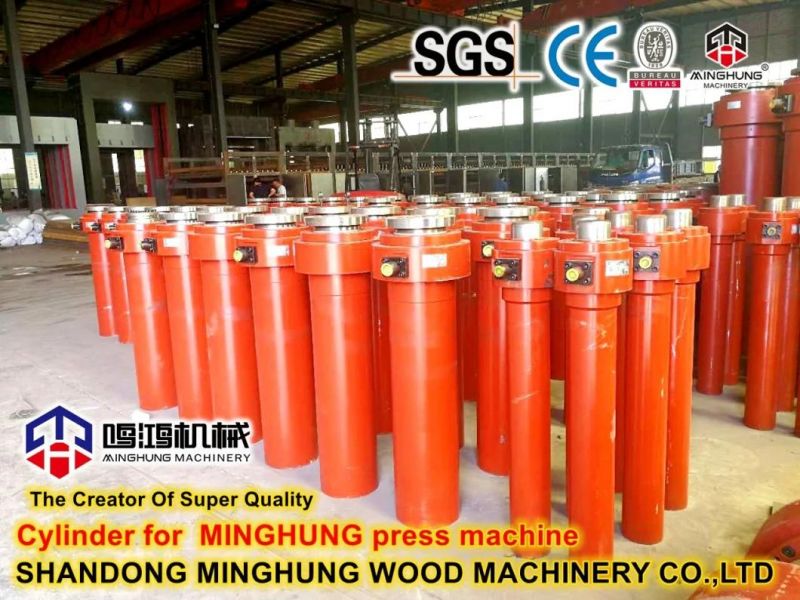

2. The oil cylinder is treated with anti-rust, alloy casting, high hardness, scratch resistance, suitable for high-strength operations, and uses a good oil seal to prevent leakage, ensure the pressure in the oil cylinder, and good performance
3. Usually hot platen use 42mm or 52mm, The hot platen be processed by large lathe, make the surface is smooth, with sufficient strength and stiffness. It does not deform at high temperatures, and the temperature and heat are uniform. This makes the plywood heated evenly, the surface is flat, and the thermal efficiency is high, which improves the production efficiency.


>>> our factory

Our main products include wood log debarker, veneer peeling machine, vacuum veneer stacker, veneer dryer machine, plywood cold press machine, plywood hot press machine, glue spreader, glue mixing machine, automatic plywood veneer paving line, plywood saw machine, sanding machine.

Scientific and technological innovation oriented, quality-based, service supremacy, we offer full complete range of plywood production solution and technology support for our customers. Yet our machines have been exported more than 30 countries and regions like Russia, Poland, Ukraine, Portugal, Bulgaria, Romania, Turkey, Egypt, Morocco, Indonesia, etc, and get good feedback.

With high efficiency sales team offer 24 hours online service, the professional technical team and after-sales service team offer plant layout, machine drawings, and after-sales service.
Choose us, you need not worry anything, we will help you arrange all.

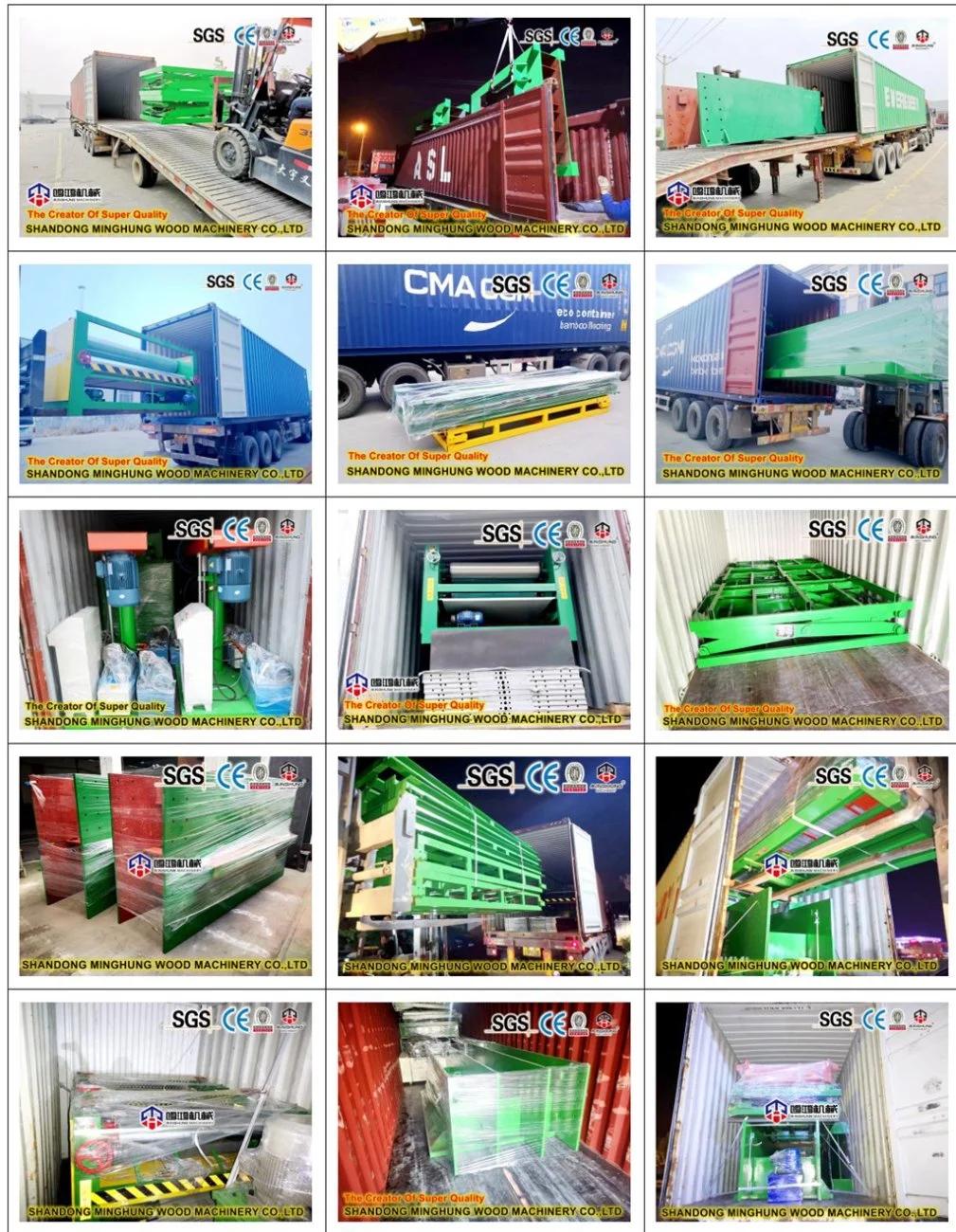

>>> DELIVERYbefore delivery, our engineer will test machine for make sure machine in good conditions.
when loading machine, we will share the loading pictures with you.
after ship leave, we will send ship information to you.
and prepare all documents for you do custom clearance.
