• Model NO.：ML9620M
• Precision：High Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Blue and Grey
• After-sales Service：3 years
• Weight：4300KG
• Product name：planer and saw combination machine
• Transport Package：Plywood Carton
• Specification：4530x1680x1630
• Trademark：QingCheng
• Origin：China
• HS Code：84659200
• Production Capacity：5000set,Y

Basic Info.

Model NO. ML9620M Precision High Precision Certification CE, ISO Customized Customized Condition New Color Blue and Grey After-sales Service 3 years Weight 4300KG Product name planer and saw combination machine Transport Package Plywood Carton Specification 4530x1680x1630 Trademark QingCheng Origin China HS Code 84659200 Production Capacity 5000set/Y

Product Description

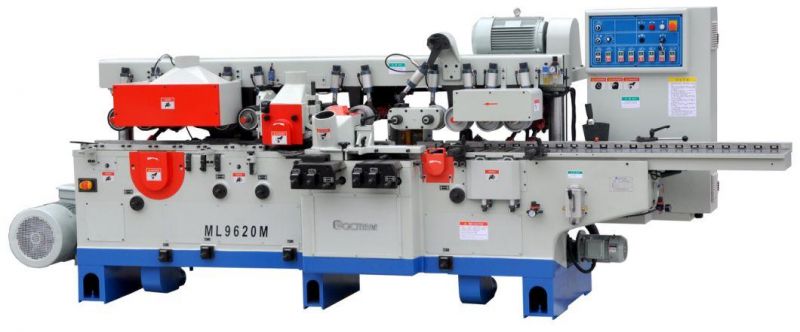

Woodworking Machinery Planing and Sawing Combination Machine Rip Saw & four-side planer



Specifications	Unit	ML9620M
Working width	mm	20-200
Working thickness	mm	10-125
Min.working length(single/continuous)	mm	650480
bottom cutter dia	mm	Φ125
Right&Left vertical cutter dia	mm	Φ110-Φ180
Upper cutter dia	mm	Φ110-Φ180
Left&right saw blade dia	mm	/
Bottom spindle	kW/HP	7.5/1.0
Right&left vertical spindle	kW/HP	2x7.5/1.0
Up horizontal spindle	kW/HP	1115
Left,rightvertical spindle, upper horizontal spindle	kW/HP	/
left,right saw spindle motor	kW/HP	/
Saw spindle dia	mm	Φ40
Saw spindle speed	r/min	4500
planner spindle speed	mm	Φ40
Upper saw blade dia	r/min	6800
bottom saw blade dia	mm	Φ180-Φ250
Feeding speed	mm	Φ180-Φ250
Total power	m/min	5~25
up saw spindle motor	kW/HP	82.25/110
bottom saw spindle motor	kW/HP	18.525
Feeding motor	kW/HP	2230
rear auxiliary feeding motor	kW/HP	7.5/10
lifting motor for upper and bottom saw spindle	kW/HP	/
Beam lifting motor	kW/HP	/
Saw spindle lifting motor	kW/HP	0.75/1
Air supply pressure	kW/HP	/
Disc conveyor	Mpa	0.3-0.6
Suction hood dia	mm	3*Φ150+4*Φ120
Overall dimensions	mm	4530x1680x1630
Weight	kg	4300

FAQ
Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.

2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, Warranty of your planing and sawing combination machine?
Its warranty is 12 months.

5, What's your leading time of planing and sawing machine?
Within 2 days for regular stocked machine. 2 months for OEM machines.

7, What's your delivery term?
---FOB shanghai/Ningbo
