Woodworking Router 1300*2500mm Machinery CNC Router with Compression Roller

Guangzhou Dragon Diamond Technology Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Horizontal
  • Spindle Number：Single-Spindle
  • Feed Mode：Manual
  • Controlling Mode：CNC
  • Certification：CE

Base Info

  • Model NO.：LZ-1325A
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • X,Y,Z Traveling Area：1300mm*2500mm*200mm
  • Table Size：1440mm*2830mm
  • Table Structure：T-Slot Table

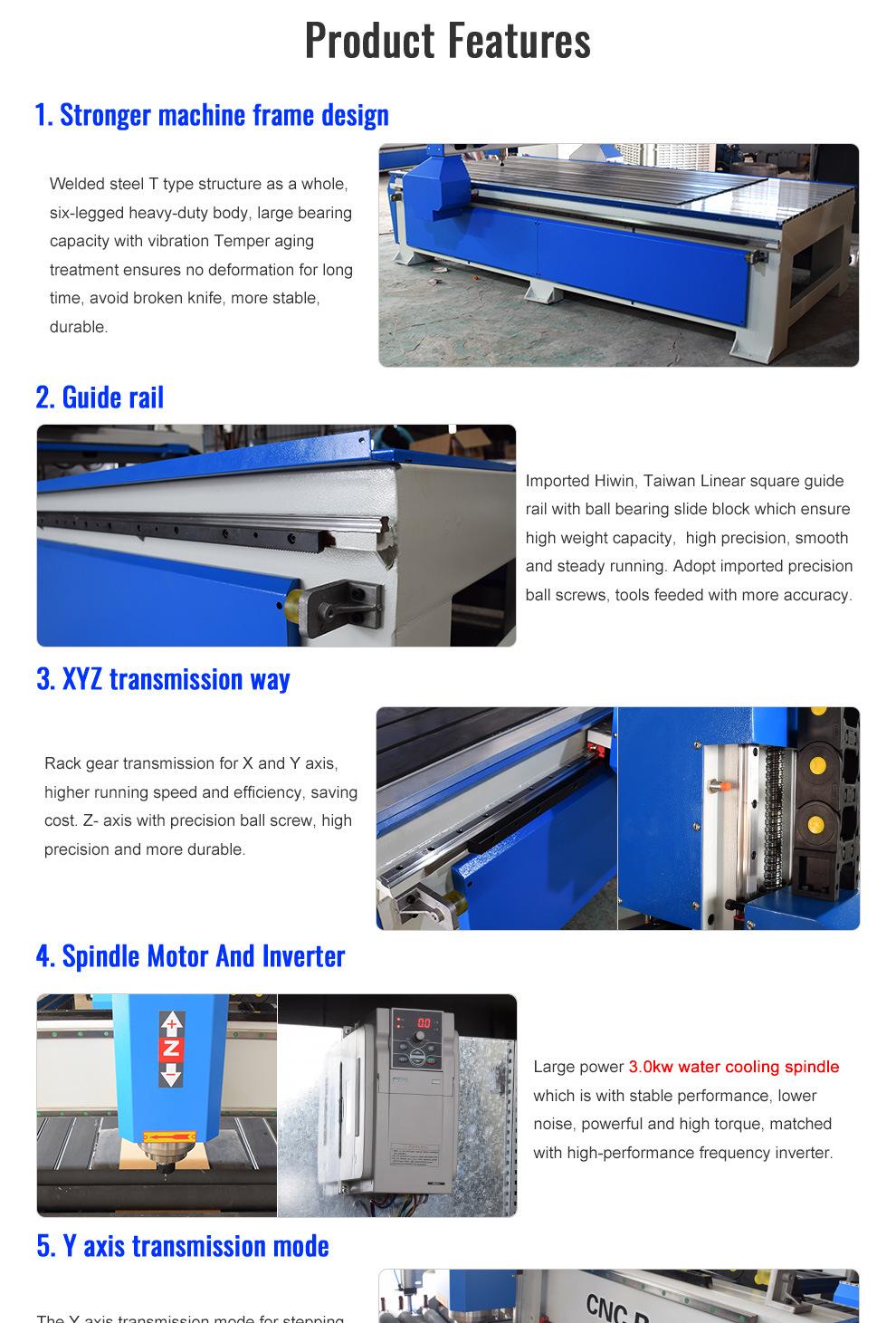

  • Guider：Taiwan Hiwin Square Rail
  • X,Y,Z Guide Rail：Taiwai Hiwin Square Rail
  • Spindel Power：3.0kw Water Cooling Spindle
  • Control System：Nc-Studio Control System(DSP)
  • Working Voltage：AC380V, 50Hz
  • Max Spindle Speed：24000rpm
  • Warranty：24 Months with 24 Hours on-Line Technical Support
  • Transport Package：Wooden Packing
  • Specification：Pcking size: 3200X2200X1800mm
  • Trademark：Dragondiamond
  • Origin：China
  • Production Capacity：50 Set,Sets Per Month

Description

Technical ParametersWorking Area (X*Y)1300mm*2500mm*200mmTable TypeT-slot tableX,Y,Z Traveling    Positioning Accuracy±0.03/200mmX,Y,Z Repositioning    Accuracy±0.03mmSpindle3kw water cooling spindleSpindle Speed0-24000RPMGuiderTaiwan Hiwin Square RailTransmission TypeXY gears pinion,Z axis with ø20mm ballscrewsControl SystemNC-studio control systemMotorStepper motorInverterSunfar InverterCollets3.175mm/6mm/12.7mmSoftwareArtcamCommandG code*.u00*.mmg*.pltVoltage3P380v, 50/60 HzPacking Size3200X2200X1800mmN.W.1400kgWarranty24 months for machine with    24 hours on-line technical supportOptional parts:1.Dust Collects

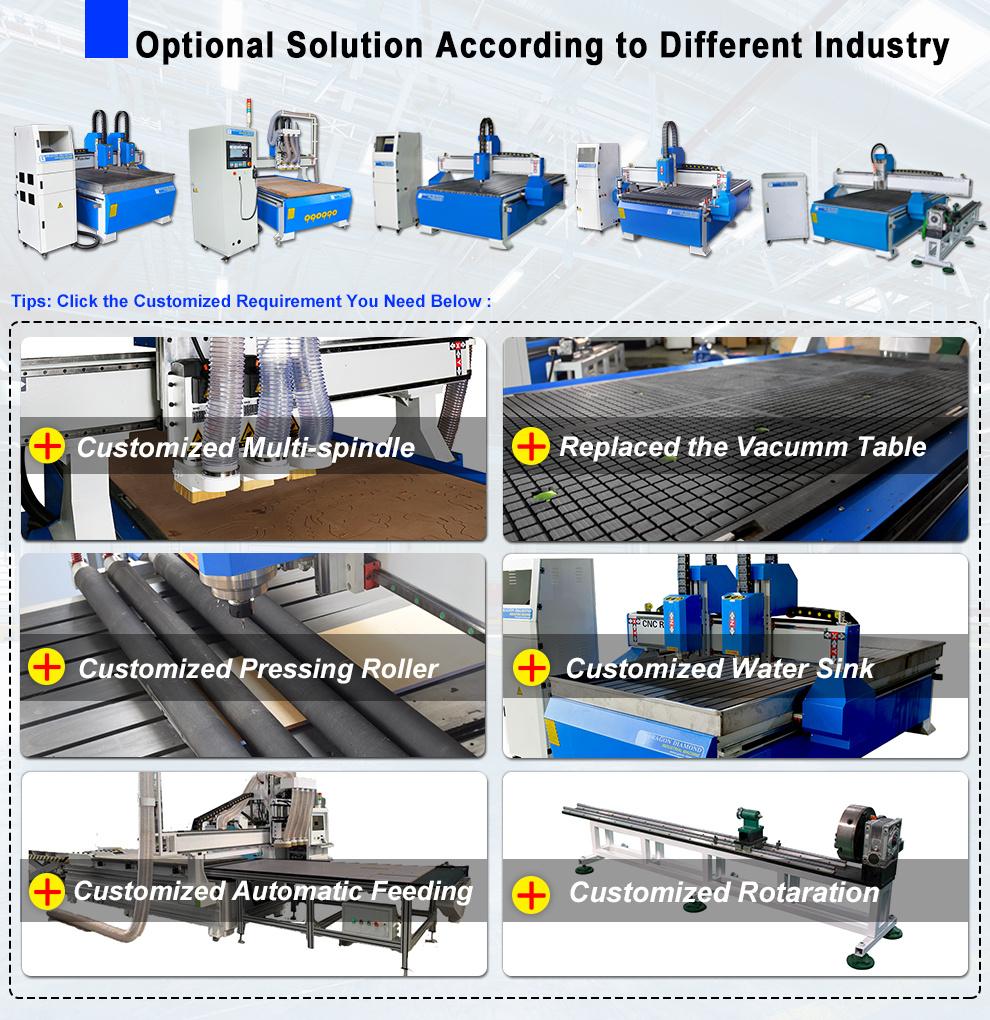

2.Water Chiller CW3000
3.Mach 3 / DSP
4.Servo Motor
5.rotary axis
6.different working area
7.semi-auto lubrication system
8.different power spindle
Woodworking Router 1300*2500mm Machinery CNC Router with Compression Roller
Woodworking Router 1300*2500mm Machinery CNC Router with Compression Roller
Woodworking Router 1300*2500mm Machinery CNC Router with Compression Roller
Woodworking Router 1300*2500mm Machinery CNC Router with Compression Roller

Woodworking Router 1300*2500mm Machinery CNC Router with Compression Roller
Woodworking Router 1300*2500mm Machinery CNC Router with Compression Roller
Woodworking Router 1300*2500mm Machinery CNC Router with Compression Roller
 Please feel free to contact us for more information!
