High Speed Four Side Moulder Machine
Shandong STX Machinery Trade Co., Ltd.- Warranty：18 Months
- Type：Four-Side Planer
- Working Depth：100-200mm
- Working Width：160mm
- Drivetrain：Feed Drivetrain
- Enter Method：Mechanical
Base Info
- Model NO.：M718HH
- Motor Power：＞10Kw
- Cutter Shaft：6
- Spindle Speed：＞5000rpm
- Process Type：Heavy Processing
- Certification：CE
- After-sales Service：Online Service
- Color：Standard
- Advantage：Long Service Life
- Application：Woodworking Factory
- Function：Planer and Moulder
- Extra Support：Roller Conveyor
- Working Thickness：8-120mm
- Max. Working Width：180mm
- Spindle Qty.：7
- Transport Package：Steel Pallet
- Origin：China
- HS Code：846592
- Production Capacity：2000 Sets,Year
Description
Other Parameters Feeding wheel diamter 140mm Overall dimension Dust outlet diameter 140mm Machine weight 5000kg Package & Delivery Since established in 1990s years, we keep our attention on Four side moulder, Double Side Moulde, Rip saw,Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China4500*1500*1900mm
Detailed Images
Four side moulder with first two bottom planers , this structure can more effectively process the relatively distorted wood in the plywood factory, enlarge the processing scope and reduce the processing cost.
It should be equipped with a automatic conveyor in front of side feeder in order to save labor intensity and improve efficiency

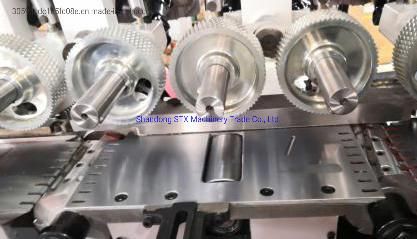

The structure of cylinder floating feed roller is adopted under the worktable to overcome the problem of rough material feeding.
Speed of side feeder could be up to 60 m/min.
Chain of side feeder is toothed and it allows smooth passage of wood

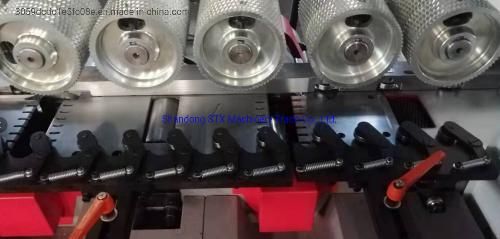

During the processing on the side of the wood products, there are multiple groups of side pressure units to ensure that the wood close to the plate feeding processing.

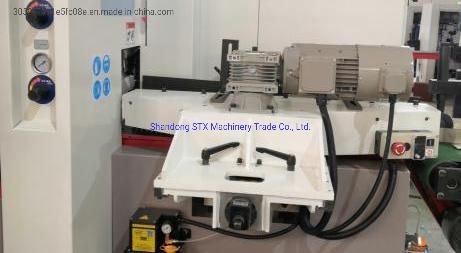

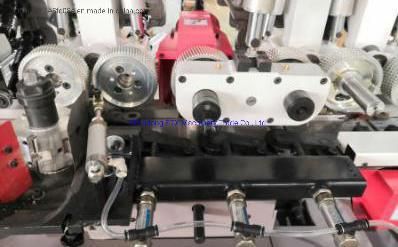

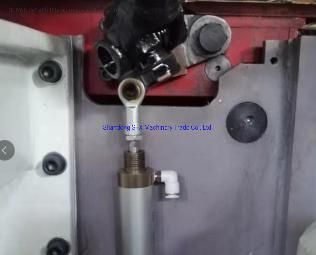

The front vertical plate of the left spindle and the side pressure wheel set are all compressed by pneumatic, which can flexibly adjust the pressure and equipped with auxiliary device of short material. Effective and smooth feeding of short material.
The front pressing plate of the top spindle is pneumatic pressing, which is more suitable for high-speed feeding

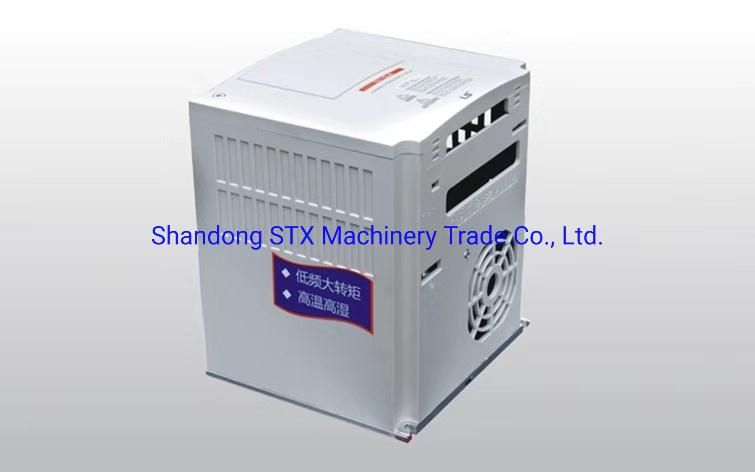

Feeding transducer,digital display,the feeding speed is up to 60M/min ,easy operation,energy saving,and increase wearing because of mechanical shifting.

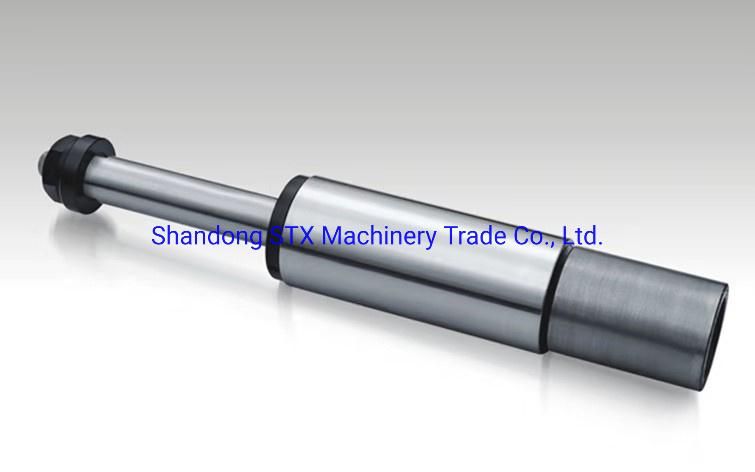

Matched precision bearing is adopted at the front end of the spindle, which can rotate stably at high speed. Each spindle is assembled in the dust-free constant temperature workshop.
Spindle speed: 8500r/min.
Processed effect
