• Model NO.：SRP630B
• Condition：New
• Color：Blue and White
• After-sales Service：3 years
• Weight：1950KG
• Transport Package：Plywood Carton
• Specification：2120x1280x2050
• Trademark：Qingcheng
• Origin：China
• HS Code：8465930000
• Production Capacity：10000,Y

Basic Info.

Model NO. SRP630B Condition New Color Blue and White After-sales Service 3 years Weight 1950KG Transport Package Plywood Carton Specification 2120x1280x2050 Trademark Qingcheng Origin China HS Code 8465930000 Production Capacity 10000/Y

Product Description

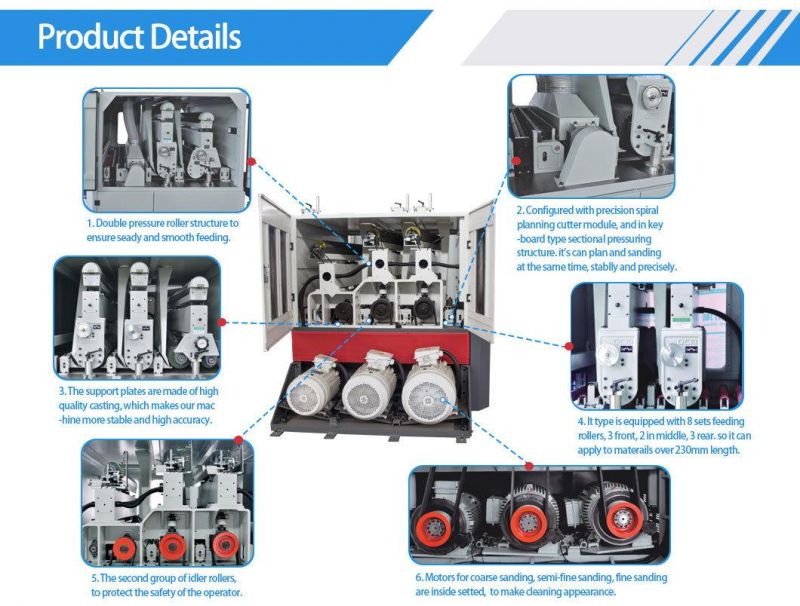

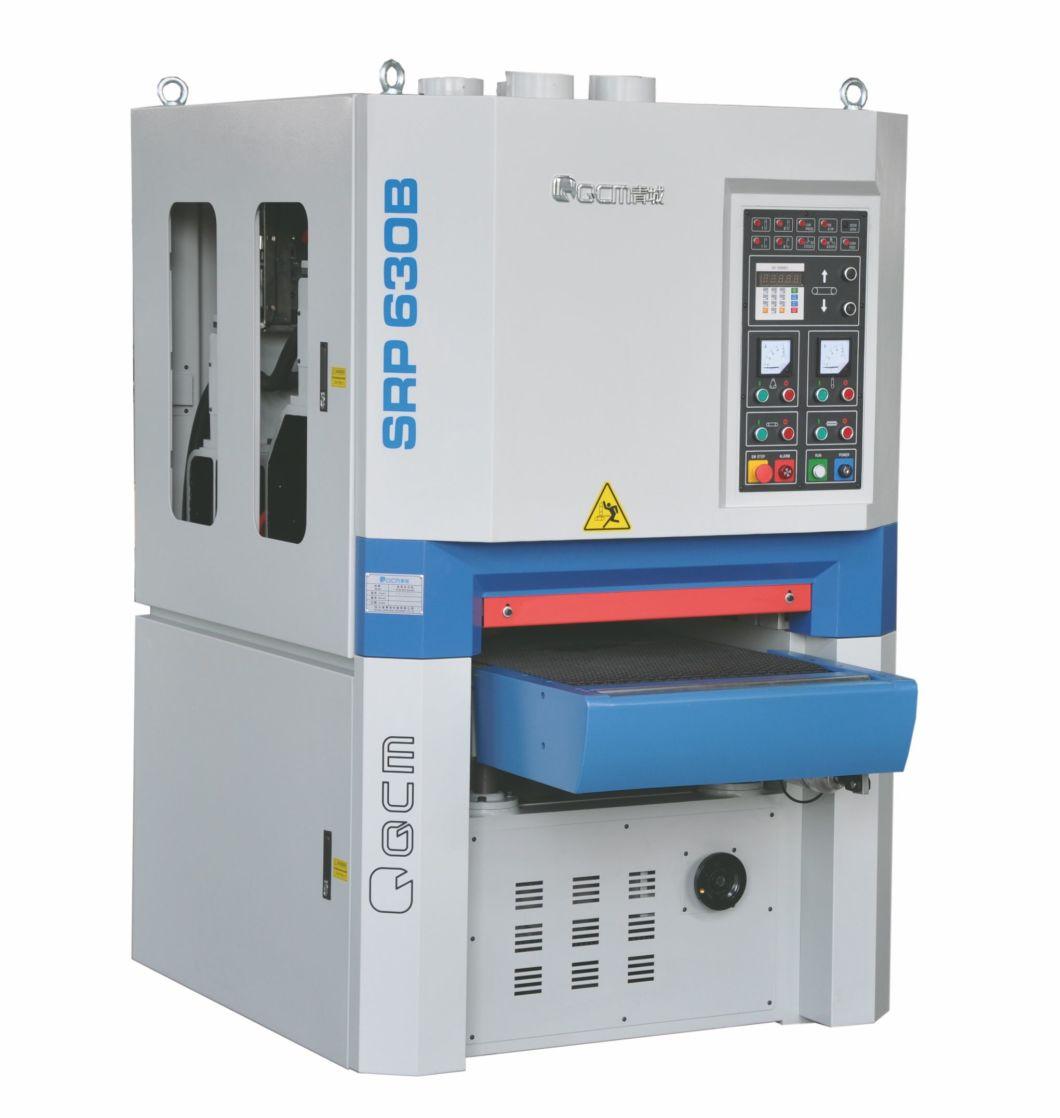

Woodworking Machinery Planing and Sanding Machine Three Wide Belts Sanding Machine




Specifications	Unit	SRP630B
Sanding cutting width	mm	40-630
Sanding cutting thickness	mm	3-160
The Shortest Sanding Length	mm	500
Planer shaft speed	m/s	/
Speed of the first group of sanding belt	m/s	19
Speed of the second group of sanding belt	m/s	16
Speed of the third group of sanding belt	m/s	/
Feeding speed	m/min	5~27
Sanding belt size	mm	650x2100
Total motor power	kW/HP	20.74/28
Planer shaft motor	kW/HP	/
The first group of belt motor	kW/HP	11/15
The second group of belt motor	kW/HP	7.5/10
The third group of belt motor	kW/HP	/
Feeding motor	kW/HP	1.5/2
Dust brush motor	kW/HP	0.37/0.5
workbench lifting motor	kW/HP	0.37/0.5
Vacuum port diameter	mm	5*Φ150
Working pressure	Mpa	0.6
Overall dimensions	mm	2120x1280x2050
Weight	kg	1950

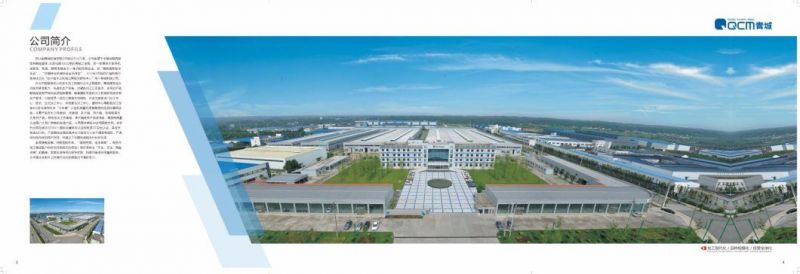

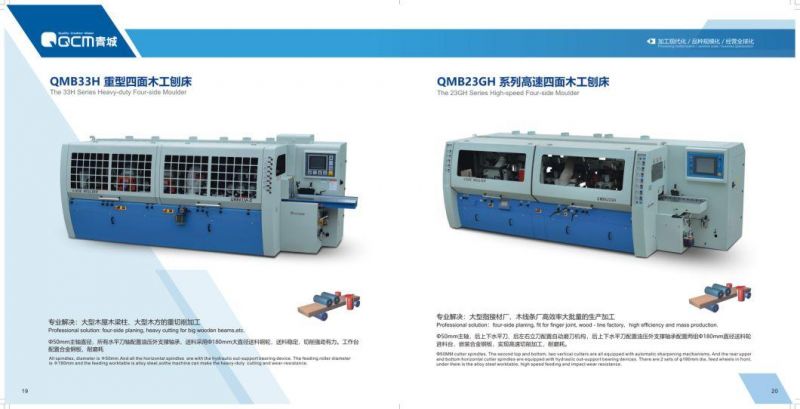

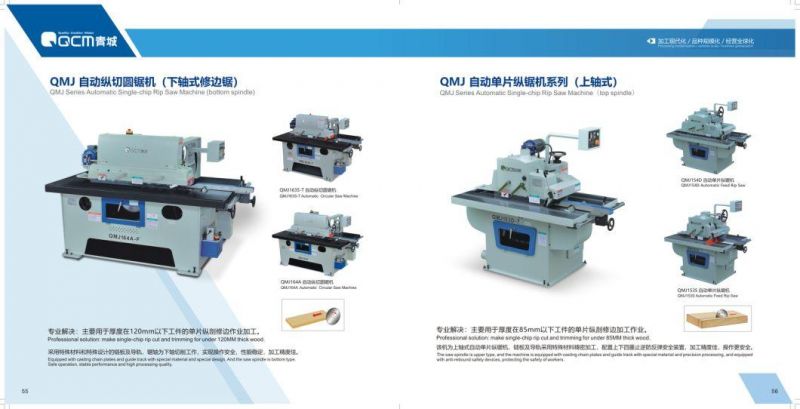

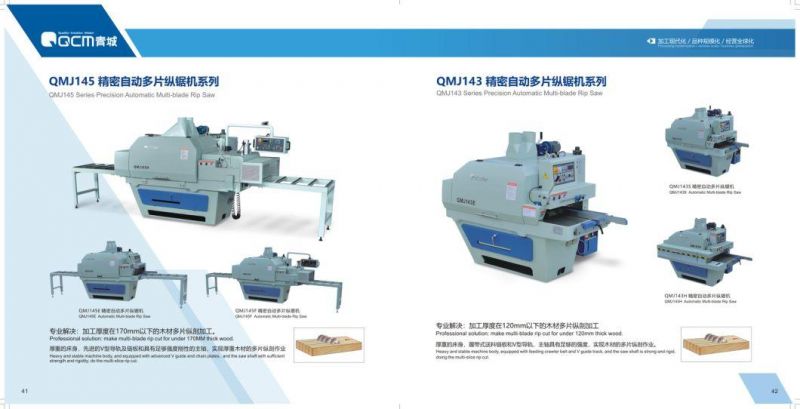

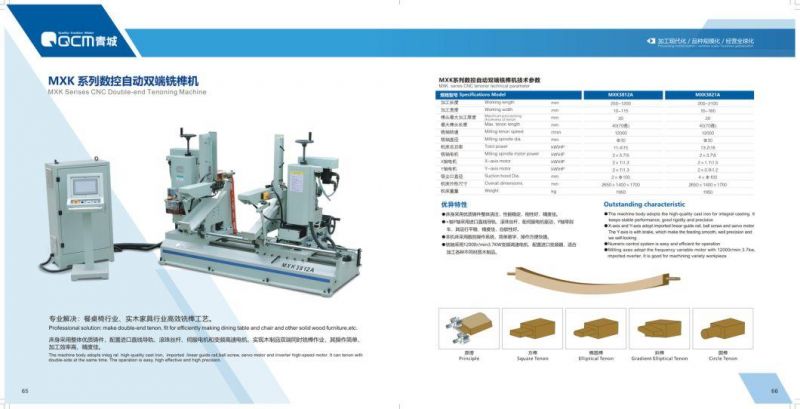

Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.

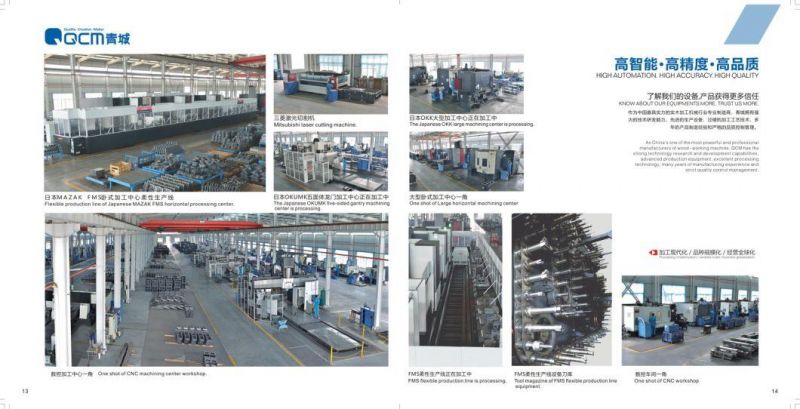

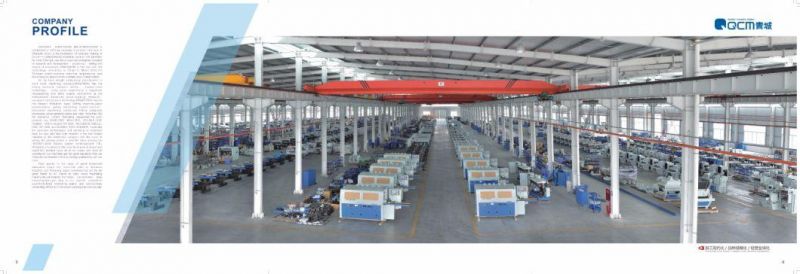

It's been 50 years since we have devoted our-self to the development and manufacturing of woodworking machinery. As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.

Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.










FAQ

Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 70 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.

2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, Warranty of your products?
Its warranty is 12 months.

5, What's your leading time?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.

7, What's your delivery term?
---FOB shanghai/Ningbo
