• Model NO.：JZ-H-188
• Close Time：20 Seconds
• Frame：Combination
• Weight：33t
• Color：Customized
• Transport Package：Container
• Specification：Pressure range 500t
• Trademark：JJZ
• Origin：China
• HS Code：8465990000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. JZ-H-188 Close Time 20 Seconds Frame Combination Weight 33t Color Customized Transport Package Container Specification Pressure range 500t Trademark JJZ Origin China HS Code 8465990000 Production Capacity 1000sets/Year

Product Description

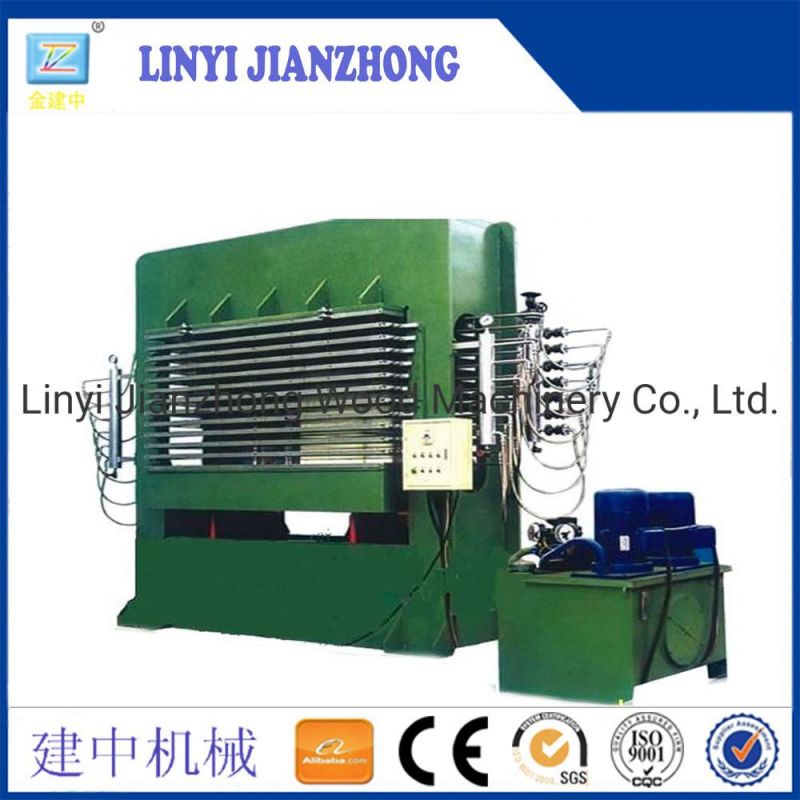

Hydraulic hot press machineBrief Introduction:
Hot pressing system, heating system, heat conduction system, light and meticous  design,  low heat consumption, uniform heat conduction; mechanism toset up the surface of the hot pressing machine,Reasonable, high precision machining parts, processparameters to adjust a wide range of control process design  is  reasonable, to meet a variety of veneer production process requirements.
Uses: Surface pressseries models for neutral furniture factory or small wood-based panel secondary processing (professionalveneer) factory, used to heat  pressure  bondingfurniture panels, building partitions, wooden doors and in a variety of wood-based panel: Such as plywood, blockboard, MDF, particleboard  surface pressure affixed to a variety of decorative materials.


Advantages:

1. The machine adopts lever spring simultaneous closures system, which makes each core veneer closed simultaneously.

2. After special processing, hot platen has a favorable tide exhaust tank on both sides,which makes venner exhause wet gas fast and efficiently.

3. The self-developed PLC systen can set the number and time of exhaust wet gas according to the humidity of core veneer.

4. Oil cylinder is easy to maintain, and also its failure rate is low. Besides, it adopts a upper cylinder mode.

Product Description:

Board feeding direction	Transverse
Pressure	500T
Temperature	150ºC
Layers	15 layers
Layer spacing	70mm
Number of hot press plate	16Pcs
Hot press plate size	2700mm*1370mm*52mm
Cylinde	Ø360mm*2pcs
Stroke	1050mm
Compression resistance	25 Mpa
Power	29.5KW
Middle beam	400mm
Weight	38Tons
Stand plate width	400MM*4
Composite frame	Detachable
Upper and bottom beam	900mm
Overall dimension	3550mm*1370mm*4200mm
ELECTRIC BOX	Zheng Tai
Thickness of the frame	35mm Q235

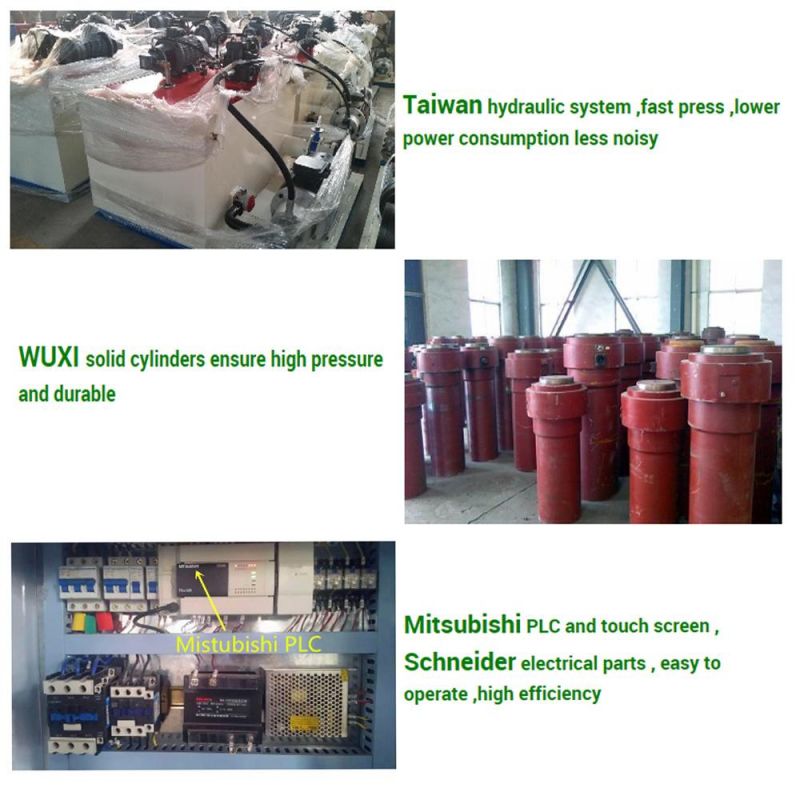

Detail images:

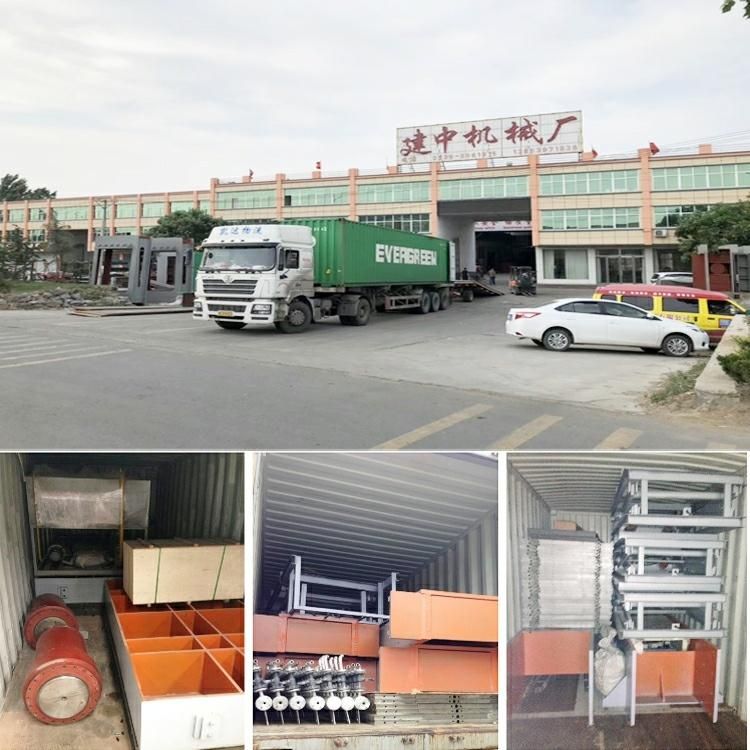

Packing&Shipping:



Certifications:


Our Services:

About us:

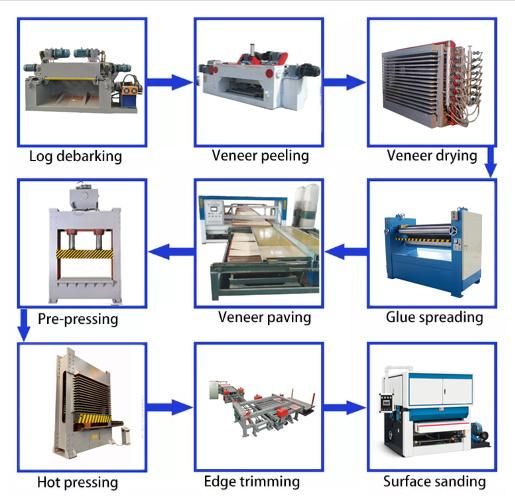

LINYI JIANZHONG WOOD MACHINERY CO.,LTD was established in 1998, which is located in Linyi, Shandong province, with a 30000 square meters' factory. Our company specializes in wood working machinery that includes wood debarker, veneer peeling machine, veneer dryer, glue spreader, glue mixer, plywood hot press machine, plywood cold press machine, planking machine, plate turnover, lift table, plywood sawing machine, grinding oblique machine, plywood paving machine and plywood sanding machine, with abundant domestic sales experience and export experience.
With the whole plywood production line and the strong research team, the machines which independently developed by our company have gained national patents and good reputation. With the huge economic forces and production well as rich experience, we can provide the perfect equipments and the solution to the wood working industry. Besides, our products can be found everywhere in China and we also export to Australia, Southeast Aisa and so on. Currently, our products have been exported to more than 20 countries and regions, we provide life-cycle service solutions and technical support for our customers.

History:

In 1998, our company started to produce plywood veneer paving machine and the main product is the 24 meters' paving machine. After our continuous efforts to develop, we started selling the machine to the India market.

In 2004, our technical team grew up quickly and developed more products. Fully automatic horizontal and vertical plate laying machine, cold press and turning machine were sold to the market.

In 2007, we started the cooperation with India agent company "GURPREET KATAAT" to develop more sales market.

In 2009, our company became the woodworking machinery equipment supplyer of the Russian "PPG" .

In 2011, with the technical support of the agent company in Portugal, we produced 800T melamine hot pressing veneer machine for plywood.

In May 2013, our company participated in the international building materials exhibition in Indonesia, and then participated in the five major industry exhibitions in mumbai, India, and reached several cooperation agreements, all of which achieved satisfactory results.

In 2015, our company had applied for 4 national patents. We constantly improved the quality of machinery, committed to research and development of more new products, to provide customers with better-quality equipments.

In 2017, our company successfully passed the acceptance of various indicators of the ministry of environmental protection. Our company participated in Linyi international woodworking machinery exhibition and the booth area reached 500 square meters, which helped Jianzhong machinery to go to the world.

In 2019, we successfully applied for CE certification of woodworking machinery again, and successfully applied for various instructions of ROHS2.0.

Please be comfortable to contact us right now to get more information if you have some interests!

All kinds of plywood and plywood woodworking machinery products can be customized according to your requirements~
