China Remax Lathe Machine Price with Good Quality

Jinan Remax Machinery Technology Co., Ltd.
  • Warranty：1 Year
  • Type：Multi-Axis Automatic & Semi-Automatic Lathe
  • Voltage：380V
  • Tool Holder：Double-tool Holder CNC Lathe
  • Automatic Grade：Automatic
  • Precision：High Precision

Base Info

  • Model NO.：1530
  • Setting Mode：Table
  • Controlling Mode：CNC
  • Power Source：Electric
  • Certification：CE
  • After-sales Service：1 Year
  • Air Pressure：8-10 MPa
  • Powersupply：AC 380 V 3phase 50,60 Hz(Can Custom 220V)
  • Max Feed Rate：200cm,Min
  • Guider：Taiwan Hiwin Guide Rail
  • Motor Power：5.5kw
  • Motor：Leadshine Servo Motor(Delta Servo ,Yaskwa Servo Mo
  • Inverter：Fuling Inverter
  • Transport Package：Standard Wood Box
  • Specification：1500*3000
  • Trademark：Remax
  • Origin：China
  • HS Code：8465920000
  • Production Capacity：50PCS,Month

Description

ItemSpecificationMax processing length1500mm(can custom longer size)Max turning diameter300mm(can custom diameter)Air pressure8-10 MPaPower supplyAC 380 V 3phase 50/60 HZ(can custom 220V)Max feed rate200cm/minMin setting unit0.01cmTransimission typeballscrew for X,Y,Z axesGuiderTaiWan HiWin guide railMain shaft rotating speed0-3000r/minMotor power5.5KWControl systemRemax CNC control systemMotorLeadshine servo motor(delta servo ,yaskwa servo motor)DriverServo driverInverterFuling inverterDrawing softwareAuto CAD FOR turning and professionalFeature

1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight more than  2000kgs to make sure the lathe body stabilized and never  deformed.

2. Special used for  Regular and irregular staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs;bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts, baseball bats and so on.

3.Adopting advanced Remax Control system which is easy for operating,no need computer

4. Adopt Taiwan TBI ball screw and HIWIN helical  guide rail with high precision and longevity.

5. Compatible with several CAD/CAM design software

6. Rotating speed can be adjusted by inverter

7. One time tool setting to finish the whole work piece.

8.Turning,broaching and engraving can be done with one machine by high speed.

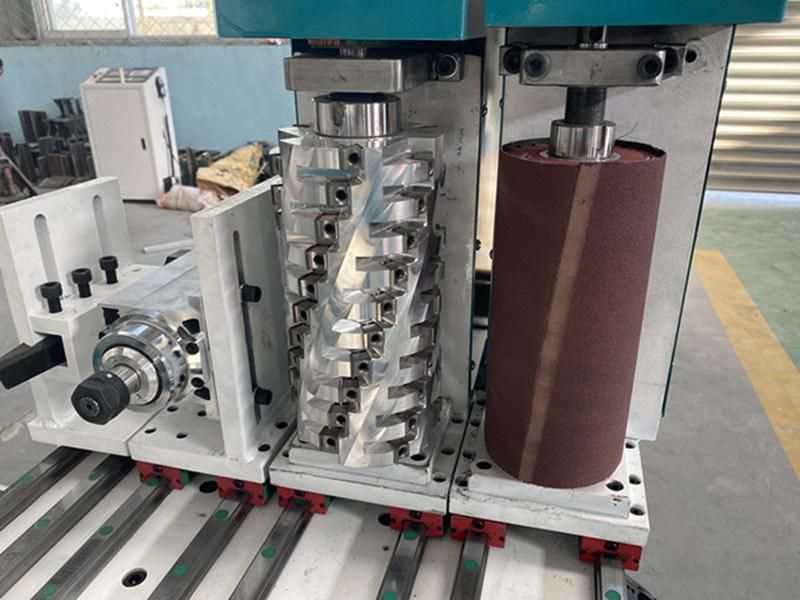

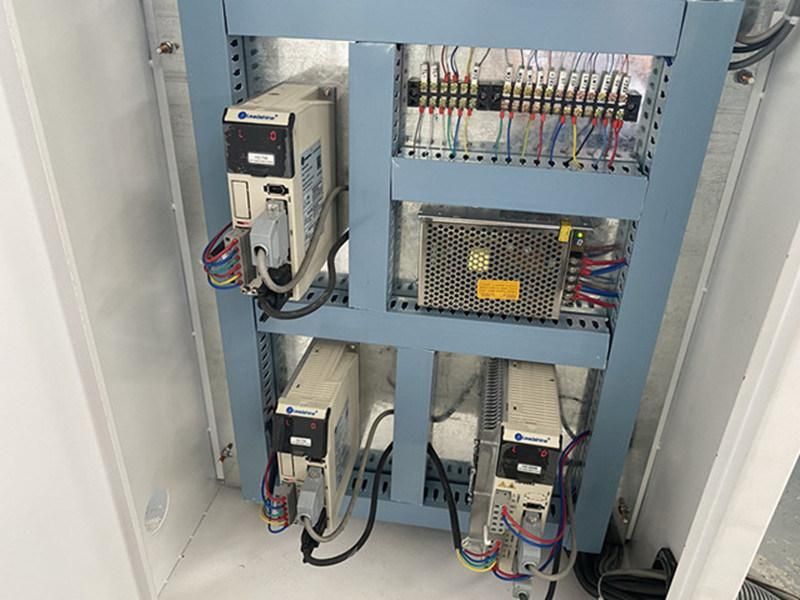

Part
China Remax Lathe Machine Price with Good QualityChina Remax Lathe Machine Price with Good QualityOur company
China Remax Lathe Machine Price with Good QualityJinan Remax Machinery Technology Co.,LTD is a professional cnc router manufacturer, after ten years of efforts, our company already independent R&D and manufacture of molds engraving and milling machine, large CNC woodworking engraving machine, woodworking engraving and milling machine, CNC advertising engraving machine, CNC stone engraving machine, CNC linear and disk auto tool changer machines, CNC plasma cutter machines, laser cutting and engraving machine, laser cutting machine, metal laser cutting machine, styrofoam machining centers etc machines, since the establishment of our company, with professional technology and advanced management concepts, the rapid rise in the field of Numerical Control, has developed into research and development, production and sales of high-tech enterprises, the products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields has been completely replace imported similar products, and become the leading companies in the industry.

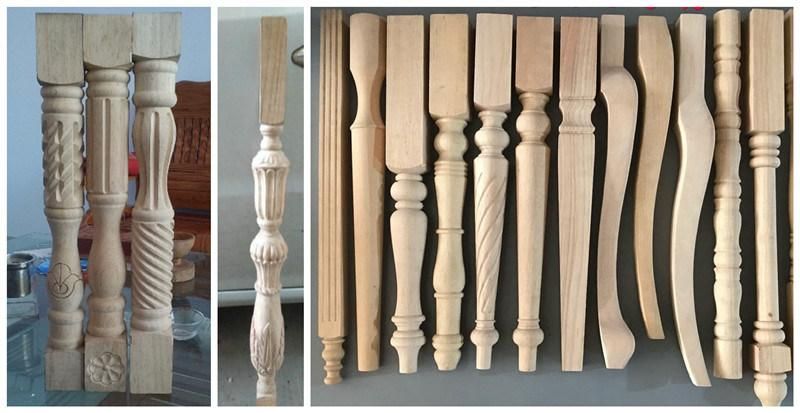

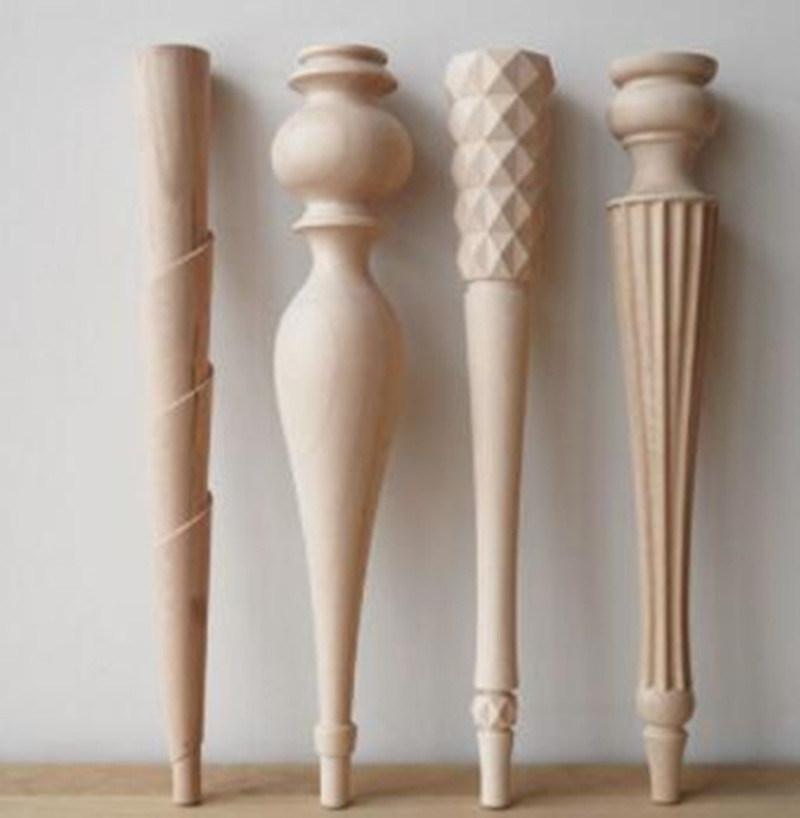

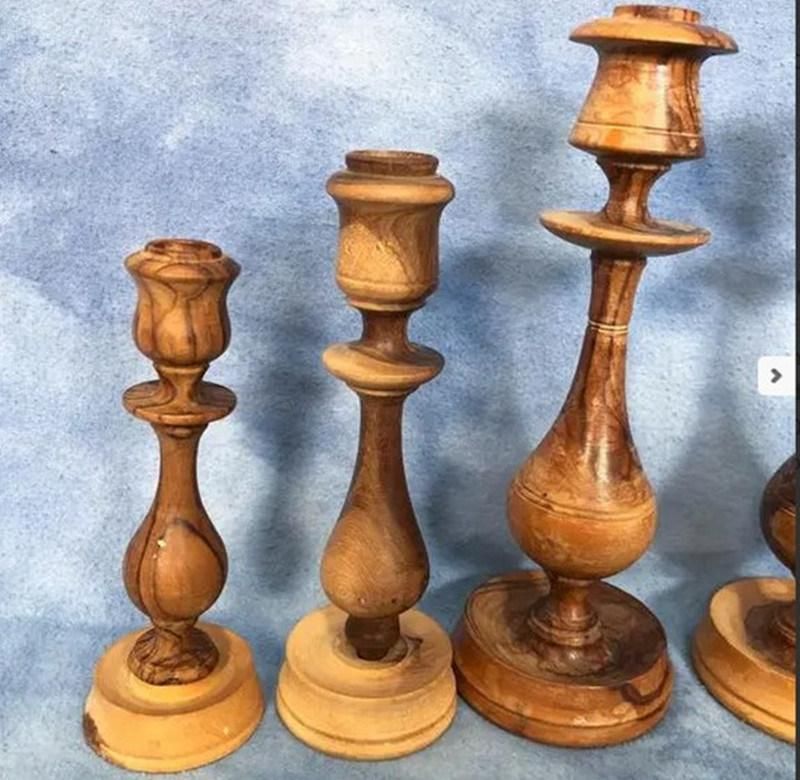

Samples
China Remax Lathe Machine Price with Good QualityChina Remax Lathe Machine Price with Good QualityChina Remax Lathe Machine Price with Good QualityOur servicee
A. Pre-Sales Service
1.We have many exhibitions every year, hundreds of clients was coming to our booth for further communication.
2.24-hours online lnquiry and consulting support.3.Support sample testing .
4.we welcome you to visit our factory.
B.After-Sales Service
1.Training how to install the machine,training how to use the machine online.2.Engineers available to clients' factory for training.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining
6.Free technician training for customers.FAQ
Q1:good reasons why you should buy from us?
A1:1 we are a real factory offering products2 free technical advice by QUALIFIED MECHANICAL ENGINEERS3 company in business for many years4 over 50 countries customers served!5 buy direct saving your money!6 all machine with CE, ISO,Bv certificate.7.Total machine for one year guarantee8 our engineer can go to your country to provide technical guidance9 fast delivery, save your time.Q2:How can l buy this machine from you ? ( very easy and flexible! )
A2:1.Cousult us about this product on line by e-mail.2.Negotiate and confirm the fianl price,shipping,payment methods and other terms.3.Send you the proforma invoice and confirm your order.4.Make the payment according to the method put on proforma invoice.5.We prepare for your order in terms of the proforma invoice after confirmin yourfull payment.And 100% quality checkbefore shiping.6.Send your order by air or by sea.
