• Model NO.：S400
• Max Tool Dia：90
• Lubrication System：Automatic
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. S400 Max Tool Dia 90 Lubrication System Automatic Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/Year

Product Description

High Precision 3 Axis Ball screw CNC Machine
 Keywords:15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                  Three Brand: Mars, Golden Eagle,Borio



Description:
High Precision 3 Axis Ball screw CNC Machine is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include milling on artificial stone,wood,bamboo,etc.,processing of various patterns and characters.

Applicable Materials:
Artificial stone,wood,bamboo,marble,organic board,two-color board,etc..


Application Scope:
Cabinet doors,wooden doors,solid wood,panels,doors&windows,tables&chairs,screens,wave panels,large wall hangings,advertising panels,logo&sign making.


Parameters:

Model	High Precision 3 Axis Ball screw CNC Machine
Working Stoke	1300*2500*300mm
Table Structure	Vacuum Table
Servo Motor	Yaskawa Servo Motor
Control System	Syntec 6MB
Spindle Power	9KW air cooling spindle
Traveling Speed	48/60/15
Tool Magazine	12
Max Working Thickness	250mm
Spindle Speed	24000rpm
Lubrication System	Automatic
Transmission	XY and Z axis are all ball screw.
Re-positioning Accuracy	±0.08mm
Max Tool Dia	90
X/Y/Z	3232/4040/2510
Net Weight	3000KG
Working Voltage	AC380/ 3PH/ 50HZ

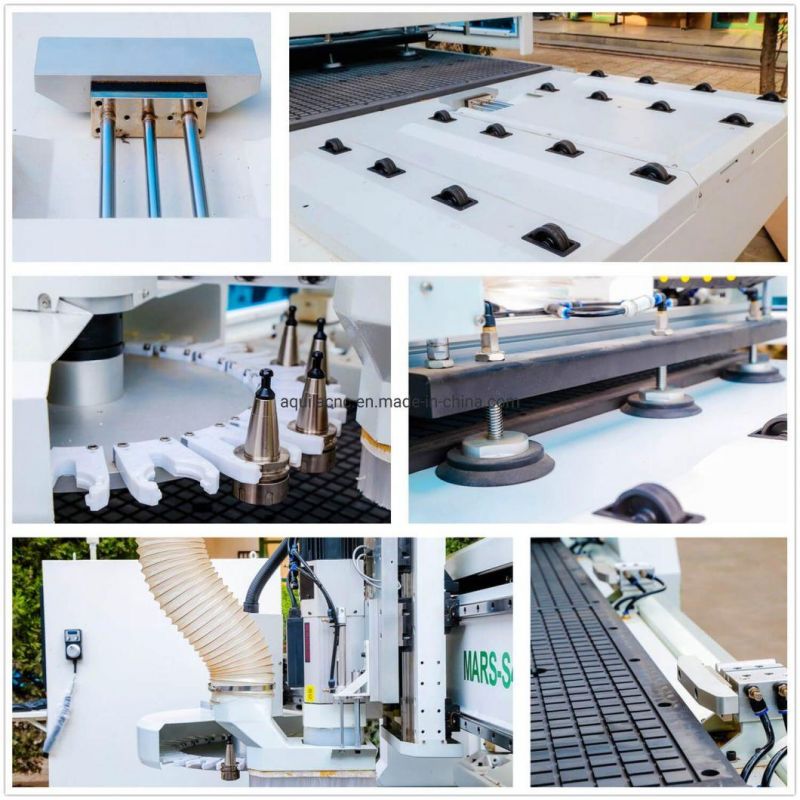

Accessories:


Performance Features:
1. Equipped with all the leading international brand components, with circulaar tools tool change. Moving working table, with higher processing accuracy, much longer lifetime.
2. All 3 axis ball screw drive can achieve much higher precision.
3. High-power air-cooling spindle, Japan YASKAWA servo motor and driver.
4. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
5. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
6. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.

Samples:
