Woodworking Machinery

Cheap Good Quality Sawdust Pellet Press Machine

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Wood Pellet Mill
  • Voltage:380V
  • Automatic Grade:Automatic
  • Controlling Mode:Artificial
  • Energy Saving:Energy Saving
  • Certification:CE, ISO

Base Info

  • Model NO.:WZLH420
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Multi Color
  • After-sales Service:Engineer Available
  • Capacity(T/H):0.8-1.2
  • Main Power(Kw):90
  • Pellet Size(mm):6-8
  • Brand of Motor:Siemens
  • Power of Screw Feeder(Kw):3
  • Power of Forced Feeder(Kw):1.5
  • Transport Package:Iron Pallet and Soft Guard
  • Specification:CE, ISO9001, SGS
  • Trademark:FDSP
  • Origin:Jiangsu, China (Mainland)
  • HS Code:8479300000
  • Production Capacity:5 Sets,Month

Description

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Engineer Available Capacity(T/H) 0.8-1.2 Main Power(Kw) 90 Pellet Size(mm) 6-8 Brand of Motor Siemens Power of Screw Feeder(Kw) 3 Power of Forced Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

Cheap good quality sawdust pellet press machine
Cheap Good Quality Sawdust Pellet Press Machine
Introductions of pellet making machine:
1.Biomass wood pellet machine is a kind of machine which could process sawdust,straw dust,rice husk,peanut shell,tree branches etc biomass through pre-treatment and process.Those biomass material will be solidified into high-density pellet fuel.
2.Classification:Flat die wood pellet machine,horizontal ring die wood pellet machine and vertical ring die wood pellet machine.Our horizontal ring die pellet machine have high output than flat die wood pelletizer;compared with vertical rin g die pelletizer, our product have long term stable performance and easy maintenance,the finished pellets with compact structure,so they can be applied for industrial boiler.


Features:
1.Main driving adopt high precise of gear driving,rind die adopt quick dismantling clamp,the efficiency improve approximately 20% higher than belt driving.
2.The machine's driving parts use high quality of imported bearing and oil seal to ensure high efficient driving ,stable and low noise operation.
3.The advanced compensation type serpentine spring coupling is with novel,compact,safe structure and low faulty etc.,
4.Considering material and heat treatment,the running parts' have been strengthened in order to meet the requirement of biomass pelleting.
5.Patented ring die technology,mainly improve ring's crack prevention and increased capacity per our and overall capacity.
6.Additional oil adding system,additional air cooling system,with high efficiency,low energy consumption,stable operation,good quality pellets and reliable performance.


 ItemSawdust pellet press machine
 Pellet Mill Type- With Standard Feeder
- With Anti-broken Feeder




 Technical Parameters

- Capacity: 0.8-1.2(T/H)
- Size: 2800*1150*2100(mm)
- Power: 75/90KW
- Inner diameter of die: 420(mm)
- Pellet size: 6ø, 8ø, 10ø(mm)
- Net weight: 4000(kg)

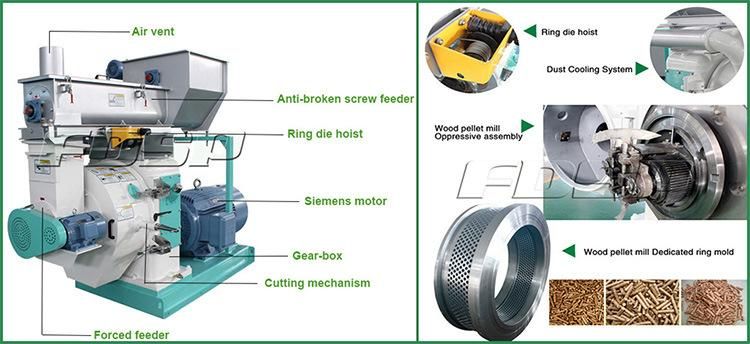

 Main Features
- CE & ISO & SGS certification
- Siemens motor, imported bearing
- High precision gear-driven transmission system
- One ring die and two rollers system

 Optional Parts
- Screw feeder with anti-broken
- Conditioner: To adjust the moisture of raw material.
- Auto cooling system for gear-box(large capacity)
 Packing ModeIron pallet with stretched film, etc
 MOQ1 set
 PaymentL/C, T/T, Western Union, Money Gram...
 Warranty12 months

Product display:Cheap Good Quality Sawdust Pellet Press MachineFAQ

1.Q:Are you a factory or trading company?

A:We are a factory .

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!

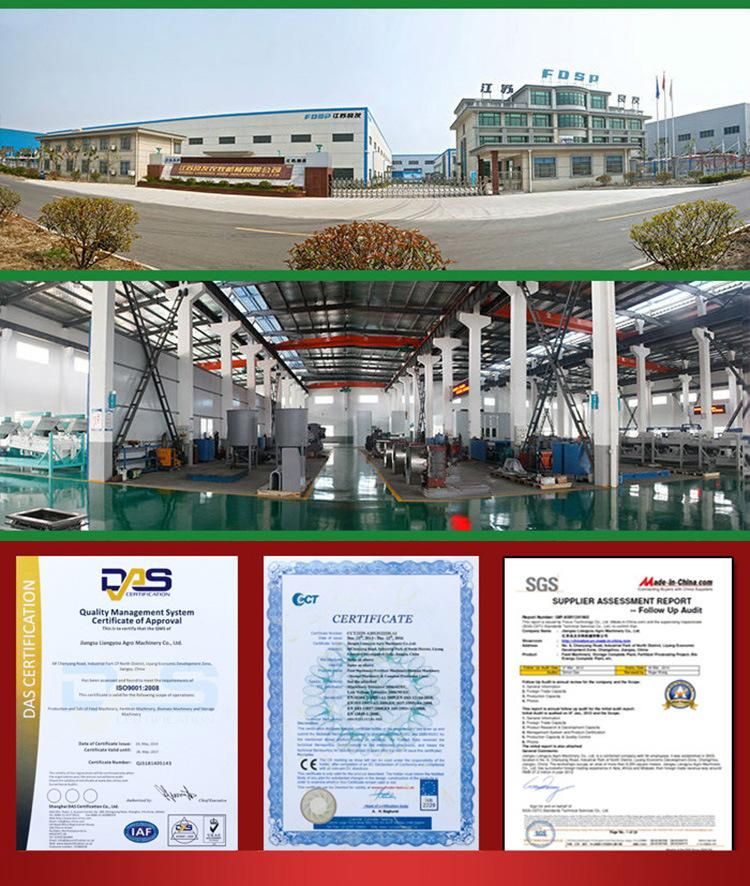

Our company view and certificates:
Cheap Good Quality Sawdust Pellet Press Machine
WHY CHOOSE US?
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.we have a professional technical team,with two departments for developing single machine and customized complete pellet line solution.Most of our engineers are with over 20 year's experience in this field and also have a lot of experience in oversea projects.
Our goods exported to many countries and won the good reputation by the high quality and superior service.
