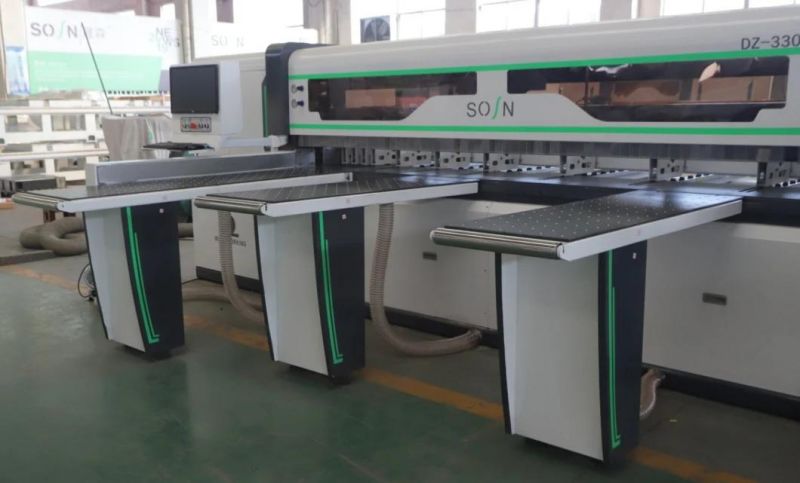

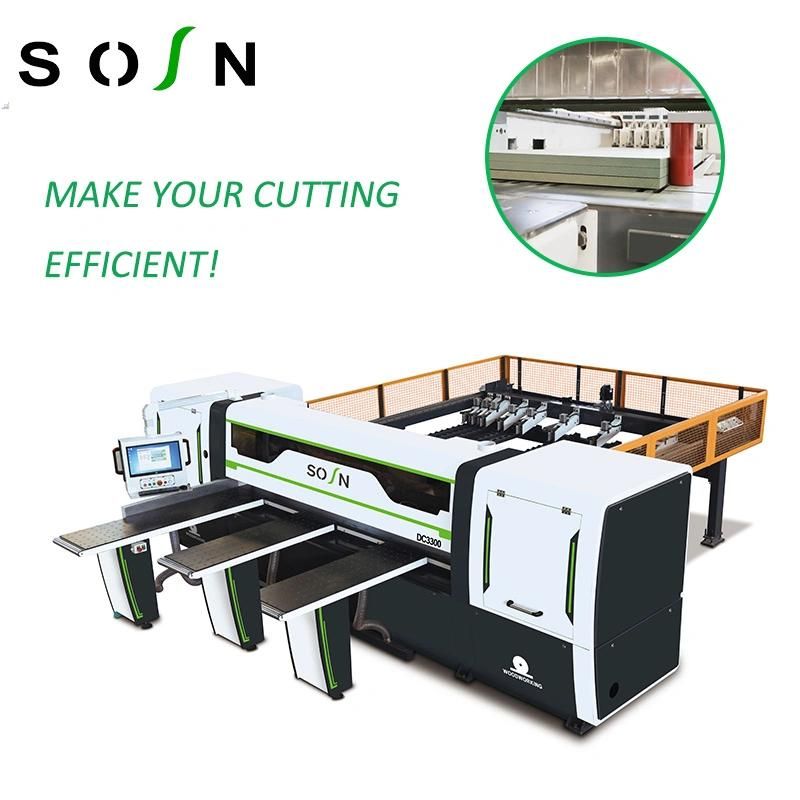

Wood Cutting Machine Automatic Beam Saw Computer Panel Saw
QINGDAO SOSN MACHINERY CO., LTD.- Warranty:2 Year Warranty
- Type:Frame Saw
- Power Type:Electric
- Layout:Horizontal
- Controlling Mode:CNC
- Automatic Grade:Automatic
Base Info
- Model NO.:DZ-2800
- Precision:High Precision
- Certification:CE, ISO
- Customized:Customized
- Condition:New
- Color:Customized
- After-sales Service:2 Year Warranty
- Name:Computer Panel Saw
- Max. Cutting Length:2800mm
- Max. Cutting Height:120mm
- Main Sawblade Motor:18.5 Kw
- Main Sawblade Diameter:450 mm
- Scoring Sawblade Speed:6, 800 r.p.m.
- Saw Carriage Drive Motor:1.8 Kw Servo Motor
- Transport Package:Wooden Package
- Specification:5300kg
- Trademark:sosn
- Origin:China
- HS Code:84659100
- Production Capacity:50 Sets,Month
Description
Basic Info.
Model NO. DZ-2800 Precision High Precision Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service 2 Year Warranty Name Computer Panel Saw Max. Cutting Length 2800mm Max. Cutting Height 120mm Main Sawblade Motor 18.5 Kw Main Sawblade Diameter 450 mm Scoring Sawblade Speed 6, 800 r.p.m. Saw Carriage Drive Motor 1.8 Kw Servo Motor Transport Package Wooden Package Specification 5300kg Trademark sosn Origin China HS Code 84659100 Production Capacity 50 Sets/MonthProduct Description
wood cutting machine automatic beam saw computer panel saw DZ-2800Parameters
Max.cutting length | 2800mm |
Max.cutting height | 120mm |
Min.cutting size | 35*35mm |
Main saw blade motor power | 15kw (220v, 3 phase) 18.5kw (380v, 3 phase) |
Main saw blade diameter | 450mm |
Main spindle diameter | 75mm |
Main saw blade speed | 4000r/min |
Scoring saw motor power | 2.2kw |
Scoring saw diameter | ¢200mm |
Scoring spindle diameter | ¢50 |
Scoring saw speed | 6000r/min |
Saw carriage forward speed | 100 m/min |
Saw carriage backward speed | 120 m/min |
Pusher system drive motor | 1.8kw |
High pressure blower motor | 3kw |
Saw carriage drive motor | 1.8kw |
Working air pressure | 6-7kg/cm 2 |
Clamp number | 9 groups |
floating tables | 3 |
Computer beam saw is suitable for Standardized high-volume processing type of furniture factory, Such as: wood-based panels, aluminum panels, plexiglass, MDF, MDF, ABS, PVC, solid wood and so on.

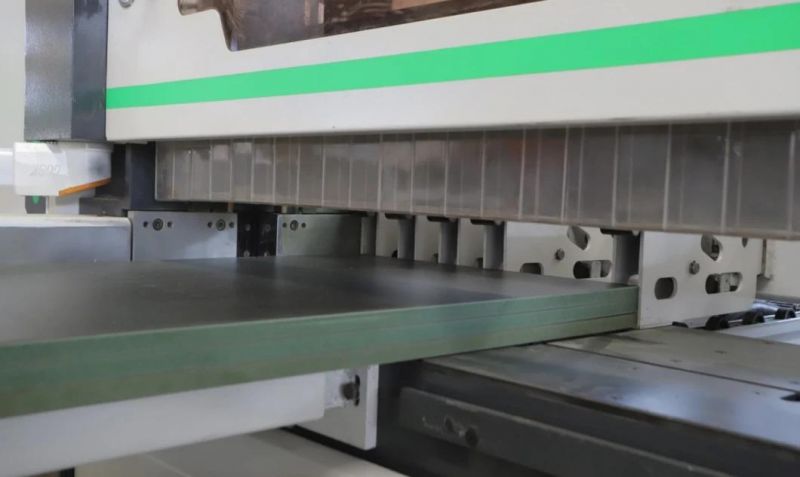

1). Working table base is covered with high pressure compact laminate which is hardly and smoothly surface to avoid panel surface scratch.
2). rack and pinion drive system ensures fast machining for smooth motion.
3). Motor separation to ensure machining accuracy.
4). Automatically adjust the sawing stroke according to different sawing lengths, reduce the travel time and improve work efficiency.
5). The main saw and the slot saw are lifted independently.machine uses liner guides.

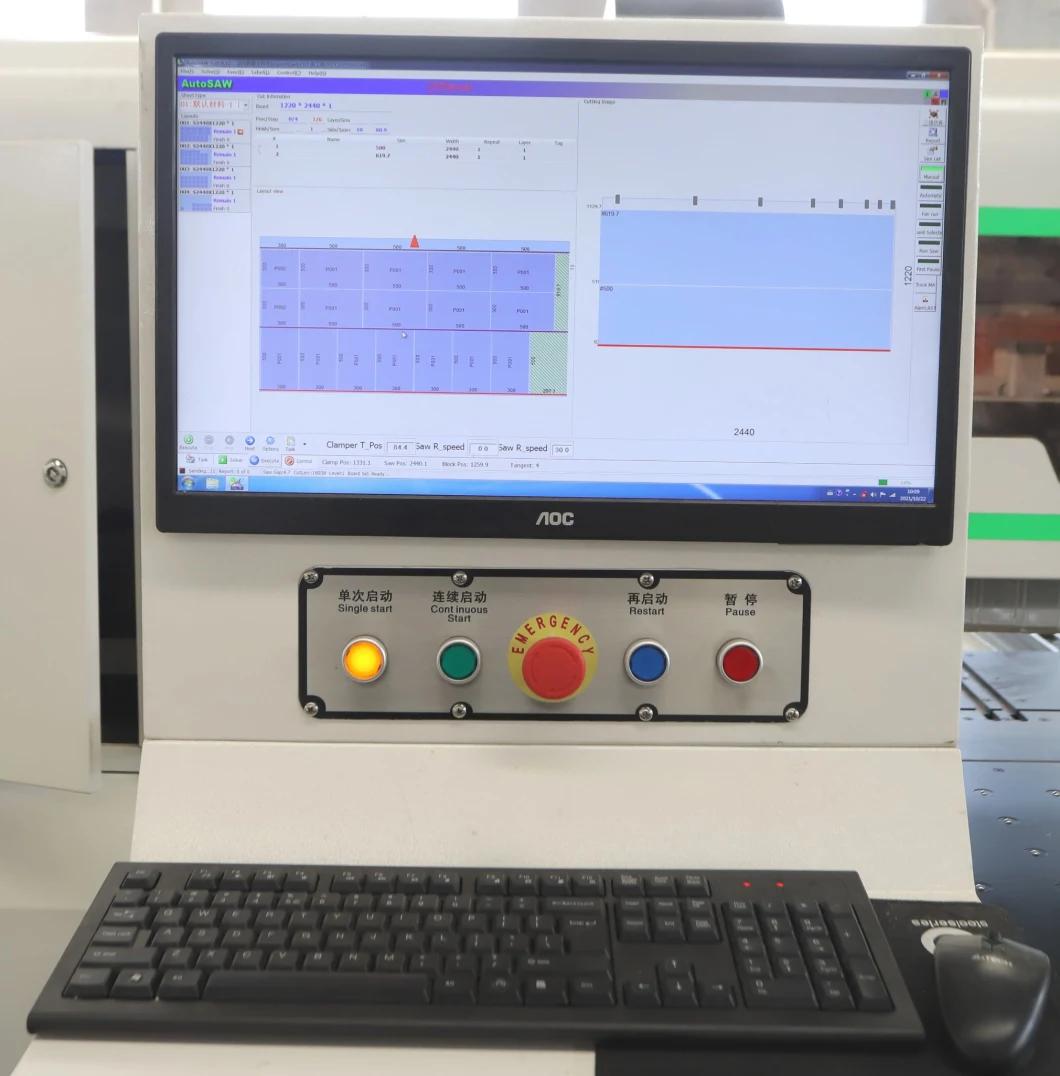

1. industrial PC computer control system and cutting optimization software
Industrial PC computer control system:
Easy operation, safety and reliable
Cutting plan can edit manually
Can compatible with bar code manage software or factory automation software
Cutting optimization software:
Automatic calculate system
Cutting plan layout system

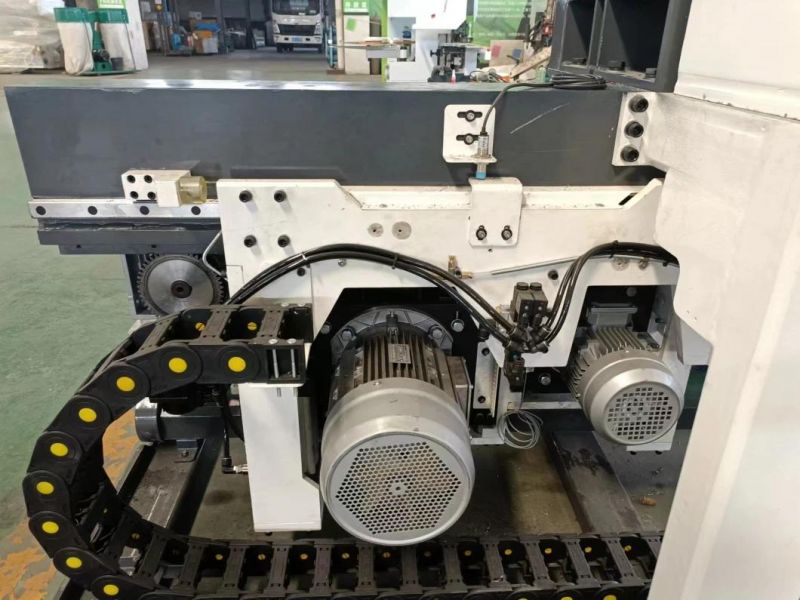

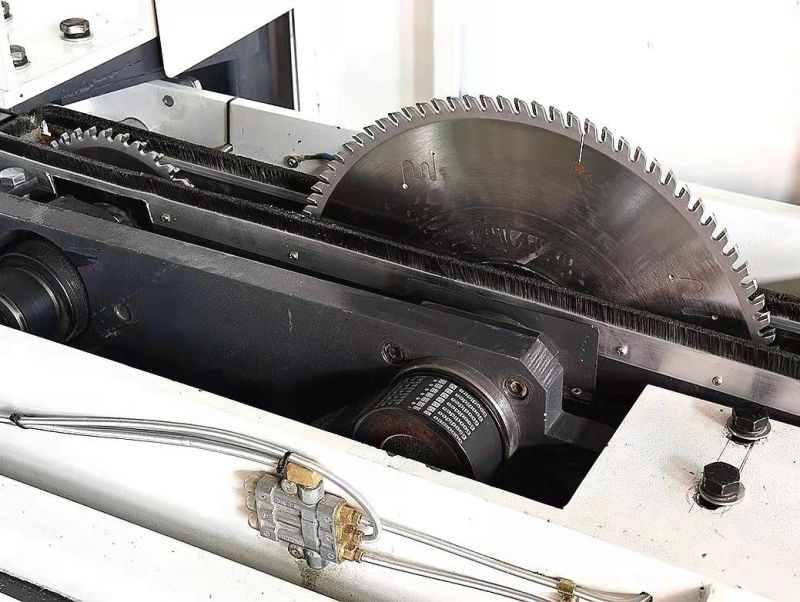

2. inner structure
-- Two independent motors
-- Main motor power 18.5KW,scoring saw motor power 2.2KW
-- Main saw diameter 450mm, scoring saw diameter 200mm
-- Drive system: Liming reducer and servo motor.

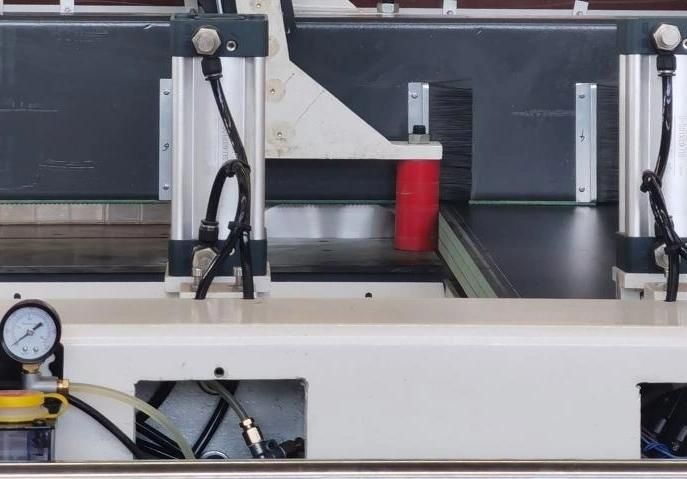

3. Side aligner
Fix cutting panel width side, control panels not move or shake when sawing, ensure width sawing precision. Rubber roler can protect the panels
Side aligner is used for small workpieces, size is less than 80 mm
Should you have any need of the machine , please feel free to contact with me
