• Model NO.：600
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Green
• Transport Package：Wooden Case
• Specification：1500*1100*900mm
• Trademark：Effort
• Origin：China
• HS Code：8474
• Production Capacity：120 Sets,Year

Basic Info.

Model NO. 600 Warranty 1 Year Customized Customized Condition New Color Green Transport Package Wooden Case Specification 1500*1100*900mm Trademark Effort Origin China HS Code 8474 Production Capacity 120 Sets/Year

Product Description

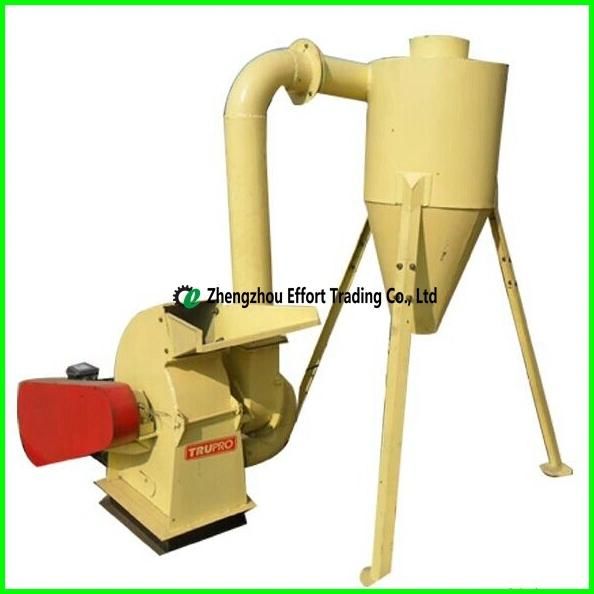

Low Price Sawdust Crushing Machine, Bamboo Crushing Machine

1. Application:
Sawdust machine also named wood crushing machine and wood crusher, it can crush wood logs,wood block and wood waste into sawdust and granular with different fineness.





2. Characteristics:
This type of sawdust machine made by us is energy-saving type and easy to operate. It is designed and developed according to industrial requirements. It belongs to wood crushing and pulverizing machine. It is finely processed, high efficiency and environmental protection type. It is optional for electricity and diesel so it can meet buyers' different requirements.



3. Working principle:
It uses blades to cutting and high speed airflow to reduce the wood into sawdust and granular with different fineness. While the blades inside are cutting with a high rotating speed, the rotor generates strong airflow which rotates st the same direction as rotor. As the blades rotate and cut, the airflow crushes the material at the same time. In this way, the speed of sawdust output can be increased.




4. Specifications of Sawdust Machine:    Model of machine EFT400 EFT600 EFT800 EFT1000 Diameter of cutter head(mm) 400 600 800 950 Quantity/block of blade 4 4 4-6 4-6 Length of blade(mm) 125 200 230 300 Dimension of feeding opening(mm) 144×150 250×200 250×230 400×500 Rotary speed of main shaft(r/min) 2600 2600 2600 2000 Equipped force (Kw) 7.5 15 30 55 Weight( Kg) 300 500 900 1200 Output(kg/h) 300-500   600-1000 1000-1500 2000-4000 Packing volume (m³) 1.0 1.5 2.5 4.0
