• Model NO.：MJ-1300
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• Max. Wood Diameter：1000mm
• Max. Wood Thickness：300mm
• Max. Wood Length：4500mm
• Electric Motor：11kw
• Lifting Motor Power：1.1kw
• Power：380V,50Hz,Three Phases
• Blade Speed：20-25m,S
• Keywords：Portable Band Sawmill
• Mode：Horizontal Band Sawmills
• Advantage：Mobile Band Sawmill
• Transport Package：Container
• Specification：1100KG
• Trademark：AGII
• Origin：Zhengzhou, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. MJ-1300 Certification CE Customized Customized Condition New Color Customized Max. Wood Diameter 1000mm Max. Wood Thickness 300mm Max. Wood Length 4500mm Electric Motor 11kw Lifting Motor Power 1.1kw Power 380V,50Hz,Three Phases Blade Speed 20-25m/S Keywords Portable Band Sawmill Mode Horizontal Band Sawmills Advantage Mobile Band Sawmill Transport Package Container Specification 1100KG Trademark AGII Origin Zhengzhou, China Production Capacity 100 Sets Per Month

Product Description

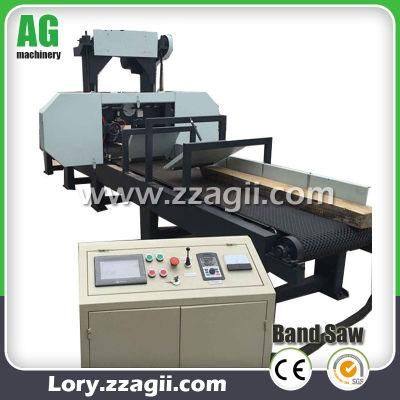

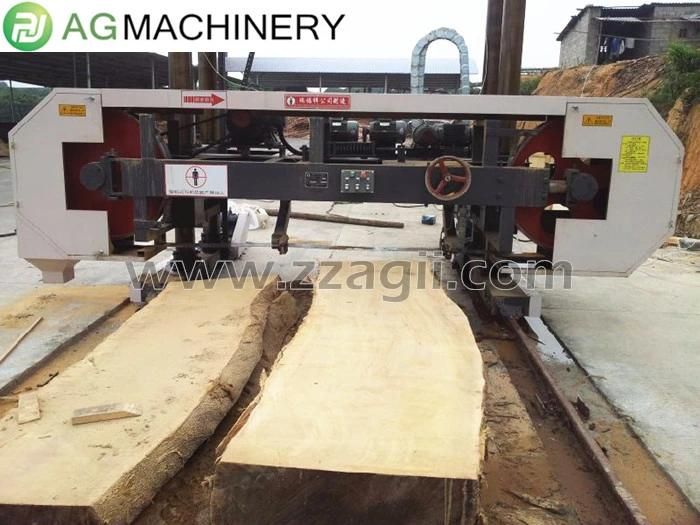

Horizontal Diesel Engine Wood Band Sawmill Machine for furniture



Introduction:

1)  The horizontal brand saw is designed to saw the large diameter hard woods and softwood; it has large saw wheel.
2)   Portable horizontal bandsaw sawmills is widely used for Africa rosewoods, birch, spruce, oak, teak woods cutting.
3)  Owe reputation position to the steady performance of sawing large diameter wood in Congo, Kenya, Angola...

Specification:

Model	MJ 700E	MJ 1000E	MJ 1300E	MJ 1600E
Diameter of Sawing Wood	700mm	1000mm	1300mm	1600mm
Thickness of Sawing Wood	260mm	300mm	300mm	300mm
Length of Sawing Wood	4500mm	4500mm	4500mm	4500mm
Diameter of Saw Wheel	600mm	700mm	700mm	700mm
Power of Saw Wheel	11KW	15KW	18.5KW	22KW
Power of Lifting	1.1KW	1.1KW	1.1KW	1.1KW
Machine Length	5800mm	5800mm	5800mm	5800mm
Total Weight	900kg	1100kg	1300kg	1500kg

Feature:

1. Hydraulic wood clamping system, easy to operate

2. Power: electric motor or diesel engine

3. Applicable wood: hardwood,softwood, such as teak, oak,kwila,African rosewood, mahogany etc.

4. Mobile wheels and adjustable legs can also be installed.

5. Installation: easy installing, operation guide will be provided.

5. Labor saving, high production

6. Options: computer touch screen set sawing thickness, adjustable moving


How to choose a suitable sawmill?

According to the diameter and length of wood logs you use.



Is this the only type of sawmill you have?

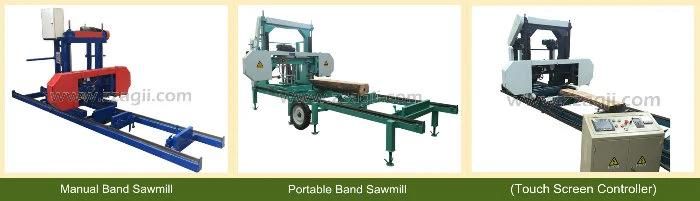

We have three types of sawmill machine
-Large size Horizontal band saw for raw logs
-Portable horizontal band sawmill (diesel or electric engine)
-Double saw blade angle sawmill

What to do without electricity and out-door use?
We can make mobile band sawmill with diesel engine for you.

How long of delivery time?
The delivery time is within 10-15 days generally, it depends on order quantity and our stock situation

Is the Band Sawmill can be customized?
Yes, our company can customize sawmill according to customers' need.
