• Model NO.：SR-6SL-1000
• Color：Customized
• Model ：SR-6SL-1000
• Max.working width：1000mm
• Min.processing length：400mm
• Max.processing thickness：100mm
• Horizontal roller motor power：2*1.5kw
• Disc brush motor power：1.5kw
• Screw roller motor power：2*1.5kw
• Lifting power of horizontal roller：0.55kw
• Lifting power of disc brush：0.37kw
• Lifting power of screw roller：0.55kw
• Lifting power of transport bed：0.37kw
• Reducer motor power：1.1kw
• Total power：10.44kw
• Screw roller number：2PCS
• Screw roller diameter：300mm
• Transport Package：Wrapping Film
• Specification：Steel
• Trademark：ZICAR
• Origin：China
• HS Code：846510
• Production Capacity：500

Basic Info.

Model NO. SR-6SL-1000 Color Customized Model  SR-6SL-1000 Max.working width 1000mm Min.processing length 400mm Max.processing thickness 100mm Horizontal roller motor power 2*1.5kw Disc brush motor power 1.5kw Screw roller motor power 2*1.5kw Lifting power of horizontal roller 0.55kw Lifting power of disc brush 0.37kw Lifting power of screw roller 0.55kw Lifting power of transport bed 0.37kw Reducer motor power 1.1kw Total power 10.44kw Screw roller number 2PCS Screw roller diameter 300mm Transport Package Wrapping Film Specification Steel Trademark ZICAR Origin China HS Code 846510 Production Capacity 500

Product Description

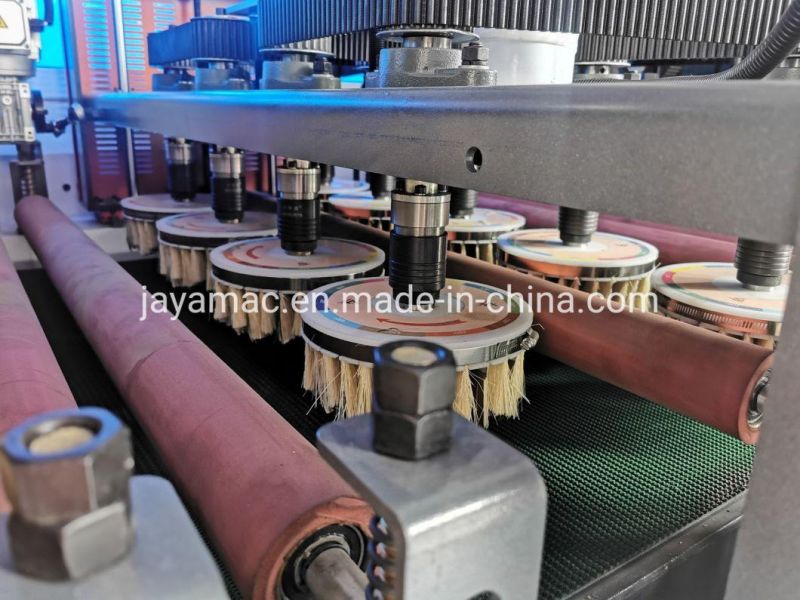

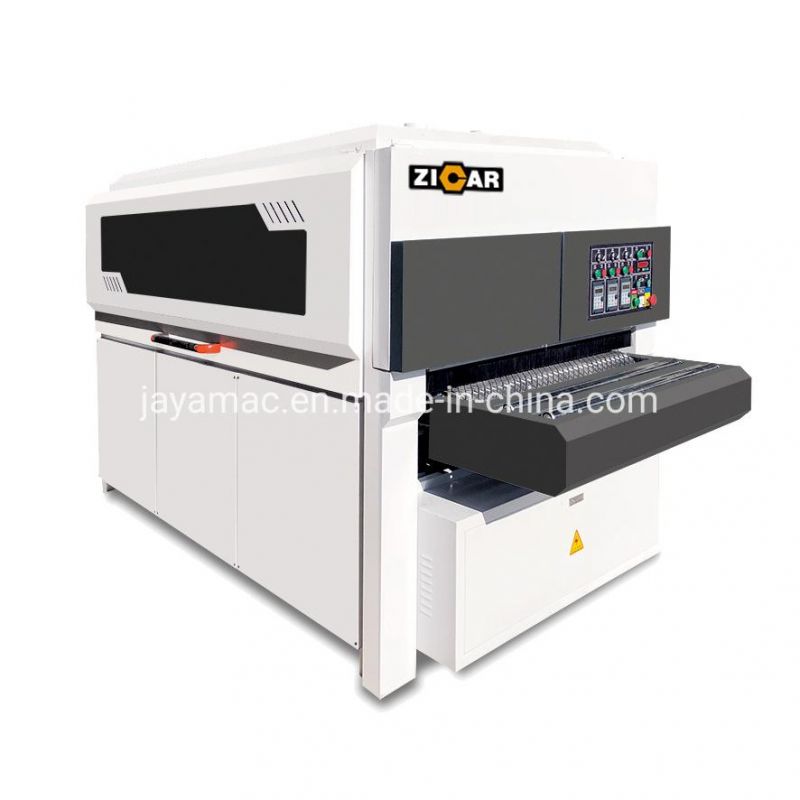

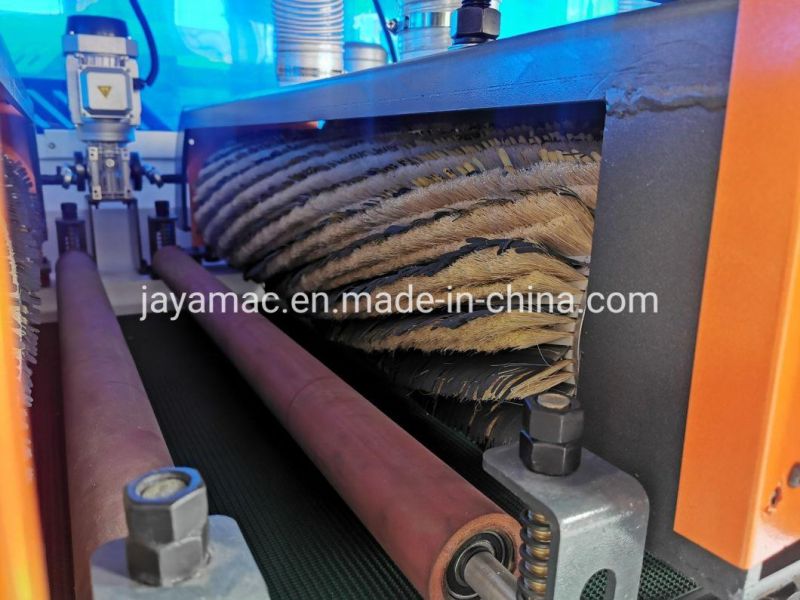

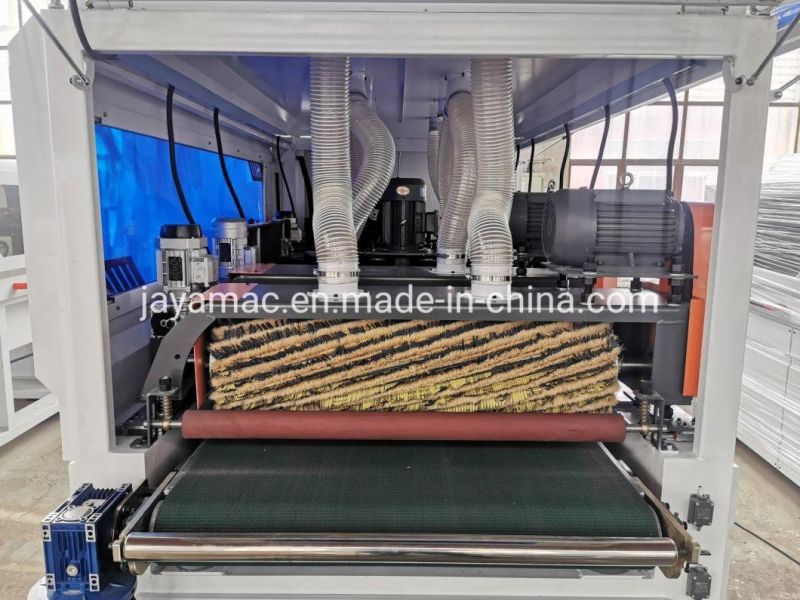

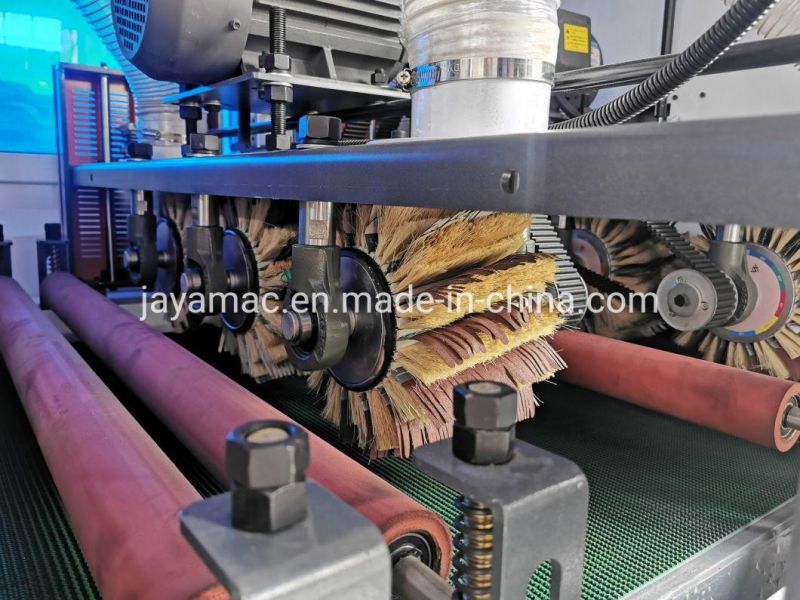

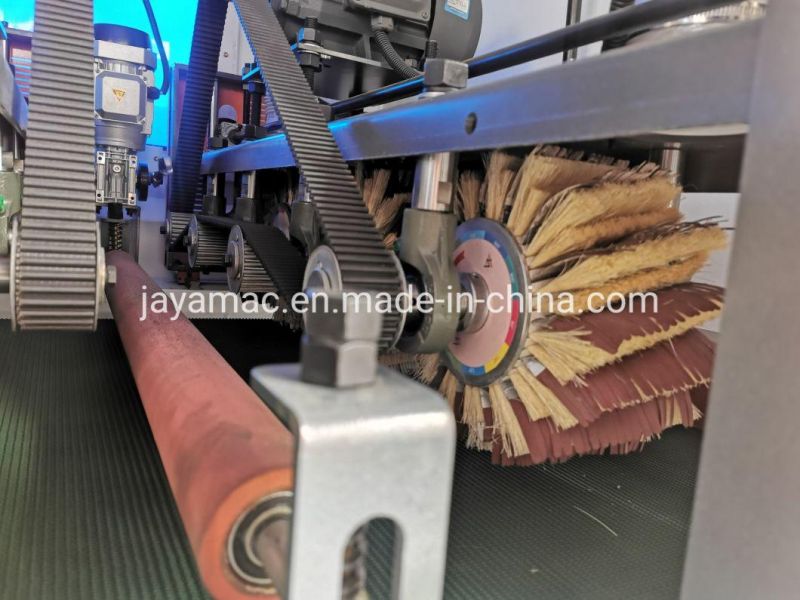

               High efficiency wood sanding machine with wide belt SR-6SL-1000Detailed pictures:





 Parameters:

Model	High efficiency wood sanding machine with wide belt SR-6SL-1000
Max.working width	1000mm
Min.processing length	400mm
Max.processing thickness	100mm
Horizontal roller motor power	2*1.5kw
Disc brush motor power	1.5kw
Screw roller motor power	2*1.5kw
Lifting power of horizontal roller	0.55kw
Lifting power of disc brush	0.37kw
Lifting power of screw roller	0.55kw
Lifting power of transport bed	0.37kw
Reducer motor power	1.1kw
Total power	10.44kw
Screw roller number	2pcs
Screw roller diameter	300mm
Brush plate number	9pcs
Brush plate diameter	180mm
Horizontal plate number	7pcs
Horizontal plate diameter	260mm
Conveyor speed	6-30m/min
Conveyor belt size	5970*1000mm
Dunction dust hood	6*100mm
Overall dimension	3950*1750*1900mm
Weight	2500kg
20'GP	1 set
40'GP	2 sets
Model	SR-7SL-1300
Max.working wideh	1300mm
Max.processing thickness	80mm
Conveyor speed	5-20m/min
Adjustable brush speed	80-450rpm
Lifing power of each group	6×0.37kw
Disc brush motor power	2×1.5kw
Screw roller motor power	3×2.2kw
Horizontal roller motor power	2×1.1kw
Conveyor motor power	2.2kw
Swing motor power	0.2kw
Total power	18.82kw
Screw roller number of each group	1pcs
Screw roller diameter	400mm
Brush plate number of each group	9pcs
Brush plate diameter	170mm
Horizontal plate number	8pcs
Horizontal plate diameter	300mm
Dunction dust hood	12×100mm
Air speed	22-30m/s
Overall dimension	5500×2200×2400mm
Weight	6000kg

Application:

Packing photos


FAQ

1.Our Payment Way?

L/C and T/T or other ways.

2.Delivery Time?

30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?

(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.

(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.

(3)24 hour technical support by email or calling

(4)User-friendly English manual for machine using and maintaining

4.Our srvices?

(1)One-stop service, meet needs of the customers from individuals to international companies.(2)OEM service accepted.

(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.


Others

All inquiries will be answered within 24 Hours
We are right here waiting for an opportunity to serve you with our rich experiences.
We take care of every screw out from our hand, and will be very glad to become your reliable, responsible and considerate partner in business and much more, like what we are doing for our clients from Europe, America, Africa and Southeast Asia.
