Furniture Making Machine Woodworking Sanding Machine Brush Sander
QINGDAO SOSN MACHINERY CO., LTD.- Warranty:2years
- Type:Brush Sanding Machine
- Automatic Grade:Automatic
- Variable Speed:Variable Speed
- Certification:CE, ISO
- Customized:Customized
Base Info
- Model NO.:SK1000-P6
- Condition:New
- Color:Customized
- After-sales Service:24hours Online
- Name:Heavy Duty Brush Sanding Machine
- Max. Working Width:1000 mm
- Min. Working Length:500 mm
- Working Thickness:2-150 mm
- Belt Size:1330*2200 mm
- Total Power:13.87kw
- Products:Door, Carbinet, Photo Frame .Drawer Frame
- Transport Package:Stretch Film
- Specification:3650*1850*2100mm
- Trademark:SOSN
- Origin:China
- HS Code:84659300
- Production Capacity:200 Sets,Month
Description
Basic Info.
Model NO. SK1000-P6 Condition New Color Customized After-sales Service 24hours Online Name Heavy Duty Brush Sanding Machine Max. Working Width 1000 mm Min. Working Length 500 mm Working Thickness 2-150 mm Belt Size 1330*2200 mm Total Power 13.87kw Products Door, Carbinet, Photo Frame .Drawer Frame Transport Package Stretch Film Specification 3650*1850*2100mm Trademark SOSN Origin China HS Code 84659300 Production Capacity 200 Sets/MonthProduct Description
Woodworking Brush Sanding Machine for Door Sanding
polishing sander machine
(we also have wide belt sander ,side sanding machine ,wire brushing machine ,planer sanding machine etc sanding machine series,)
feature :

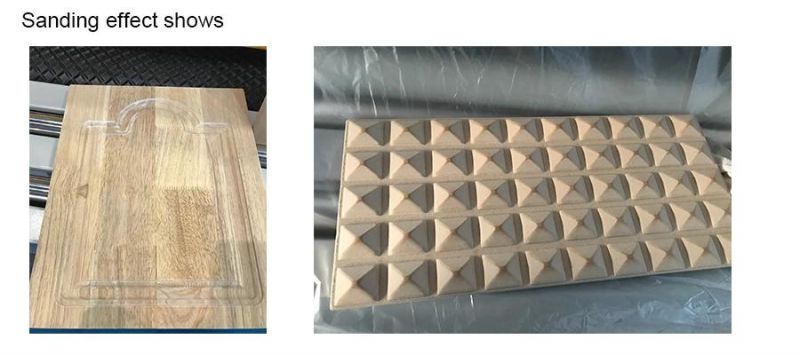

1 . Vertical and horizontal combination of special-shaped sander can effectively solve the carved furniture parts, and the cabinet door vertical sand marks problem.

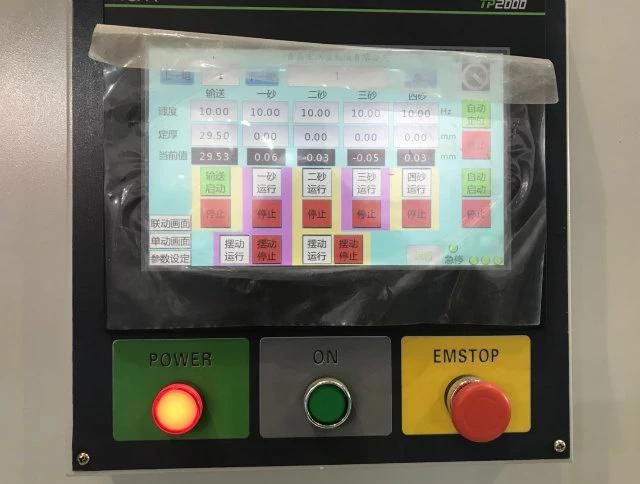

2 This model uses foreign modular design concept, touch screen + PLC control, each group of sanding units are used frequency control to meet the requirements of different parts processing technology, so that sanding effect is more perfect.
3. Each group of sanding unit is designed to be out of the sand frame, you can more easy to change the sandpaper or sanding parts, easy maintenance operations.
4. . There are two sets of lifting devices in this model. The first set of devices can make the overall table up and down to achieve the overall adjustment of the height of the sand frame, the second set of devices can make each group of sanding unit alone lift, in order to meet the requirements of different workpiece sanding process, sanding effect more perfect.
Main parameters :
Working width | 1000mm |
Min.Working length | 500mm |
Working thickness | 2-150mm |
Polishing roller speed | Frequency |
Feeding speed | 3-12.5m/min |
Total motor power | 13.87kw |
Overall dimensions | 3650*1850*2100mm
|
Net weight | 4200kg |
Disc motor | 1.5KW*1 |
Cross motor | 1.5KW*2 |
Screw roller motor | 2.2KW *2 |
Up and down motor | 0.37KW*4 |
Table up and down motor | 0.55KW |
Feeding motor | 2.2KW |
Swing motor | 0.37KW *2 |

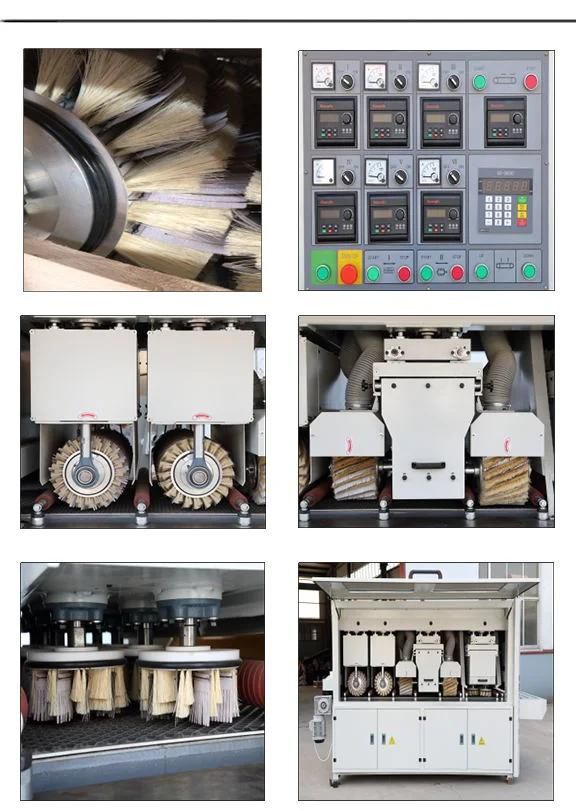

machine details:

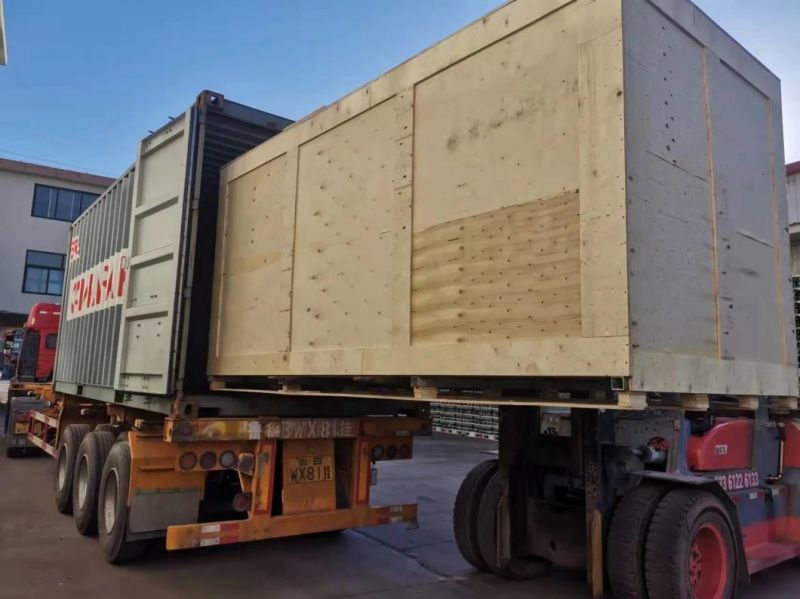

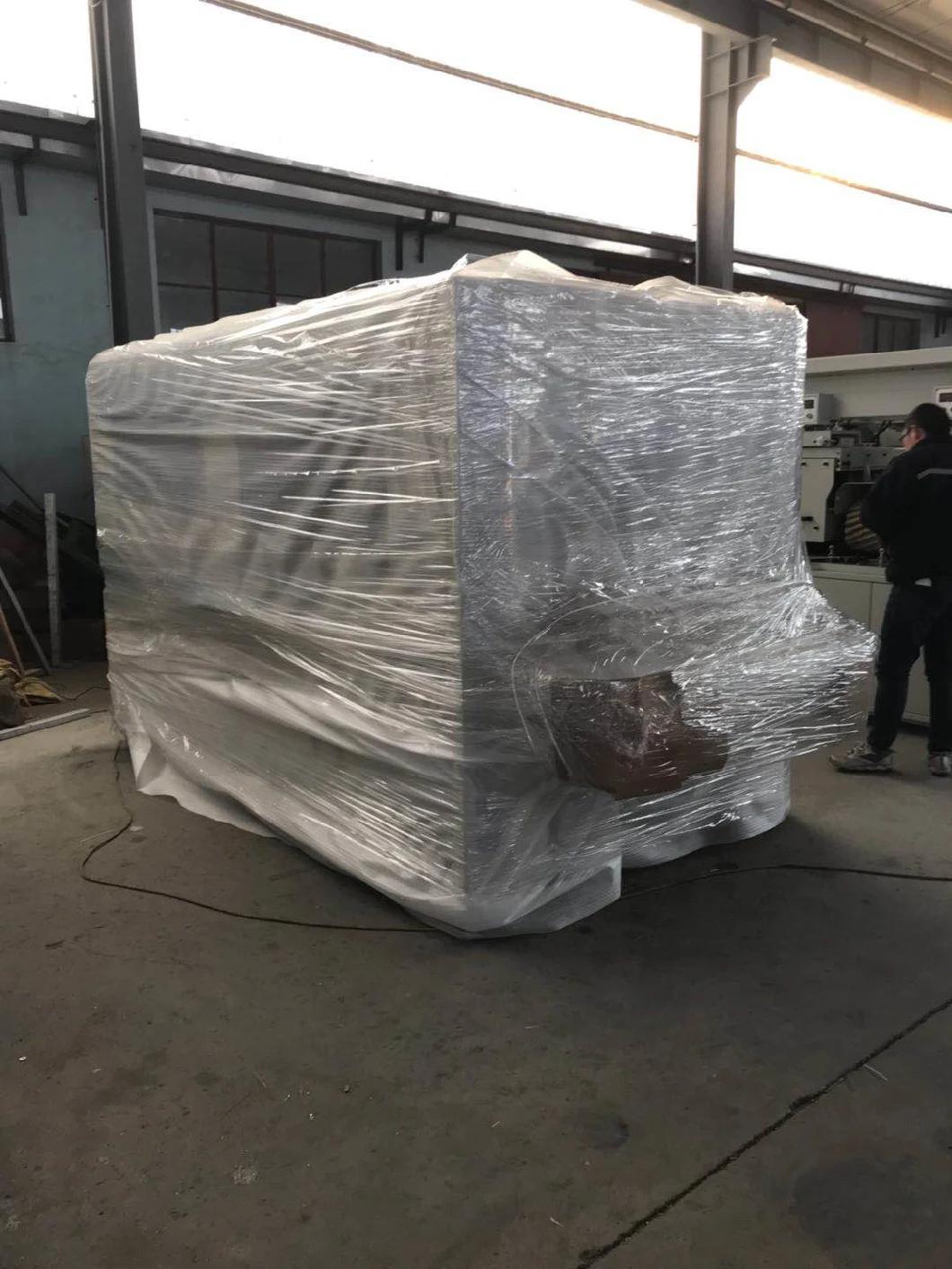

package and loading :

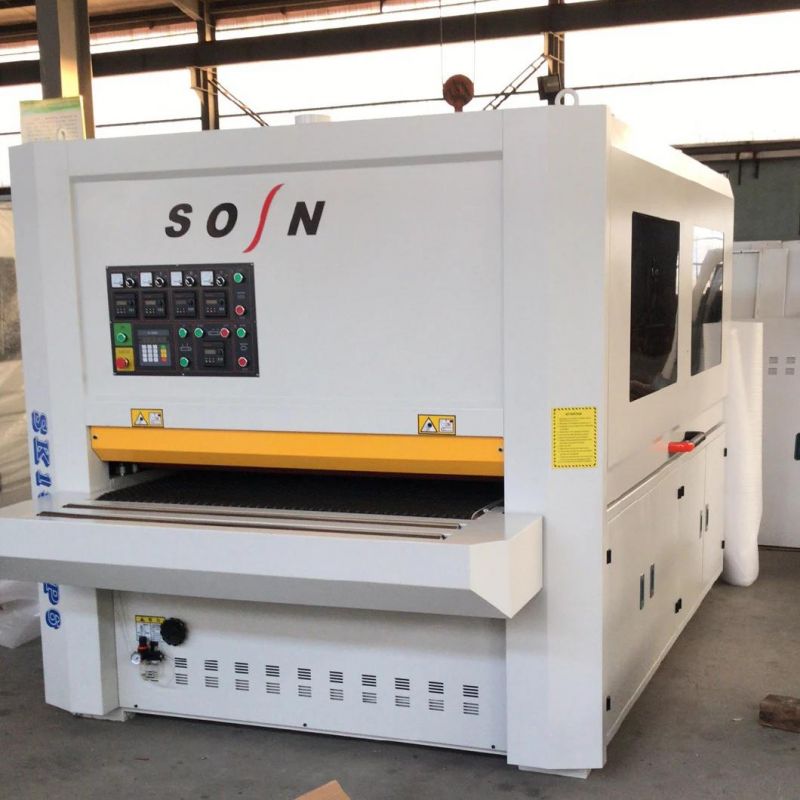

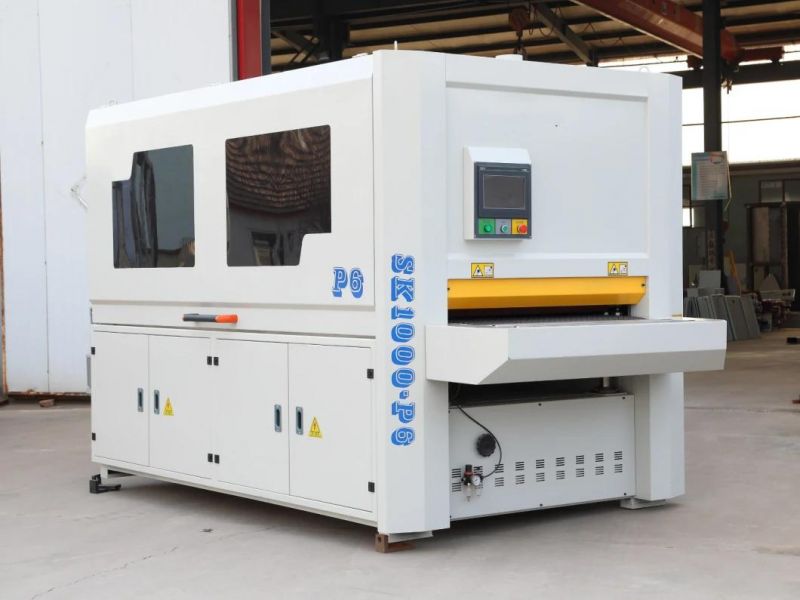

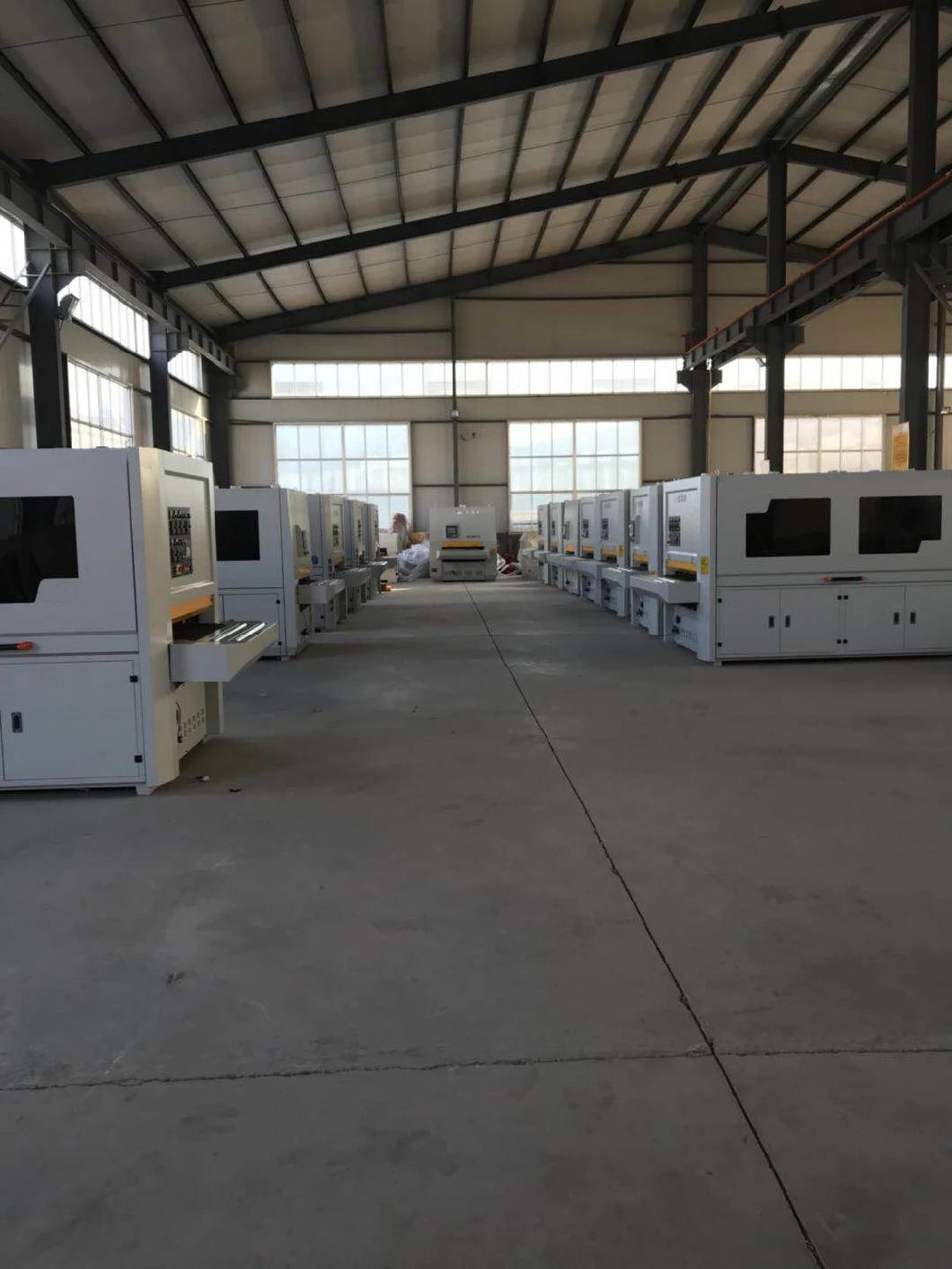

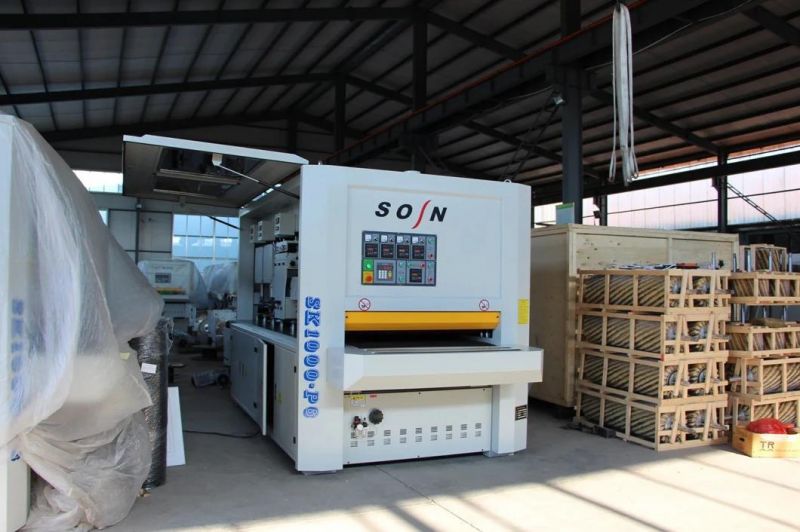

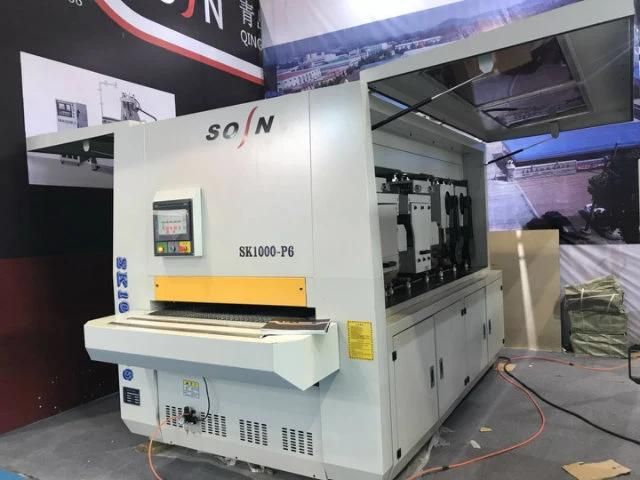

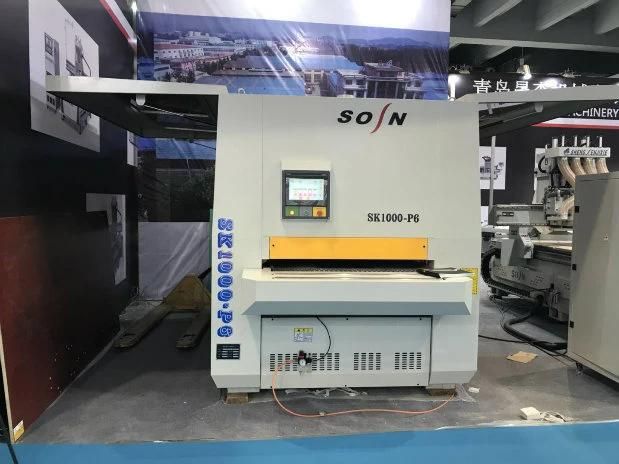

real machine picture:

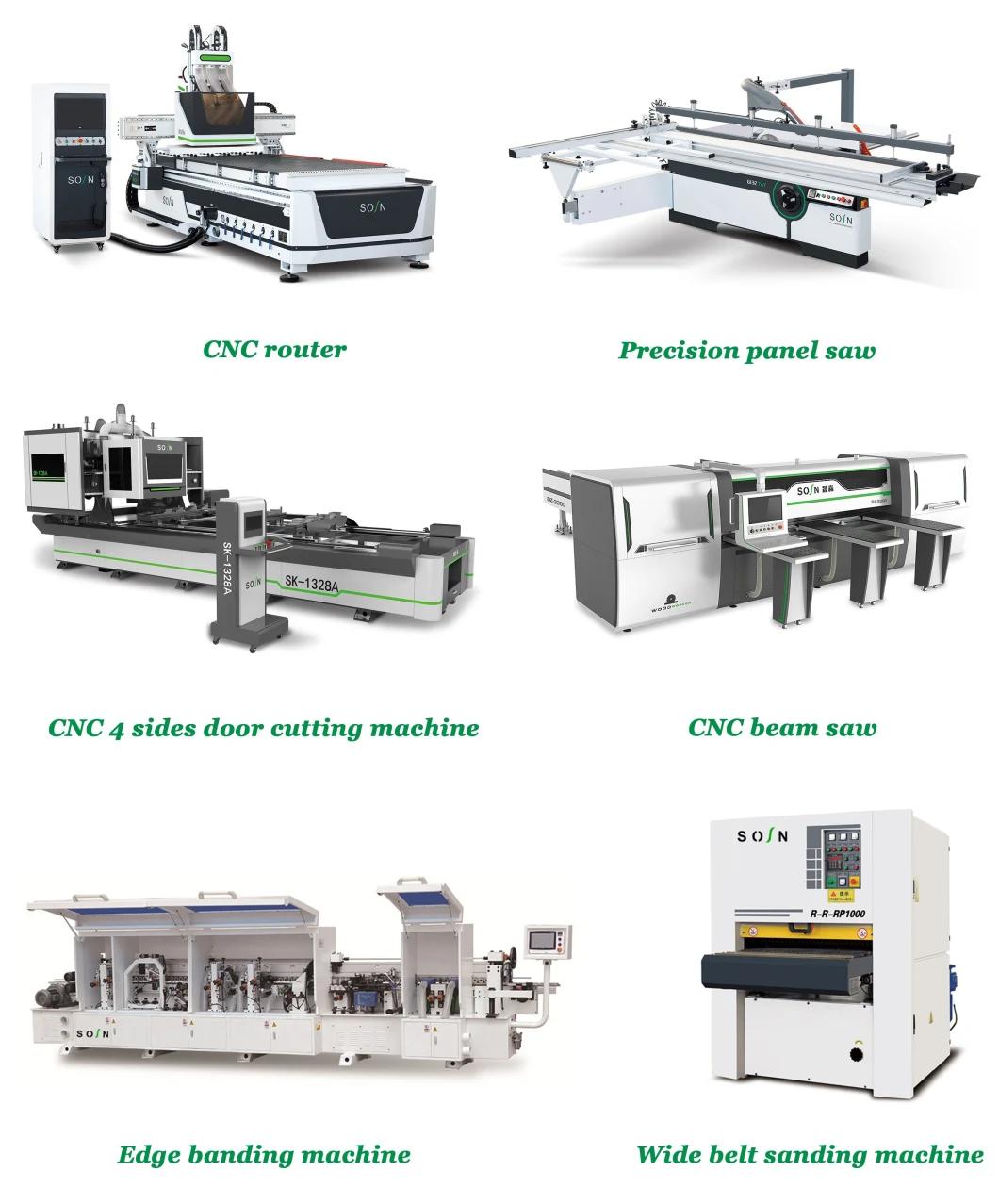

other related machines :
With rich professional exprience for woodworking machine, we sincerely welcome your visiting to our factory.
--Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount.
--Package:
After testing the sanding machine well, our workers will do cleaning work before package.
stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.
--Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
--Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
--After sales services:
Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.
No worry for any installation or operation of this sanding machine, we are here to help you.
Heavy duty frame, Unique internal structure, top-brand spare parts, professional installation workers, in time after sale service, this machine surely can highly improve your working efficiency!
Please contact me now to start your working upgrading!
