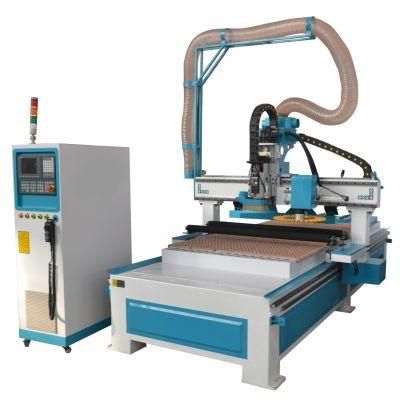

1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors

Jinan Starma Intelligent Tech Co., Ltd.
  • After-sales Service:All Life
  • Warranty:1 Year
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:380V

Base Info

  • Name:CNC Router Production Line
  • Working Area:1300*2500mm
  • Spindle Power:9kw Changchuan Air Cooling Spindle
  • Driver and Motor:Japan Yaskarwa Servo 850W with Reducer
  • Control System:Taiwan Syntec 6mA
  • Rail:Taiwan Hiwin Rails 30
  • Inverter:Delta
  • Bits:Disk Atc 12PCS
  • Transmission:Gear and Rack Transmission
  • Drilling Type:Changchuan Cc Drilling Device 5+4
  • Table:Vacuum Adsorption Table
  • Dust Collector:7.5kw Double Type
  • up-Down Table:Yes, It Is Automatic Type
  • Tool Setting:Automatic Tool Advice
  • Electric Machine Parts:Franch Schneide
  • Transport Package:Standard Export Plywood Case
  • Specification:SM-C1325
  • Trademark:STARMACNC
  • Origin:China
  • HS Code:8465990000
  • Production Capacity:50 Sets Per Month

Description

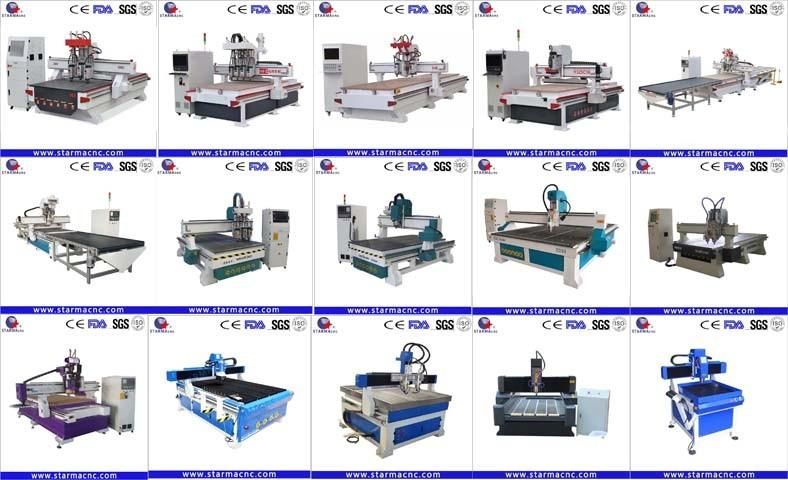

StandardCE and ISOModel1325,1530, 2030Working area(x,y,z axis)1300x2500mm,1500x3000mm,2000x3000mmSpindle9kw CHANGCHUAN air cooling spindleBitsDISK ATC 12pcs tool changeDrilling typeCHANGCHUAN CC drilling device 5+4Control systemTAIWAN SYNTEC 6MAMotorJapan Yaskarwa Servo motor and driver 850wInverter11kw Delta inverterX Y Z axis Original Taiwan Hiwin square rails 30TransmissionXY axis is gear rack transmission, Z axis is Taiwan TBI ballscrew transmissionIf have vacuum pumpYes, include 11kw  (Please note this)TableVacuum adsorption tableStructureHeavy thick steel tube weldedLubricationAutomatic Lubrication systemIf have the dust collectorYes, include 7.5kw double typeTool Box All the standard tools includedlimited switch Japan Omron high sensitivity limited switchcomponentsFrance Schneide electronic componentsOther partsTool sensor, tools, etc...4th Rotary axisdepend on CustomerOther cnc router types400x400mm,600x900mm,1200x1200mm,1200X1800mm,
900x1500mm,1200x2400mm,9500x2000mm,1300x2500mm,1500x3000mm,
2000x3000mm,ATC1325,ATC1218,ATC6090,Multi heads cnc routers
Weight4500kgsSizeMachine:4300*2280*2200mm   ;   Up-down table:3100*2000*1800mmDelivery time(days)1-1set           2-3 sets               4-5 sets              >6 sets30                   50                       70              To be negotiation

1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors

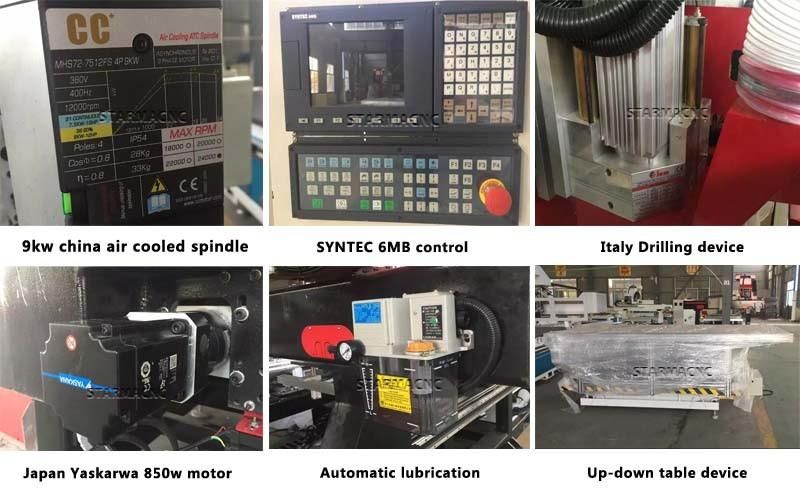

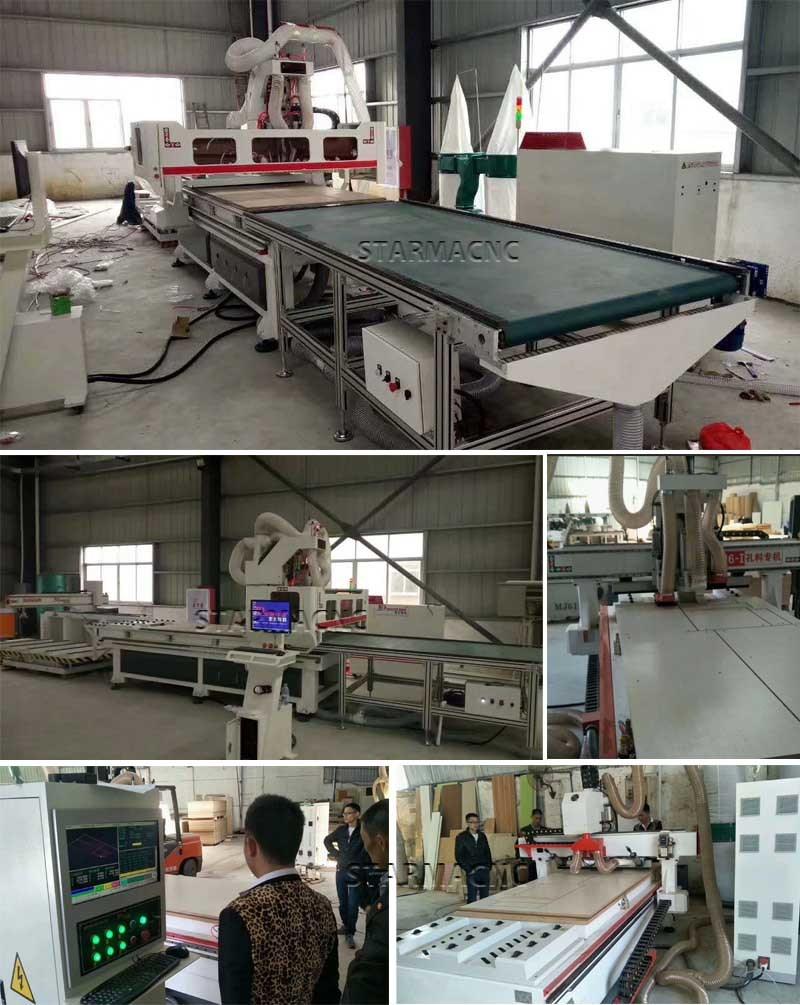

Details of cnc router:

1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors
1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors
1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors

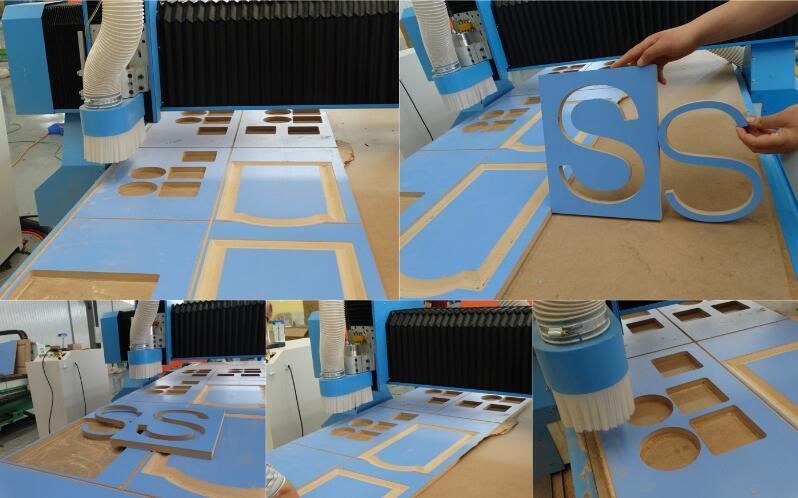

Application Industry and Materials of cnc router:

Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,MDF paint doors,solid wood doors,composite doors,
cupboard doors and windows,beside cabinets,folding screen etc. cnc wood cutter

The advertising Industry:Cnc router can engrave all kinds of signage,logo  products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards(drilling and engraving),Double color boards,acrylic etc.

Artwork Industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.

Exhibition Industry: Showcases, etc.
1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors
1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors

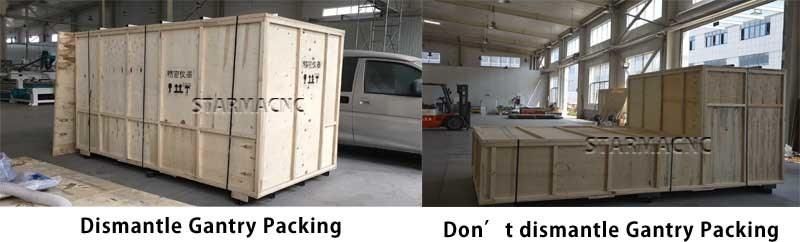

-------Packing and shipping-------

We have 3 layers package.
or the outside, we adopt free fumigation wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking.
For the inside layer, the machine is covered by thickening plastic bag for waterproof.

1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors

1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors

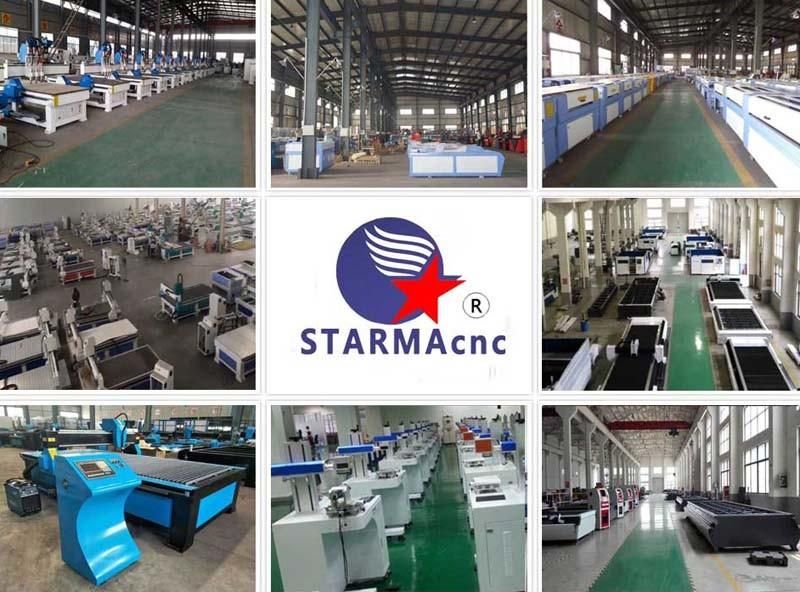

Our Company cnc router:

Jinan Starma Machinery Equipment Co.,Ltd. producing cnc router is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.The aim of Jinan STARMA CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision cnc routers and cnc machines.
1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors

1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors

Our service:

Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here; 4x8 feet cnc machine
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!
1325 Wood Working Atc CNC Router for Wood Carving Furniture and Doors
FAQ:

1.How long about the machine's guarantee?

2 years

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.Do you Arrange Shipment For The Machines?

Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.

For EXW price, clients need to arrange shipment by themselves or their agents.
