Woodworking Machinery

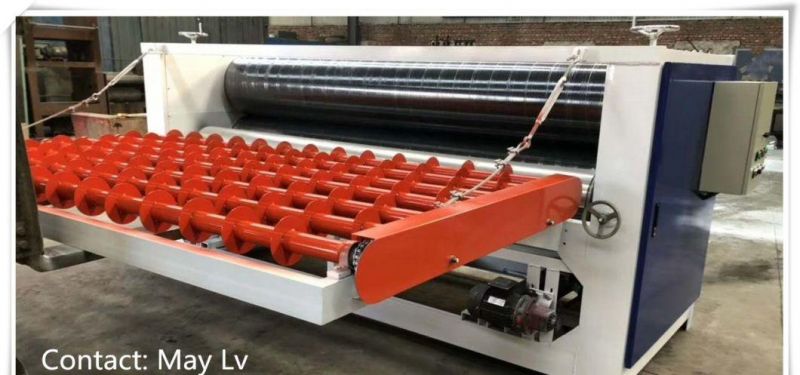

Automatic Woodworking Plywood Making Core Veneer Glue Spreader Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Type:Glue Spreader
  • Automatic:Automatic
  • Certification:CE, ISO, FDA
  • Voltage:380,415V
  • Precision:High Precision
  • Control:PLC Control

Base Info

  • Model NO.:BS3414
  • Setting Mode:Floor-Type
  • Linear Speed:30m,Min
  • Customized:Yes
  • Diameter of Roller:Customized
  • Roller Number:2-4
  • Transport Package:Standard Export Packing
  • Specification:2250*1250*1700MM
  • Trademark:METRO MACH
  • Origin:Linyi City, China
  • HS Code:8465990000
  • Production Capacity:1000 Sets, Year

Description

Basic Info.

Model NO. BS3414 Setting Mode Floor-Type Linear Speed 30m/Min Customized Yes Diameter of Roller Customized Roller Number 2-4 Transport Package Standard Export Packing Specification 2250*1250*1700MM Trademark METRO MACH Origin Linyi City, China HS Code 8465990000 Production Capacity 1000 Sets/ Year

Product Description

Product DescriptionWoodworking Plywood Core Veneer Glue Spreader Machine1. Main features:
1. Adopt the big diameter and high precision thick rollers: high rigidity, glue uniform.
2. Separately designed gears transmission box: Low noisy, work stable, long working life.
3. Start device specical designed for the rollers lifting and fasten: Safety, fast and convenient.
4. Roller speed and veneer out-put conveyor speed can be adjusted separately to meet different working requirements.
5. Emergency stop device to prevent any accidents.

2.Technical parameters:
Length of Spreading roller1400mm
Diameter of spreading roller355/270/260mm (Customized)
Diameter of squeezing roller180mm
spreading speed30m/min
Machine power4kw
machine size2250x1250x1700mm
machine weight1200kgs
