24X36 2X3 3D CNC Router 6090 Hobby CNC Machine Router
Jinan Starma Intelligent Tech Co., Ltd.- After-sales Service：All Life
- Warranty：1 Year
- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：220V
Base Info
- Model NO.：6090 cnc router
- Name：3D CNC Router
- Spindle：1.5,2.2kw
- Controller System：Nc Studio or Mach3 or Dspa11
- Xyz Axis：Taiwan Tbi Ballscrew Transmission
- Inverter：Best or Fulling Inverter
- Table：Aluminum Profile T Slot Table
- Tool Sensor：Yes. Mini Model
- Control Box：Ineer Machine Body
- Structure：Heavy
- Water Tank：Option
- Rotary Axis：Option
- Color：Blue or Customized
- Delivery Time：Within 15 Days
- Payment Terms：Tt, Alibaba
- Rails：Taiwan Hiwin
- Transport Package：Starndard Export Plywood Case
- Specification：600x900mm
- Trademark：STARMACNC
- Origin：China
- Production Capacity：100 Sets Per Month
Description
Effective working area
600(X)mm*900Y)mm*150(Z)mm
4th axis rotary axis
Diameter 80mm, length 600mm, reduction gear transmission
Materials
Square steel tube machine holder, cast iron machine bed, cast aluminum gantry
Cooling system
Stainless steel water slot cooling system
Working table
Aluminum alloy T Slot with PVC protection layer
Moving type
Gantry moving
Guide rail
Linear square guide rail,Taiwan Hiwin, diameter 20mm for XYZ-axis
Transmission

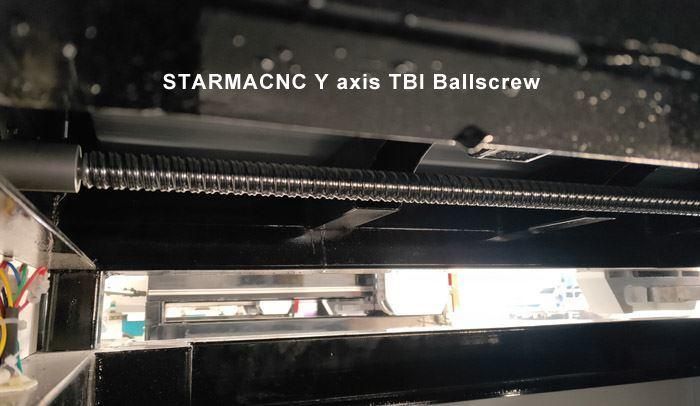

Lead Taiwan TBI ball screw for XYZ-axis
Driving mode
Stepper motor and driver for XYZ-axis
Spindle motor
2.2kw water cooling
Spindle speed
0-24000rpm
Inverter
Sunfar or BEST or Fulling
Voltage
AC 220V±10%, 50/60Hz, single phase
Traveling speed
>5000mm/min
Engraving speed
>3000mm/min
Machine accuracy
0.03mm
Control system
DSP offline control system, A11E, RichAuto
Suitable software
Artcam, Type3, Ucancam V9,JD,etc
Carving Instructions
G code *Uoo *mmg *plt HPGL
Running environment temperature
0-45 ºC
Relative humidity
30%-75%
Tool calibration
Auto
Certificate
STARMACNC CE and ISO,SGS,FORM E,CO,etc
Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Machine show and Details

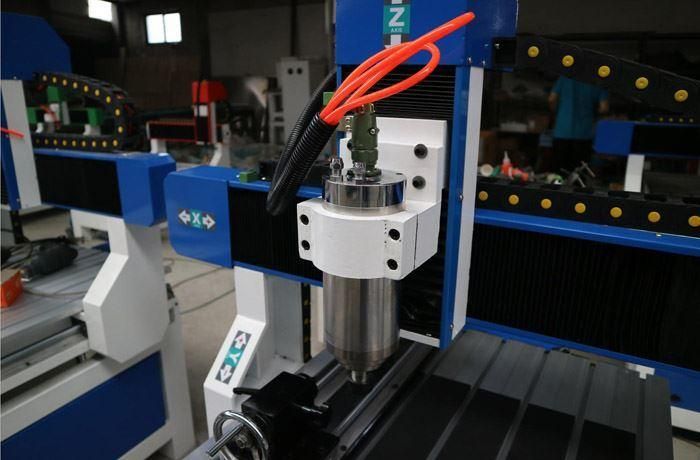

1:-Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate, iron plate engraving but also for wood working. It can cut 20-30mm thickness acrylic by one time cutting. The fine engraving is more smoothly and clear by large power spindle.

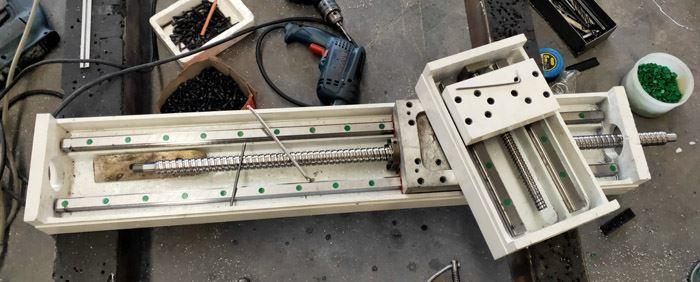

-Dust-Proof design for XZ-axis, protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.

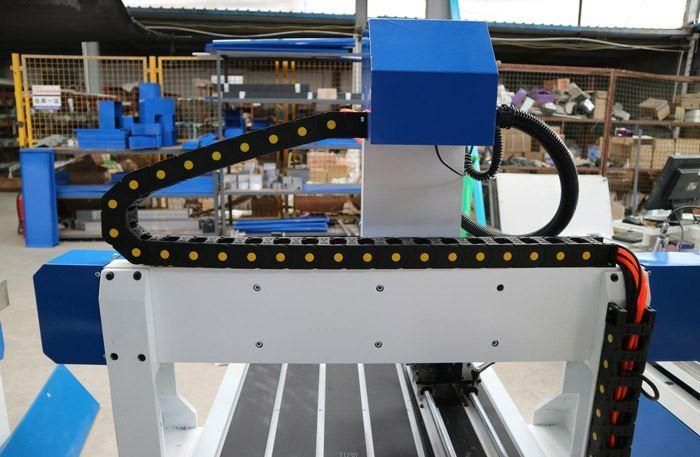

:2:-The solid beam gantry makes the machine run more stable and reliable, and greatly improves the working accuracy
3:-China powerful 86BYGH450A stepper motor and Leadshine stepper driver for XYZ-axis, faster speed and high precision working, and not easy to loss steps.

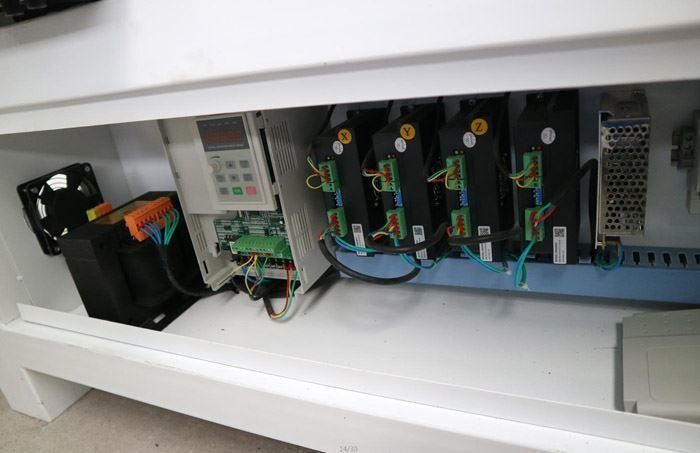

-Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate, Adopt high flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

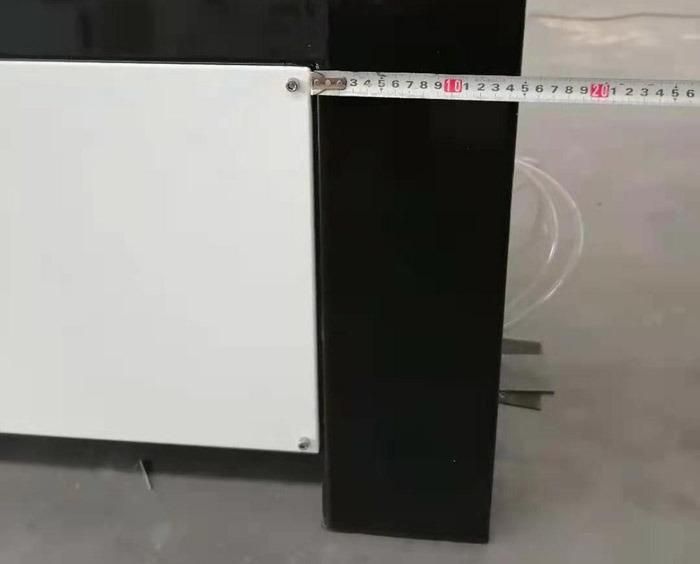

5:-for this hobby work 9060 router cnc machine strong steel tube with 150x150mm, working no any vibrate

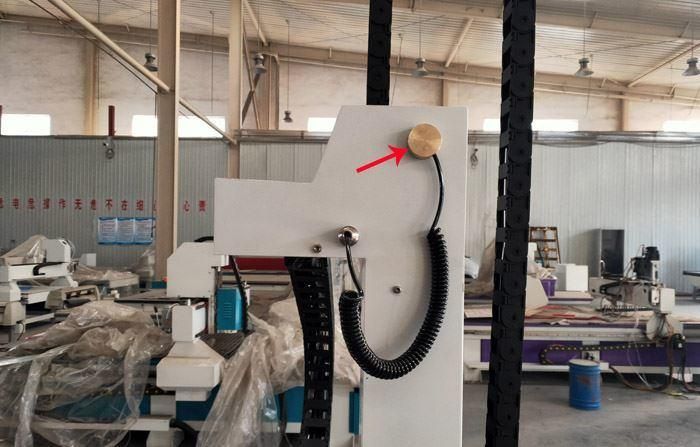

6:-Small 2*3inch 600*900mm 4 Axis CNC Router mini portable tool sensor. This tool sensor is very Small and exquisite and it also magnetic. When you are not using it, it can be attached to the metal plate and will not fall. Will not affect any of your work.
Sample
Packing & shipment :Save space as much as possible for container loading.
- Inside:Water-proof Plastic Film Package With Foam Protection
- Outside:Solid Seaworthy Wood Box Package
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here; 4x8 feet cnc machine
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!
Our Company
Jinan Starma Intelligent Tech Co., Ltd, Since 2009, it's a high-tech enterprise producing CNC machine, focusing on the research and development and sales of industrial CNC products, Located in Jinan city (the hometown of CNC Machinery in China) ,has been steadily developing more than 12 years.We enjoy the advantage of strong international competitiveness and is a reliable partner for your long-term cooperation !
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
