• Model NO.：YLXT-1000
• Weight：10tons
• Certificate：Ce
• Input Size：Less Than 15cm
• Input Shape：Different Sizes
• Machine Color：as Requirement
• Texture：Carbon Steel
• Voltage Customize：Yes
• Usage：Charcoal Carbonization
• Output Shape：Different Sizes
• Main Voltage：380V50Hz
• Application：Fuel, Biomass
• Model：Ylxt-1000
• Transport Package：Ply Wooden Case
• Specification：12*3*3.5m
• Trademark：YEARMEGA
• Origin：Henan-China
• HS Code：84748020
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. YLXT-1000 Weight 10tons Certificate Ce Input Size Less Than 15cm Input Shape Different Sizes Machine Color as Requirement Texture Carbon Steel Voltage Customize Yes Usage Charcoal Carbonization Output Shape Different Sizes Main Voltage 380V50Hz Application Fuel, Biomass Model Ylxt-1000 Transport Package Ply Wooden Case Specification 12*3*3.5m Trademark YEARMEGA Origin Henan-China HS Code 84748020 Production Capacity 500 Sets/Month

Product Description

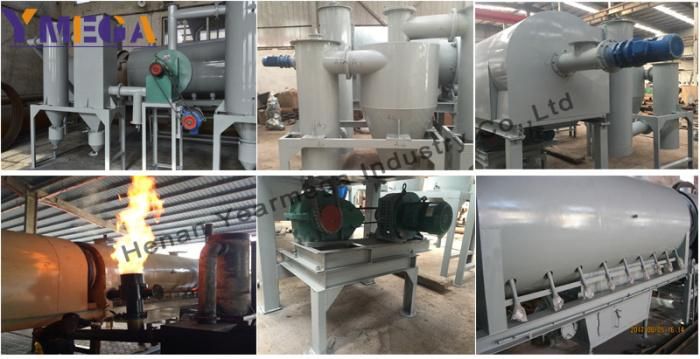

Woodworking Industry environmental Biomass Wood Charcoal Fuel Carbonizing Stove in Europe
As a professional charcoal machines manufacturer in China, our company always adhere to the principle of quality first. Main technical parameters of the continuous carbonizing stove

Model	YLXT-800	YLXT-1000	YLXT-1200
Capacity(kg/h)	300-400	500-800	800-1000
Power(kw)	18.5	22	22
Size of the main furnace (mm)	Ø820*8000	Φ1020*9200	Φ1200*11200
Diameter of Gasifier furnace	Φ1500	Φ1500	Φ1500
Screw conveyor	2 sets	2 sets	2 sets
Dimension(m)	9*2.6*2.9	9.2*3*3.5	12*3*3.5
Weight(ton)	8	10	13

Technical data for this carbonization stove you may concern

1. Carbonizing temperature is 20-30 minutes,from input raw material to out put charcoal.
2. Carbonization furnace rotating speed is 3r/minute, and it's adjustable.
3. Output raw material temperature is 50ºC.
4. Heating furnace max temperature 1200ºC.
5. Main carbonization furnace max temperature 800ºC

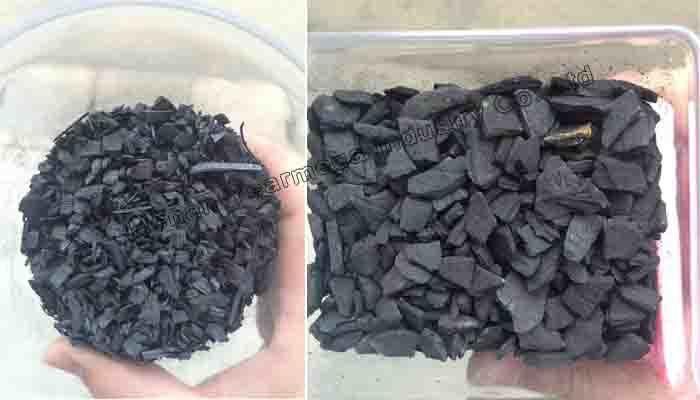

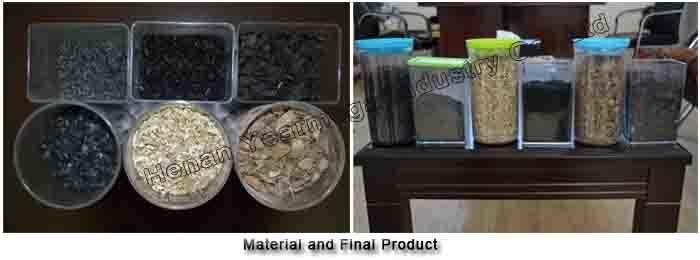

Raw Material and Final Product of the carbonizing stove:

Raw material: sawdust, rice husk, small wood sticks, coconut shell, palm kernel shell, peanut shell, corn stalks, bagasse, twigs, rice husks, bamboo shavings, sorghum stalks, sunflower husks, distilled grains, corn cobs, coffee grounds, cotton stalks, bean stalks, dry leaves and other biomass materials, agricultural wastes.

Input raw material size need less than 15cm



Rate of raw material and final products
According to the humidity and the density.
For low density material,suck as rice husk, sawdust, we can get 1 ton charcoal from about 3-3.5 tons raw material ,for high density raw material such as bamboo shavings, coconuts shell, palm kernel shell, We can get 1ton charcoal from about 2.5-2.7 tons material.


The advantages of the new type continuous carbonization furnace

1. The production of old-type stove is batch by batch, and the new type is continuous which improves the production efficiency to a great extent.
2. The old-type stove makes plenty of heavy smoke, even if with the cooling treatment, it still brings the serious air pollution. Different from the old-type furnace, the new-type does not exhaust the heavy smoke from the carbonization process to the air, oppositely, it collects the smoke goes into the burner through the pipes and burns as fuel gas for recycling use, to reach the aim of replacing the normal fuel and continue the carbonizing process. The design of new-type furnace avoids the air pollution of heavy smoke exhausted.
3. The operation of old-type stove is quite complicated, before carbonization, the briquettes need to be put properly which wastes much time and labour. However, the briquettes can be put irregularly and then process carbonization directly, saving much time and labour.
4. The production efficiency of the old-type stove is low. Every 24 hours, the output of 5m³furnace is only around 1 ton. By contrast, due to the design of continuous production, the new-type furnace can produce around 200 kg charcoals every 1-2 hours, The efficiency of the new-type stove is completely 4-5 times more than the old-type, which greatly reduce the expenses spent in a great amount of old-type equipments when target capacity is high.

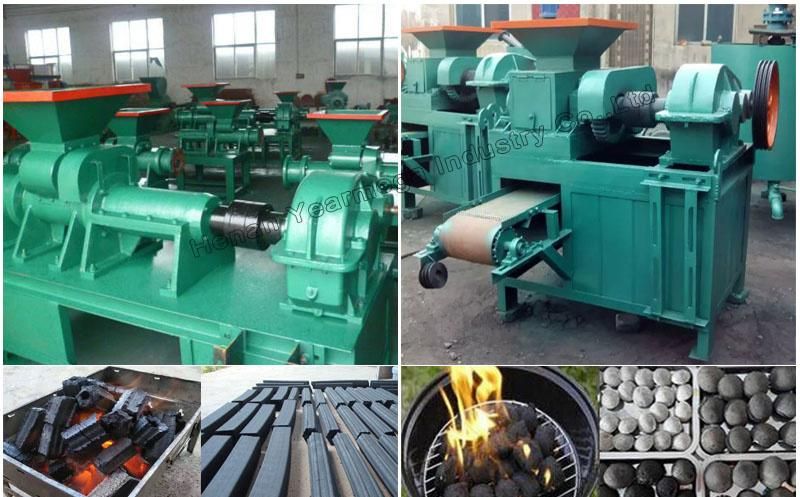

After carbonizing, we can make briquettes:

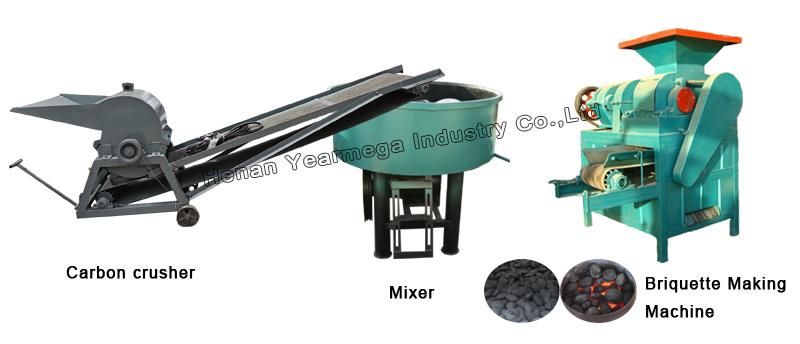

Briquette roller pressing production line flow as following
Crushing process-----Mixing process------Briquette making process----Packing Process

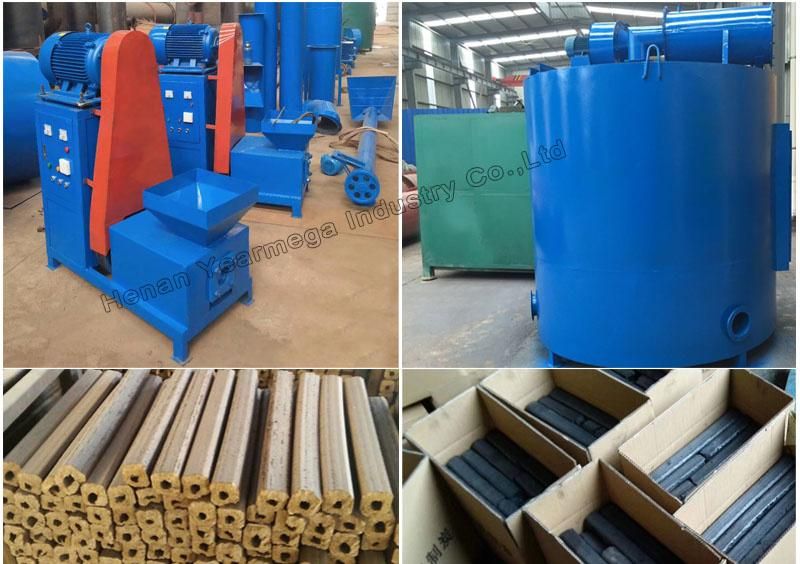

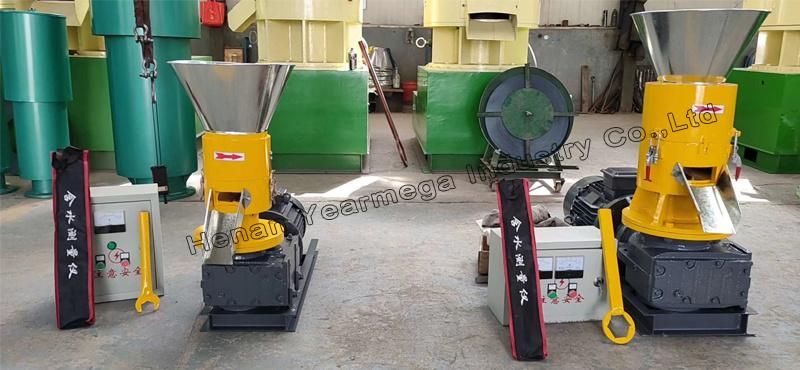

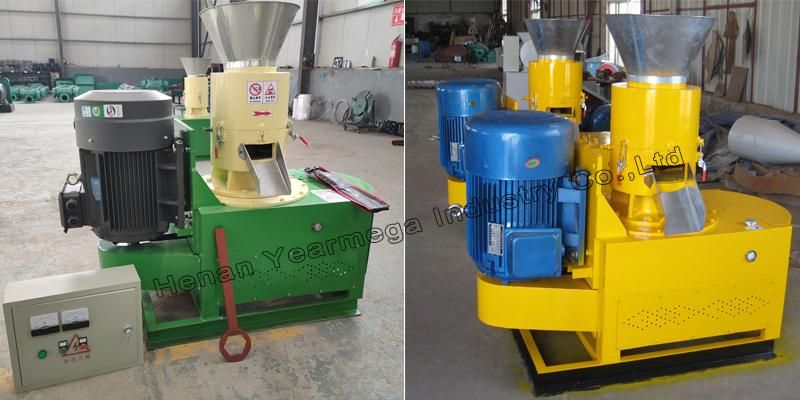

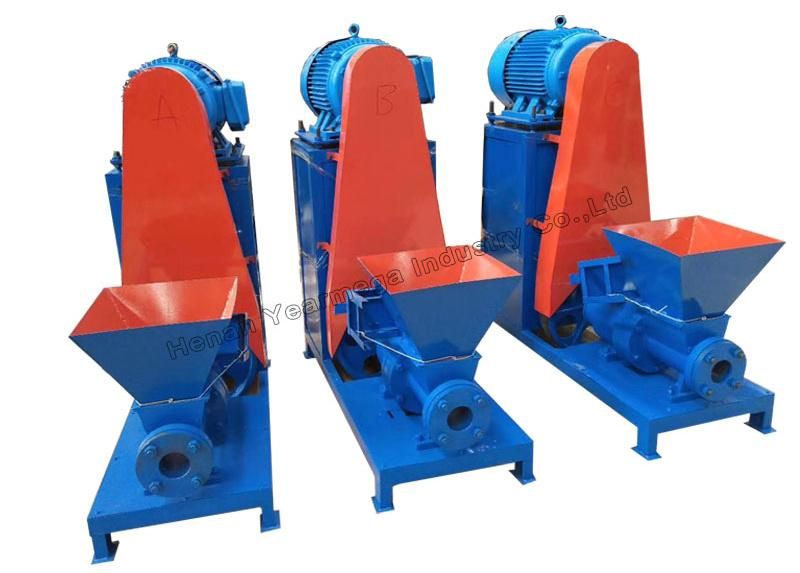

Other Biomass Processing machinery

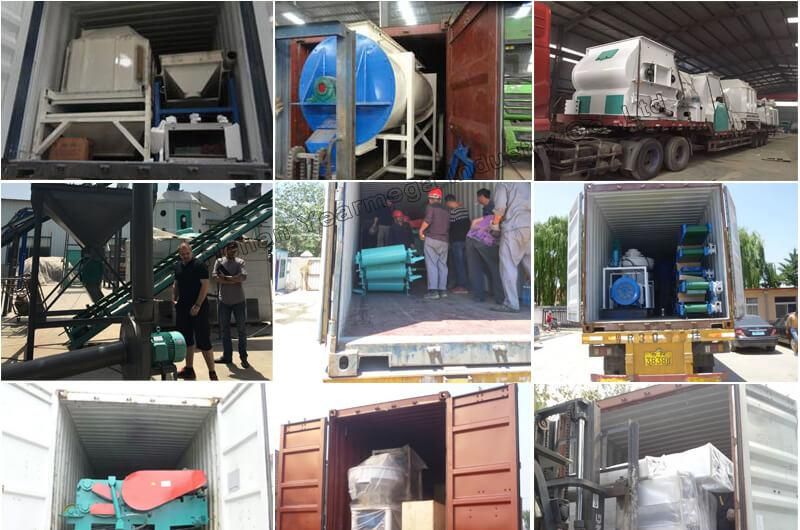

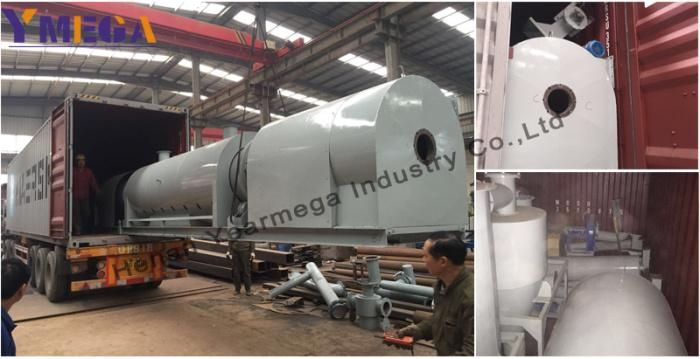

Packing and shipping
1. Nude and loaded in the container.
2. We will provide the machine as quickly as possible after the customer playing the order, also with high capacity. we will track the shipping for customer whenever they need.



Our Services
1. We will give detailed introduction of the automatic high efficient continuous carbonizing furnace according to the client capacity requirement.
2. Share any information about the Automatic high efficient Continuous Carbonizing Furnace that the clients need, like detaield pictures, video,etc
3. Design full briquette making line for client.
4. Give detailed instruction manual and video to the customers.
