Woodworking Machine, 1220 CNC Wood Lathe, CNC Turning Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Warranty:1 Year
- Type:Horizontal Lathe
- Voltage:380V
- Tool Holder:Double-tool Holder CNC Lathe
- Automatic Grade:Automatic
- Precision:High Precision
Base Info
- Model NO.:1220
- Setting Mode:Floor-type
- Controlling Mode:CNC
- Power Source:Electric
- Processing Accessory:Centre CNC Lathe
- Certification:CE
- After-sales Service:Lifetime
- Transport Package:Plywood Case
- Specification:1220
- Trademark:GJH
- Origin:Shandong China
- HS Code:84659900
- Production Capacity:100 Sets Per Month
Description
Basic Info.
Model NO. 1220 Setting Mode Floor-type Controlling Mode CNC Power Source Electric Processing Accessory Centre CNC Lathe Certification CE After-sales Service Lifetime Transport Package Plywood Case Specification 1220 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per MonthProduct Description
Good Quality CNC Wood Lathe1020/1220/1530 Automatic CNC Wood Lathe for table leg , stair post, baseball
from professional cnc lathe machine manufacturer in China
Application
CNC wood lathe machine is applied to process all kinds of stair posts, curved round, vases, tables and chairs back, European stair posts, wooden hangers and washbasins, cylindrical, conical, curved, spherical, and other complex shapes of rotary wood products
Various cylindrical work piece, tubular sharp and wood crafts, various staircase column, staircase balusters, table legs, sofa legs, bar stool legs,Roman column, washstand, wooden vase, baseball bat, chair arm posts and so on

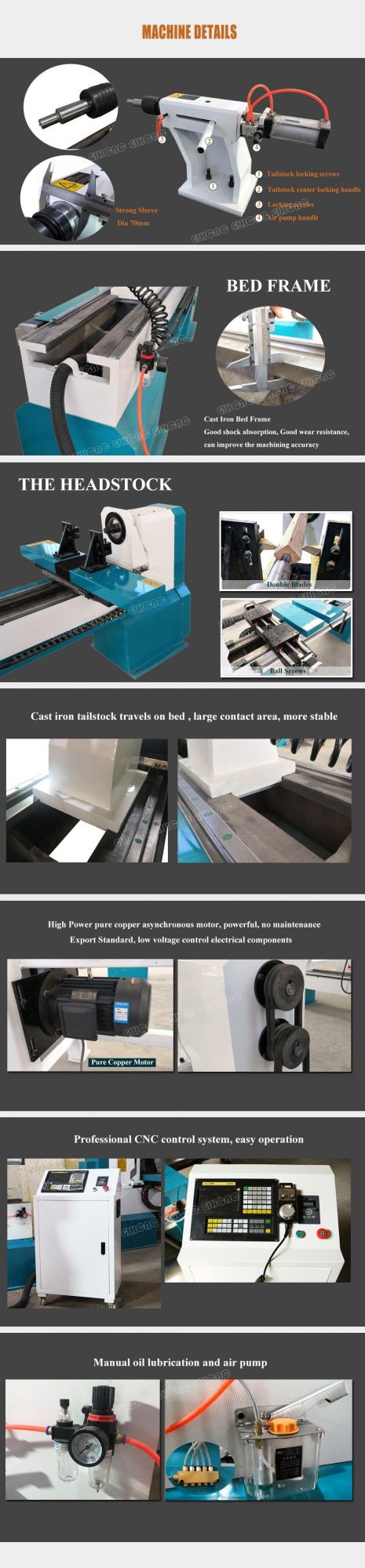

Feature
1. Maximum working length is 1500mm, Max turning diameter is 300mm (Customization is avaiable)
2. Two cutters at two sides of machine, work together, improve the efficiency greatly3. Linear square rails, ball screws and electric components.
4. Cast iron bed frame, heavy-duty, avoid shaking when the spindle rotates fast.
5. Files can be drew by AUTOCAD or other software, transfer by USB. 6. Professional operating system, easy operation.
7. If you want to engrave pattern, we will add a spindle on machine to do it.
Model: | GJH 1220 |
Processing Material: | Rotary Wood |

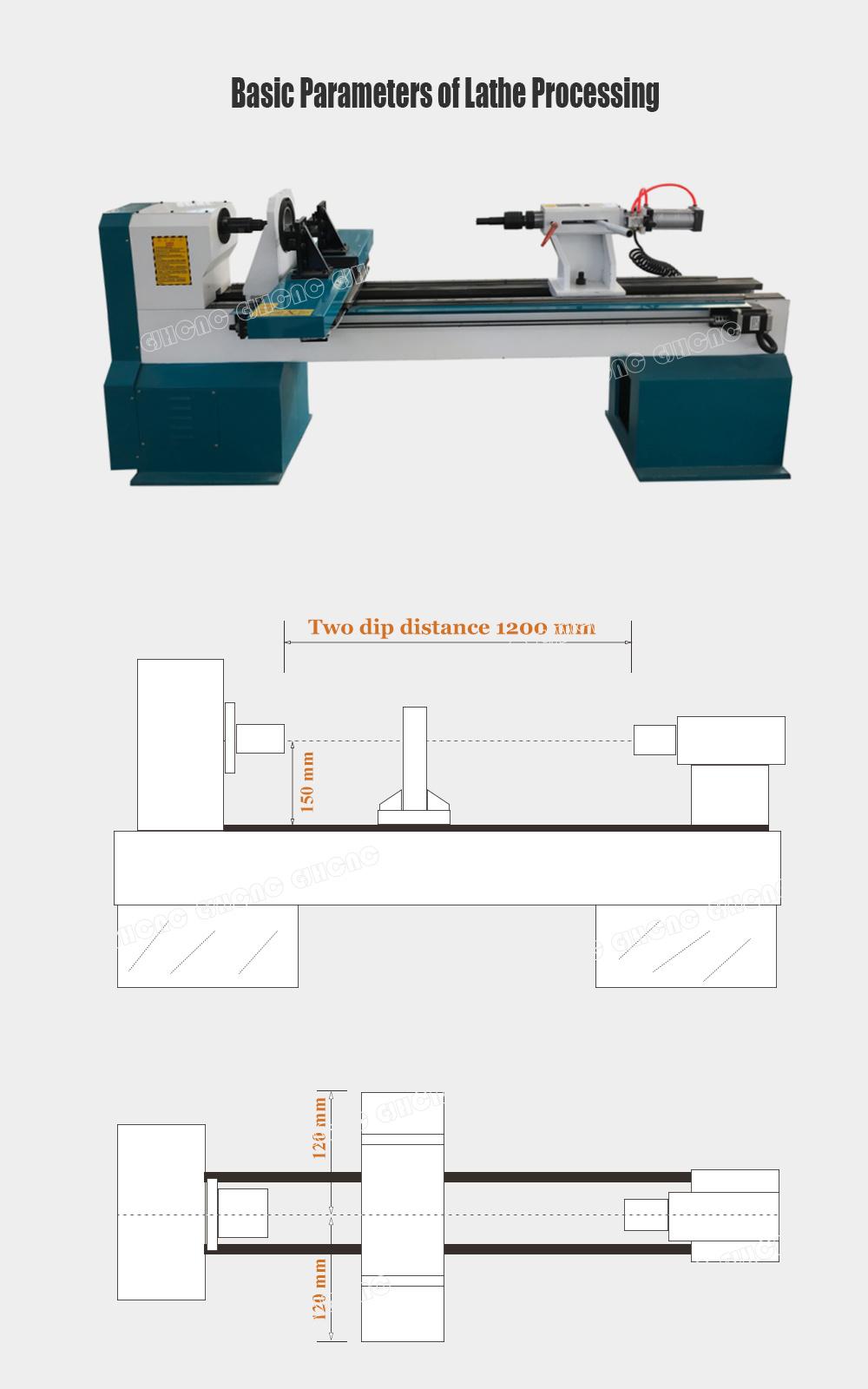

Max Working Length: | 1200 MM |
Max Working Diameter: | 200MM |
Control System: | Guangxingkai Control System |
Frequency Converter: | Middle Drive |
Bed structure: | Heavy whole iron casting |
Driving mode: | High precision TBI ball screw |
Guideway Drive: | 20 Linear Guide rail 20 Flange Slider |
Motor power: | 4 Kw pure copper three-phase asynchronous motor |
Engraving Spindle speed: | 0-2800 Rpm |
Operating Voltage: | 3-phase 380V Voltage |
Main Functions: | Lathe |
Processing Range: | Stair Column, Table and Chair Back, Bedside Column, Slab Tile, Cylindrical, Conical, Arc, Spherical |
N.W. | 1100 Kgs |
G.W. | 1200 Kgs |

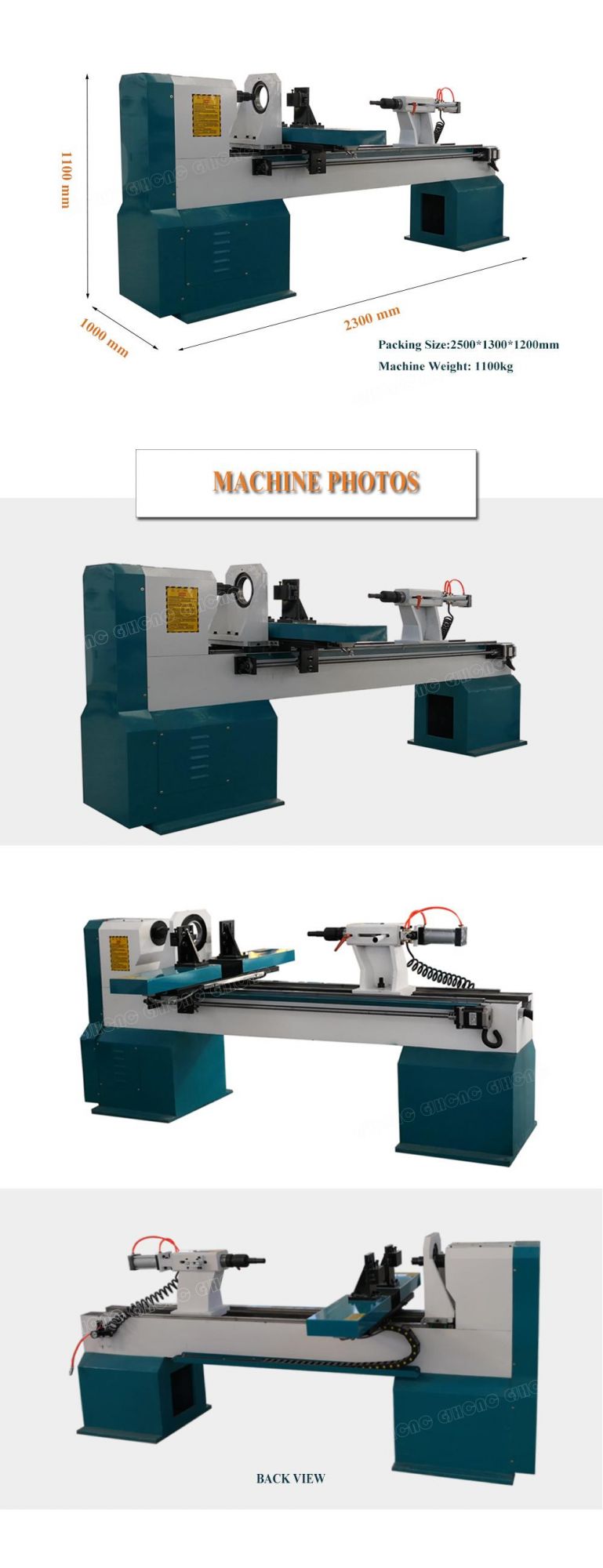

Packing size: | 2500x1300x1200mm |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. Buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support

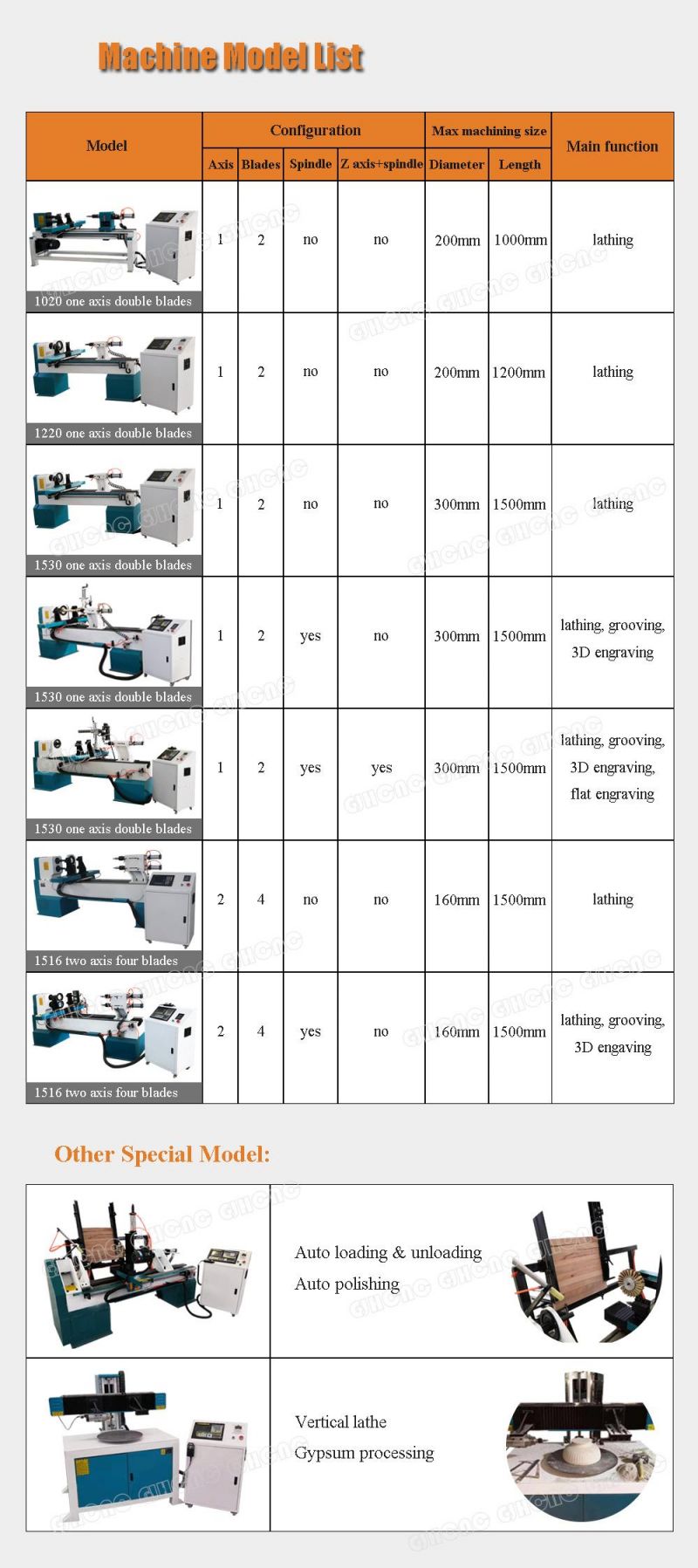

1020/1220/1530 automatic CNC Wood Lathe machine, CNC Turning Lathe
Customization is available.
When you have special request about wood lathe machine, please contact with us.
