China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router

Qingdao Zhongding Machinery Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:380V
  • Transport Package:Plywood Case
  • Specification:1300*2500mm

Base Info

  • Model NO.:MJ1325
  • Trademark:QDZD
  • Origin:Qingdao
  • HS Code:84659900
  • Production Capacity:500 Set,Month

Description

Basic Info.

Model NO. MJ1325 Trademark QDZD Origin Qingdao HS Code 84659900 Production Capacity 500 Set/Month

Product Description

China Factory 9KW HQD spindle Automatic tool change working 4 axis cnc router

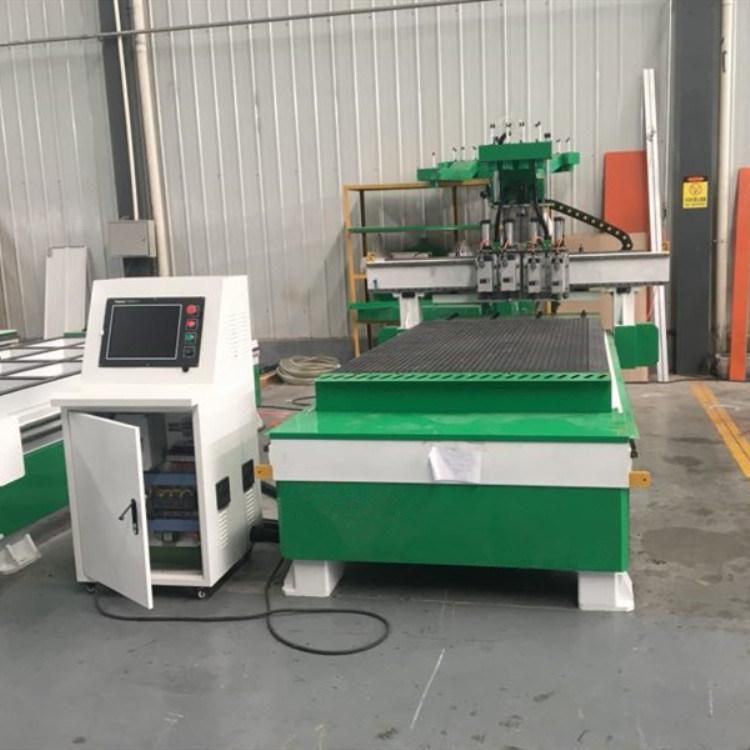

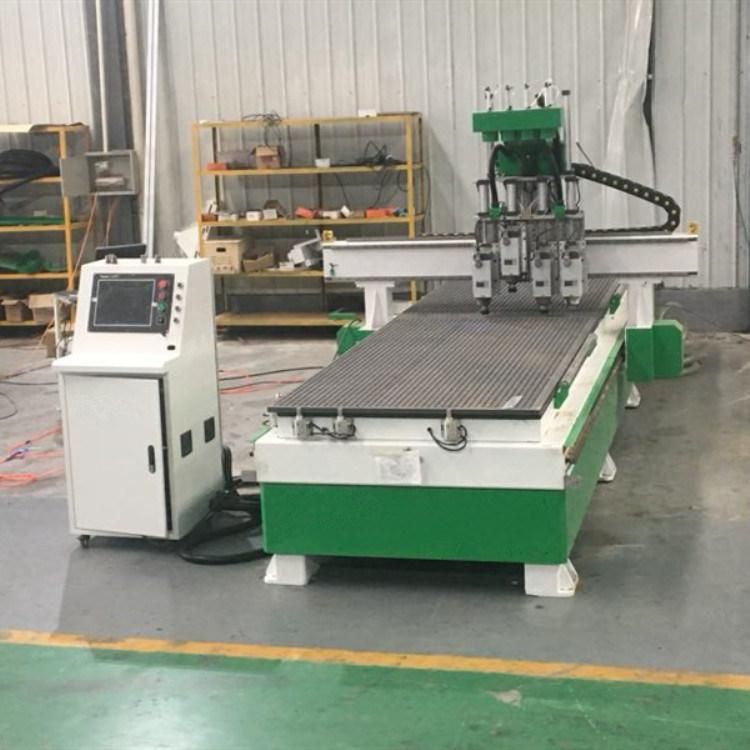

Machine picture:

China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router



China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router


Specification:

Performance parameterCabinet door sculpting, engraving, milling, cutting, cutting machine optimizes material opening, punches vertical holes, and automatically unloads in one step. The process is uninterrupted to maximize efficiency. Cabinet door carving
Applicable industries: panel furniture, cabinet doors, cabinet doors, moulded doors, plastic door panels, office furniture, custom furniture automation CNC processing technology
FunctionsDoor panel molding, slotting, cutting, punching, carving, etc.
XYZ Working dimensions1300*2500*200mm
Idling engraving speed80000mm/min
Max. Cutting speed25000mm/min
Repositioning Accuracy±0.05mm
Compatible softwareAlphacam Door panel software Yunxi Yimu Haixun 1010 etc.
Carving instructionsStandard G code, uoo, mmg, plt
Software operating environmentWIN7 64-bit
X/Y/Z structureXY axis high precision German rack drive, Z axis imported ball screw Taiwan TBI brand
Machine materialIntegral steel structure, thickened bed (welded in the factory), tempered and quenched
Body: First, a gantry planer is used for rough machining, and a large-scale gantry CNC machining center is used to mill the guide table and rack surface and NC drilling.
Heat treatment annealing, stress relief-surface treatment such as pickling, phosphating, etc.-CNC machining center milling, drilling one-time forming.
GantryLarge steel gantry beams: Machining components: All are processed by vertical machining centers. Through the above processing, the basic accuracy of the accessories is strongly guaranteed. The wall thickness is 8 thick.
TableThe table of 7.5kw water-cooled vacuum pump is a vacuum adsorption (double-layer) table. Porous can strongly adsorb materials of different areas.
Control system1. Taiwan new generation 60WA six-axis control system, drive and control all-in-one.
Spindle motor9kw air-cooled motor Changzhou HQD / CC

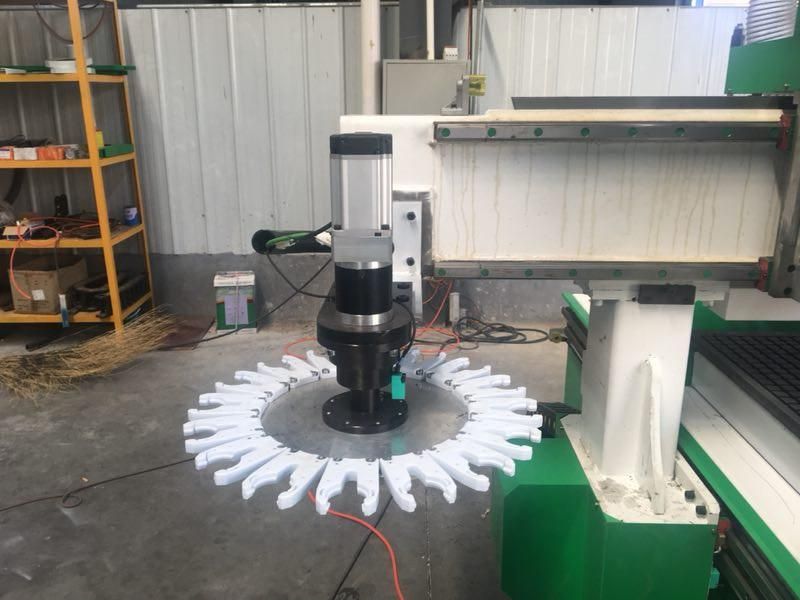

Tool maganize16 tool changer magazines
VoltageAC 380V/50HZ
Drive motorXYZ three axis use 1. Taiwan new generation bus absolute value servo motor and supporting driver, Z axis plus brake
ReducerJapan Xinbao reducer
TransmissionXY axis high precision helical rack drive German brand, Z axis Taiwan TBI screw drive
InverterShanghai Fuling 11kw Inverter Dual Inverter
Guide railTaiwan imported square rail 30, dustproof and durable
Maintenance Automatic Oil Filling System
Dust collectorDouble bag 5.5kw dust collector
IncidentalCutting tools, bar code printers, yimu software, etc.
AccessoriesHigh-flex shielded cable Schneider Electric components and other imported components from France, stable performance

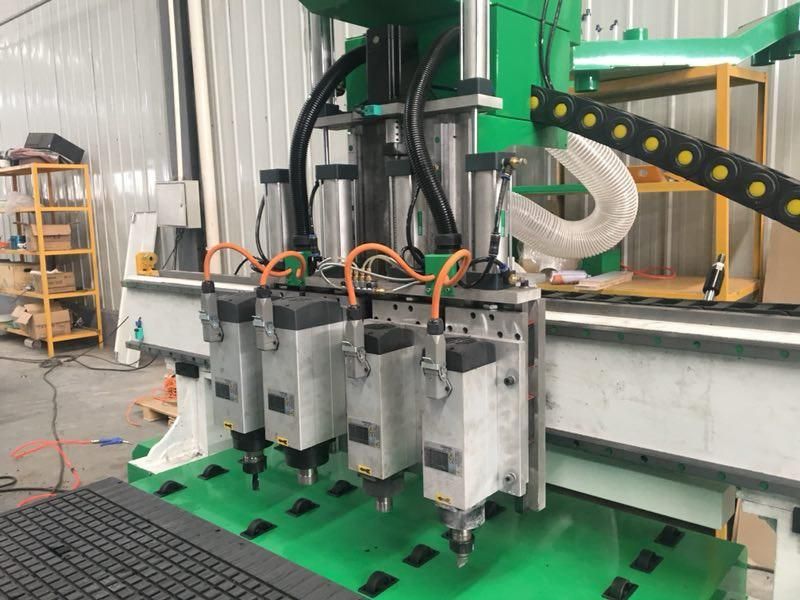

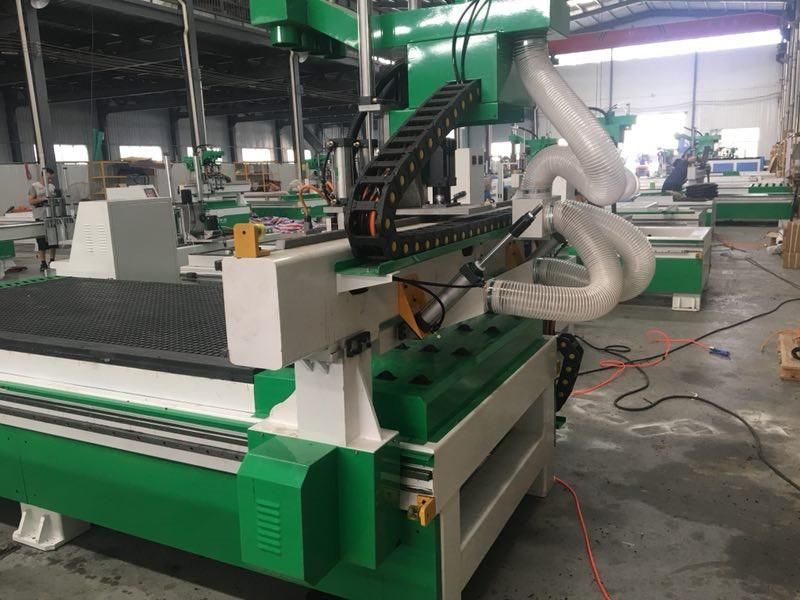

Detailed pictures:

China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router
China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router
China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router
China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router

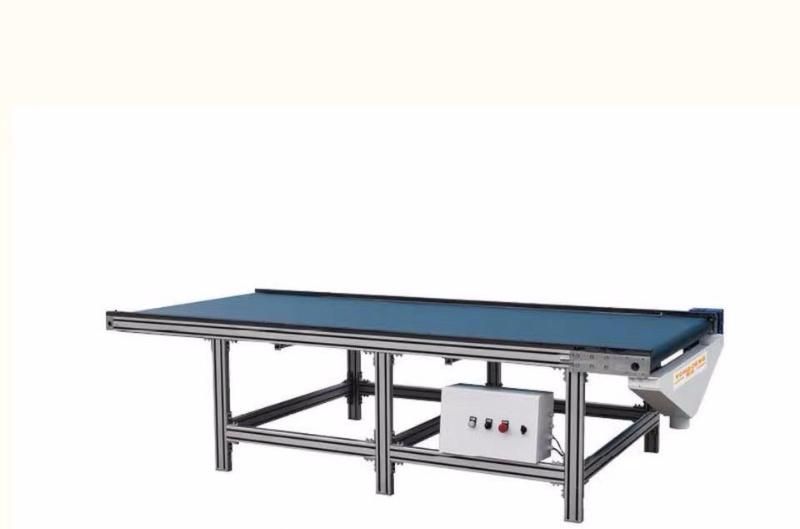

Automatic loading and unloading machine are optional:

China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router
China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router

Application:

China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router

Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659900
8) Certificate: CE&ISO


FAQ:

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer with 9 years experience.



Q: What kind of products do you have?

A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.



Q: Do you have CE or ISO certification?

A: Yes we have both.



Q: What's your warranty?

A: We offer one year warranty.



Q: Do you offer oversea after-sale service?

A: Yes if necessary.



Q: What's your advantage comparing with other suppliers?

A: With 9 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.



Package:

China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router
About us:


Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:

-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines

We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.

China Factory 9kw Hqd Spindle Automatic Tool Change Working 4 Axis CNC Router

For more details, pls feel free to contact us.
