• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Machine Item：Panel Furniture Engraving Machine
• Machine Painting Color：Be Made According to Your Need
• Package：Safe Wooden Box or Plastic Film Wrapping
• Reduction Gears：Planetary Reducer
• Body Table：Machining Center Milling, Never Deformation, Stew
• Body：Trapezoid, Heavy-Duty, Annealed
• Price：More Competitive Price Than Other Competitors
• Working Experience：Working Experience
• Delivery Time：Quick Delivery in 15 Days
• Voltage：380V, 220V 50herz, Can Be Customized
• Transport Package：Standard Package, Be Made According Cutomer Need
• Specification：1300*2500*200mm
• Trademark：XINLIHUI Wood engraving woodworking machine
• Origin：Qingdao City
• HS Code：84609090
• Production Capacity：100,Week

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Machine Item Panel Furniture Engraving Machine Machine Painting Color Be Made According to Your Need Package Safe Wooden Box or Plastic Film Wrapping Reduction Gears Planetary Reducer Body Table Machining Center Milling, Never Deformation, Stew Body Trapezoid, Heavy-Duty, Annealed Price More Competitive Price Than Other Competitors Working Experience Working Experience Delivery Time Quick Delivery in 15 Days Voltage 380V, 220V 50herz, Can Be Customized Transport Package Standard Package, Be Made According Cutomer Need Specification 1300*2500*200mm Trademark XINLIHUI Wood engraving woodworking machine Origin Qingdao City HS Code 84609090 Production Capacity 100/Week

Product Description

1 Production Introduction:

Applicable industry:
1. Woodworking industry: three-dimensional wave board processing, wooden doors, screens, process fan window processing, auxiliary processing of various furniture products.
2. Advertising industry: advertising signs, logo production, acrylic cutting, plastic molding, production of a variety of materials advertising products.
3. Mold industry: It can engrave metal molds such as copper, aluminum and iron, as well as non-metal molds such as marble, plastic board and wood board.
4. Other industries: It can engrave all kinds of shadow carvings and reliefs, which are widely used in the craft gift industry.

2 Main technical Parameters:

1	Name	1325 Three Head CNC Router With a Vacuum Adsorption And Pressure Roller
2	Working range(X*Y*Z)	1300*2500*200mm
3	Working accuracy	±0.05mm
4	Body	Trapezoid, heavy-duty, annealed
5	Table Structure	Vacuum
6	Transmission	XY: grind helical rack Z:TBI ball screw
7	Table Size(L*W*H)	3000*2000*1800mm
8	Transmission	XY: Grind Helical Rack; Z:TBIHIWINPMI Ball Screw
9	Max. travelling speed	15mmin
10	Max. working speed	10-15mmin
11	Spindle power	6KW*3
12	Spindle speed	18000rpm
13	Spindle cooling type	Air
14	Motor	Stepper
15	Working voltage	380V, 50HZ, 3Phase
16	Command code	G code

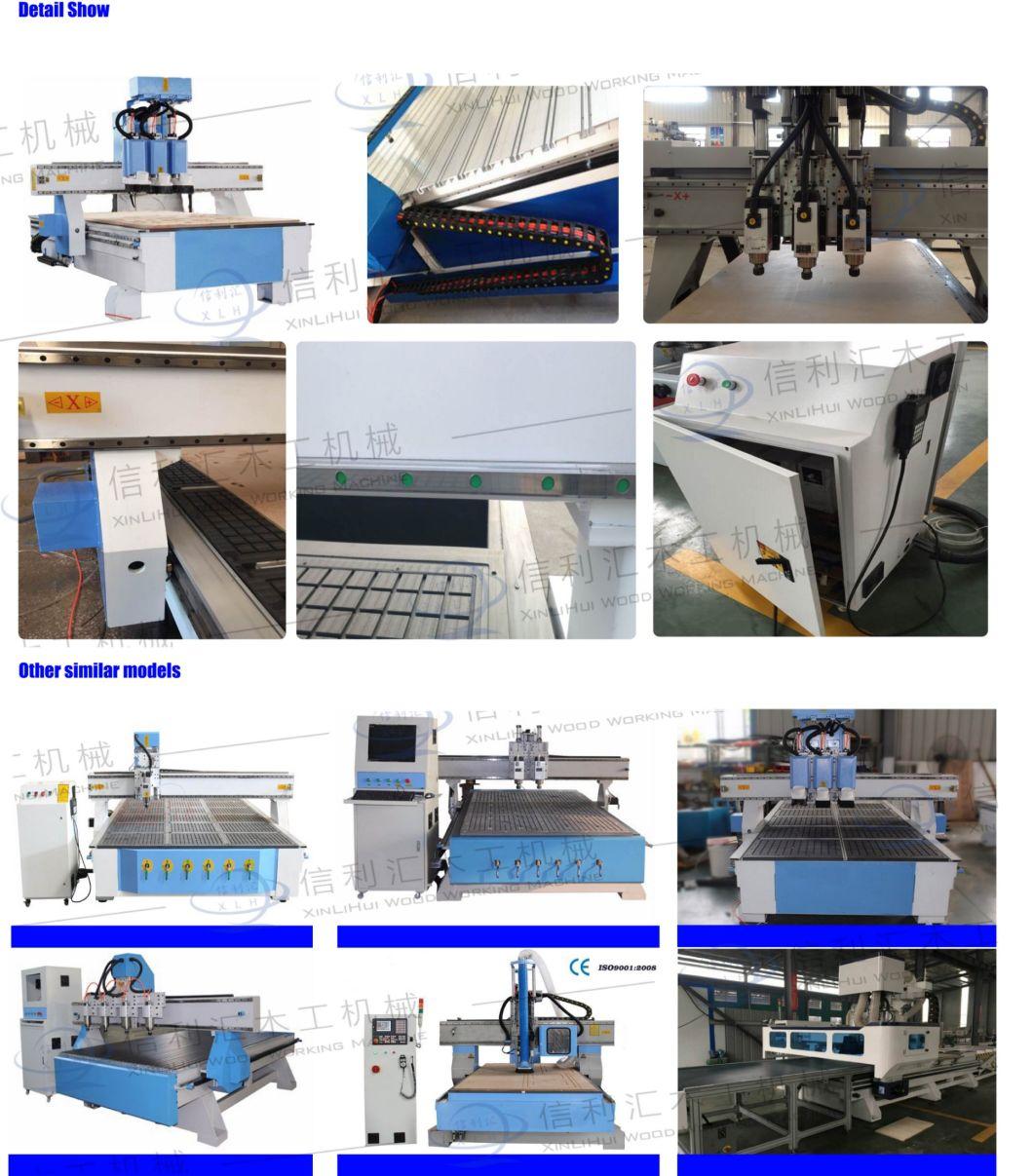

3 More Detail Show
Detail machine pictures, all photoes are for 100% real shooting !



4 Features:
This model Woodworking engraving machine The whole machine tool is designed and manufactured by thick-walled steel pipe through bridge experts through finite element analysis. The gantry and the arm are finished with thick-walled square steel and steel plate after welding, which provides a strong environmental guarantee for equipment operation.

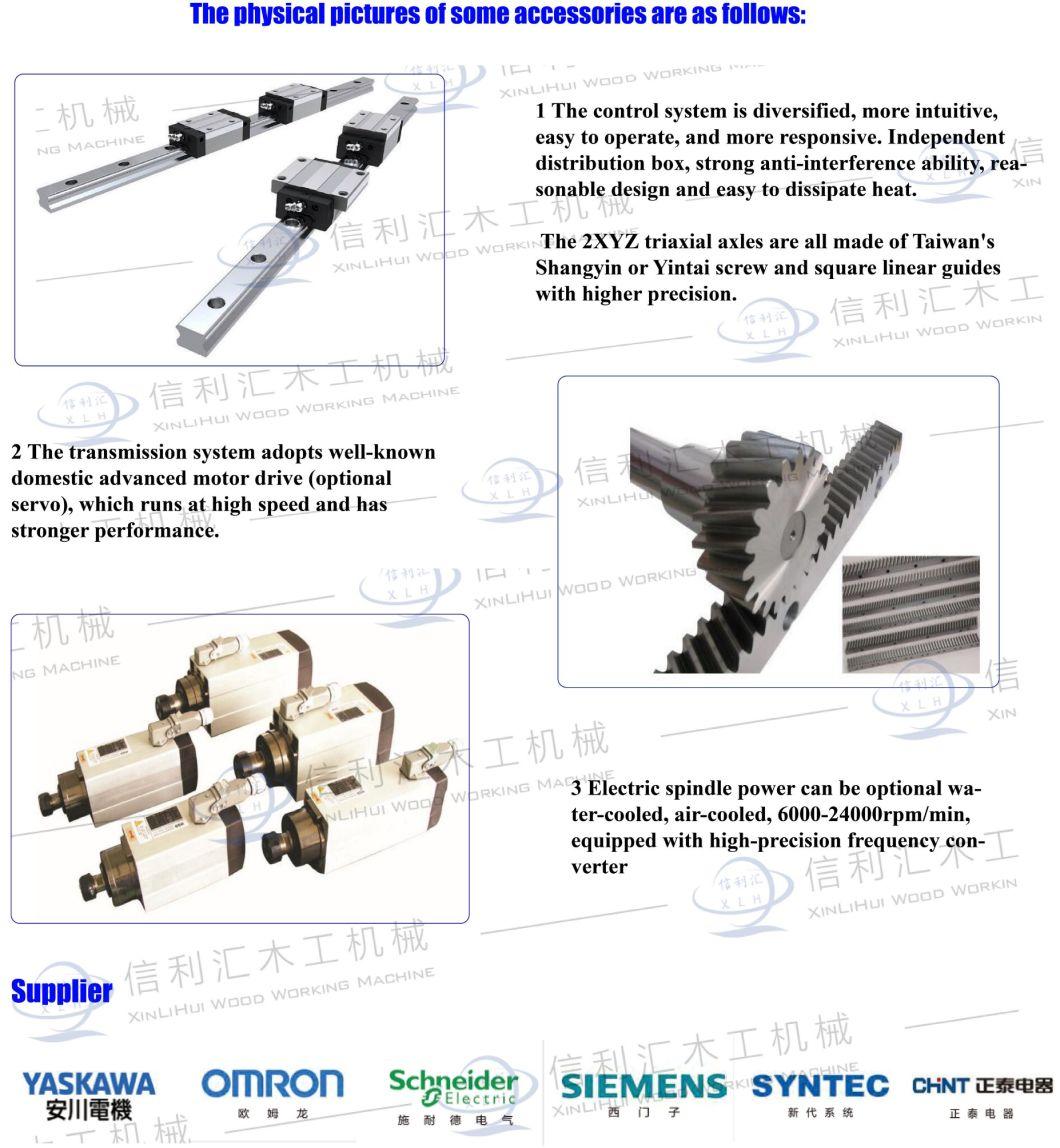

All imported precision screw and square guide rails imported from Taiwan, with high life, high precision, large cutting force and faster speed.

The finite element design of the welded bed, all mechanized operation processing, aging assembly, high precision.

Structural steel is better, the strength is greater, and the weight of the machine is larger.

Technical hard spindle, high cutting force and high efficiency.

The transmission system can adopt domestic advanced stepping system with good performance and stable operation.

Rigorous procedures, excellent accessories and high assembly precision

Using computer direct connection control system, it is easy to realize the function of breakpoint continuous engraving and power-off memory, and it can run safely without worry. The software system adopts international instruction format and is compatible with various CAD such as Wentai/Carved/TYP3/Artcam/Castmate. /CAM design software output path, operability, customer satisfaction.

5 Sample show
