Low Noise Wood Dowel Machine And Dowel Cutting Machine For Sale
Zhengzhou Hento Machinery Co., Ltd.- Warranty：2 years
- Type：Vertical Uniaxial Wood Router
- Spindle Layout：Dowel Cutting Machine
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：Artificial
Base Info
- Model NO.：HT-MC9212B
- Certification：CE, TUV
- Customized：Customized
- Condition：New
- Color：Blue
- After-sales Service：replace parts for free
- Truncating length：30-80mm
- Truncating capacity：31pieces,min
- Power：0.55Kw
- Weight：100kg
- Dimension：600*480*950mm
- Transport Package：Wooden Case
- Specification：6mm, 8mm, 10mm, 12mm
- Trademark：Hento
- Origin：Henan, China
- Production Capacity：300 Pieces,Month
Description
Basic Info.
Model NO. HT-MC9212B Certification CE, TUV Customized Customized Condition New Color Blue After-sales Service replace parts for free Truncating length 30-80mm Truncating capacity 31pieces/min Power 0.55Kw Weight 100kg Dimension 600*480*950mm Transport Package Wooden Case Specification 6mm, 8mm, 10mm, 12mm Trademark Hento Origin Henan, China Production Capacity 300 Pieces/MonthProduct Description
Low Noise Wood Dowel Machine And Dowel Cutting Machine For Sale1. Machine Introduction:

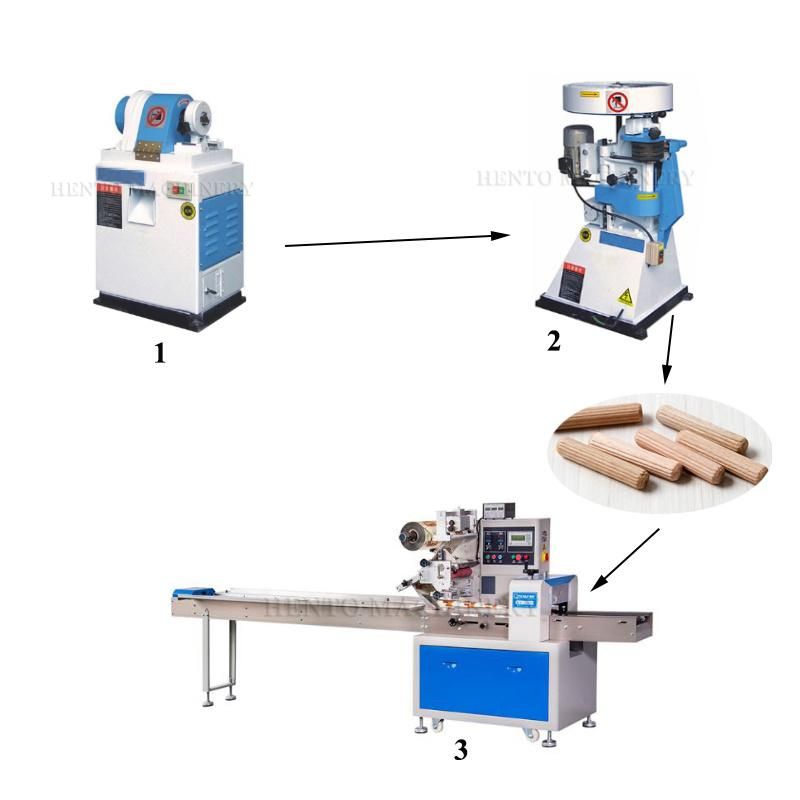

Part 1 -Wooden Dowel Milling Machine -------Part 2 -Wooden Dowel Cutting Machine-------Part 3 -Packing Machine
1).This wooden dowel milling machine used for making round rod into dowel shape.
2).and the automatic cutting machine used for cutting the wooden dowel.
2.Technical parameters:
Part 1 -Wooden Dowel Milling Machine
| Model | HT-MC9212A |
| Diameter | 6mm,8mm,10mm,12mm |
| Speed | 2.5m/min |
| Spindle rotation | 3250r/min |
| Power | 0.75Kw |
| Dimension | 400*300*750mm |
| Weight | 100kg |
Part 2 -Wooden Dowel Cutting Machine
| Model | HT-MC9212B |
| Truncating diameter | 6mm,8mm,10mm,12mm |
| Truncating length | 30-80mm |
| Truncating capacity | 31pieces/min |
| Power | 0.55Kw |
| Dimension | 600*480*950mm |
| Weight | 100kg |
Part 3 -Packing Machine
| Model | HT-320B/D |
| Film width | Max.320mm |
| Bag length | 65-190 or 120-280mm |
| Bag width | 50-160mm |
| Product high | Max.55mm |
| Max width of roll film | 320mm |
| packing material | OPP/CPP,OPP/PE,PET/PE |
| Packing speed | 40-230bag/min |
| Machine size | 3770X720X1450mm |
| Machine weight | 550kg |
| Power voltage | 220V |
3.Machine Photos:
4.Company Certificate:
5.Packing&Delivery:
6.Our Customers:
7.Contact information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
