China Furniture Making Machinery Edge Bander Machine
Qingdao Zhongding Machinery Co., Ltd.- Function：Pre Milling, Gluing, End Trimming, Rough Trimming, Fine Trimming, Scraping, Buffing
- Type：Linear Edge Banding Machine
- Edging thickness：0.4-3mm
- Automatic Grade：Automatic
- Panel Feeding Speed：13m,min
- Certification：CE, ISO
Base Info
- Model NO.：ZD700
- Panel Thinkness：10-60mm
- Min.length panel：100mm
- Min.width panel：50mm
- Manufacturing Principles：Glue Tank Overhead
- Customized：Customized
- Heating Power：1.5kw
- Feeding Motor Power：2.2kw
- Glue Spreading Motor Power：0.37kw
- End Trimming Motor Power：0.55kw*2
- Fine Trimming Motor Power：0.75kw*2
- Polishing Motor Power：0.18kw*2
- Air Pressure：0.7MPa
- Overall Dimension：4120*850*1520mm
- Pre-Milling Motor Power：1.5kw*2
- Rough Trimming Motor Power：0.75kw*2
- Transport Package：Wooden Case
- Specification：8CBM
- Trademark：QDZD
- Origin：Qingdao
- HS Code：84659400
- Production Capacity：500sets,Year
Description

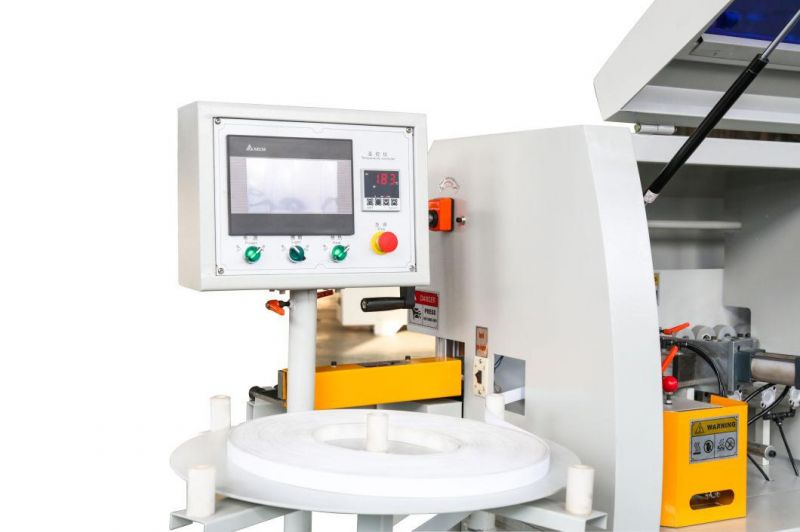

Control paneleasy to operate

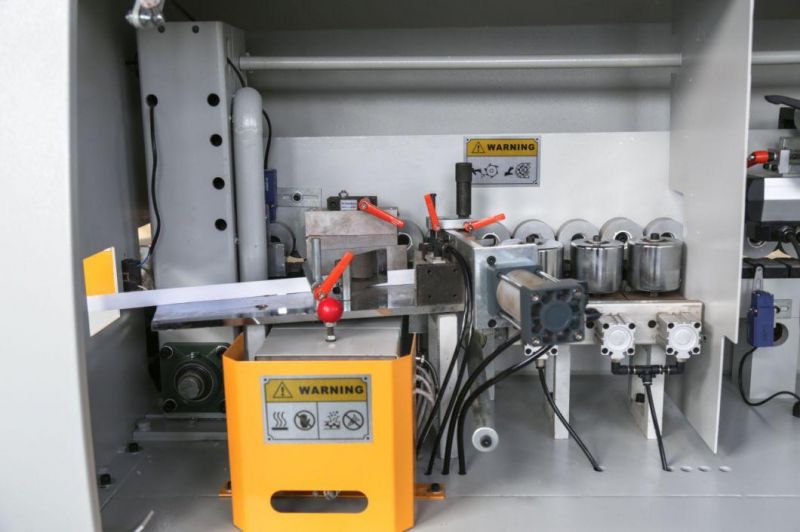

Gluing
glue mechanism adopts four Irregular cylindrical pinch rollers can entirely press the band firmly to the plate
Board preheating to get a better gluing effect. Nonstick material glue pot, easy to clean without residue.
Automatic oiling equipment
End trimmingEnd trimming mechanism through a precise guide track movement
Auxiliary pinch roller for narrow boards. Stable edge banding even for 4cm width panel. With SMC brand air cylinder and throttle valve, it can work with a stable pressure and a long life. No noise when working.

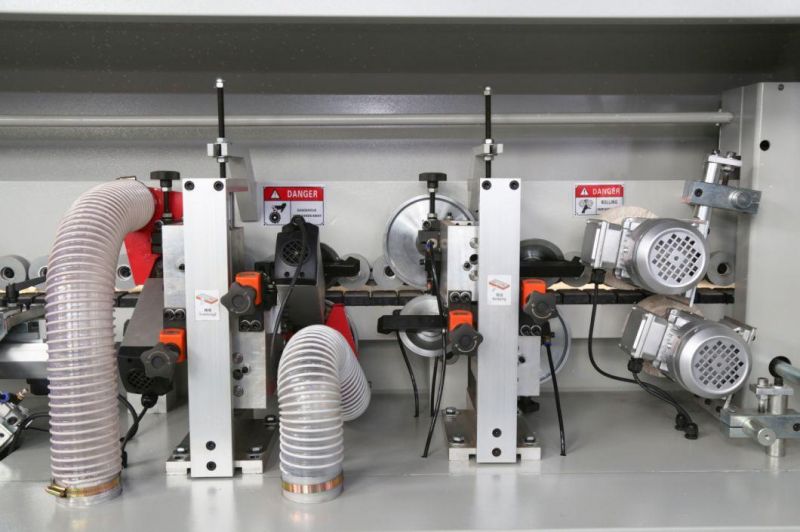

Rough/Fine trimming
Fine trimming mechanism adopt the use of six-edges knife for fine trimming leads to a smoother cutting surface. With the design of
linear guideway, it can stably working without abrasion. Also not easy to get stuck

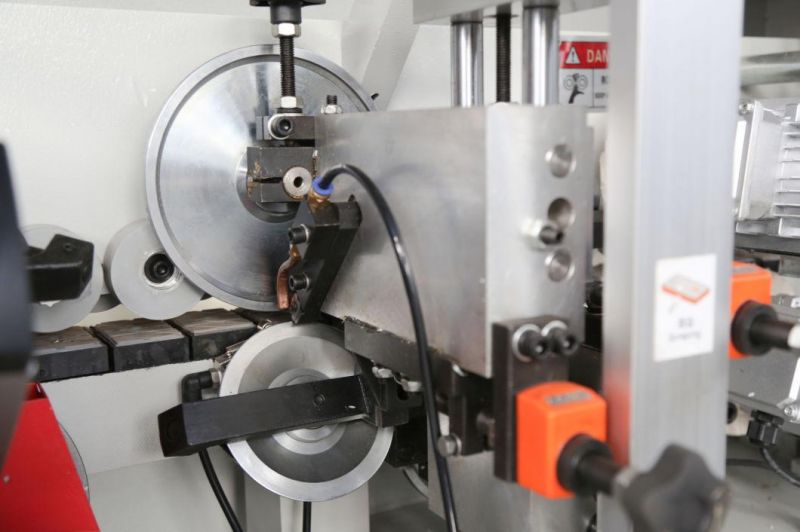

ScrapingScraping unit is for a perfect finishing of the applied edge.

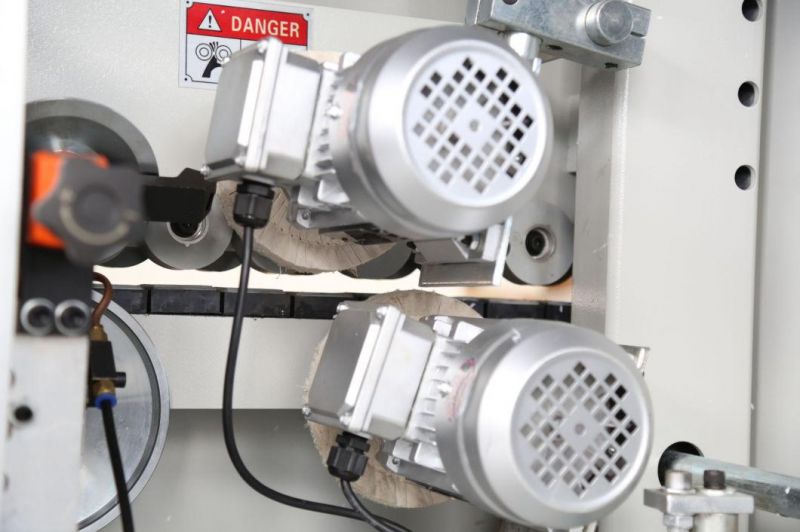

Scrapping process with dust collecting pipe.Buffing
The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.
Dust proof plate setting all along the whole edge banding process can prevent the board
OUR SERVICE
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging

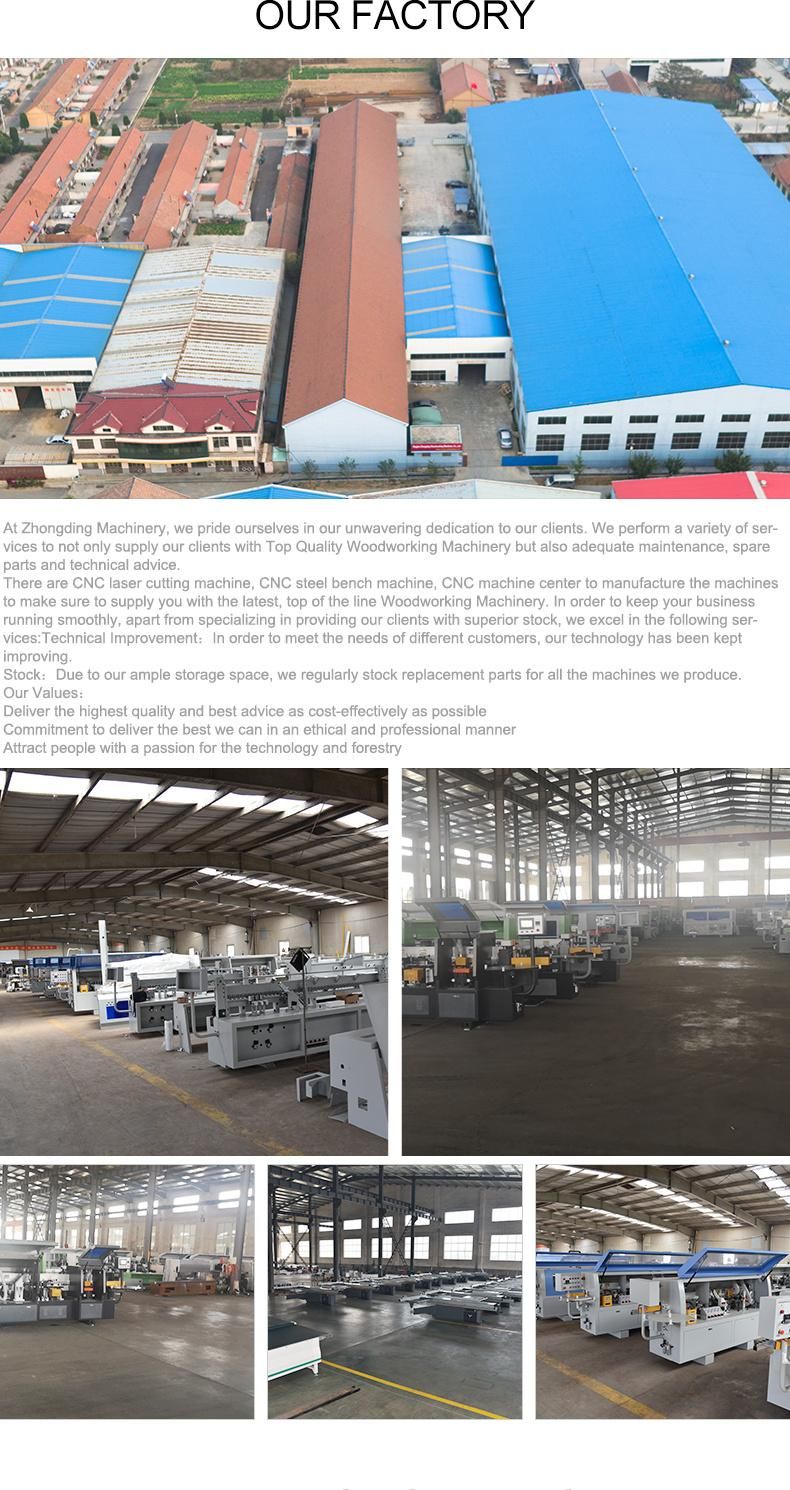

OUR COMPANY
