• Model NO.：SM-C1325
• Product Name：Wood CNC Router
• Spindle Power：4.5kw and 6.0kw
• Color：Optional
• Customized：Can Customized
• Spindle Number：4-Spindle
• Table：Vacuum Adsorption
• Driver：Servo
• Control System：Shanlong
• Motor：Servo Motor
• Structure：Heavy Body
• Inverter：Delici or Fulling
• Vacuum Pump：7.5kw
• Suitable Material：Wood, MDF, Plywood, etc
• Electric Parts：Chnt or Schneide
• Delivery Time：Within 20days
• Transport Package：Wooden Case
• Specification：1300x2500x200mm
• Trademark：STARMAcnc
• Origin：Jinan, China
• Production Capacity：100 Sets Per Month

DescriptionParamaterSM-C1325Working  Area  (X*Y*Zmm)1300mmx2500mmx200mmX,   Y  StructureGear  Wheel  Transmission,   Shaft  Linear  BearingsZ  StructureBall  Screw/Gear  WheelTable  SurfaceBakelite  Vacuum  Absorption  Table Max  Engraving  Speed 18000mm/minFrameCast  Steel  Square  tube  weldingSpindle  power(KW)4.5Kw/5.5kw/6kw/7.5kw/8kw/9kw,   *3Max.   Power  Consumption(Without  spindle)2.0KWSpindle  Speed         6000-18000rpm       Resolution0.005mmRepeatability0.01mmVoltageAC220V, 50/60Hz, 1PH(option, 380V  3PH)Drive  motor  Stepper/Servo(option)Working  Dictate               G  Code*. u00*. mmg*. pltOperating  systemDsp  System, SYNTEC, LNCInterfaceUSBFlash  memory128M(U  Disk)Software  CompatabilityType3, Ucancam,   Artcam  SoftwareRunning  EnvironemtTemperature:   0-45Relative  humidity:   30%-75%Windows98/2000/xp/7Machine  availableVacuum  absorption  table,
5.5KW  vacuum  pump  system,
Auto-oiling  system,
Dust  collector  with  dust  cover,
Spindle  cover  device,
Rotary  device.

Machine features
1. T-Slot machine body,stronger casting steel gantry, whole machine is much more stable and durable!  ( solid and reliable, no distortion, carrying weight, stability).
2. Taiwan HIWIN square rails, imported ball screw from Germany with high quality helical rack.
3. Two motors drive system for Y axis.
4. Professional vacuum system, strong adsorption capacity.
5. Support different CAD/CAM software: Wentai, Mastercam, Type3, Artcam, Caxa, JD paint, proe/ UG and etc.
6. Advanced DSP numerical control system .It has the characteristic of operating with the handle, large screen display ,convenient operation and easy maintenance .It is designed with more human nature.
7. Intelligent protection work table to prevent the machine collision with a short point, continued carving off function, to avoid wasting material.
8  Imported high-frequency Italy HSD air-cooling spindle.

Applications
1. Woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and Plate furniture auxiliary processing.
2. The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
3. The die-board industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. Other industries: A variety of large-scale relief sculpture, video carving, widely used in gift processing industry

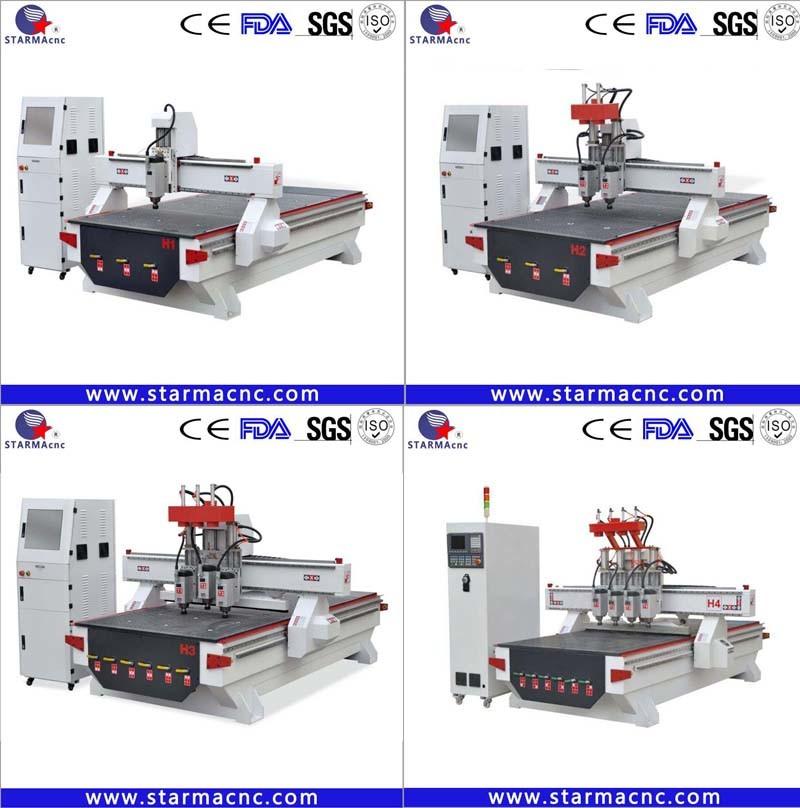

Product preview

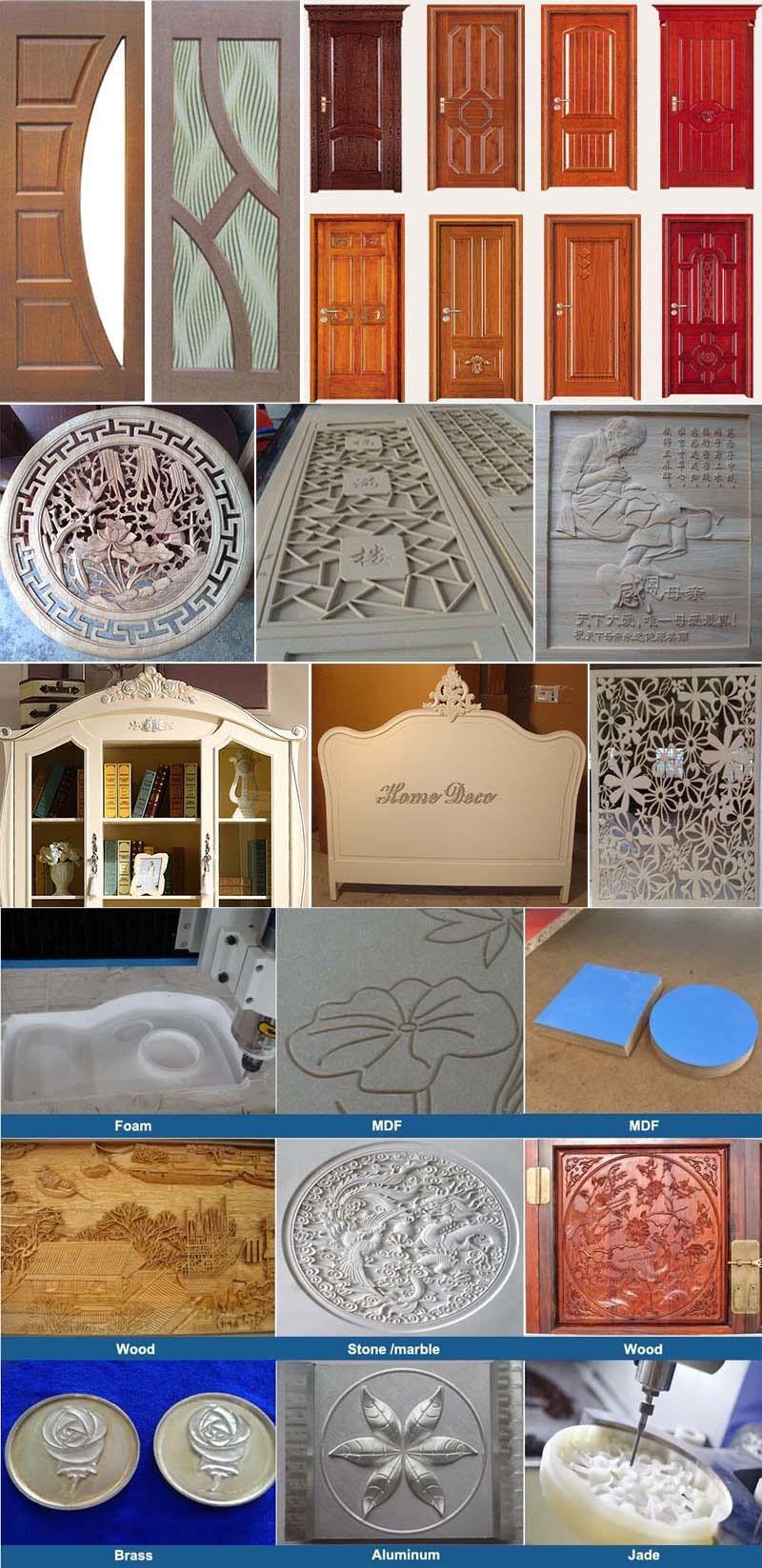

Samples

3d cnc router 4 Spindles woodworking CNC Router Machine 1325

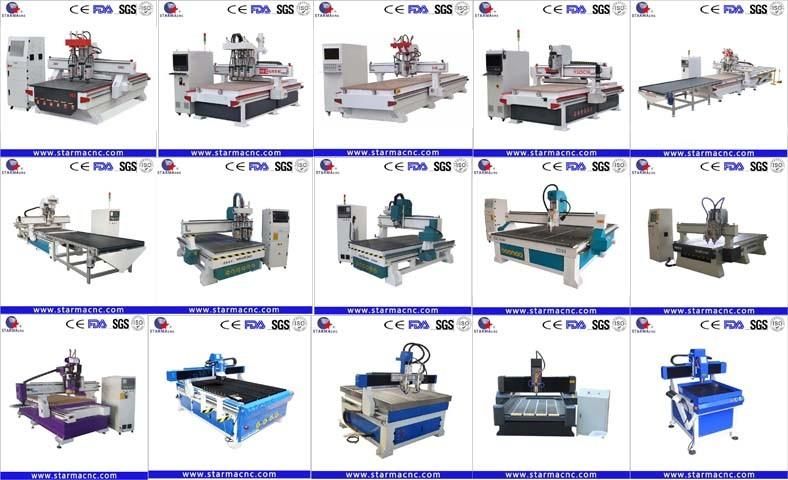

Our Other type cnc router machines


Our after-sale service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free
of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.

Our Company
Jinan STARMA Machinery Equipment Co, Ltd  Located in jinan district  China, it is a professional manufacturer devoted to laser processing, develop laser engraving machine, laser cutting machine of several series. Providing you perfect laser processing solution.

You can choose proper processing area and laser power to carve and cut non-metal material. We are well praise with our strength function. Low price, good steadily and wonderful after sale service.

FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is
covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by
thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have
full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry,
you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will
send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or
someone else. We will response within 24 hours as quick as we can to solve it for you.


My dear, If the product you are looking at now can not meet your actual requirement,
welcome to browse our websit about hot sale product, or send your detailed requirement to us,
we will send you Best Price and Full details within 5 hours.
