Product Description

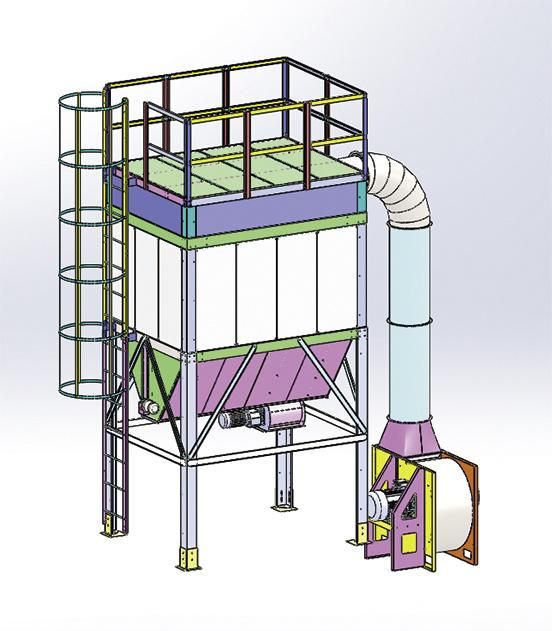

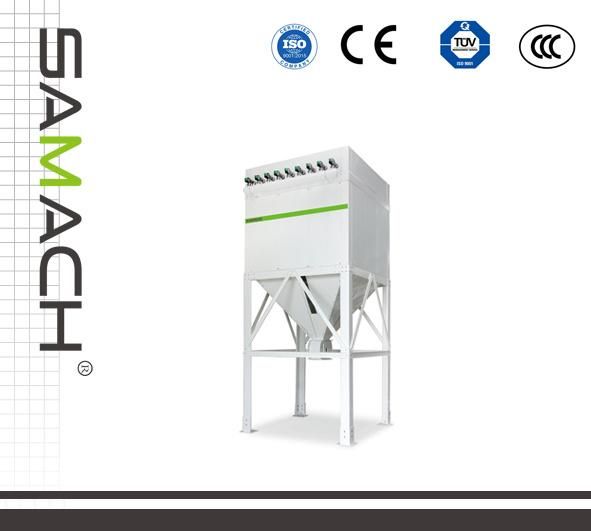

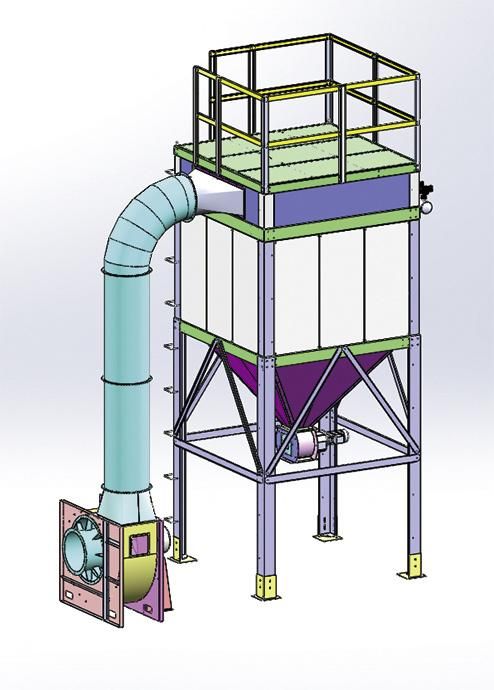

Pulsated dust collector center




RXC9075M/9110M/9150M/9180M/9220M

 Details:
1.It can clean the dust in processing without stop working.
2.Dust collector diameter can be customized,discharge dust automatically.
3.Pulsated blow the clean bags in the opposite direction, more efficient than the mechanical hitting.
4.Compact structure,most are detachable parts, easy to install.



Parameters:

Model	RXC9075M	RXC9110M	RXC9150M	RXC9180M	RXC9220M
Air delivery	9200m³/h	11200m³/h	15000m³/h	22000m³/h	32000m³/h
Motor power	7.5KW	11KW	15kw	18.5kw	22kw
Collector bag size	Φ135*1500mm	Φ135*1500mm	Φ135*1500mm	Φ135*1500mm	Φ135*1500mm
Filtering area	35.5	46.3	71m²	71m²	92.6m²
Filtering bag	49pcs	64pcs	98pcs	98pcs	128pcs
Intake dust concentration	<=500g/Nm³	<=500g/Nm³	≤500g/Nm³	≤500g/Nm³	≤500g/Nm³
Outtake dust concentration	<=0.1g/Nm³	<=0.1g/Nm³	≤0.1 g/Nm³	≤0.1 g/Nm³	≤0.1 g/Nm³
Dust-cleaning air consumption	0.18Nm³/min	0.25Nm³/min	0.45Nm³/min	0.55Nm³/min	0.85Nm³/min
Dust-cleaning pressure	(4-6)×105Pa	(4-6)×105Pa	(4-6)×105Pa	(4-6)×105Pa	(4-6)×105Pa
Pulse valve	7pcs	8pcs	14pcs	14pcs	16pcs
pulse valve size	1″	1″	1.5″	1.5″	1.5″
Support negative pressure	6000Pa	6000Pa	6000Pa	6000Pa	6000Pa
Frame size(mm)	1500×1500×4000	1700×1700×4000	3000×1500×4000	3000×1500×4000	3500×1700×400
Main engine size(mm)	1700×1200×4000	1800×1300×4000	1700×1200×4000	1700×1200×4000	1800×1300×4000
Total weight	950kg	1500kg	3100kg	3400kg	4100kg
