Wood Door Frame Machine 4 Side Planer Moulder with CE Certification

Shandong STX Machinery Trade Co., Ltd.
  • Warranty:18 Months
  • Type:Four-Side Planer
  • Working Depth:100-200mm
  • Working Width:160mm
  • Drivetrain:Feed Drivetrain
  • Enter Method:Mechanical

Base Info

  • Model NO.:M618
  • Motor Power:>10Kw
  • Cutter Shaft:6
  • Spindle Speed:>5000rpm
  • Process Type:Heavy Processing
  • Certification:CE
  • After-sales Service:Online Service
  • Color:Standard
  • Advantage:Long Service Life
  • Application:Woodworking Factory
  • Function:Planer and Moulder
  • Extra Support:Roller Conveyor
  • Working Thickness:8-130mm
  • Max. Working Width:180mm
  • Spindle Qty.:6
  • Transport Package:Steel Pallet
  • Origin:China
  • HS Code:846592
  • Production Capacity:2000 Sets,Year

Description

Other Parameters

Feeding wheel diamter

140mm

Overall dimension

3690*1400*1680mm

Dust outlet diameter

140mm

Machine weight

3150kg





 Wood Door Frame Machine 4 Side Planer Moulder with CE Certification

Wood Door Frame Machine 4 Side Planer Moulder with CE Certification

Detailed Images

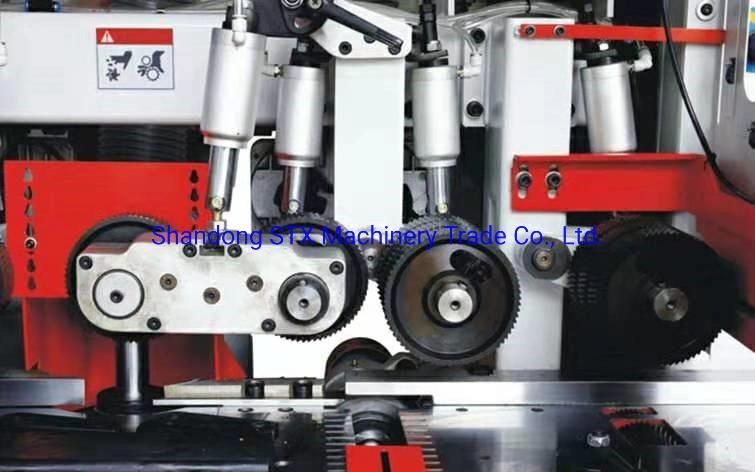

Wood Door Frame Machine 4 Side Planer Moulder with CE CertificationRapidly flip-short feeding device This mechanism effectively menhance the smooth feeding of short material, auxiliary feed wheel has a drive power to make feeding more brisk. Feeding off the wheel, easy to replace the tool and calibrated

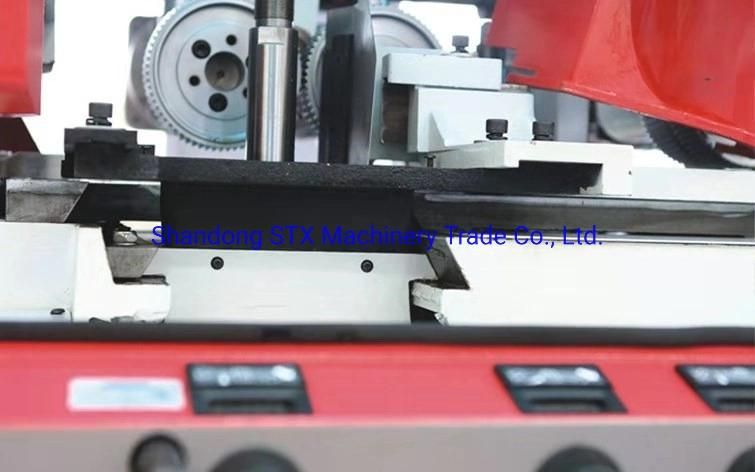

Moveable working table on the last bottom spindle, Making easy working on changing cutters

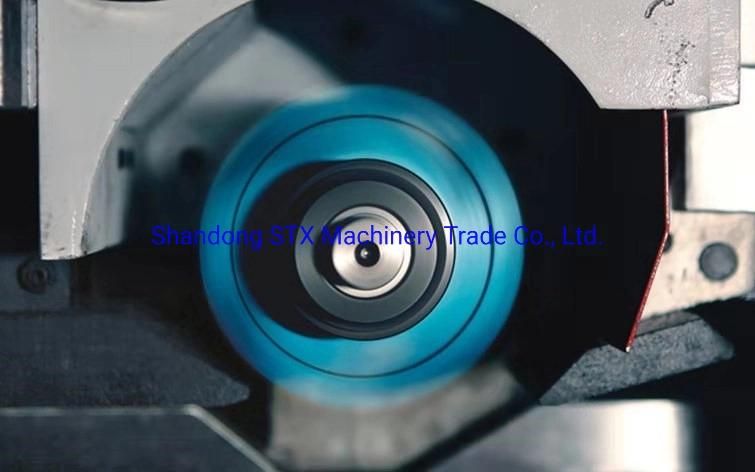

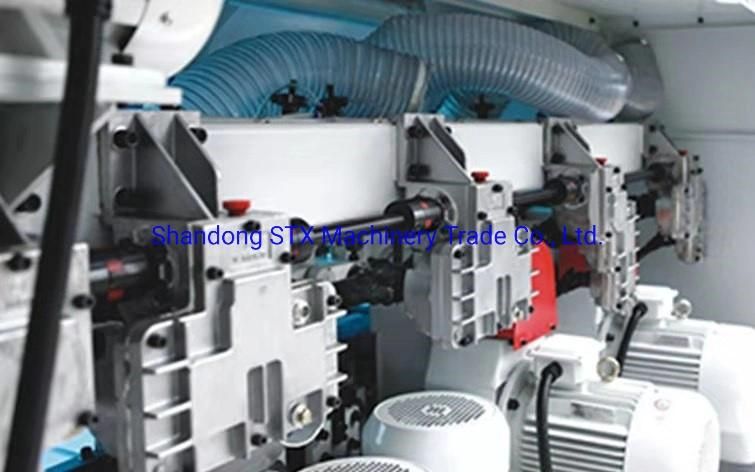

Wood Door Frame Machine 4 Side Planer Moulder with CE CertificationWood Door Frame Machine 4 Side Planer Moulder with CE CertificationHeavy cutting gear box Nourishment wheel via a universal joint and the gearbox, ensure no power loss. Feeding extremely smooth, powerful driving force, high feedind accuracyEvery spindle is tested and assembled in dust free room, with SKF bearing on the double end before finished. Absolute smooth running of the spindleensure the finished surface without any roughnessWood Door Frame Machine 4 Side Planer Moulder with CE CertificationWood Door Frame Machine 4 Side Planer Moulder with CE CertificationDouble-deck working table on left and right spindle, guaranteed working verticalityFront and rear press plate can be adjusted respectively, although the big variation in wood thickness, also work pieces can be firmly pressed down on the working tableWood Door Frame Machine 4 Side Planer Moulder with CE CertificationWood Door Frame Machine 4 Side Planer Moulder with CE CertificationFeeding frequency inverterDigital display, easy operation, energy saving, reduction of mechanical transmission wear.


Wood Door Frame Machine 4 Side Planer Moulder with CE Certification

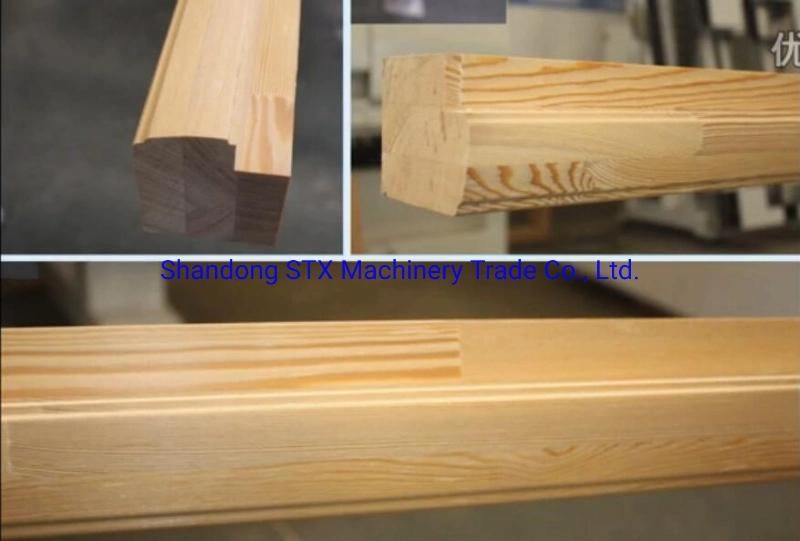

Processed effect

Wood Door Frame Machine 4 Side Planer Moulder with CE Certification



 Package & Delivery

Our ServiceAbout Us

Since  established in 1990s years, we keep our attention on Four side moulder, Double Side Moulde, Rip saw,Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China
