Woodworking Machinery

Plywood Heavy Duty Two Heads Calibrate Sander Machine with Automatic Conveyor Line

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Type:Plywood Sander Machine
  • Automatic:Automatic
  • Certification:CE, ISO, FDA
  • Color:Customized
  • Voltage:380,415V
  • Variable Speed:Variable Speed

Base Info

  • Model NO.:BSG1213R-R
  • Customized:Customized
  • Transport Package:Standard Export Packing
  • Specification:3030*2900*2440mm
  • Trademark:METROMACH
  • Origin:Linyi City, China
  • HS Code:8465930000
  • Production Capacity:200sets,Year

Description

Basic Info.

Model NO. BSG1213R-R Customized Customized Transport Package Standard Export Packing Specification 3030*2900*2440mm Trademark METROMACH Origin Linyi City, China HS Code 8465930000 Production Capacity 200sets/Year

Product Description

PRODUCT DECRIPTIONHeavy Duty Two Heads Calibrate Sander Machine with Conveyor Line

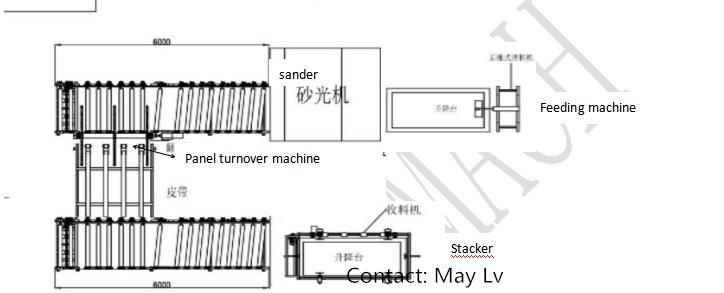

1. Aotomatic Sanding Conveyor Line
Plywood Heavy Duty Two Heads Calibrate Sander Machine with Automatic Conveyor Line
2. Product Features

1. This calibrating sander machine is mainly used for thickness calibrating plywood,particleboard, MDF etc.
2. Overall welding frame structure, long  service life, high rigidity.
3. Big sanding roller diameter, accurate dynamic balancing,high precision. ensures good sanding performance.
4. Multiple safety design, safe and reliable.
5. International brand advanced electrical components, less trouble, more stable.

3. Technical Parameters
Model. NoBSG1213R-R
Sanding width40-1300mm
Sanding thickness2.5-80mm
Sanding length>=780mm
Sanding belt linear speed25m/s
Sanding belt size1300*2620mm
Motor power of sanding belt55kw  45kw
Lifting motor power of platform0.75kw
Motor power of brush rollers0.75kw
Panel in-feeding speed20-40m/min
Motor power of conveyor11kw
Motor power of conveyor reducer7.5kw
Total motor109kw
Operating pressure0.6MPa
Dust extraction15000/h
Dimension 3030*2900*2440mm
Weight8100kg

4. More Pictures
Plywood Heavy Duty Two Heads Calibrate Sander Machine with Automatic Conveyor Line
Plywood Heavy Duty Two Heads Calibrate Sander Machine with Automatic Conveyor Line
Plywood Heavy Duty Two Heads Calibrate Sander Machine with Automatic Conveyor Line
Welcome to Contact

Plywood Heavy Duty Two Heads Calibrate Sander Machine with Automatic Conveyor Line
