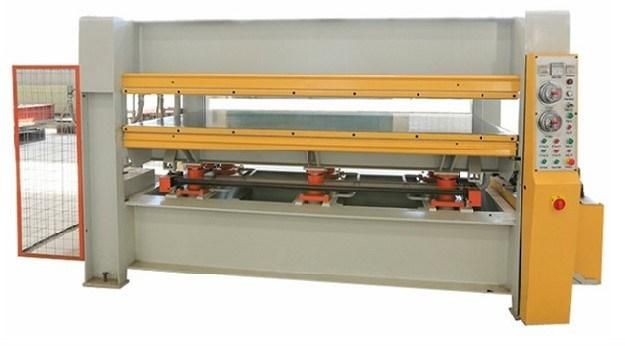

Woodworking Hydraulic Hot Press Machine for Plywood
Qingdao Zhongding Machinery Co., Ltd.- Work Forms:Hydraulic Pressure
- Processing Technics:Hot Press
- Structure:Box Type
- Pressing Shape:Flat Press
- Platen Surface Pressure:High Pressure
- Pressing Layer:Multi Layer
Base Info
- Model NO.:ZD214*8,16(1)H
- Work Mode:Period
- Controlling Mode:Artificial
- Automatic Grade:Semiautomatic
- Certification:CE
- Transport Package:Plywood Case
- Specification:4*8 ft
- Trademark:Zhongding Machinery
- Origin:Qingdao
- HS Code:84659400
- Production Capacity:500 Sets,Year
Description
Basic Info.
Model NO. ZD214*8/16(1)H Work Mode Period Controlling Mode Artificial Automatic Grade Semiautomatic Certification CE Transport Package Plywood Case Specification 4*8 ft Trademark Zhongding Machinery Origin Qingdao HS Code 84659400 Production Capacity 500 Sets/YearProduct Description
Woodworking Hydraulic Hot Press Machine for PlywoodProduct details:
Specification:
Total pressure | 100/120/160/200ton |
Feeding direction | Transversal |
Dimension of hot platen | 2500x1300x42mm |
Number of layers | optional |
Number of platens | Optional |
Stroke | 80-120mm |
Diameter & stroke of oil cylinder | 100mm x 200mm |
Number of cylinders | optional |
Heating medium | thermal oil |
Working pressure | optional |
Total power | 9.2Kw |
Thermal oil furnace power | optional |
Advantage:
- All 3 pumps we use Vane Pumps. The others use Gear Pumps. Vane pumps with lower noise than gear pumps. So the working life is longer than gear pumps.
- The surface roughness of our platen is 0.8μm. The better among the others is just 1.6μm. This will keep the heating averagely. This is very important.
- Our machine base is type H steel. The others use welded steel plate. Type H steel is much stronger than the welded steel plate. Welded steel plate will be bent easily.
Details:
Order terms:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE
FAQ:
Q: Are you a manufacturer or a trading company?
A: We are the manufacturer with 9 years experience.
Q: What kind of products do you have?
A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.
Q: Do you have CE or ISO certification?
A: Yes we have both.
Q: What's your warranty?
A: We offer one year warranty.
Q: Do you offer oversea after-sale service?
A: Yes if necessary.
Q: What's your advantage comparing with other suppliers?
A: With 9 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.
Package:
About us:
Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:
-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines
We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.
