Double Wooden Pallet Stringer Notcher

Zhengzhou Invech Machinery Co., Limited
  • Certification：CE
  • Power：30kw
  • Capacity：2000PCS,Hr
  • Notching Thickness：Max. 90mm
  • Notching Width：200-270mm
  • Transport Package：Wooden Case

Base Info

  • Specification：2150*1650*1400mm
  • Trademark：INVECH MACHINERY
  • Origin：China
  • HS Code：8465910000
  • Production Capacity：20sets Per Month

Description

Basic Info.

Specification 2150*1650*1400mm Trademark INVECH MACHINERY Origin China HS Code 8465910000 Production Capacity 20sets Per Month

Product Description

Wood Pallet Nothing Machine/Us Pallet Notcher

Brief Introduction for wood pallet notcher machine:
1. automatic wooden pallets notcher machine is special for America wood pallet processing ,which it can be from four directions by forklift, It becomes popular pallet type in the world .
2. automatic wooden pallets notcher machine is suitable for different notching size ,it also can be customized by customer demands.

Features for wood pallet notcher machine:

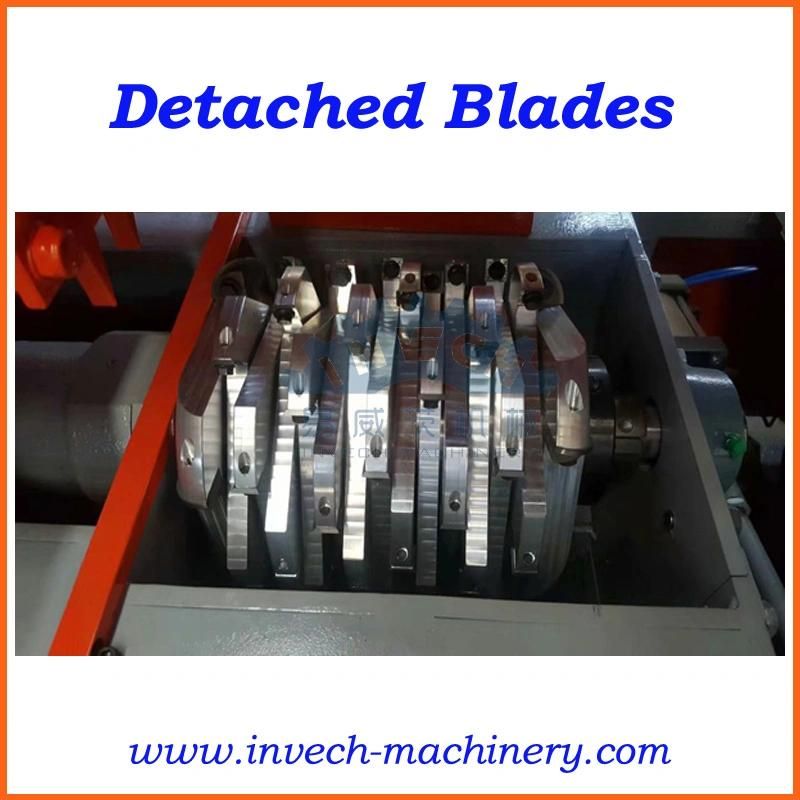

1) machine heads with alloy material, with high hardness, wear resistance, strength and toughness, heat resistance, corrosion resistance and a series of excellent performance, thus ensuring the long-term performance of the machine.
2) the use of a continuous feed, work platform automatic discharge mode, you can also open a dual-slot, Trench smooth without rough parts, standard size, high precision, adjustable slot depth specifications;
3) reliable security guards, when workers operate completely without touching knives, quiet high;
4) product design, design ideas unique in the country.
5) its high-quality, safe, practical, efficient and a series of properties, so that more wood pallet wood factory automation to improve mechanical, completely replace the previous trough excavation work manually.

Technical Parameters for wood pallet notcher machine:
NamePallet Notching Machine
Power22KW
Batten Length<1300mm
Batten Width<100 mm
Batten Thickness<100mm
Grooving Thickness40-60mm
Working Capacity800-1000pcs/hr
Cutter MaterialsAlloy
Appearance Dimensions2000*900*1400mm
Weight700kg
Working TypeContinuously

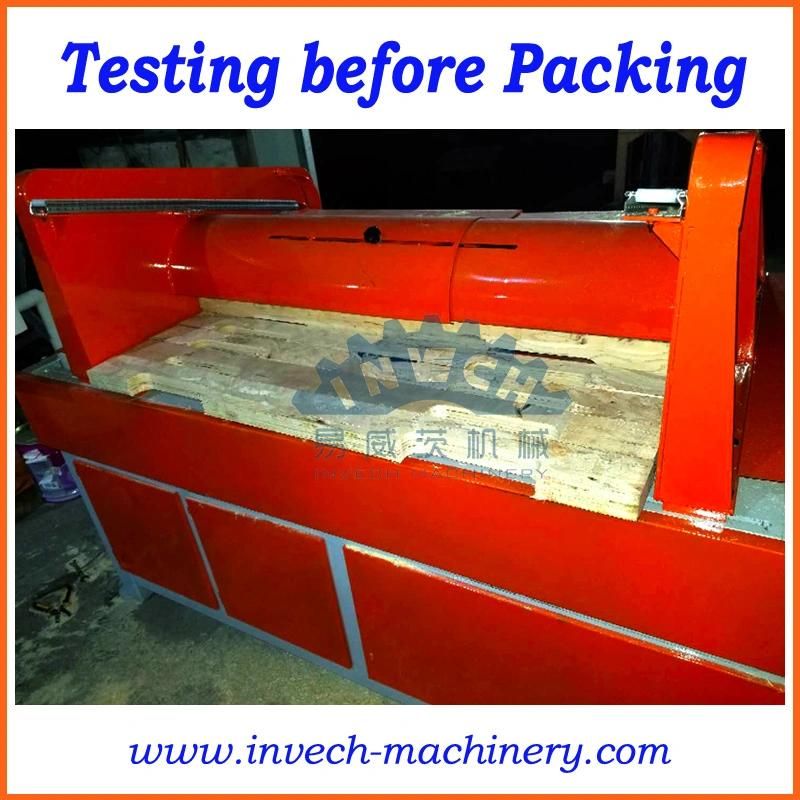

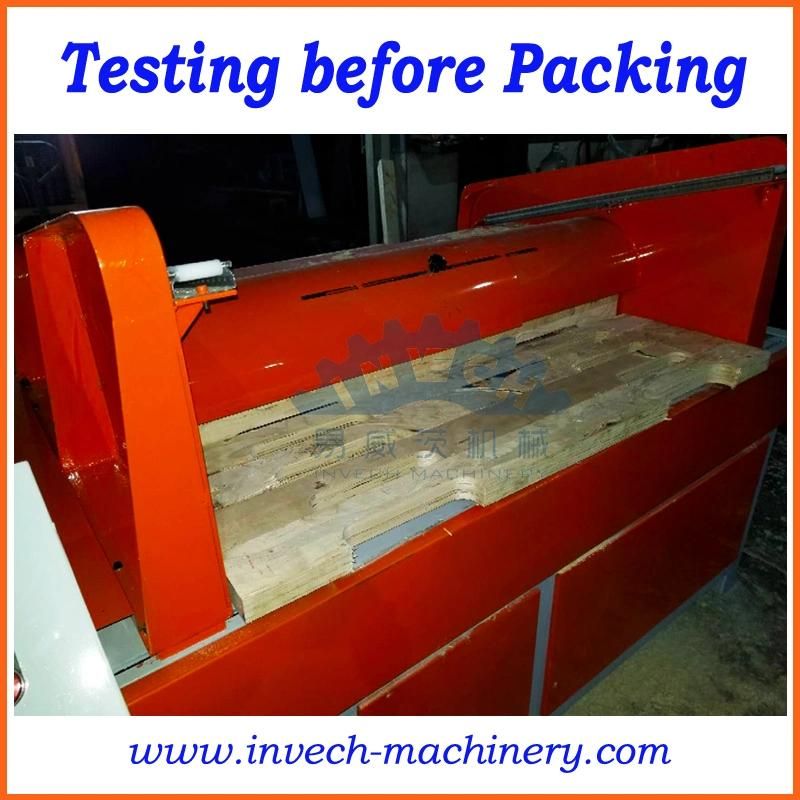

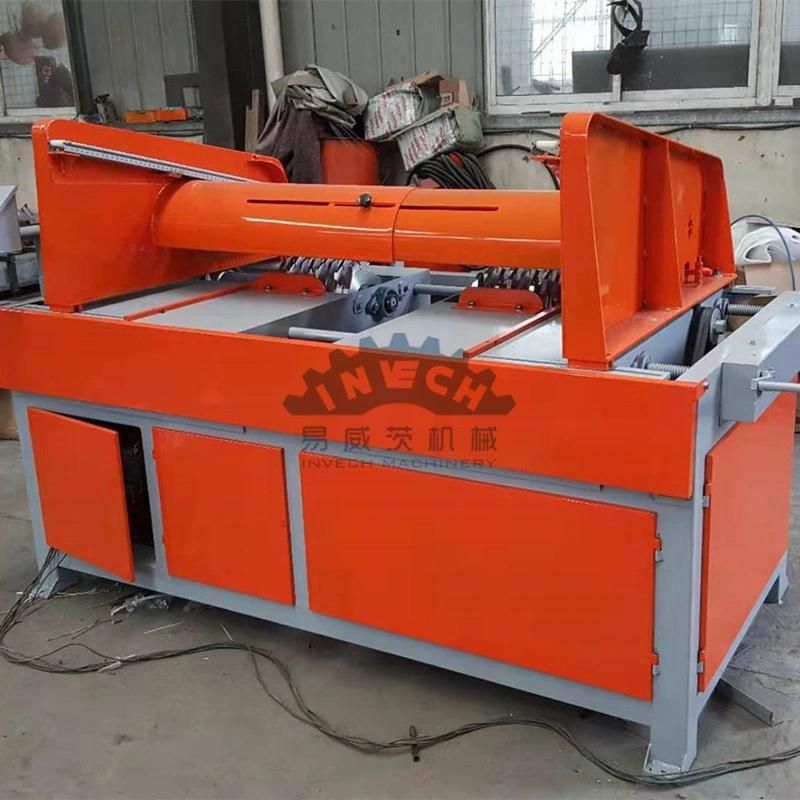

Double Wooden Pallet Stringer Notcher
Double Wooden Pallet Stringer Notcher
Double Wooden Pallet Stringer Notcher
Double Wooden Pallet Stringer Notcher
Double Wooden Pallet Stringer Notcher
