• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*2500mm
• Max. Operating Speed：15m,Min
• Resolution：0.025mm
• Spindle Speed：6000-24000rpm
• Carving Command：G Mode*, U00*.Mmg*.Plt
• Collet：Er25,Er32
• X,Y Resolution：<0.03mm
• Optional Parts：Air Cooling Spindle or Water Cooling Spindle
• Running Environment Temperature：0 - 45 Centigrade
• Command Language：G Code
• Transport Package：Wooden Box
• Specification：CE ISO SGS
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：84649012
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Working Area 1300*2500mm Max. Operating Speed 15m/Min Resolution 0.025mm Spindle Speed 6000-24000rpm Carving Command G Mode*, U00*.Mmg*.Plt Collet Er25/Er32 X,Y Resolution <0.03mm Optional Parts Air Cooling Spindle or Water Cooling Spindle Running Environment Temperature 0 - 45 Centigrade Command Language G Code Transport Package Wooden Box Specification CE ISO SGS Trademark FIRMCNC Origin Jinan, China HS Code 84649012 Production Capacity 100 Sets/Month

Product Description

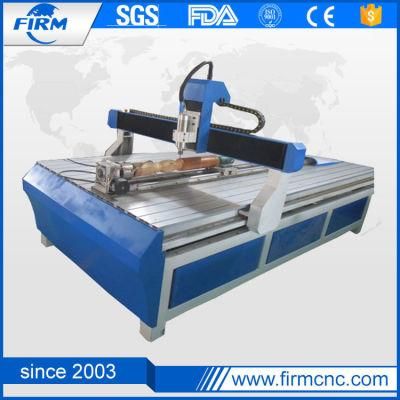

Water Cooling 3 Axis Wood CNC Engraving Machine

This is one type of wood working machine of Jinan Firm CNC Equipment Co., Ltd. This machine is Vacuum and  T-slot combined table has the T-solt, using the material holders to fasten The mould on the table. Aloso can fax the material by vacuum table,assembling desk, it also can engrave on the HDF, wood board, acrylic, plan cutting...

Features
1. Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2. Powerful stepper motor driver, Imported linear guide rails, running smoothly, high accuracy, long time service.
3. Gear wheel/ rack transmission, high precision, could engrave 1mm letter clearly.
4. Water cooling spindle (24000rpm), apply to long time processing of wood products.
5. The advanced professional control system compatible with many instruction format, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
6. All the spare parts are provided by most famous brand, with stable high quality.
7. It can do three-dimensional processing fast, smoothly, engraving or cutting.
8. Our software is compatible with type3/artcam/castmate/weitai and so on.
9. Through the CE quality authentication.

Technical specification

Number	Description	Parameter
1	X,Y,Z Working Area	1300mmx2500mmx200mm
2	Table Size	1450mm×2940mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	Vacuum and T-slot Combined (Option: T-slot Table)
6	Frame	Welded Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	3KW(Without Spindle)
10	Max. Rapid Travel Rate	33000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Power	3.0/4.5/6/7KW
13	Spindle Speed	0-18000RPM
14	Drive Motors	Stepper System
15	Working Voltage	AC380V/50/60Hz,3Phs (Option: 220V)
16	Command Language	G Code
17	Operating System	DSP System(Options: Ncstudio/Syntec Software)
18	Computer Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER25/ER32
21	X,Y Resolution	<0.03mm
22	Software Compatibility	Type3 Software, (Option: Artcam Software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3300mmX2100mmX2300mm
26	N.W.	1750KG
27	G.W.	1980KG
28	Optional Parts	Air Cooling Spindle or Water Cooling Spindle
		Syntec Control System
		Dust Collector
		Vacuum Pump
		Rotary System
		Mist-cooling System
		850W Yaskawa/750W Panasonic Servo Motors

Main configuration


Samples

Packaging & Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Services
#Two years warranty time for the machine.
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours

Company Information
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.



FAQ
Question 1: How long about the machine's guarantee?
Answer: 2years
Question 2: How about your after service?
Answer: Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer: Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer: 30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
