3D CNC Kitchen Utensils Forming Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Certification：CE
- Condition：New
- Axis：9
- Raw Material：Steel Bar
- Left to Right Moving Range：Lift:100mm Right:60mm
- Twisting Head Lifting Height：20-80mm
Base Info
- Platform Lifting Height：25-120mm
- Power：CNC
- Wire Size：3.0-8.0mm
- Feeding Front and Back Moving Range：Front:300mm Back:100mm
- Extra Services：Welding , Brazing
- Automation：Automatic
- Wire Turning Angle：Unlimited
- Feeding Roller Number：3 Pairs
- Machine Type：Bending Machine
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Material / Metal Processed：Stainless Steel
- Transport Package：Export Standard Wooden Box
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Platform Lifting Height 25-120mm Power CNC Wire Size 3.0-8.0mm Feeding Front and Back Moving Range Front:300mm Back:100mm Extra Services Welding / Brazing Automation Automatic Wire Turning Angle Unlimited Feeding Roller Number 3 Pairs Machine Type Bending Machine After-Sales Service Provided Engineers Available to Service Machinery Overseas Material / Metal Processed Stainless Steel Transport Package Export Standard Wooden Box Trademark WG Origin Guangdong, China (Mainland)Product Description

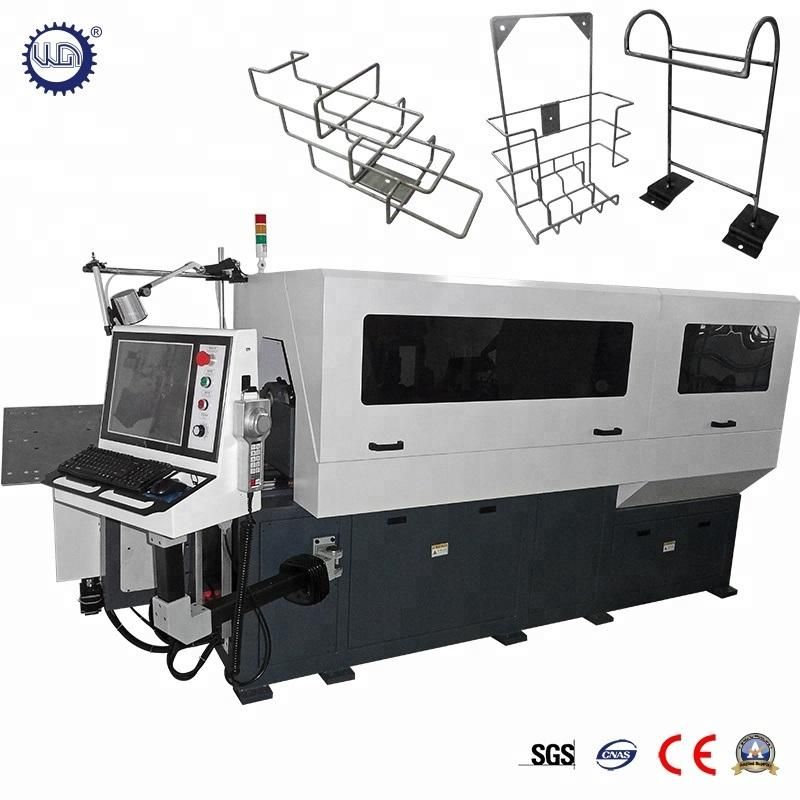

Product Description3D CNC Wire Baskets Bending Machine
Production description :CNC 3D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Technical parameter:
| Model | GT-WB-80-9A |
| Wire Size(mm): | 3.0-8.0 |
| Axis: | 9 |
| Feeding Roller Number: | 3 pairs |
| Wire Turning Angle: | Unlimited |
| Platform lifting height: | 25-120mm |
| Twisting head lifting height: | 20-80mm |
| Left to right moving range | left:100mm right:60mm |
| Feeding front and back moving range | front:300mm back:100mm |
| Machine size(cm) | 350*120*150 |
| Machie weight(kg) | 3400.0 |
| Model | GT-WB-60-5A | GT-WB-60-10A | GT-WB-80-9A | GT-WB-100-9A | GT-WB-120-7A |
| Wire Size(mm): | 2.0-6.0 | 2.0-6.0 | 3.0-8.0 | 5.0-10.0 | 5.0-12.0 |
| Axis: | 5 | 10 | 9 | 9 | 7 |
| Feeding Roller Number: | 3 pairs | 3 pairs | 3 pairs | 4 pairs | 4 pairs |
| Wire Turning Angle: | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Platform lifting height: | 50-170mm | 50-170mm | 25-120mm | 25-120mm | 25-120mm |
| Twisting head lifting height: | 20-100mm | 20-100mm | 20-80mm | 20-80mm | 20-80mm |
| Distance between cutting and bending head | / | / | / | 305mm | 305mm |
| Distance between bending head and machine body | / | / | / | 800mm | 800mm |
| Out twisting lifting height | / | 20-55mm | / | / | / |
| Left to right moving range | / | left:80mmright:40mm | left:100mm right:60mm | / | / |
| Feeding front and back moving range | / | front:300mm back:100mm | front:300mm back:100mm | / | / |
| Machine size(cm) | 180*120*120 | 300*120*140 | 350*120*150 | 380*140*170 | 450*180*170 |
| Machie weight(kg) | 3000.0 | 3200.0 | 3400.0 | 4800.0 | 8600.0 |
Advantages & Main Features
1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution

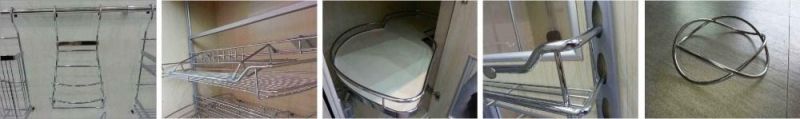

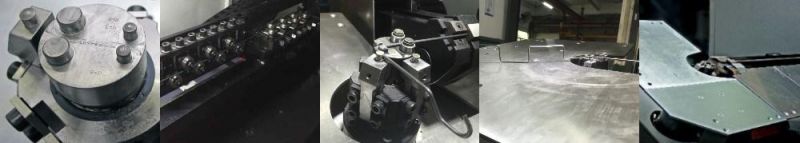

Detailed Images
Certifications
Service Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Related Products

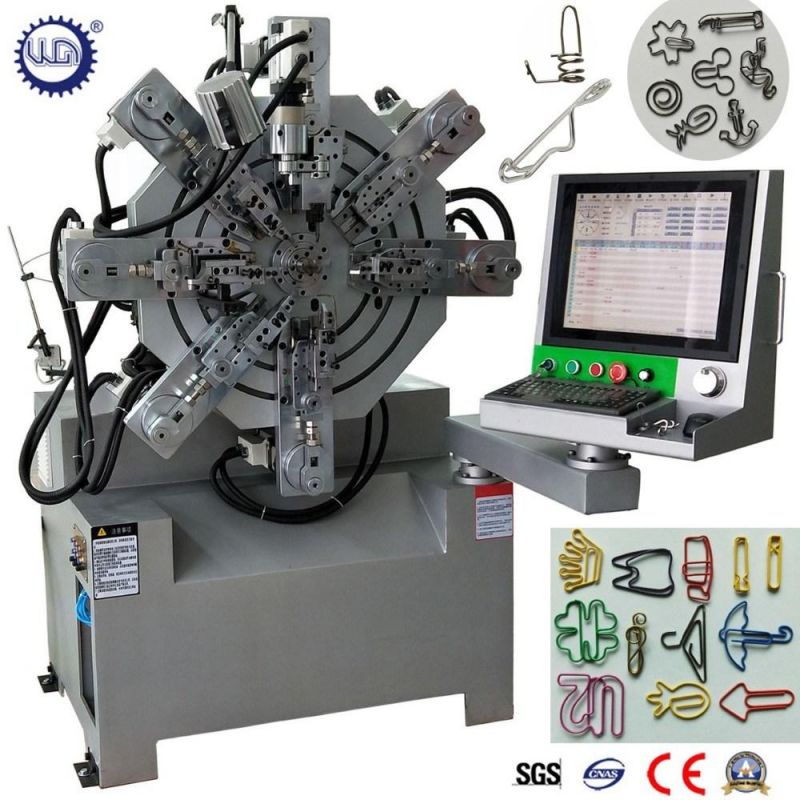

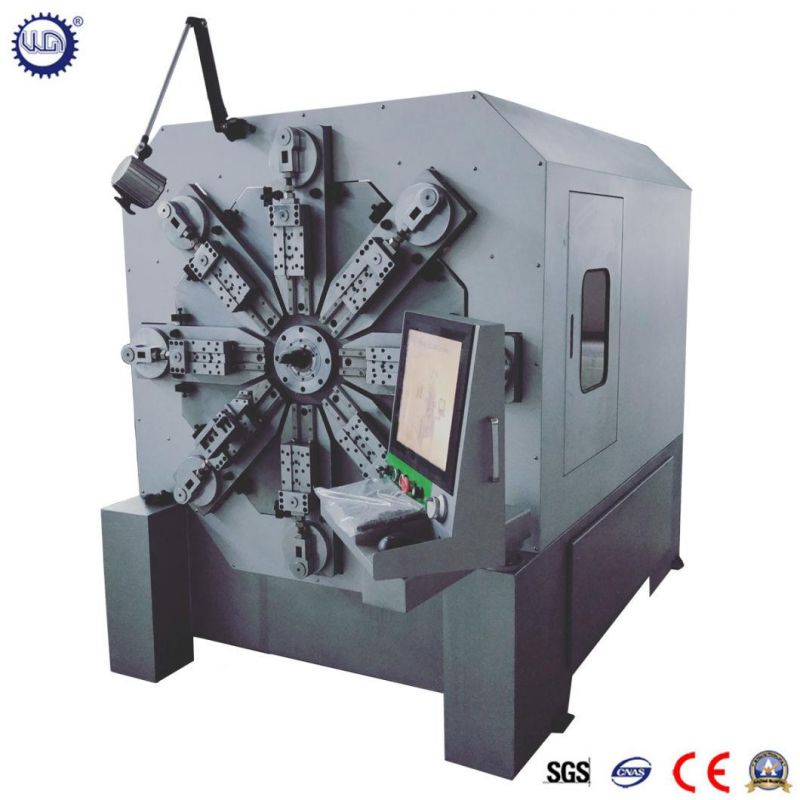

multiaxis CNC wire bending machine
91.8% Response Rate
PLC controller wire bending machine
91.8% Response Rate

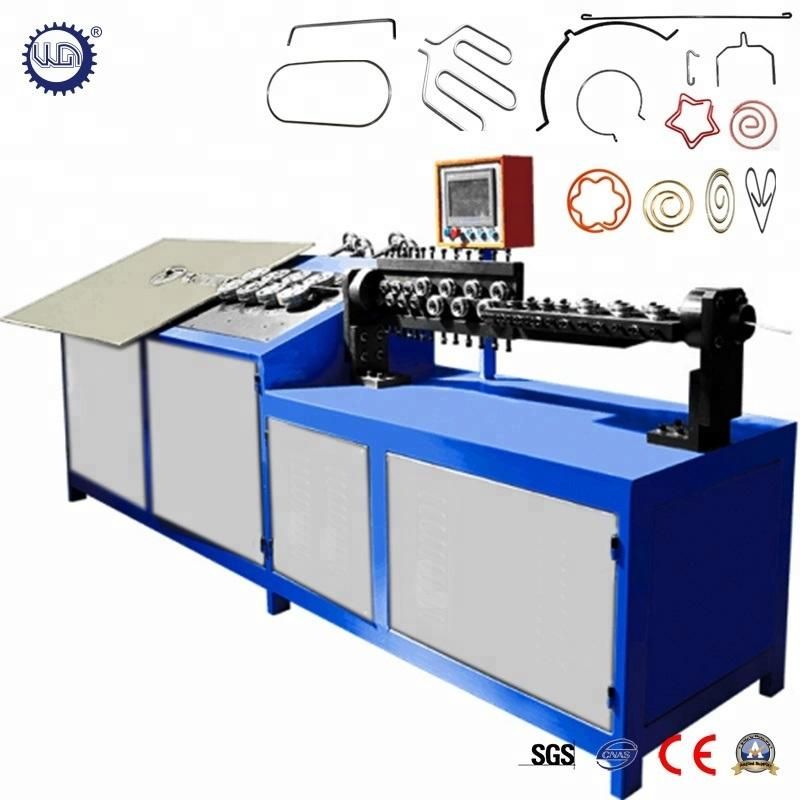

2D CNC hydraulic wire bending machine
