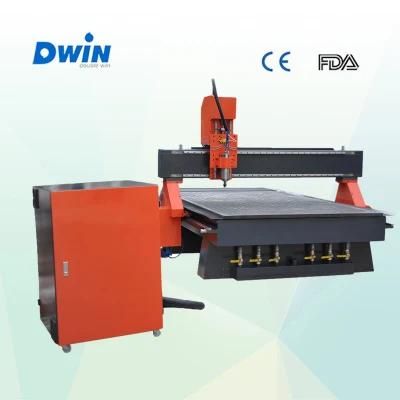

600X900mm 2.2kw Aluminum Cutting Machine Price (DW6090)
Jinan Dwin Technology Co., Ltd.- Certification：CE, ISO, FDA
- X,Y Working Area：600mm*900mm
- Z Working Area：100mm
- Water Tank：Yes
- Reposition Precision：0.02mm
- Table Structure：T-Slot Extrusions
Base Info
- Model NO.：DW6090
- Spindle Power：2.2kw
- X,Y,Z Structure：Ball Screw
- Max Ilding Speed：12000mm,Min
- Operation Command：G Code
- Drive Motor：Stepper
- Transport Package：Plywood Box, Free From Fumigation
- Specification：CE
- Trademark：DWIN
- Origin：Jinan, Shandong, China
- HS Code：846599
- Production Capacity：50sets Per Month
Description
8Y Structure Hiwin Rail Linear Bearings and Ball Screw 9 Max. power Consumption 0.8Kw 10 Max. Rapid Travel Rate 8000mm/min 11 Max. Working Speed 12000mm/min 12 Spindle Power Motor 2.2 Kw self cooling spindle 13 Spindle Speed 0-24000RPM 14 Drive Motors Stepper system 15 Working Voltage AC220V/50/60Hz 16 Command Language G code 17 Operating System DSP System (Option:Mach3 PC Software) 18 Interface USB 19 Flash Memory 128M(U Disk) 20 Collet ER16 21 X,Y Resolution <0.01mm 22 Software Compatibility Type3 software, Ucancam software, (Option: Artcam software) 23 Running Environment Temperature: 0°C~45°C Relative humidity: 30%~75% 24 Packing Size 1710 *1250 * 1585mm 25 Net Weight 180KG 26 Gross Weight 272KG
