Melamine Plywood Core Hot Press Machine for Hydraulic Woodworking
Shandong Hummingbird machinery Co., Ltd.- Warranty：2 Years
- Work Forms：Hot Press Machine
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：High Pressure
Base Info
- Model NO.：HBHP004
- Pressing Layer：Multi Layer
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE, ISO, FDA
- After-sales Service：Field Installation, Commissioning and Training
- Dimension(L*W*H)：3550*1370*4200mm
- Hot Platen Size：2700*1370*42mm
- Voltage：380V
- Power：26kw
- Weight：35000kgs
- Application：Plywood Production
- Color：Customer′s Requirement
- Total Power：26 Kw
- Usage：Hot Pressing
- Working Methods：Automatic Hot Press
- Cylinder：360mm*1050*2PCS
- Board Feeding Direction：Transverse
- Layers：15layers
- Layer Spacing：70mm
- Number of Hot Press Plate：16PCS
- Transport Package：1. in Nude 2. as Clients Requirement
- Specification：3550*1370*4200mm
- Trademark：Humming Bird
- Origin：Shandong, China
- HS Code：846599
- Production Capacity：20 Sets , Month
Description
Overview

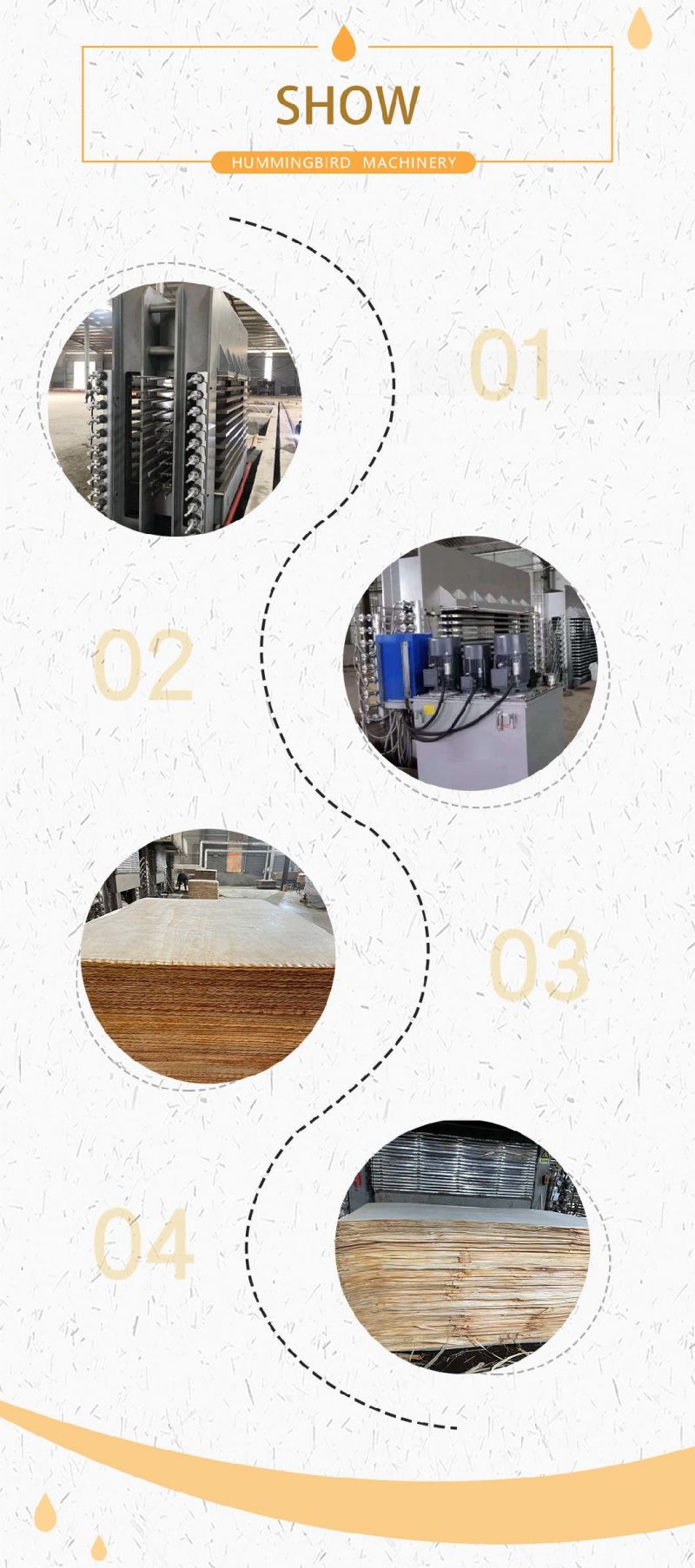

Product DescriptionDetailed Photos
3.According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4.Welcome to visit our factory
3. Train the first-line operator
3) Provide technical exchanging
Packaging & Shipping
Our Service
Pre-sale service
1.Provide the free consultation of equipment 2.Provide the standard device and the flow chart3.According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4.Welcome to visit our factory
Service during the sales
1. Inspect the machine before leaving the factory 2.Oversea install and debug the equipment3. Train the first-line operator
After sales service
1) 24 hours online service 2) Provide the VIDEO with install and debug the equipment3) Provide technical exchanging
