• Model NO.：S400-K1
• Numerical Control：CNC,Mnc
• Processing Precision：0.01~0.02(mm)
• Performance Classification：MID-Range CNC Machine Tools
• Application：Wood, Bamboo, Marble, Organic Board, Color Plates
• Movement Method：X,Y and Z Axis Are All Ball Screw
• Configuration：9kw Air Cooling Spindle
• Transport Package：Plywood Case Package
• Specification：Working Area: 1230*2450*200mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

BasicX/Y/Z Axis Working Area1230*2450*200mmMachine Size3150*2150*1650mmTable StructureDouble vacuum chamber absorption tableBody StructureHeavy-duty thicken steel structure w/ temperingMainControl SystemTaiwan Syntec 6MB control systemDrive SystemJapan Yaskawa servo motorSpindle Motor Power9KW air cooling spindle; 0 ~ 24000 rpm/min






OthersTool MagazineTracking mode circular tools change, 12pcsTransmissionXY and Z axis are all ball screwGuide RailTaiwan PMI/Hiwin 25mm rectangular linear railInverterZoncn/Delt/Fuling brandMax Working Thickness250mmTool sensorMARSLimit switchJapan OmronCableMARS cable, anti-static, anti-interference, bending resistanceBeamReinforced steel beamTravelling Speed48/60/15Max Processing Speed30m/minWorking Accuracy±0.02mmRe-positioning Accuracy±0.08mmDictate FormatG-Code / HPGLWorking VoltageAC380V/ 3PH/ 50HZNet Weight3000KG
Accessories:

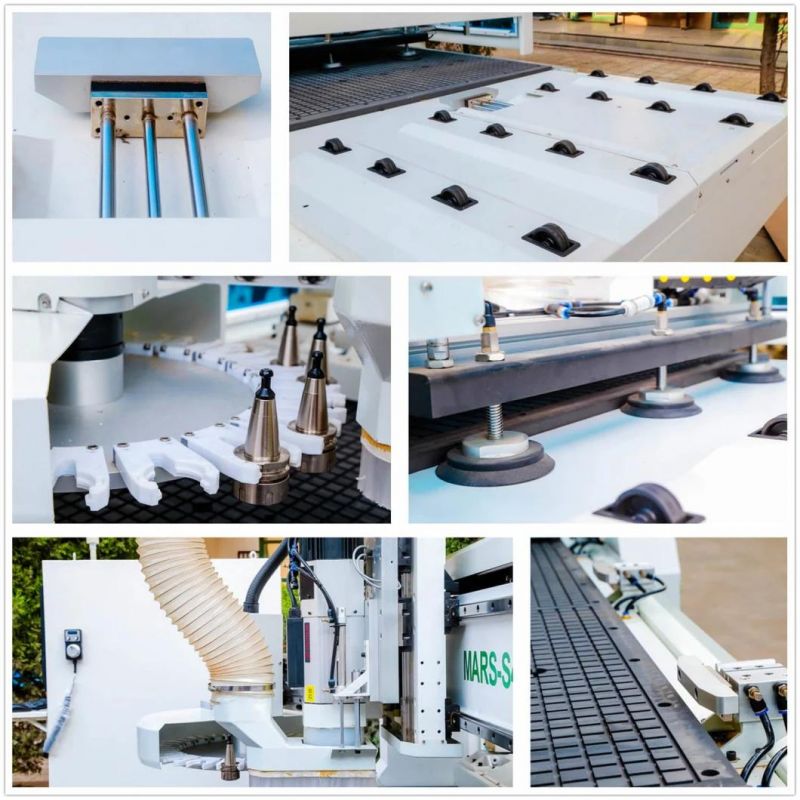

Performance Features:

1	Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver
2	9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics
3	Vacuum table, high adsorption capacity, able to adsorb materials of different sizes
4	Taiwan-made guide rail and ball screw, high precision, long service life, good stability
5	Taiwan Syntec control system, easy to operation,fully support automatic production
6	All 3 axis ball screw drive can achieve much higher precision.
7	Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area

Samples:
