• Model NO.：S100
• Max. Traveling Speed：80m,Min
• Max. Working Speed：30m,Min
• Working Working Voltage：AC3800,50Hz
• Control System：Syntec,Delta
• Transport Package：Plywood Case Package
• Specification：1230*2450mm
• Trademark：Mars
• Origin：Hefei
• HS Code：8458110090
• Production Capacity：3000

Basic Info.

Model NO. S100 Max. Traveling Speed 80m/Min Max. Working Speed 30m/Min Working Working Voltage AC3800/50Hz Control System Syntec/Delta Transport Package Plywood Case Package Specification 1230*2450mm Trademark Mars Origin Hefei HS Code 8458110090 Production Capacity 3000

Product Description

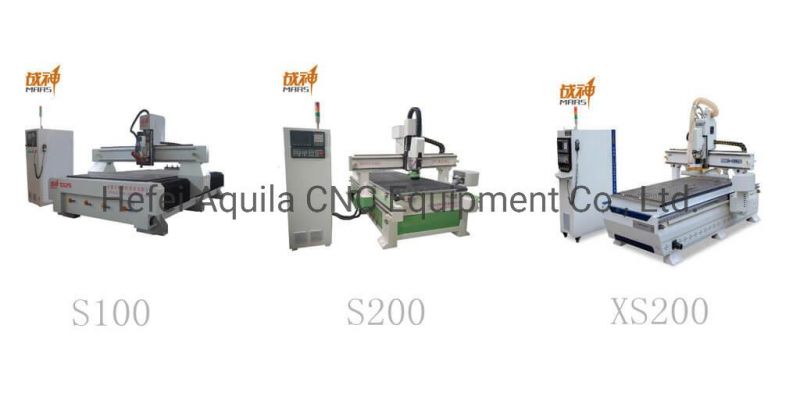

S100 Atc CNC Linear Type Machining Center
 Keywords: 15 years experience of production
                          ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                         Three Brands: Mars, Golden Eagle, Boiro
                         Technicist who go abroad to offer after-sale service




Technical Parameters:


Model	S100 Linear Type ATC CNC Machining Center
Working Stoke	1300*2500*100mm
Body Structure	Thick-walled steel tube welded
Spindle Power	HSD 9KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Control System	Syntec/ Osai
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Vacuum Pump	5.5KW
Max Travelling Speed	25m/min
Max Processing Speed	15m/min

Functions:
The functions of this machine include cutting,milling,drilling and slotting.

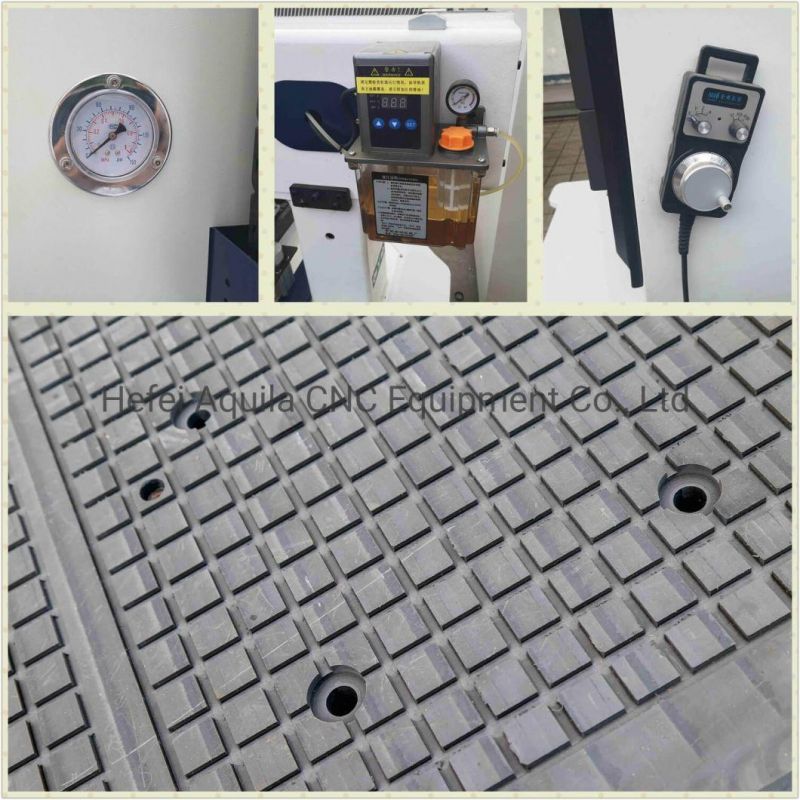

Accessories:





Applicable Scope:

Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings
Applicable Materials:
Artificial stone, wood, bamboo, marble, organic board, color plates and other materials.





Samples:

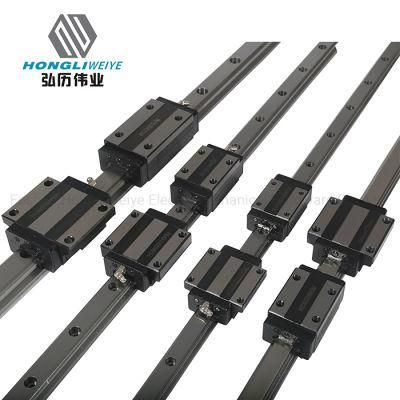

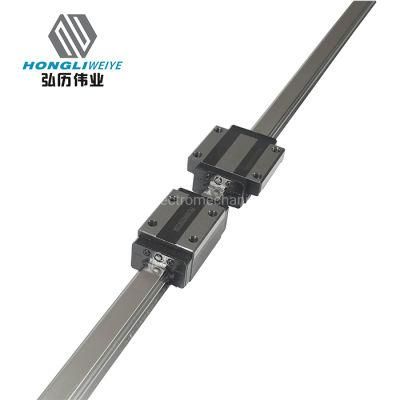

Similar Products:
