• Model NO.：ZS2512R
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. ZS2512R Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/Year

Product Description

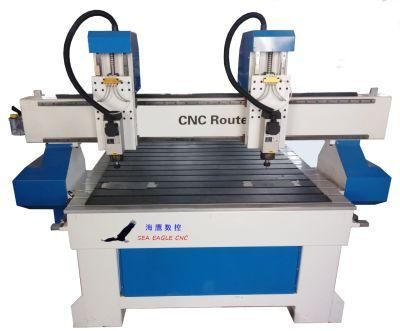

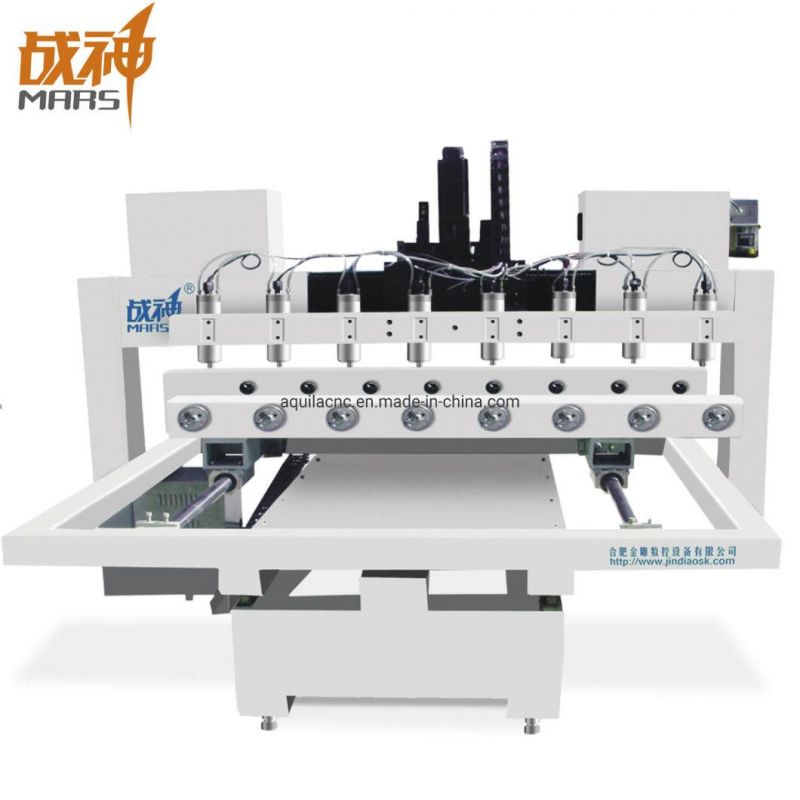

ZS2512R Fours Axis Rotary Wood CNC Machine Router

Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio



Description:
ZS2512R Fours Axis Rotary Wood CNC Machine Router can process three-dimensional technology and complex workpiece;It can be used for 360-degree carving of human body,Buddha and crafts,etc.It is suitable for the carving of wood work.

Functions:
The function of this machine includes 360 degree carving.

Applicable Materials:
Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper.


Application Scope:
Can be widely used for the 3D processing of body sculpture, statues, artware, furniture, stone columns, etc..

Parameters:

Model	ZS2512R Fours Axis Rotary Wood CNC Machine Router
Working Stoke	Ø250X1200mm
Feeding Height	160mm-250mm
Machine Size	2700*2000*2100mm
Working Table	Thick steel tube welded, with tempering
Table Structure	T-slot
Body Structure	Heavy-duty thicken steel structure with tempering
Control System	RichAuto-A11 DSP
Drive System	SG servo motor
Spindle Motor Power	2*2.2KW frequency water-cooling spindle; 0 ~ 24000 rpm/min
Lubrication System	Automatic
Transmission	XY axis rack and pinion (PMI), Z axis ball screw (TBI)
Guide Rail	Taiwan PMI/Hiwin 25mm rectangular linear rail
Engraving Tool	Ø3.175/ 4/ 6/ 12.7mm
Inverter	Zoncn/Fvling
Tool sensor	MARS
Limit switch	Japan Omron
Cable	MARS cable, anti-static, anti-interference, bending resistance
Beam	Reinforced steel beam
Max Travelling Speed	50m/min
Max Processing Speed	30m/min
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Dictate Format	G-Code / HPGL
Working Voltage	AC380V/ 3PH/ 50HZ
Support Software	Professional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)
Net Weight	2500KG

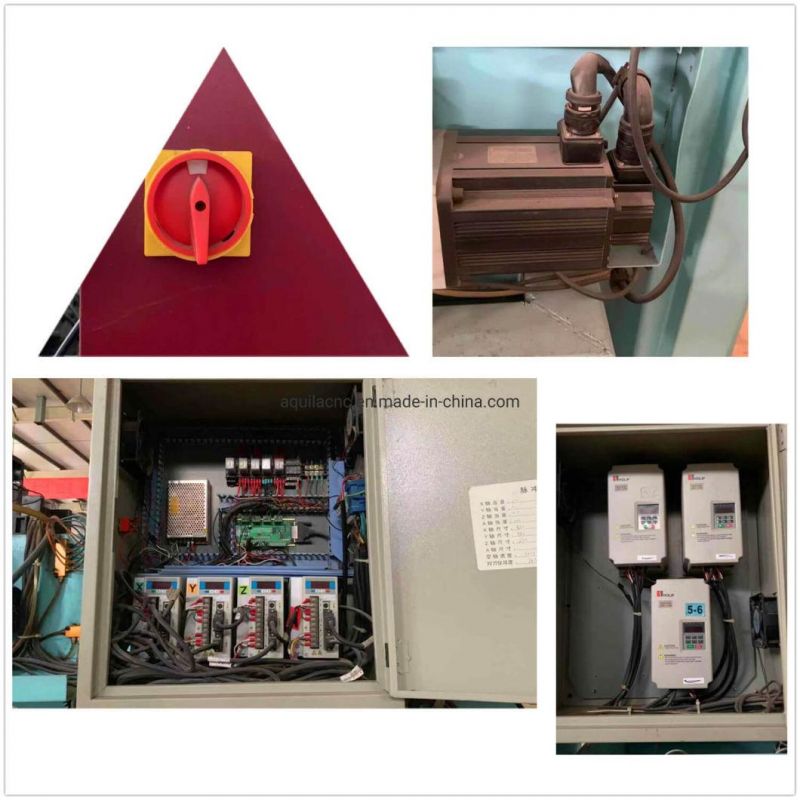

Accessories:


Performance Features:
1.Selection of imported ball screw, high precision dividing head, big clamping diameter, can be adapted to different sizes of cylindrical material.
2.National patent box-type column.
3.High-precision drive systems.
4.Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation.
5.Using a unique intelligent prediction algorithm, gives full play to drive potential to achieve high speed processing, linear and curve synchronous, the curve is more smooth..
6.Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
7.With break-point and power-off memory function, ensure continuous processing after an accident of tool breaking or power-off.
8.Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..

Samples:


Pack and delivery:


Warranty Information:
1.Warranty and Service:
Guarantee:12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price.
Technical support: You will also get technical support and service all the lifetime.
(1).Technical support by phone, email or Whatsapp/Skype around the clock.
(2).Friendly manual and operation video online.
(3).Engineer available to service machinery overseas.
2.After sales Services:
(1).Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
(2).You will be able to get free training advice towards our machine in our factory.
(3).You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
3.Quality control:
(1).Skilled and Strict Quality Inspection Team is available during the material purchasing and production procedure according to ISO 9001:2015.
(2).All finished machine we shipped out are 100% strictly tested by our QC department and engineering department.

FAQ Before Ordering:
Q 1. I have no idea which machine can meet my need,what should I do?
A: Please tell the what's material you want to working on ?
     What's the MAX size of these material ?( length ? Width ? Thickness ?)
     Then I will recommend the most suitable machine for you.

Q 2. I do not know how to handling CNC Router,what should I do?
A: We will supply you a training video and English handbook to teach you how to operate.Or we will welcome you to arrive China to field-based learning .

Q 3. If my machine has some problems in the warranty period,what should I do?
A: If the machine part broken within warrantry time,we will send new part to you for free.

Q 4.How about your after-sales service ?
A: Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock. And we can arrange technician go to your company to solve problem if neeeded.

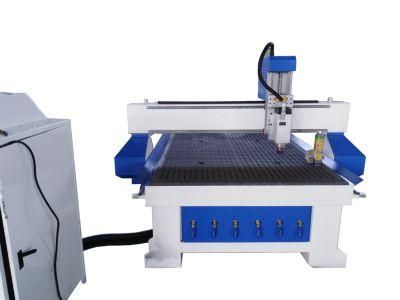

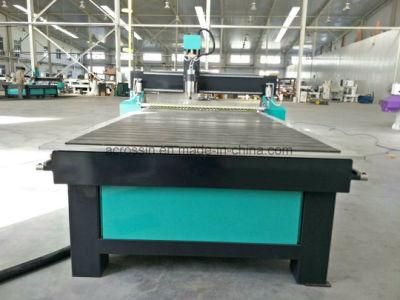

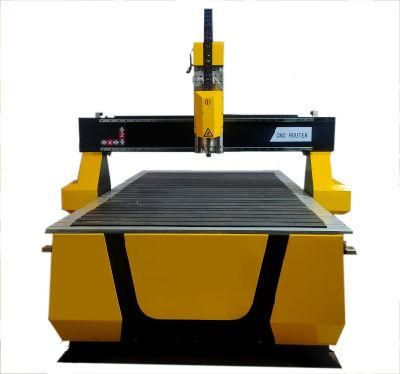

Similar products:


Our company:
Our company is 15 years professional manufacturers of panel furniture production line equipment, CNC cutting machine, five surface drilling, PTP machine, CNC machining center, wood carving machine, stone carving machine, jade carving machine, three-dimensional carving machine, mold machine.


Our certifications:


Why choose Hefei Aquila CNC Equipment Co., Ltd?
1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of  "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.

Our Services:
1. Convenient: 24th Hours sales/After-sales Service online or on the phone.
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market.
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others.
4. According to customers' drawing,customized specifications are welcomed.
5. Low MOQ,small orders can be accepted.

We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.

Contact Info.:
